Installation Procedure

  1. Install the front seat lumbar to the front seat back, if required. Refer to LUMBAR REPLACEMENT - FRONT SEAT  .
  2. Install the front seat back pad to the front seat back frame. Refer to SEAT BACK PAD REPLACEMENT - FRONT  .
  3. Install the front seat back cushion cover. Refer to SEAT BACK COVER REPLACEMENT - FRONT  .
  4. Install the front seat back. Refer to SEAT BACK REPLACEMENT - FRONT  .
  5. Install the front seat. Refer to SEAT REPLACEMENT - BUCKET  .

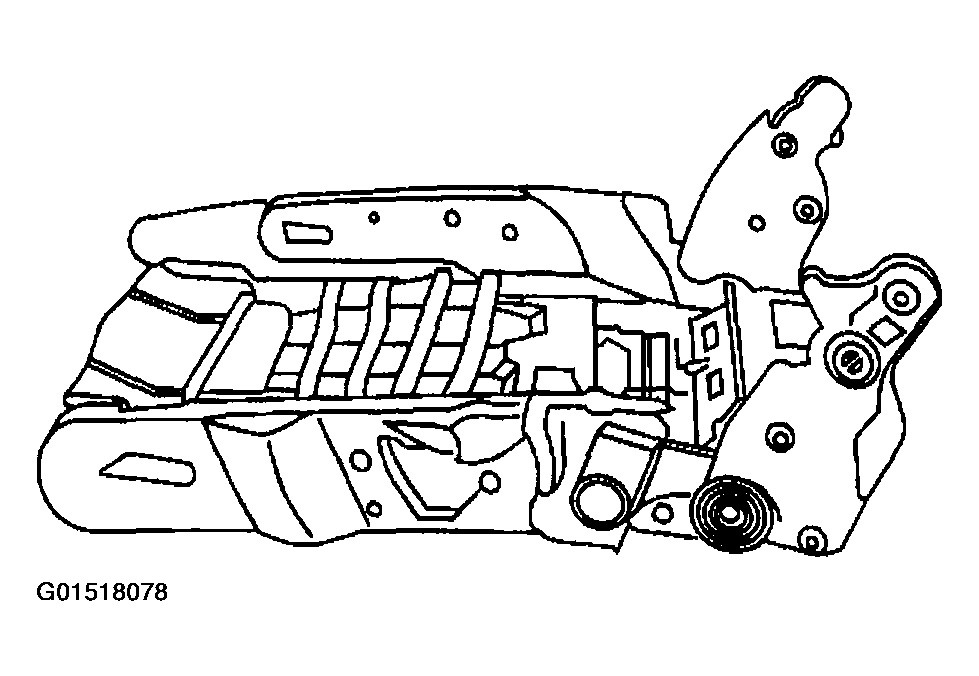

    Fig 1: Installing Front Seat Back Frame
    G01518078Courtesy of GENERAL MOTORS CORP.
