A/C Refrigerant Pressure Sensor Connector End View

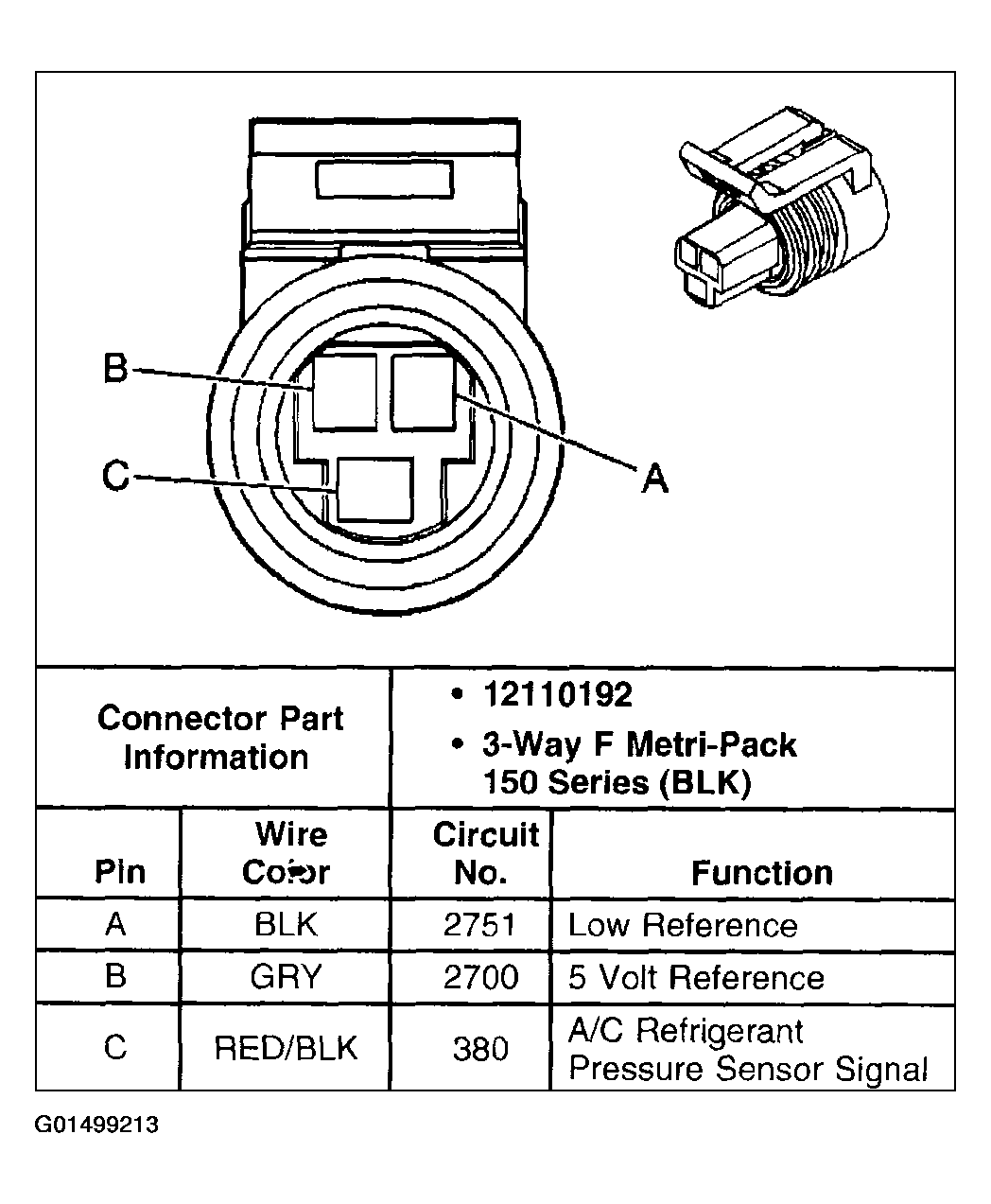

Fig 1: A/C Refrigerant Pressure Sensor
G01499213Courtesy of GENERAL MOTORS CORP.


Fig 1: A/C Refrigerant Pressure Sensor
G01499126Courtesy of GENERAL MOTORS CORP.
