In-Line Connector End View C101

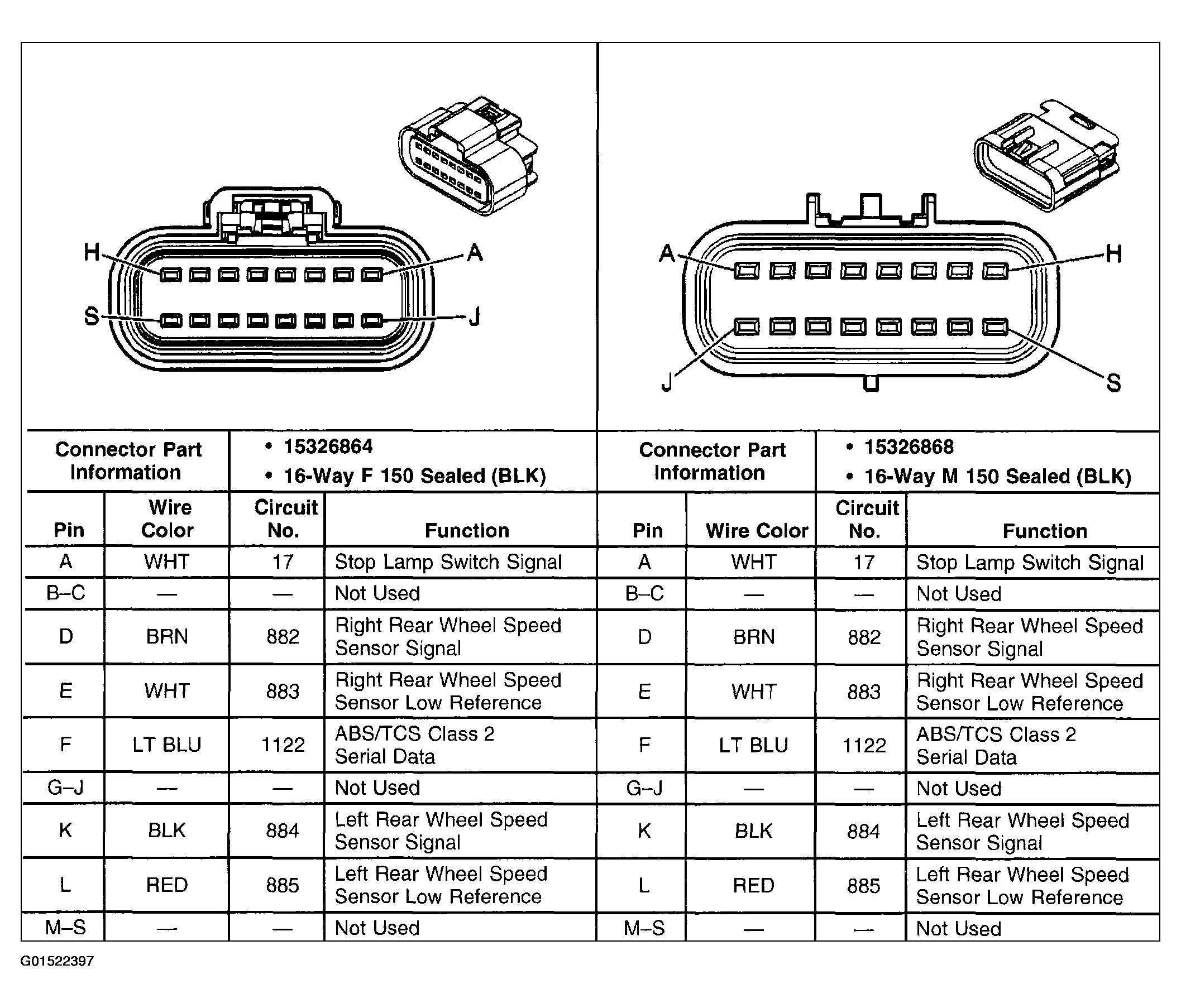

Fig 1: In-Line Connector C101

G01522397

Courtesy of GENERAL MOTORS CORP.
