In-Line Connector End View C105

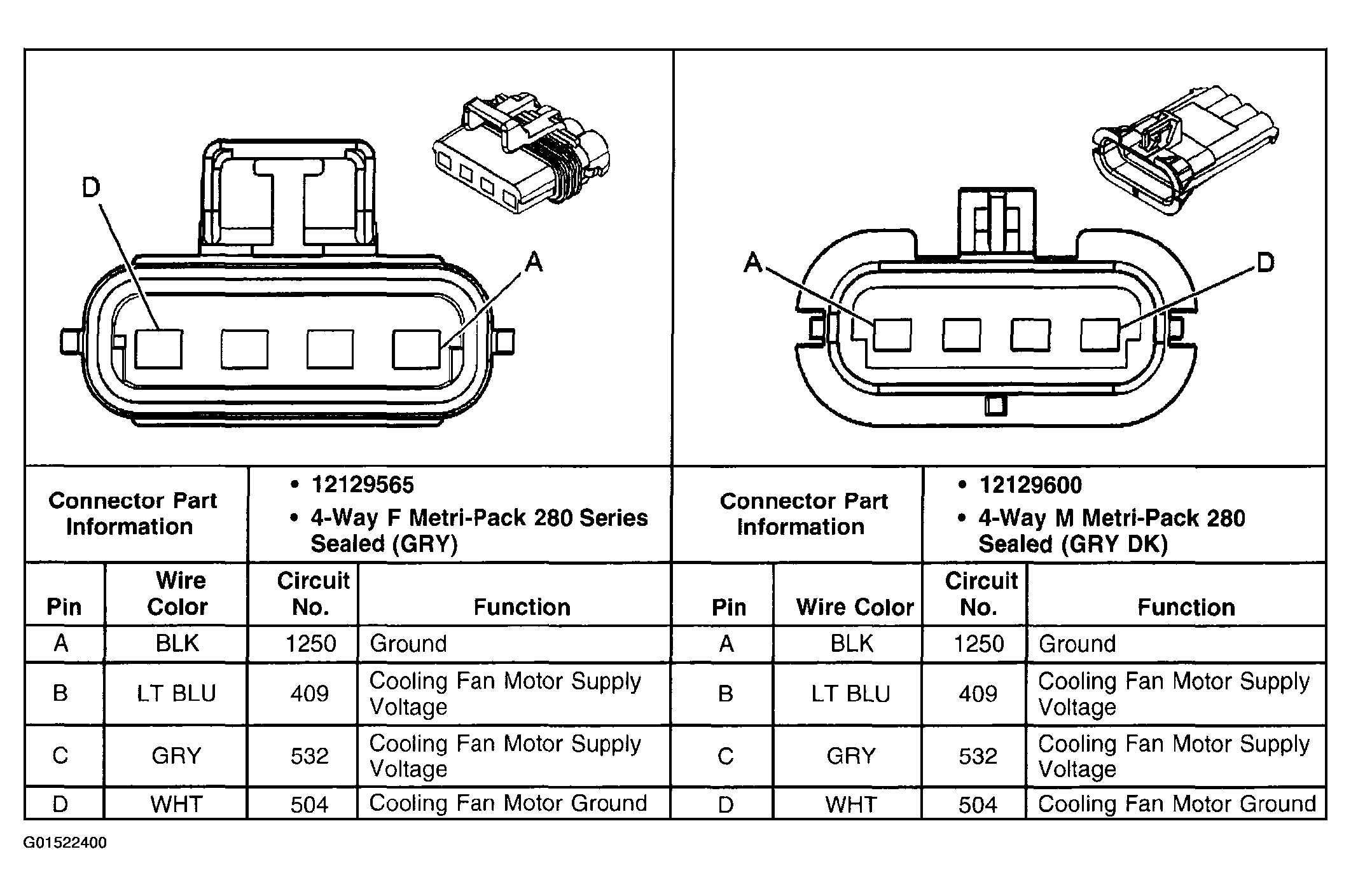

Fig 1: In-Line Connector C105
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
