In-Line Connector End View C308

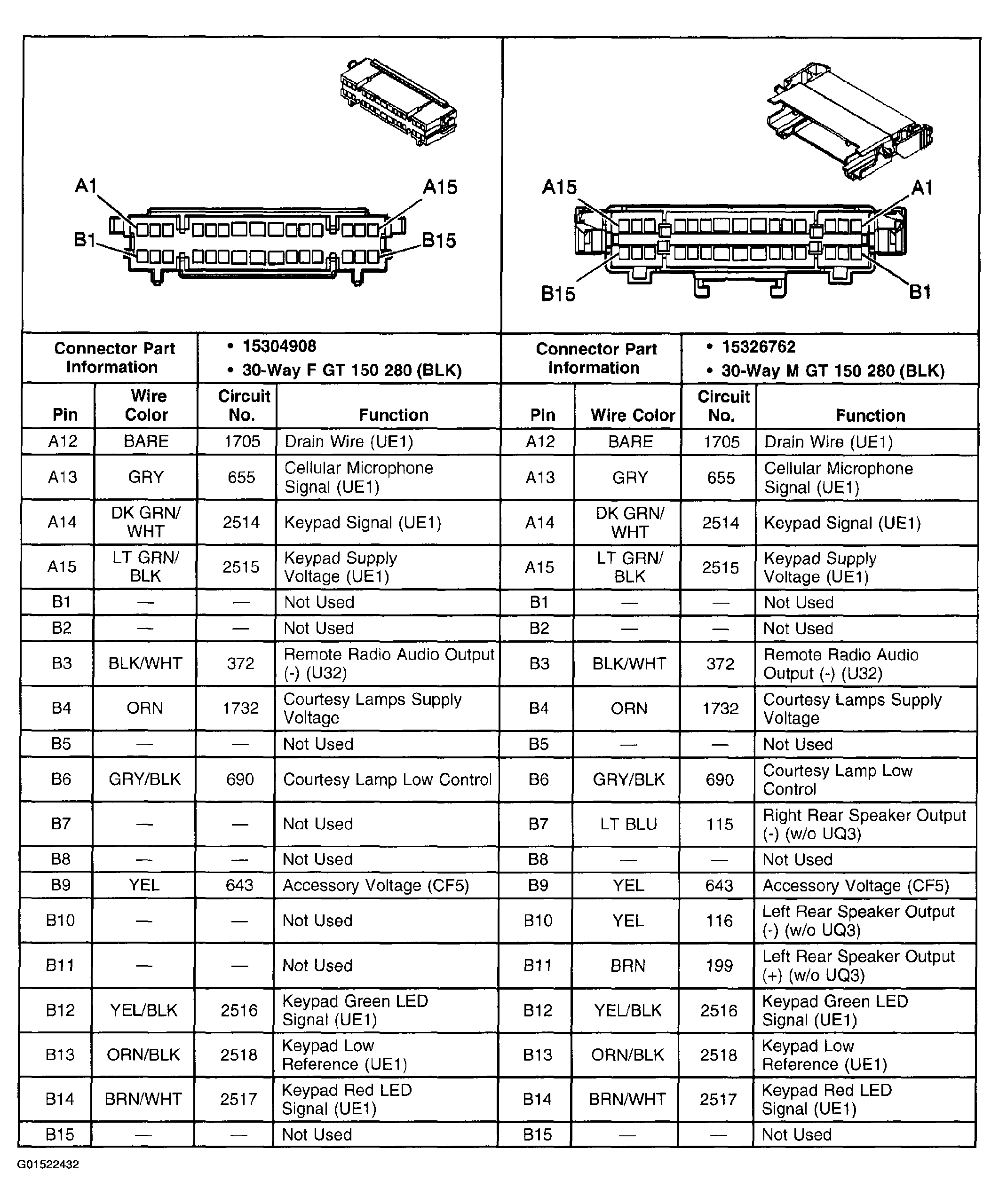

Fig 1: In-Line Connector C308
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
