SP409 Connector End View

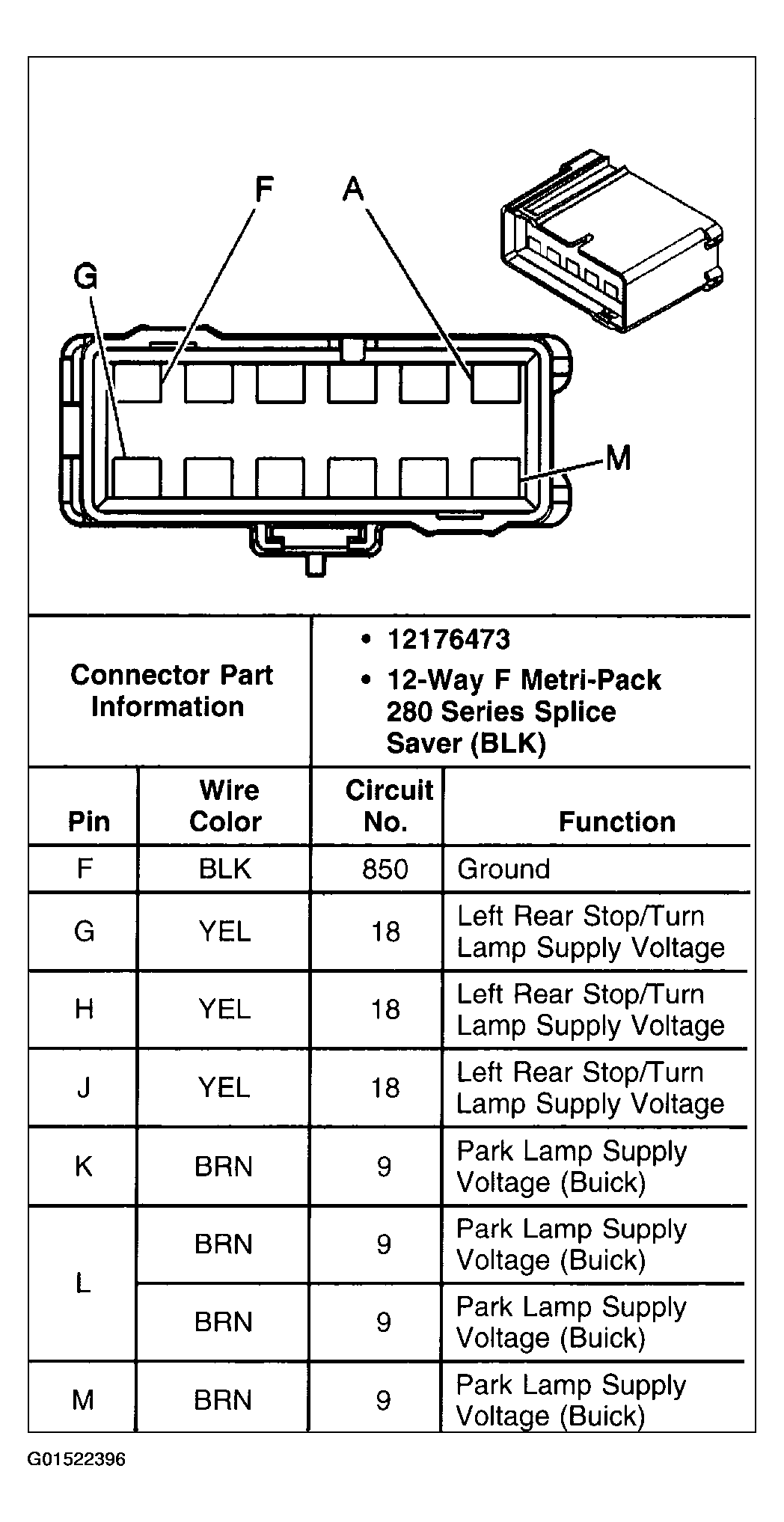

Fig 1: SP409
Courtesy of GENERAL MOTORS CORP.

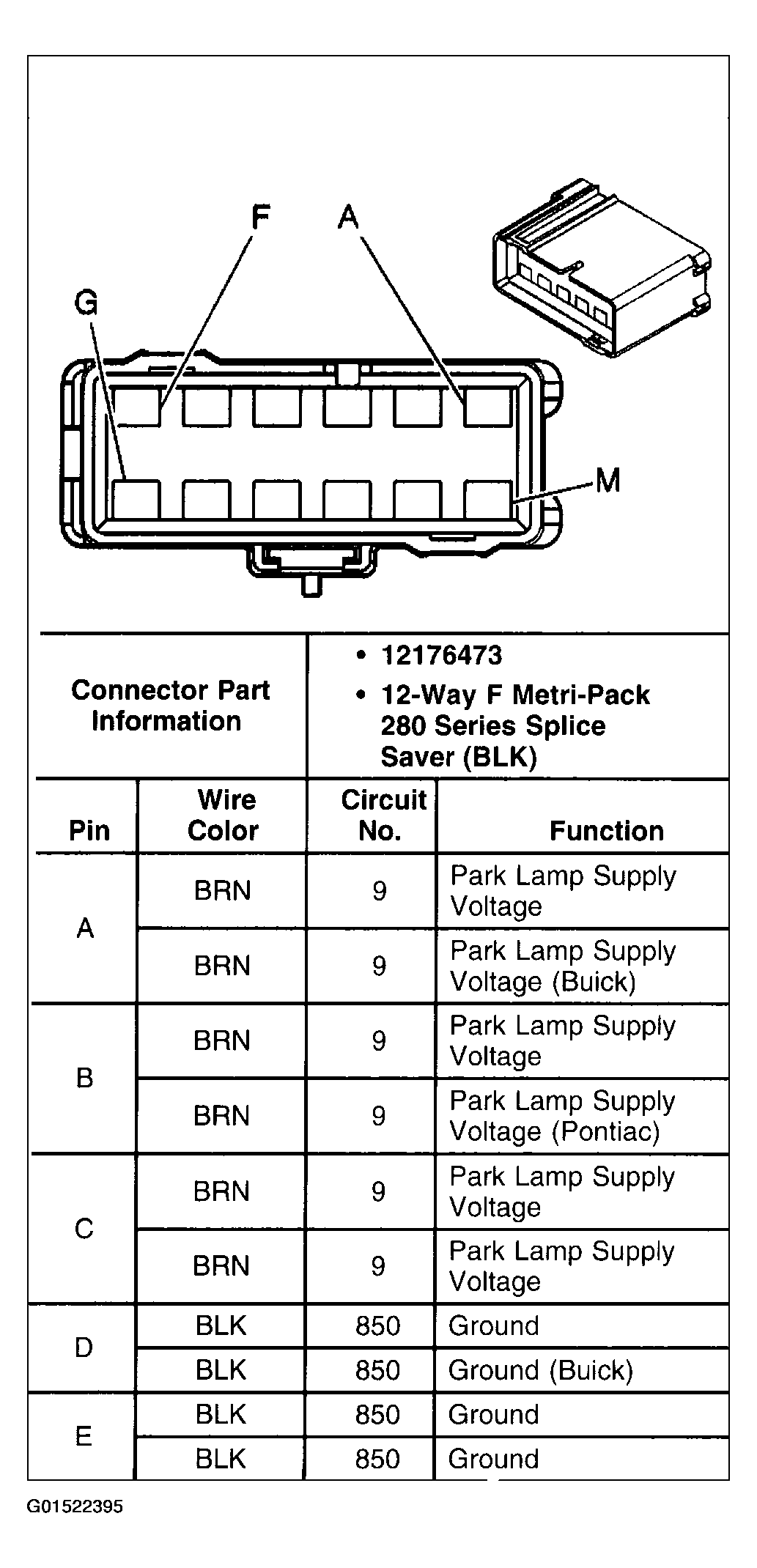

Fig 1: SP409
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
