Scan Tool Data List

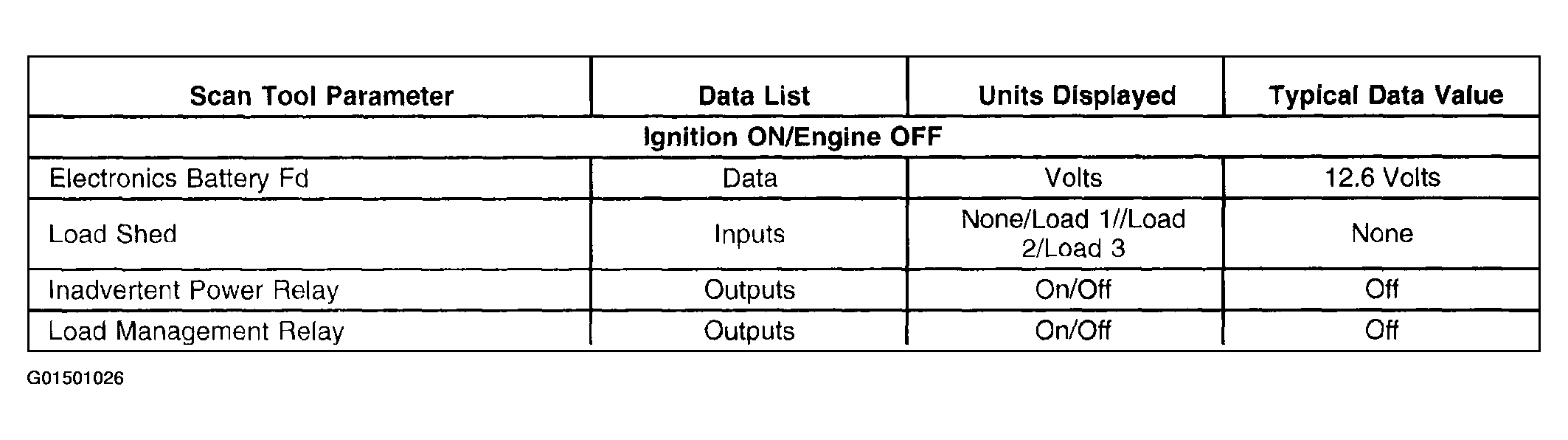

Fig 1: Scan Tool Data List - Body Control Module (BCM)
G01501026Courtesy of GENERAL MOTORS CORP.

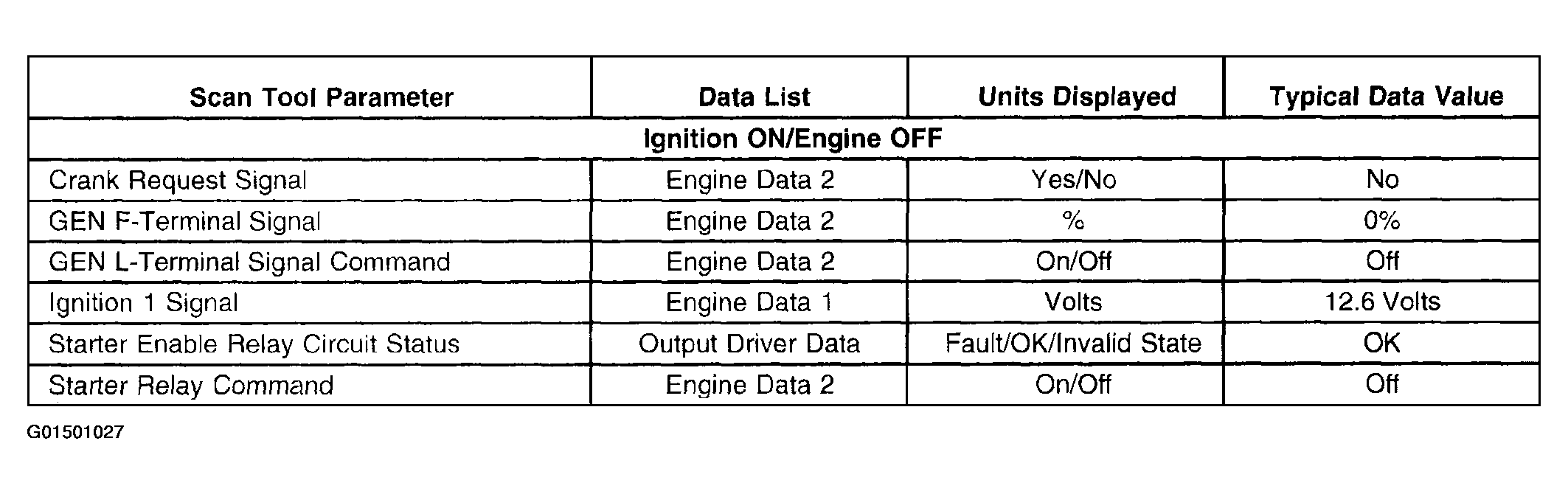

Fig 2: Scan Tool Data List - Powertrain Control Module (PCM)
G01501027Courtesy of GENERAL MOTORS CORP.
