In-Line Harness Connector End Views

Fig 1: Identifying In-Line Harness Connector End View C101
G01522397Courtesy of GENERAL MOTORS CORP.

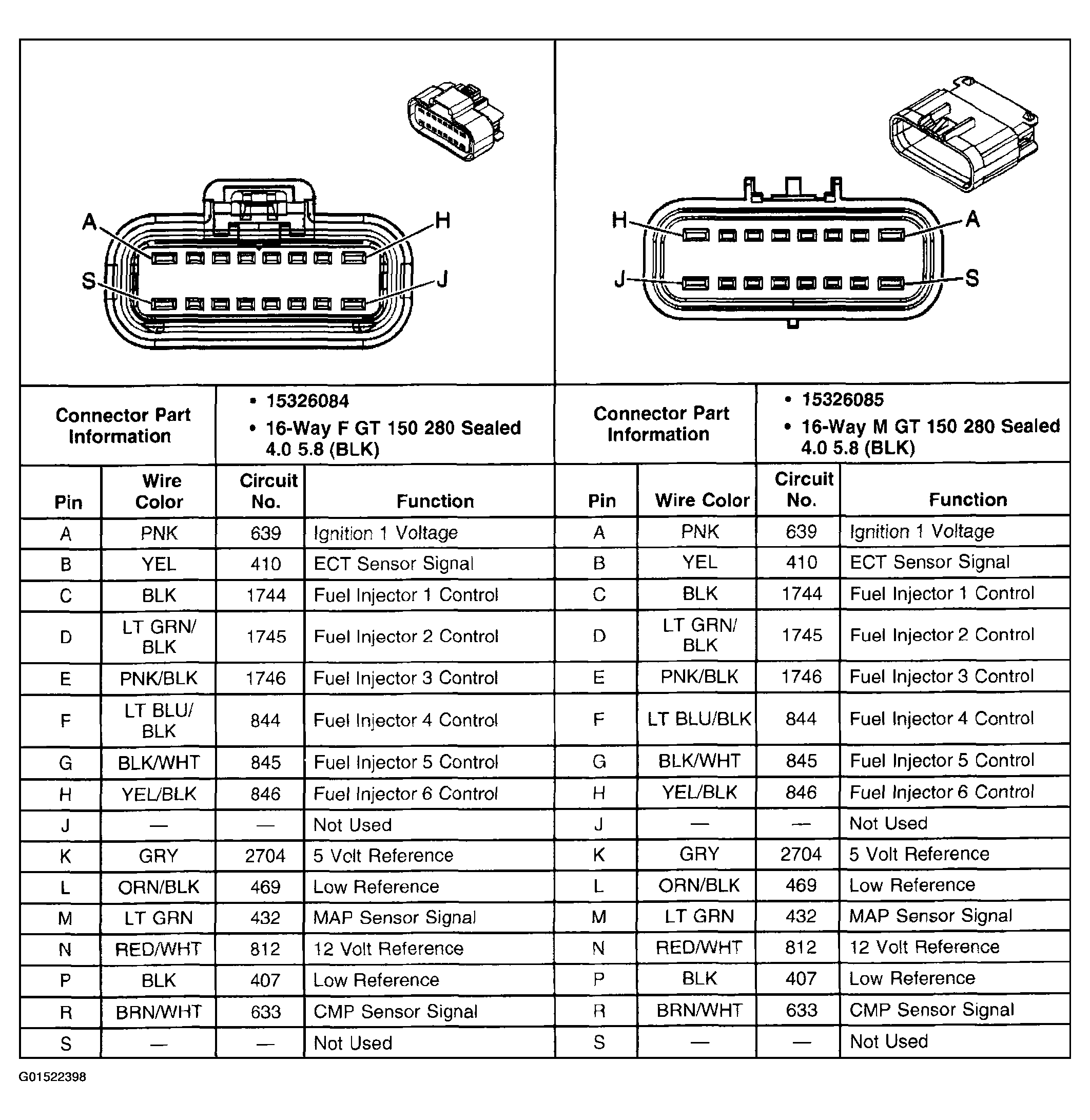

Fig 2: Identifying In-Line Harness Connector End View C102
G01522398Courtesy of GENERAL MOTORS CORP.
Fig 3: Identifying In-Line Harness Connector End View C103
G01522399Courtesy of GENERAL MOTORS CORP.
Fig 4: Identifying In-Line Harness Connector End View C105
G01522400Courtesy of GENERAL MOTORS CORP.

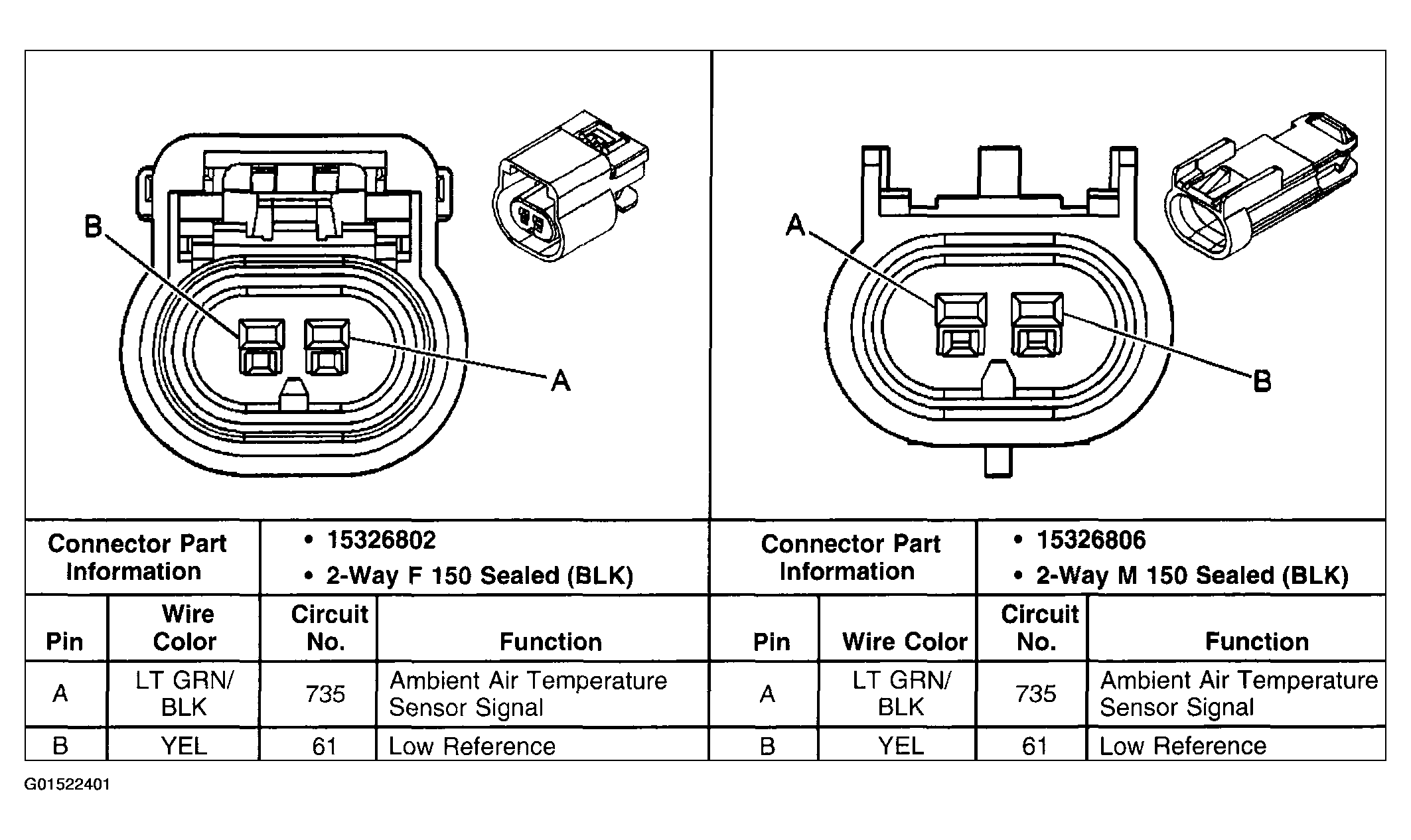

Fig 5: Identifying In-Line Harness Connector End View C120 - Pontiac/UH9
G01522401Courtesy of GENERAL MOTORS CORP.

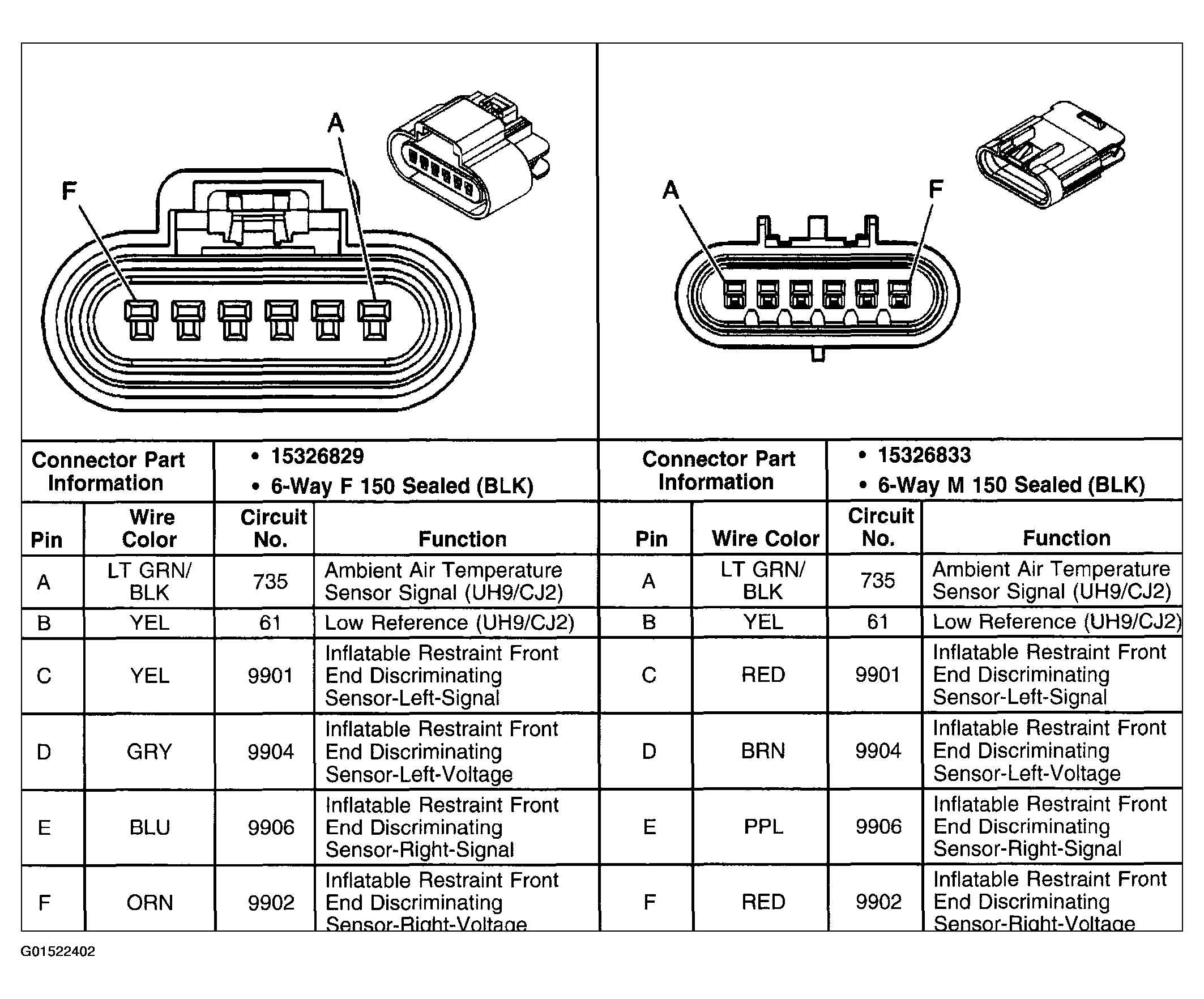

Fig 6: Identifying In-Line Harness Connector End View C121 - Buick
G01522402Courtesy of GENERAL MOTORS CORP.

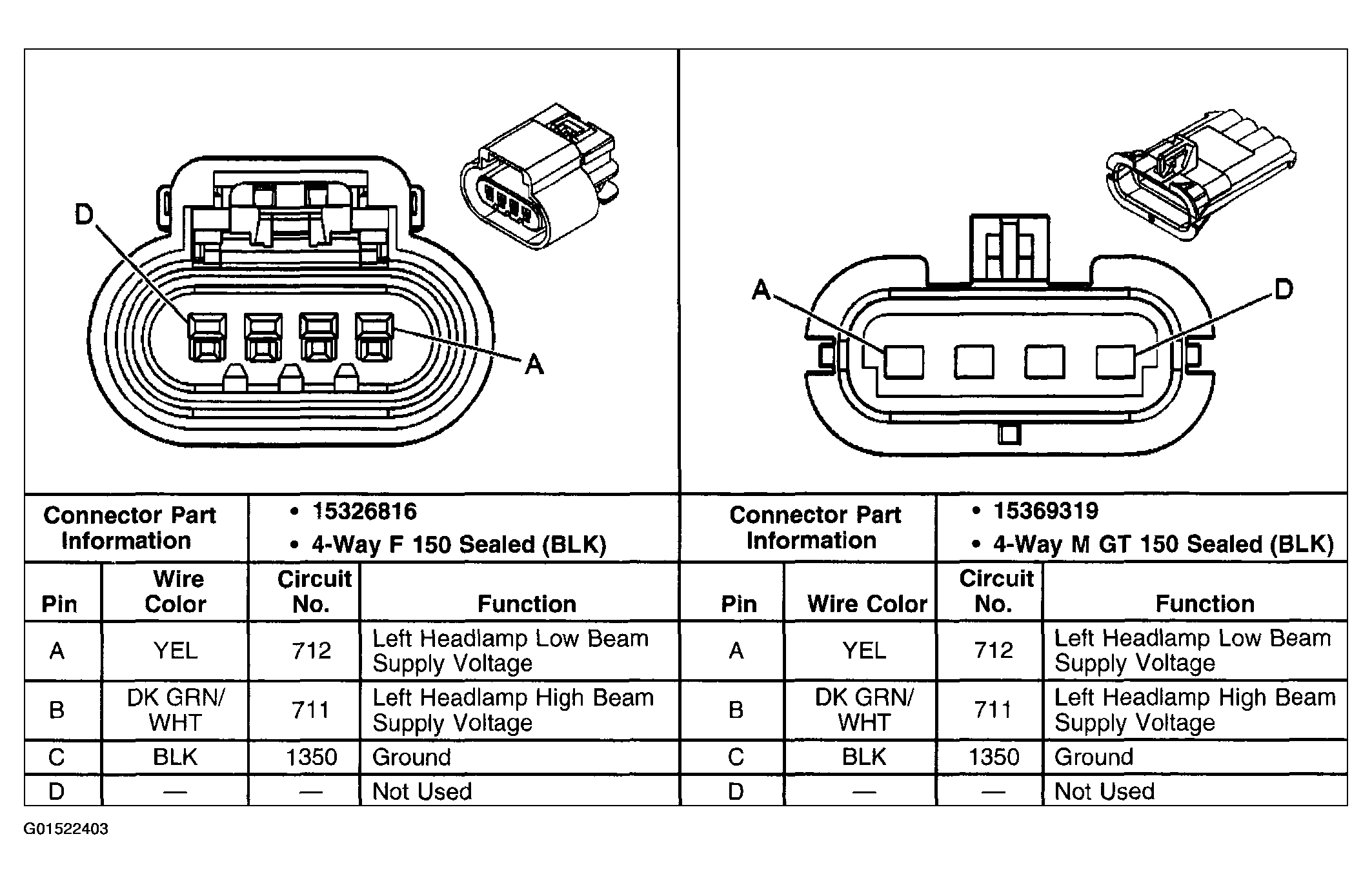

Fig 7: Identifying In-Line Harness Connector End View C151 - Pontiac
G01522403Courtesy of GENERAL MOTORS CORP.

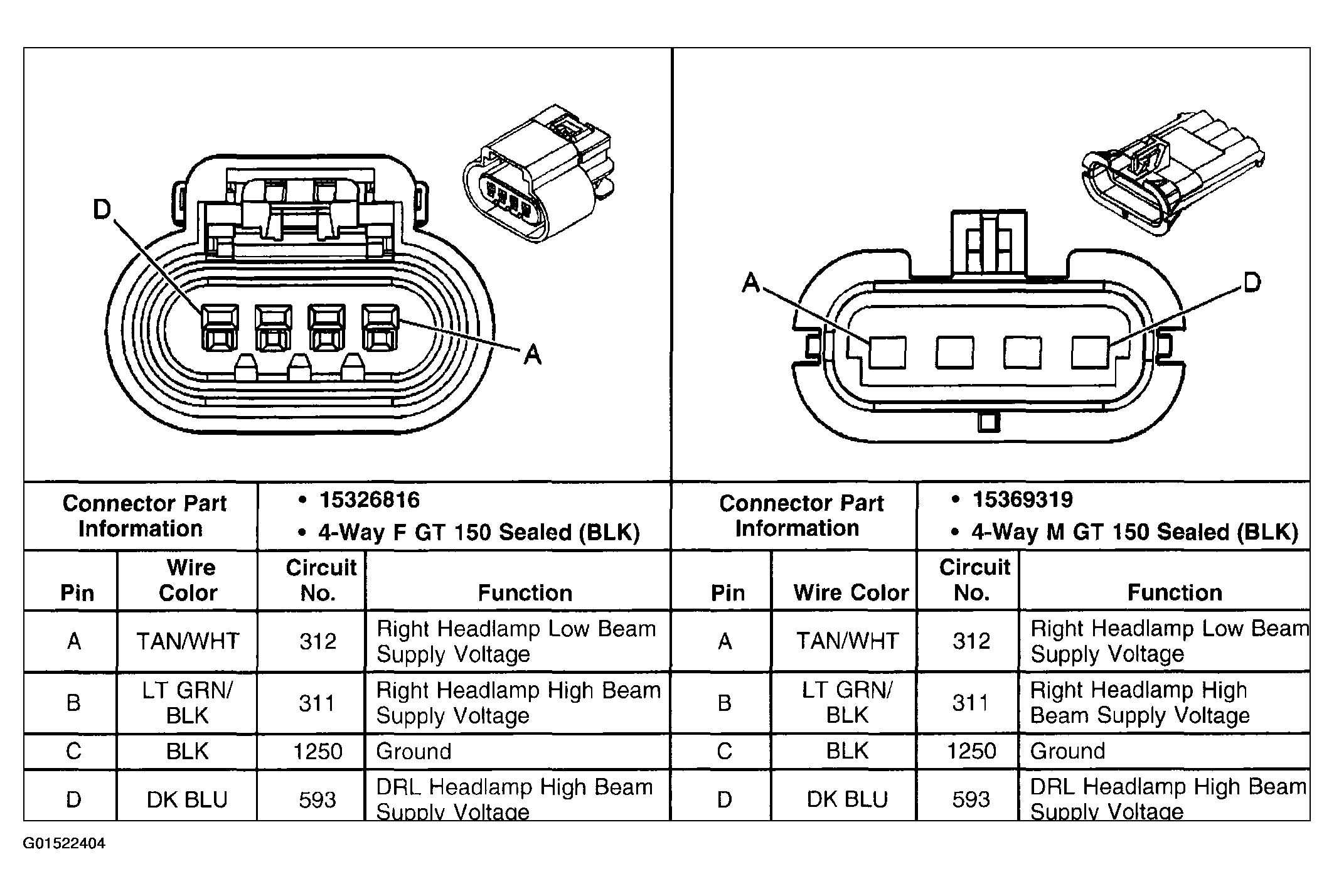

Fig 8: Identifying In-Line Harness Connector End View C152 - Pontiac
G01522404Courtesy of GENERAL MOTORS CORP.

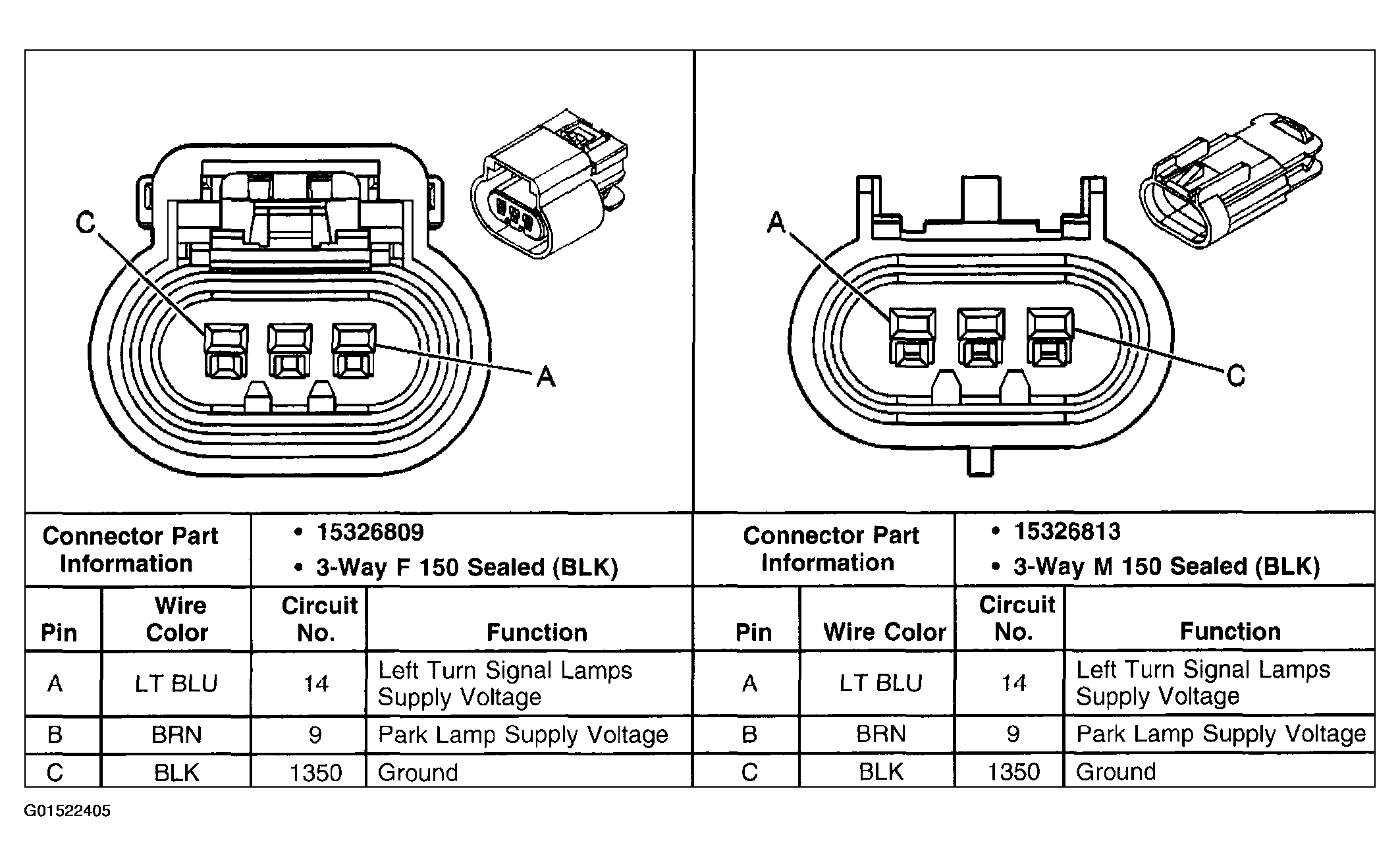

Fig 9: Identifying In-Line Harness Connector End View C153 - Pontiac
G01522405Courtesy of GENERAL MOTORS CORP.
Fig 10: Identifying In-Line Harness Connector End View C154 - Pontiac
G01522406Courtesy of GENERAL MOTORS CORP.

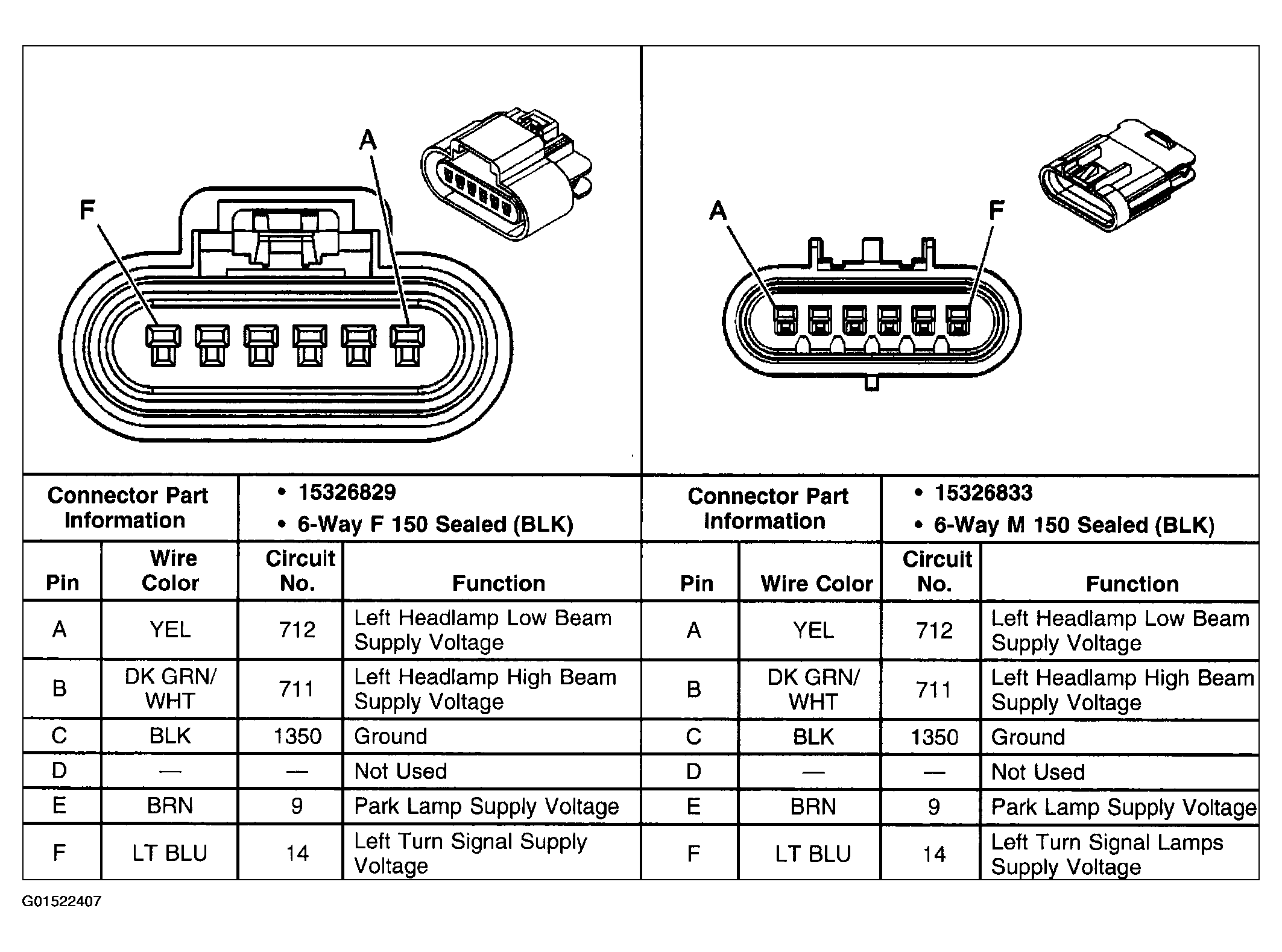

Fig 11: Identifying In-Line Harness Connector End View C155 - Buick
G01522407Courtesy of GENERAL MOTORS CORP.

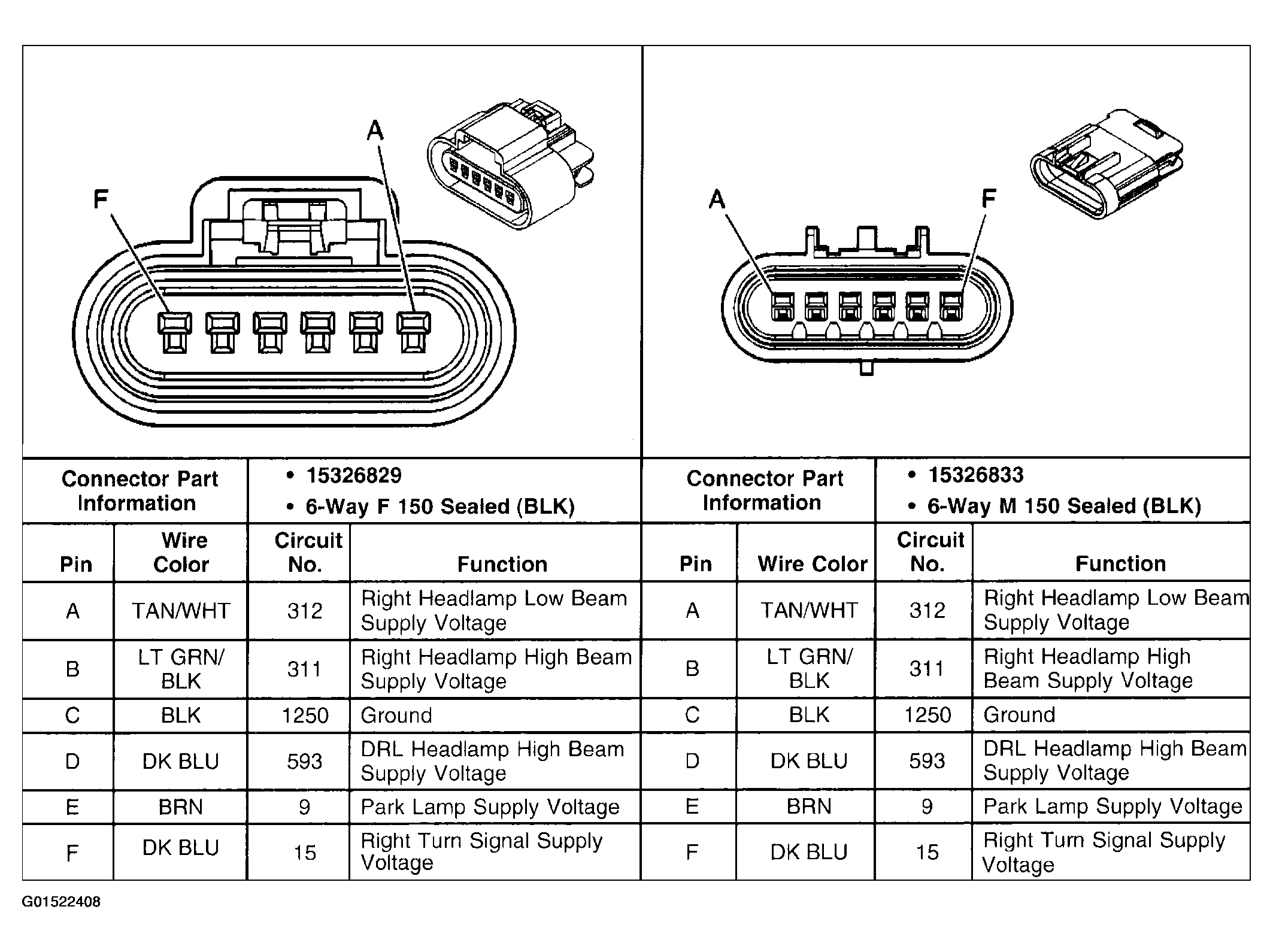

Fig 12: Identifying In-Line Harness Connector End View C156 - Buick
G01522408Courtesy of GENERAL MOTORS CORP.

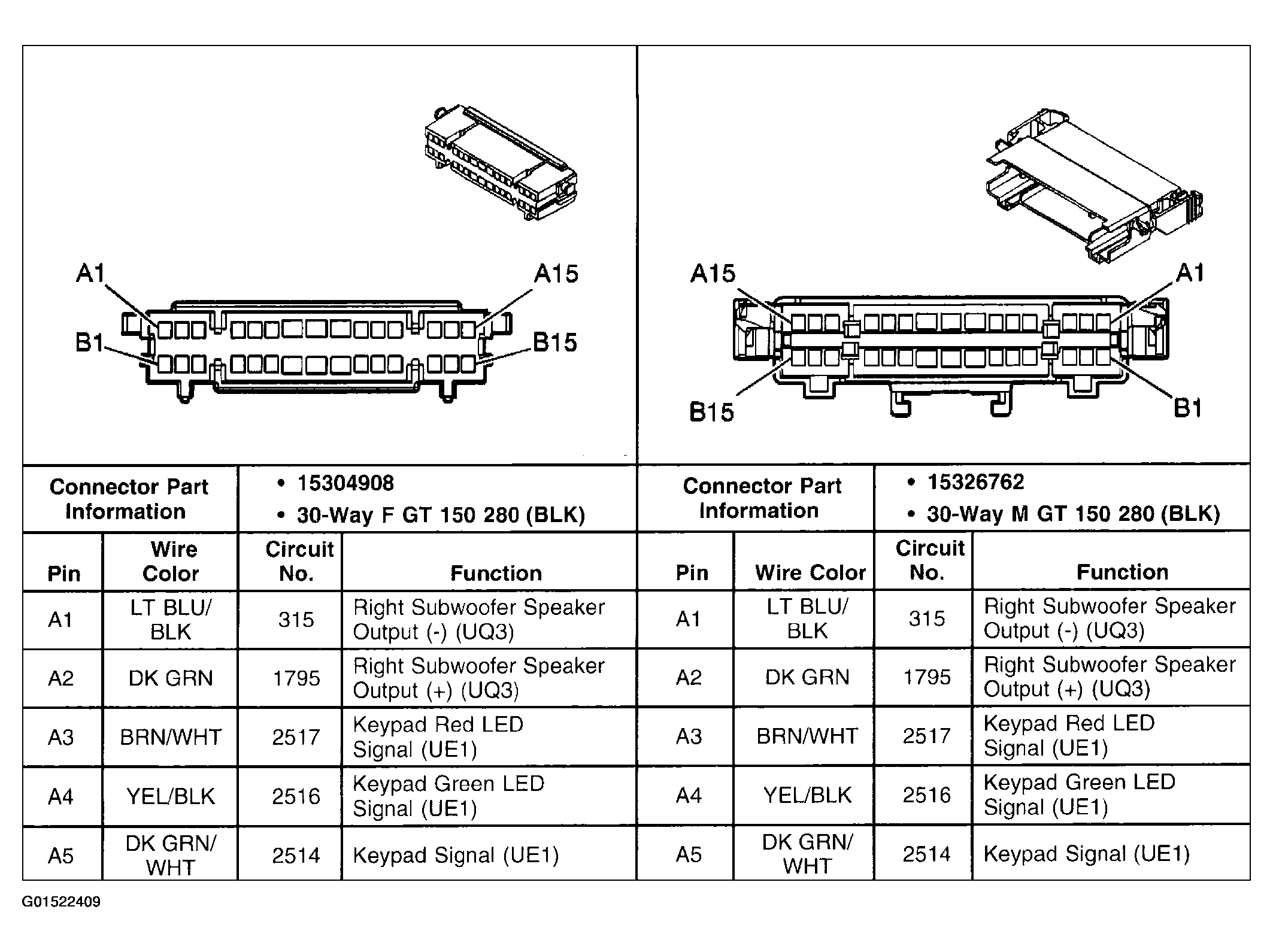

Fig 13: Identifying In-Line Harness Connector End View C200 (1 Of 3)
G01522409Courtesy of GENERAL MOTORS CORP.

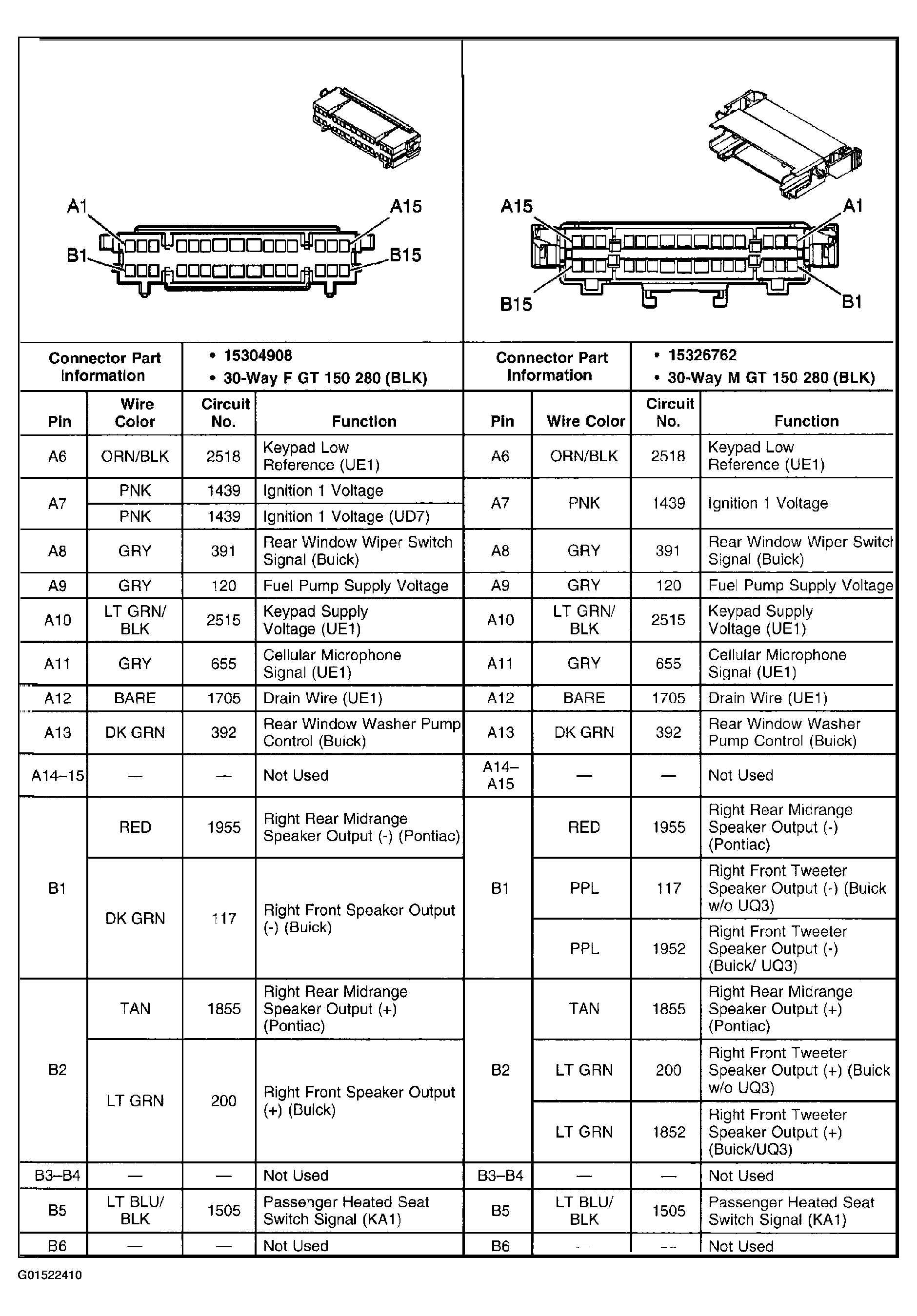

Fig 14: Identifying In-Line Harness Connector End View C200 (2 Of 3)
G01522410Courtesy of GENERAL MOTORS CORP.

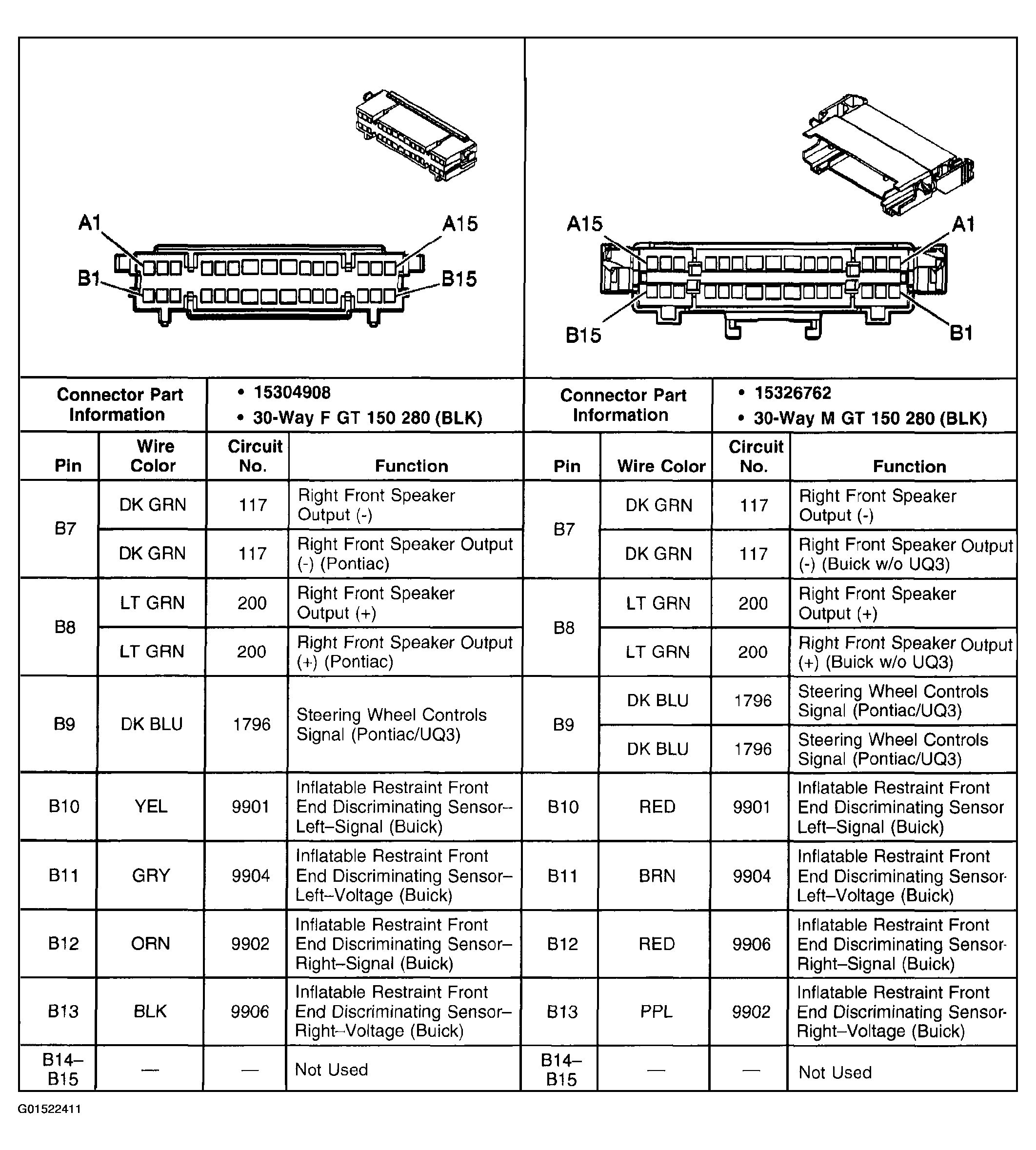

Fig 15: Identifying In-Line Harness Connector End View C200 (3 Of 3)
G01522411Courtesy of GENERAL MOTORS CORP.

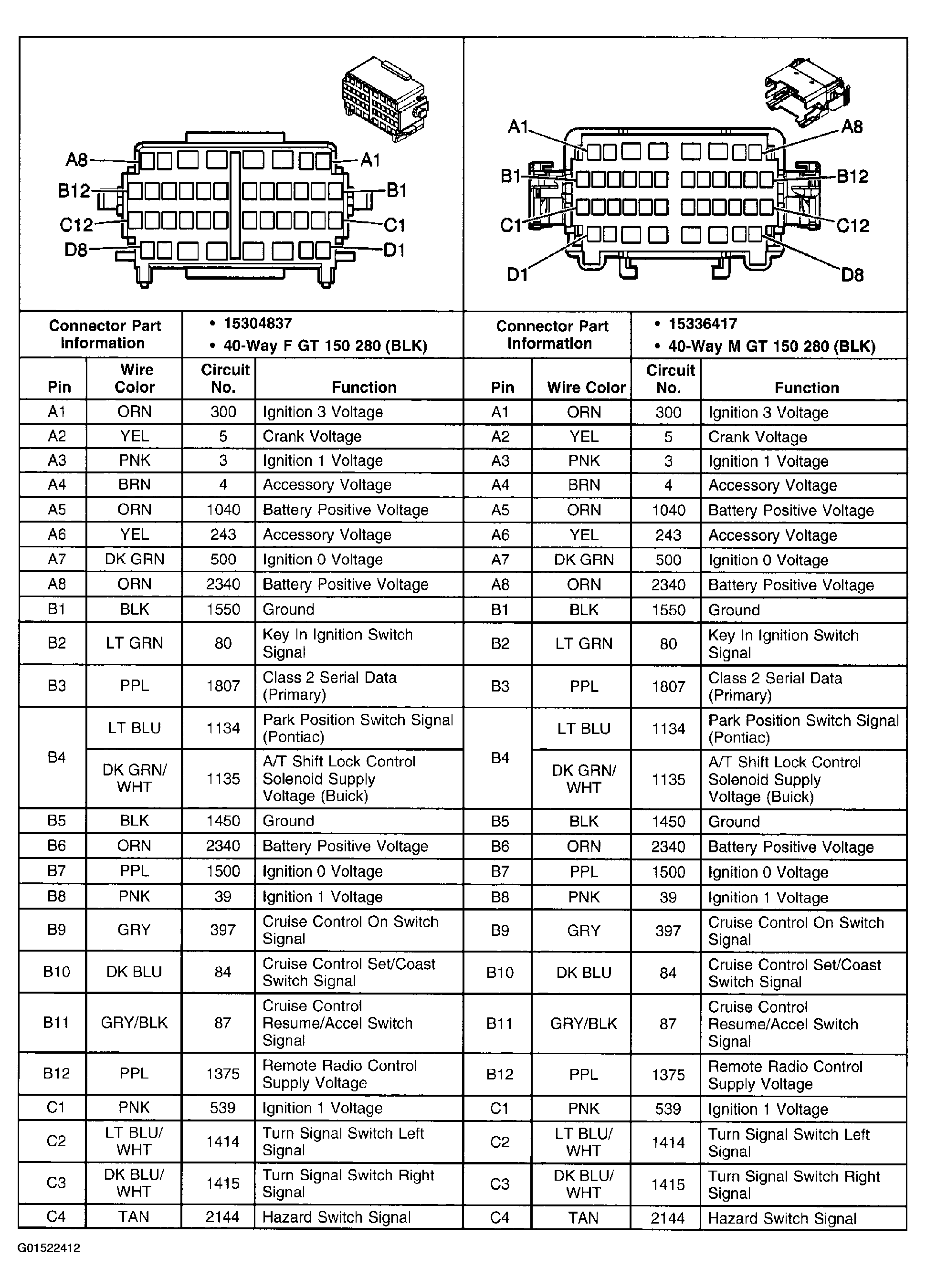

Fig 16: Identifying In-Line Harness Connector End View C201 (1 Of 2)
G01522412Courtesy of GENERAL MOTORS CORP.

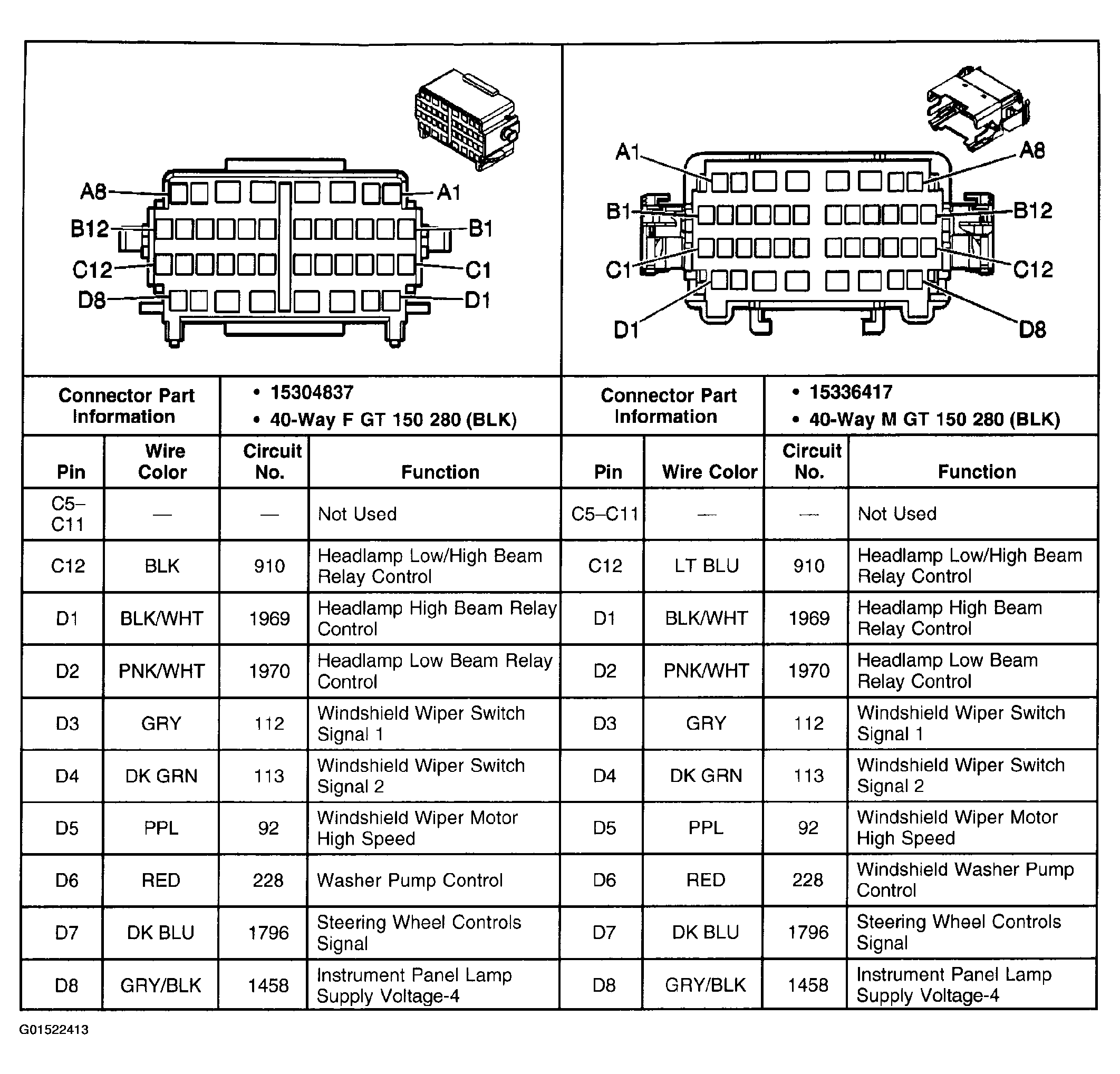

Fig 17: Identifying In-Line Harness Connector End View C201 (2 Of 2)
G01522413Courtesy of GENERAL MOTORS CORP.

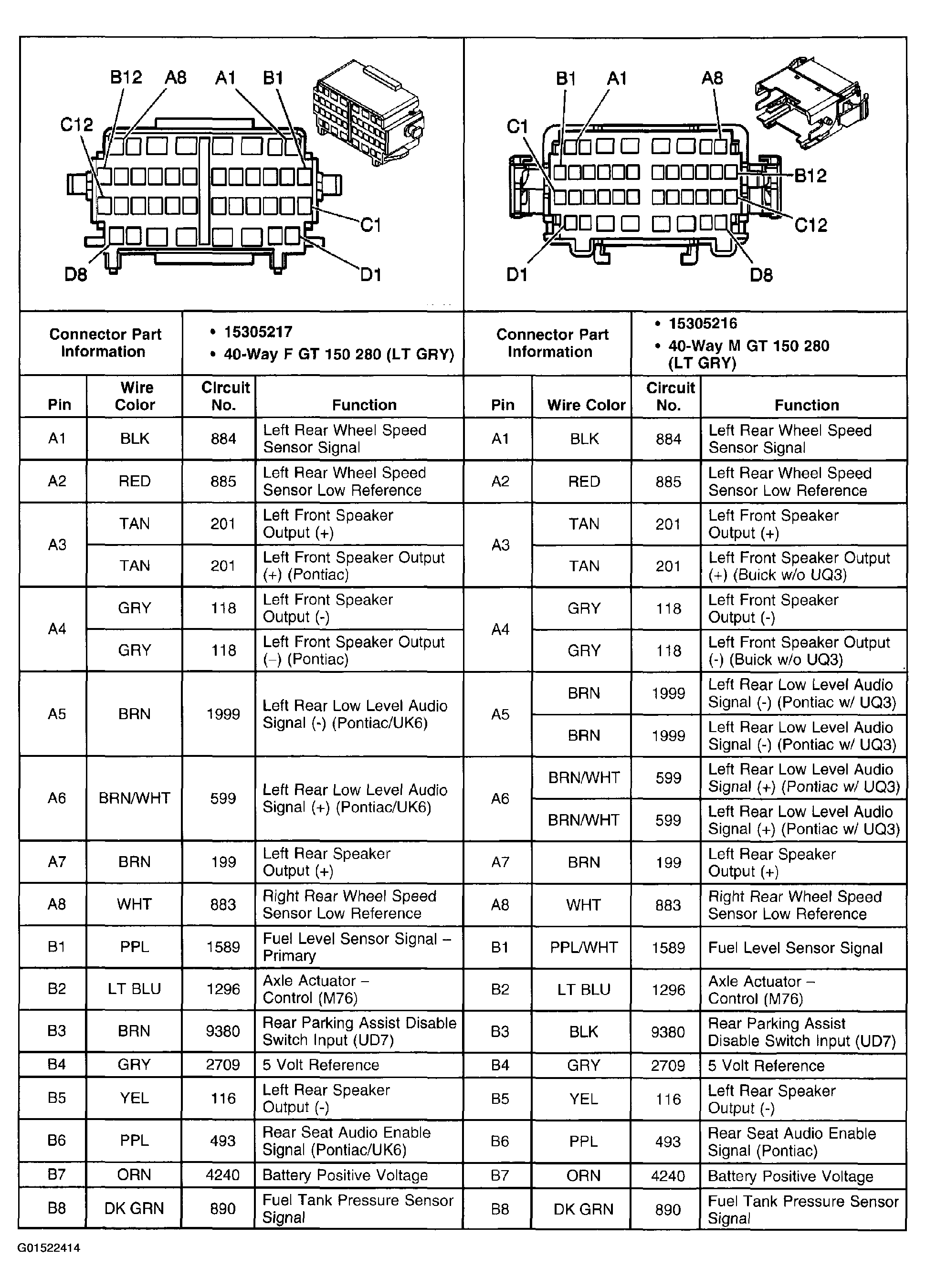

Fig 18: Identifying In-Line Harness Connector End View C203 (1 Of 3)
G01522414Courtesy of GENERAL MOTORS CORP.

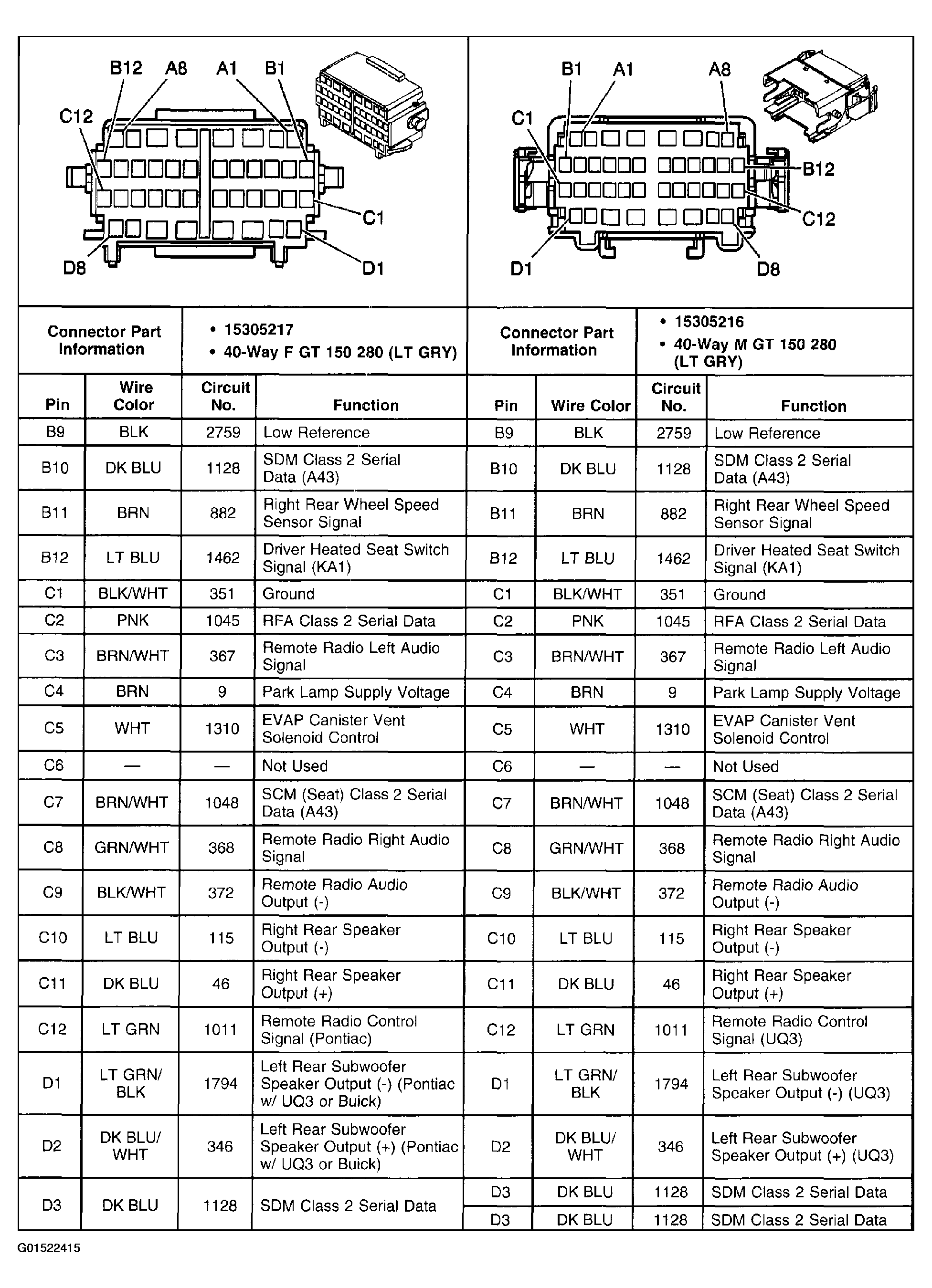

Fig 19: Identifying In-Line Harness Connector End View C203 (2 Of 3)
G01522415Courtesy of GENERAL MOTORS CORP.

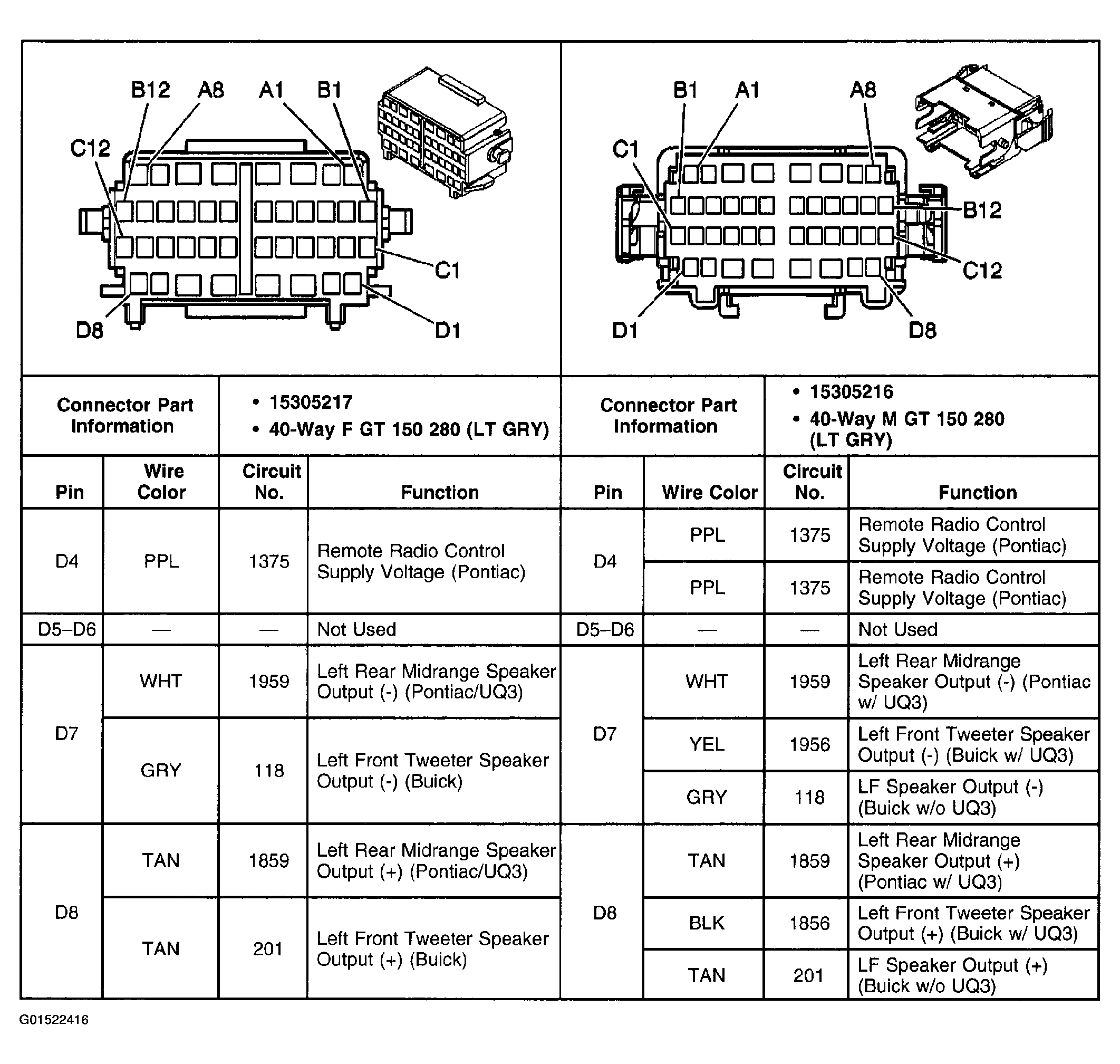

Fig 20: Identifying In-Line Harness Connector End View C203 (3 Of 3)
G01522416Courtesy of GENERAL MOTORS CORP.

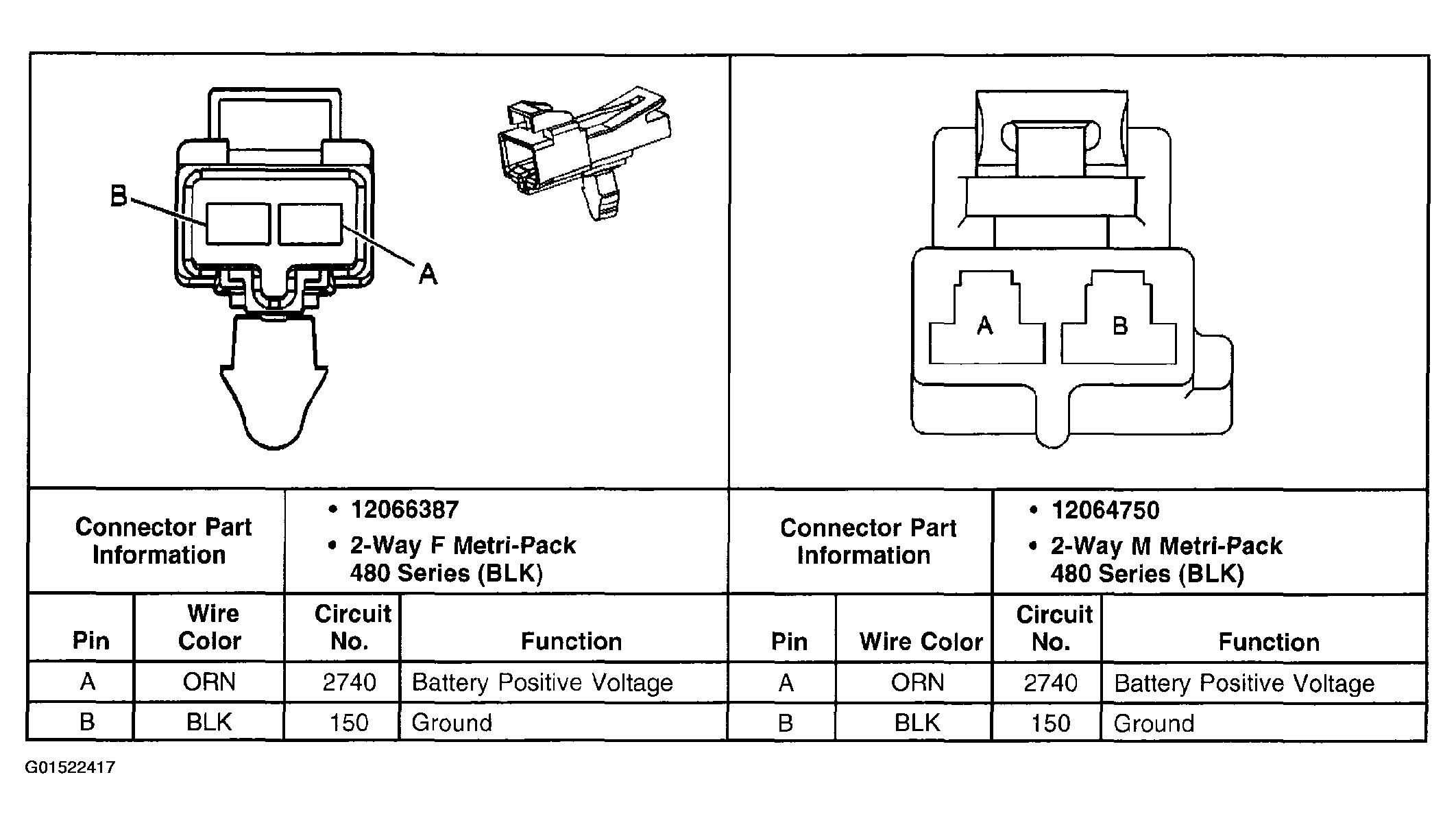

Fig 21: Identifying In-Line Harness Connector End View C204
G01522417Courtesy of GENERAL MOTORS CORP.

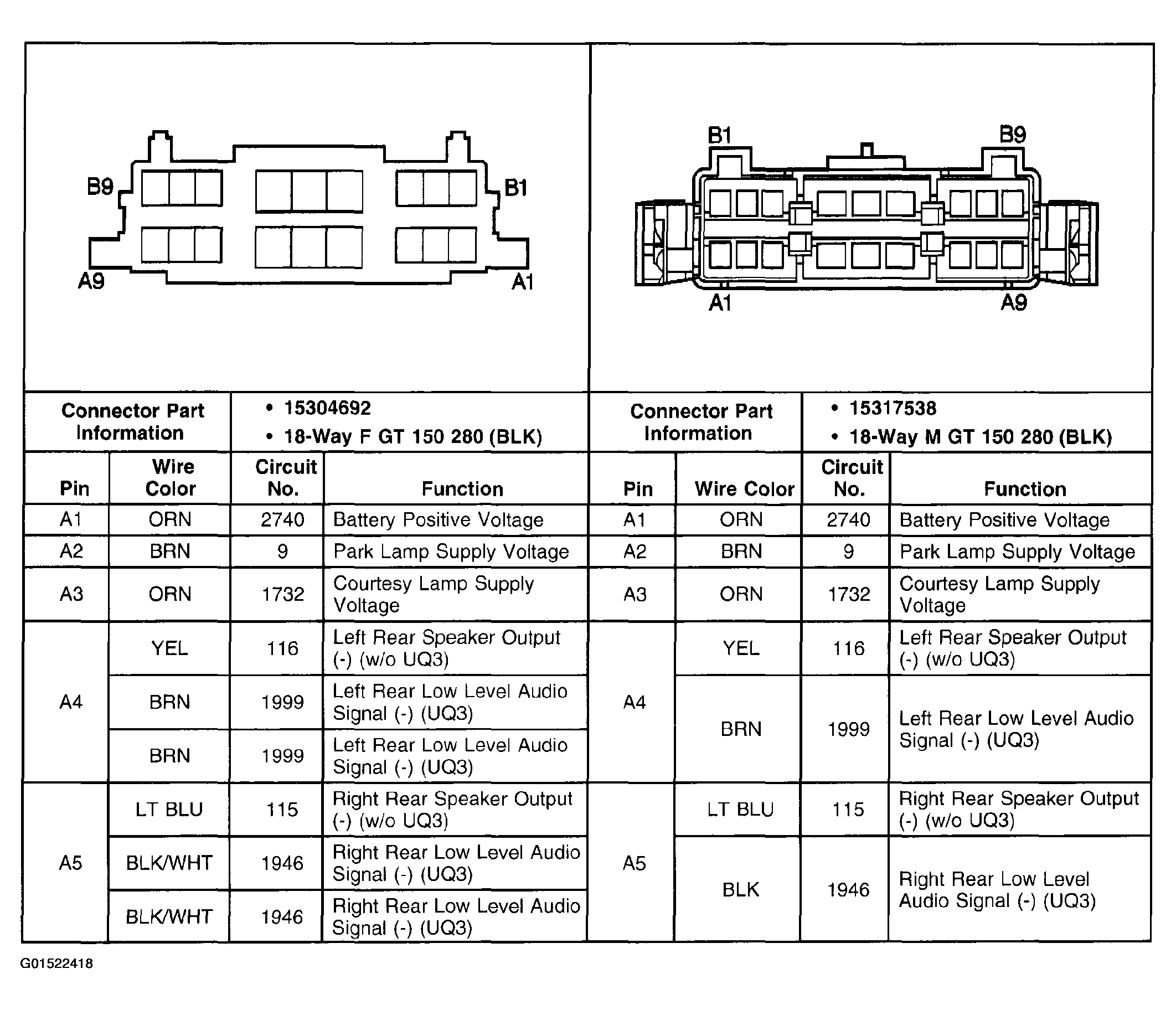

Fig 22: Identifying In-Line Harness Connector End View C206 - Buick (1 Of 2)
G01522418Courtesy of GENERAL MOTORS CORP.

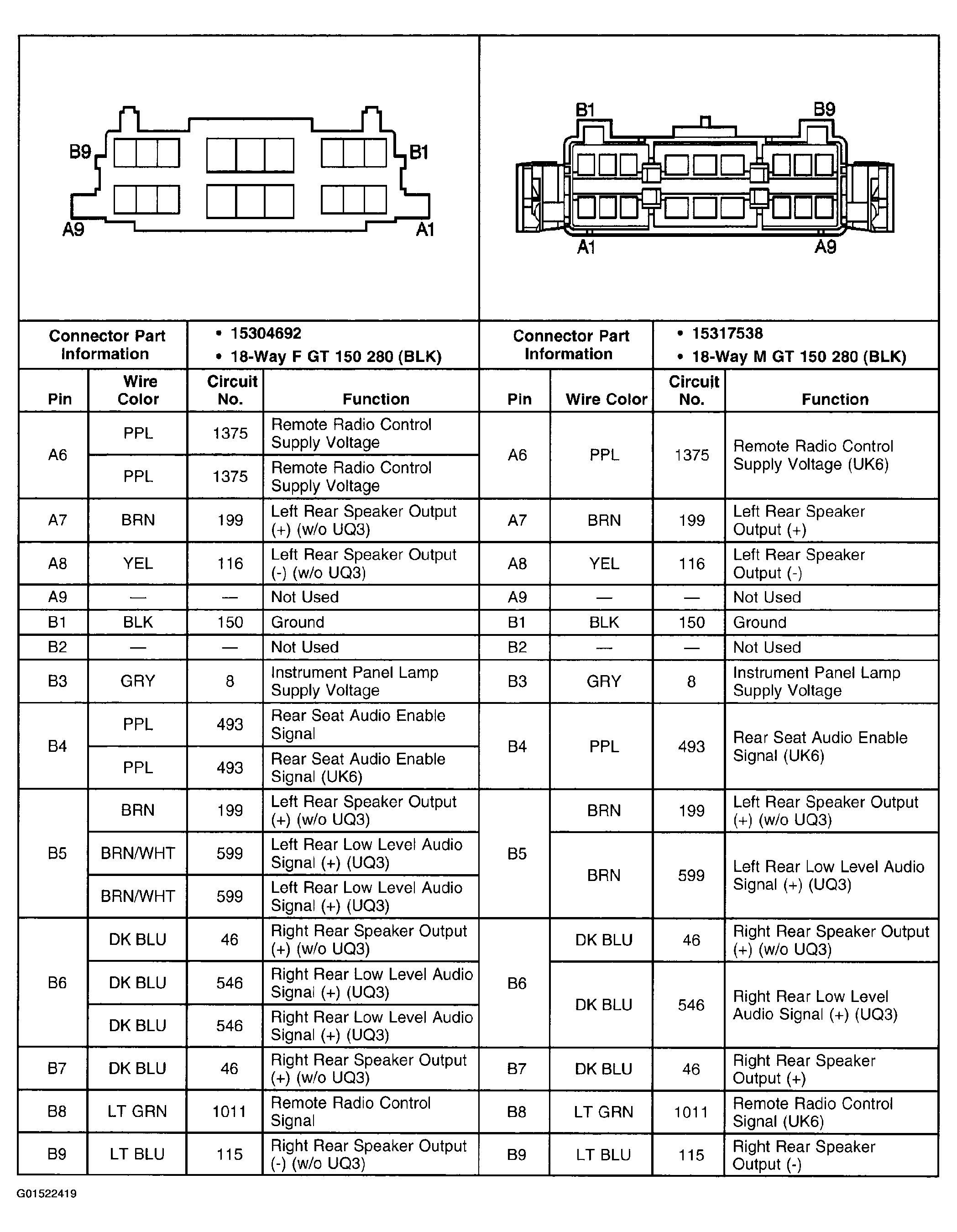

Fig 23: Identifying In-Line Harness Connector End View C206 - Buick (2 Of 2)
G01522419Courtesy of GENERAL MOTORS CORP.
Fig 24: Identifying In-Line Harness Connector End View C210
G01522420Courtesy of GENERAL MOTORS CORP.

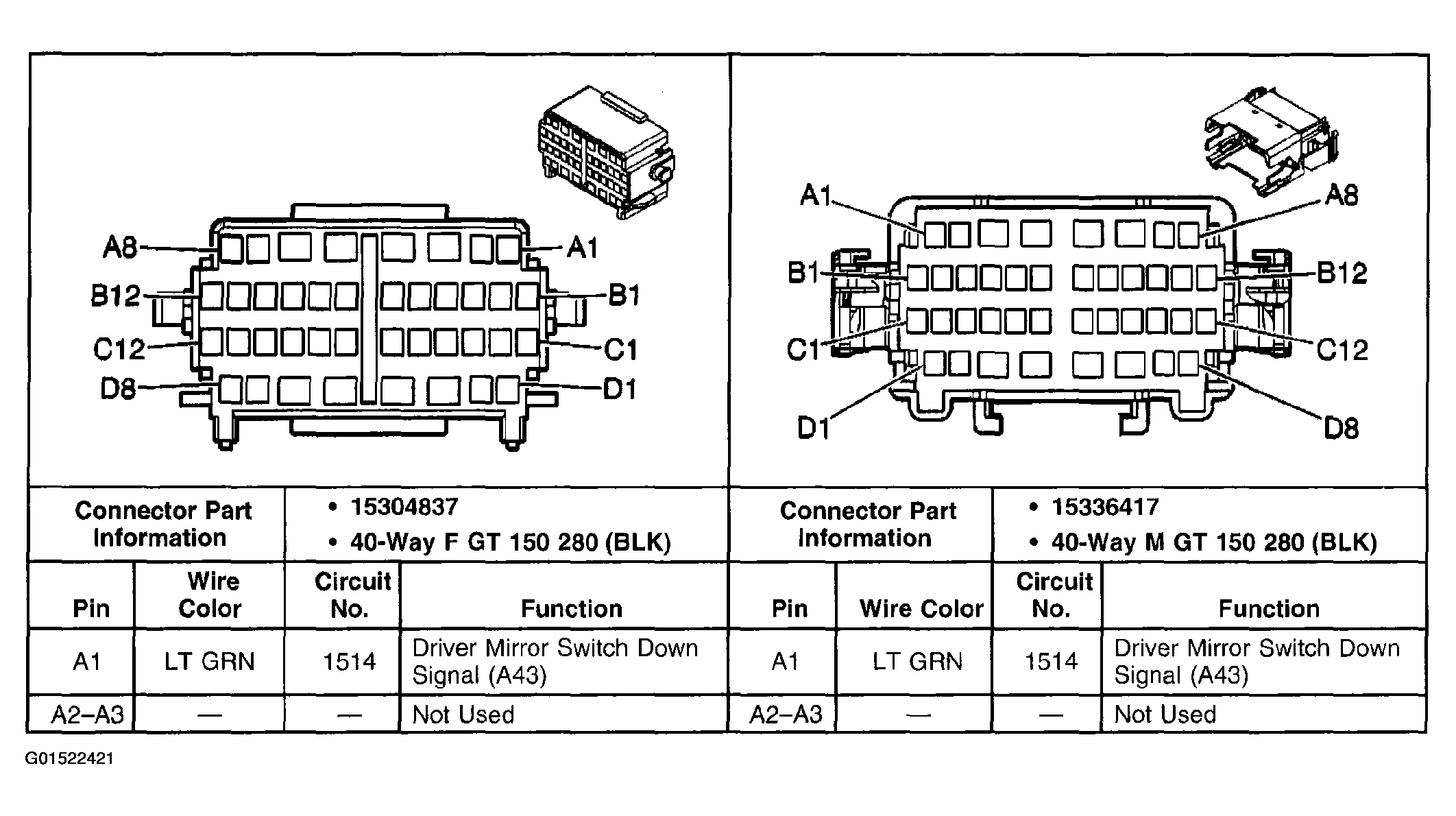

Fig 25: Identifying In-Line Harness Connector End View C301 (1 Of 4)
G01522421Courtesy of GENERAL MOTORS CORP.
Fig 26: Identifying In-Line Harness Connector End View C301 (2 Of 4)
G01522422Courtesy of GENERAL MOTORS CORP.
Fig 27: Identifying In-Line Harness Connector End View C301 (3 Of 4)
G01522423Courtesy of GENERAL MOTORS CORP.
Fig 28: Identifying In-Line Harness Connector End View C301 (4 Of 4)
G01522424Courtesy of GENERAL MOTORS CORP.
Fig 29: Identifying In-Line Harness Connector End View C302 (1 Of 3)
G01522425Courtesy of GENERAL MOTORS CORP.
Fig 30: Identifying In-Line Harness Connector End View C302 (2 Of 3)
G01522426Courtesy of GENERAL MOTORS CORP.
Fig 31: Identifying In-Line Harness Connector End View C302 (3 Of 3)
G01522427Courtesy of GENERAL MOTORS CORP.
Fig 32: Identifying In-Line Harness Connector End View C303
G01522428Courtesy of GENERAL MOTORS CORP.
Fig 33: Identifying In-Line Harness Connector End View C305
G01522429Courtesy of GENERAL MOTORS CORP.
Fig 34: Identifying In-Line Harness Connector End View C306
G01522430Courtesy of GENERAL MOTORS CORP.

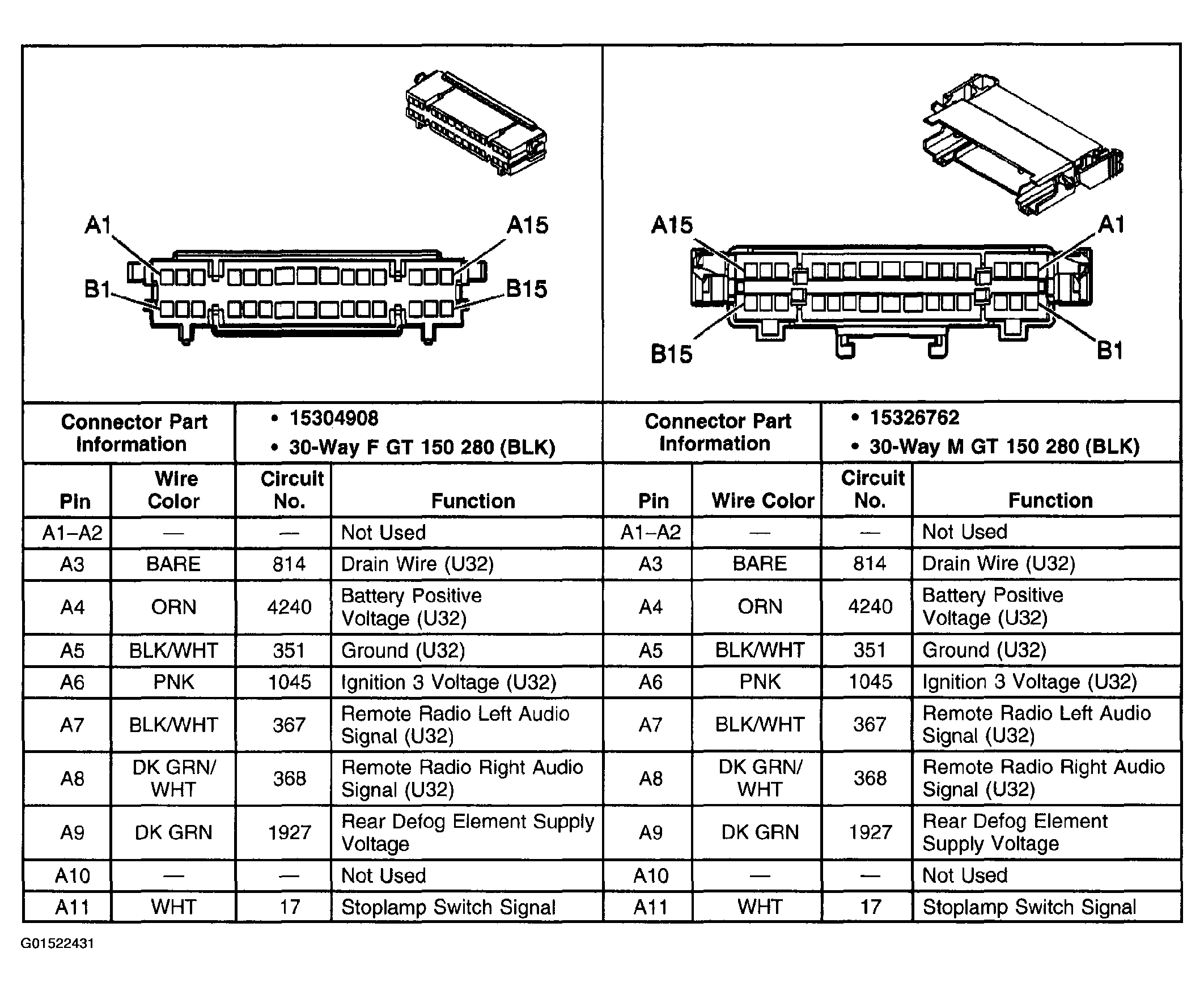

Fig 35: Identifying In-Line Harness Connector End View C308 - Pontiac
G01522431Courtesy of GENERAL MOTORS CORP.
Fig 36: Identifying In-Line Harness Connector End View C308
G01522432Courtesy of GENERAL MOTORS CORP.
Fig 37: Identifying In-Line Harness Connector End View C309
G01522433Courtesy of GENERAL MOTORS CORP.
Fig 38: Identifying In-Line Harness Connector End View C310
G01522434Courtesy of GENERAL MOTORS CORP.
Fig 39: Identifying In-Line Harness Connector End View C310
G01522435Courtesy of GENERAL MOTORS CORP.

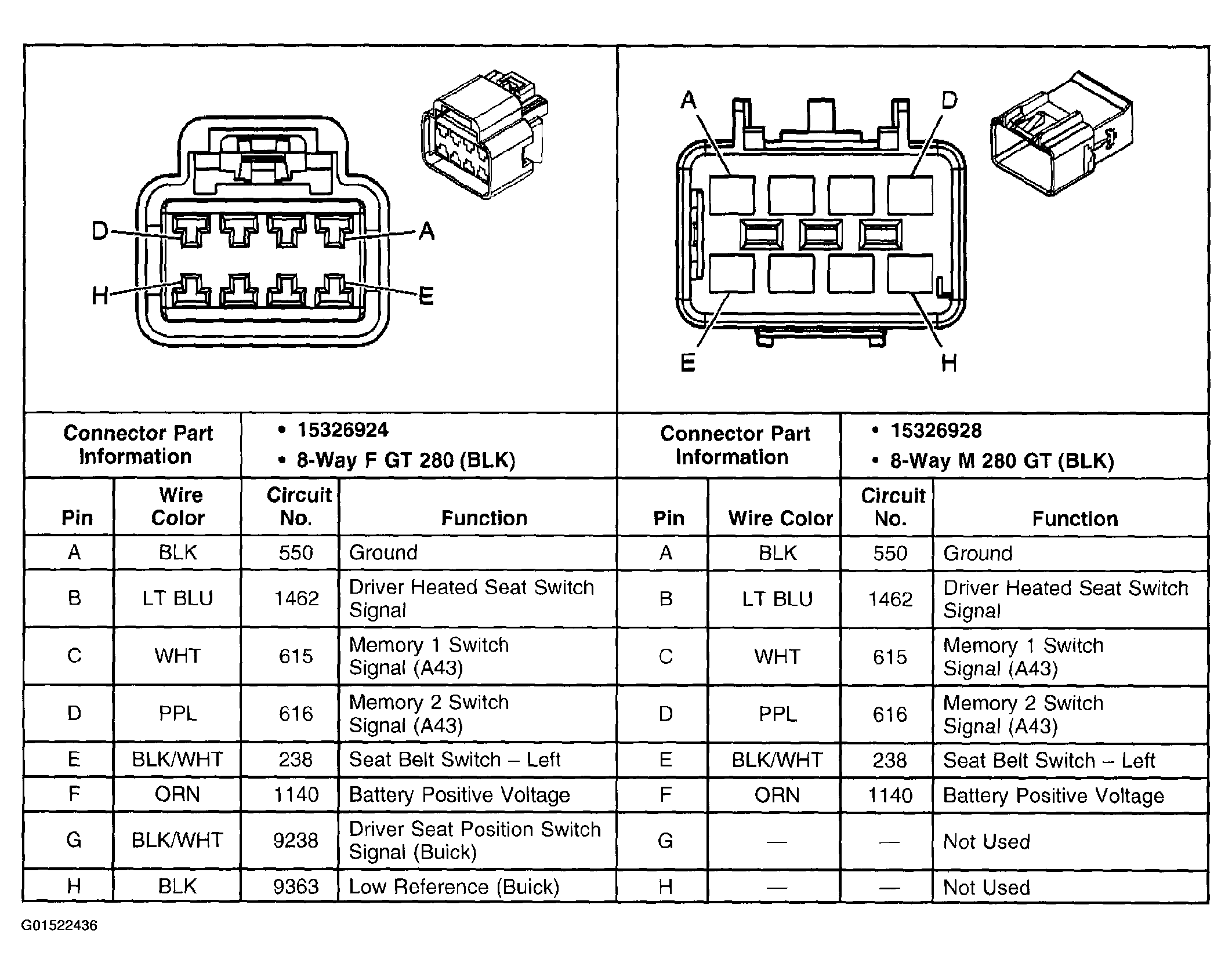

Fig 40: Identifying In-Line Harness Connector End View C313
G01522436Courtesy of GENERAL MOTORS CORP.

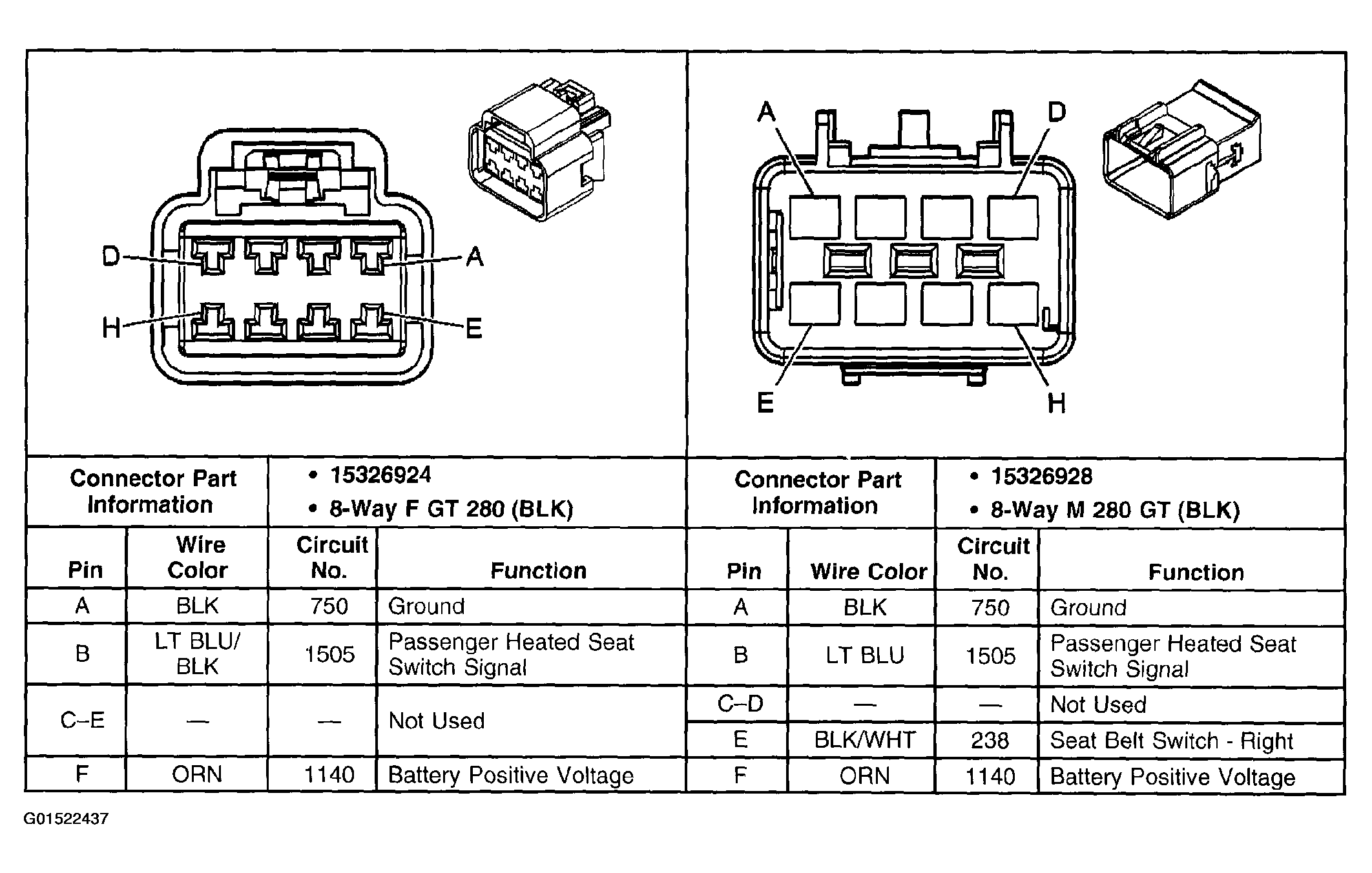

Fig 41: Identifying In-Line Harness Connector End View C314
G01522437Courtesy of GENERAL MOTORS CORP.
Fig 42: Identifying In-Line Harness Connector End View 314
G01522438Courtesy of GENERAL MOTORS CORP.

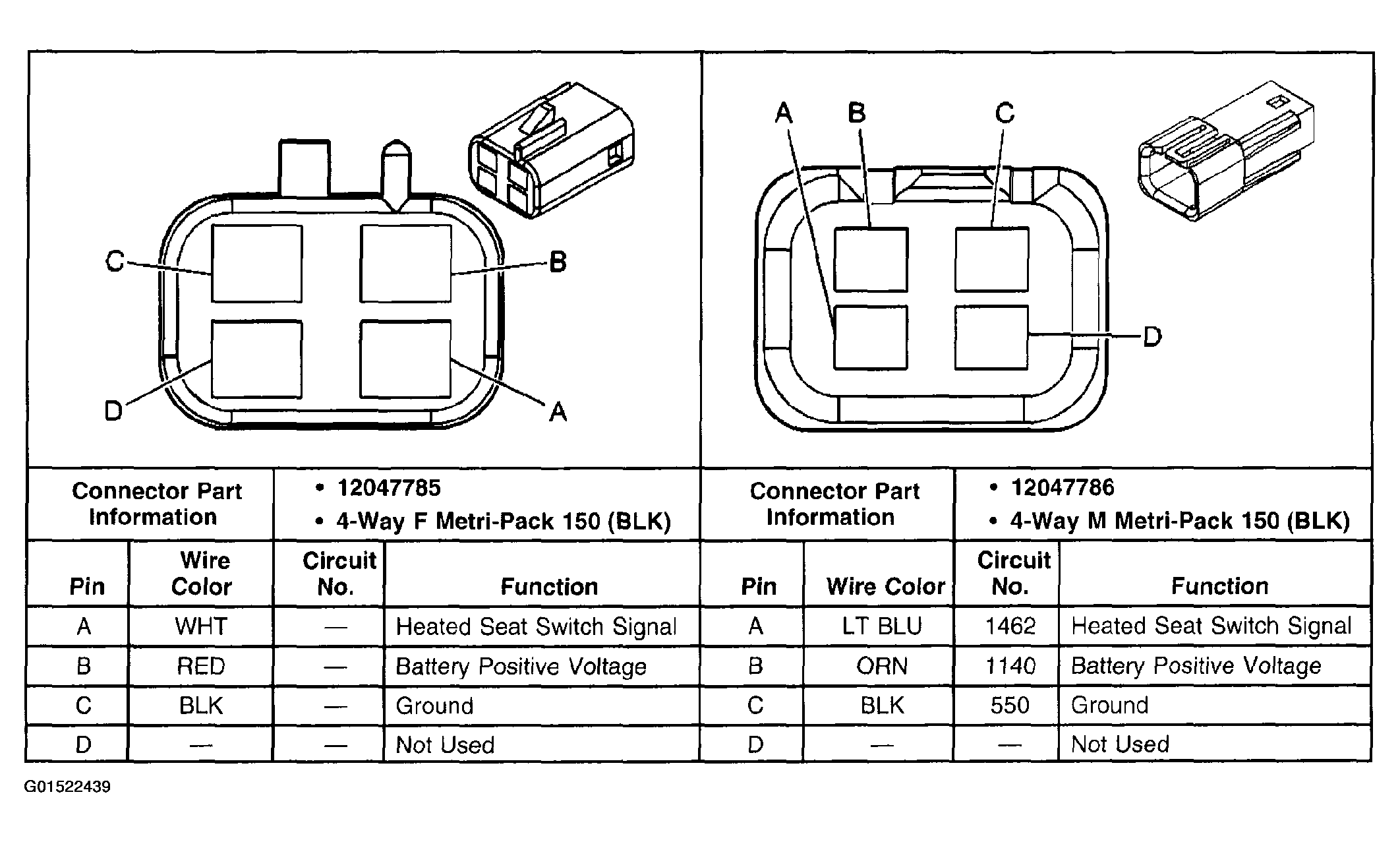

Fig 43: Identifying In-Line Harness Connector End View C315
G01522439Courtesy of GENERAL MOTORS CORP.

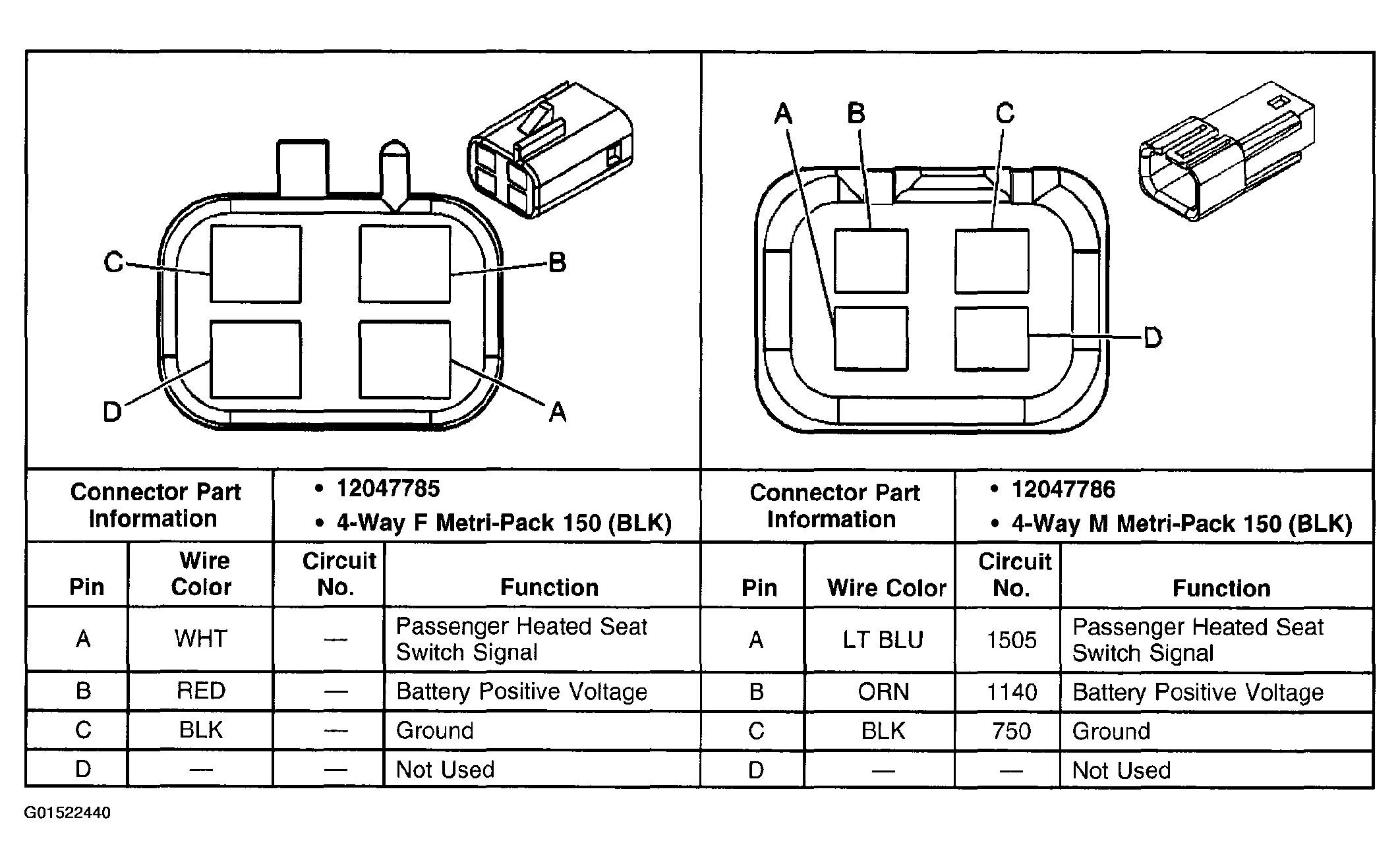

Fig 44: Identifying In-Line Harness Connector End View C316
G01522440Courtesy of GENERAL MOTORS CORP.

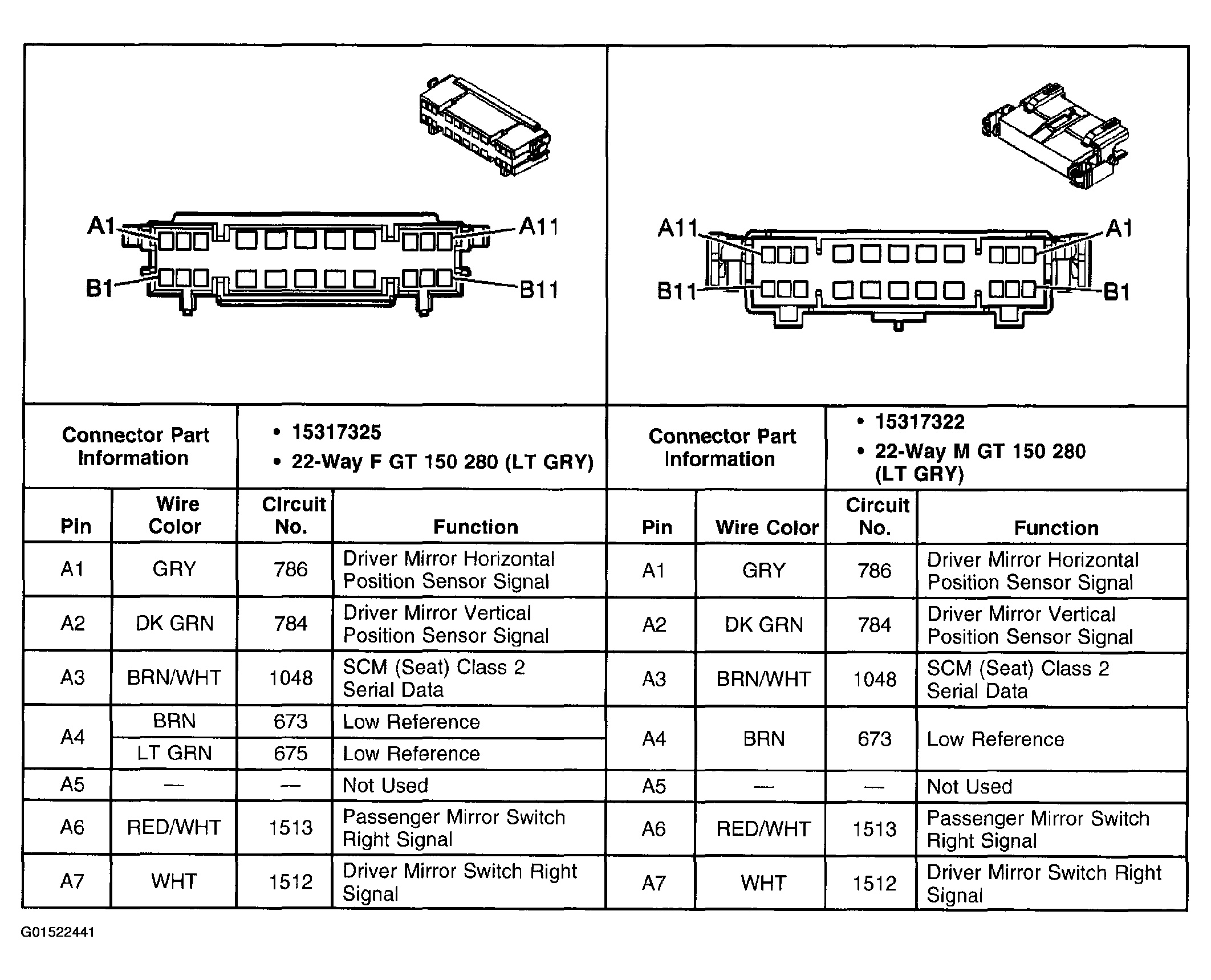

Fig 45: Identifying In-Line Harness Connector End View C317 (A43)
G01522441Courtesy of GENERAL MOTORS CORP.

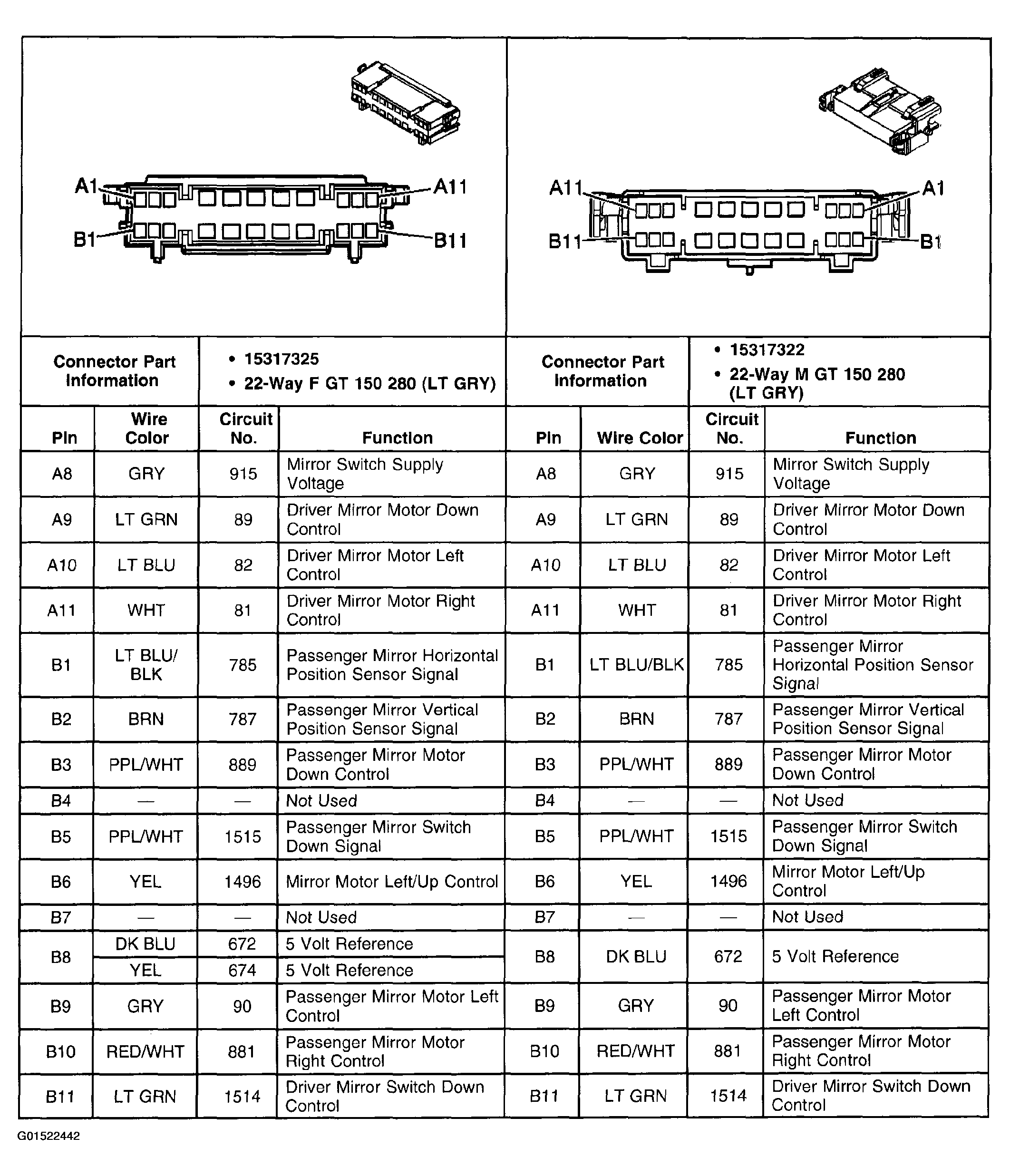

Fig 46: Identifying In-Line Harness Connector End View C317 (A43)
G01522442Courtesy of GENERAL MOTORS CORP.
Fig 47: Identifying In-Line Harness Connector End View C319
G01522443Courtesy of GENERAL MOTORS CORP.
Fig 48: Identifying In-Line Harness Connector End View C320
G01522444Courtesy of GENERAL MOTORS CORP.

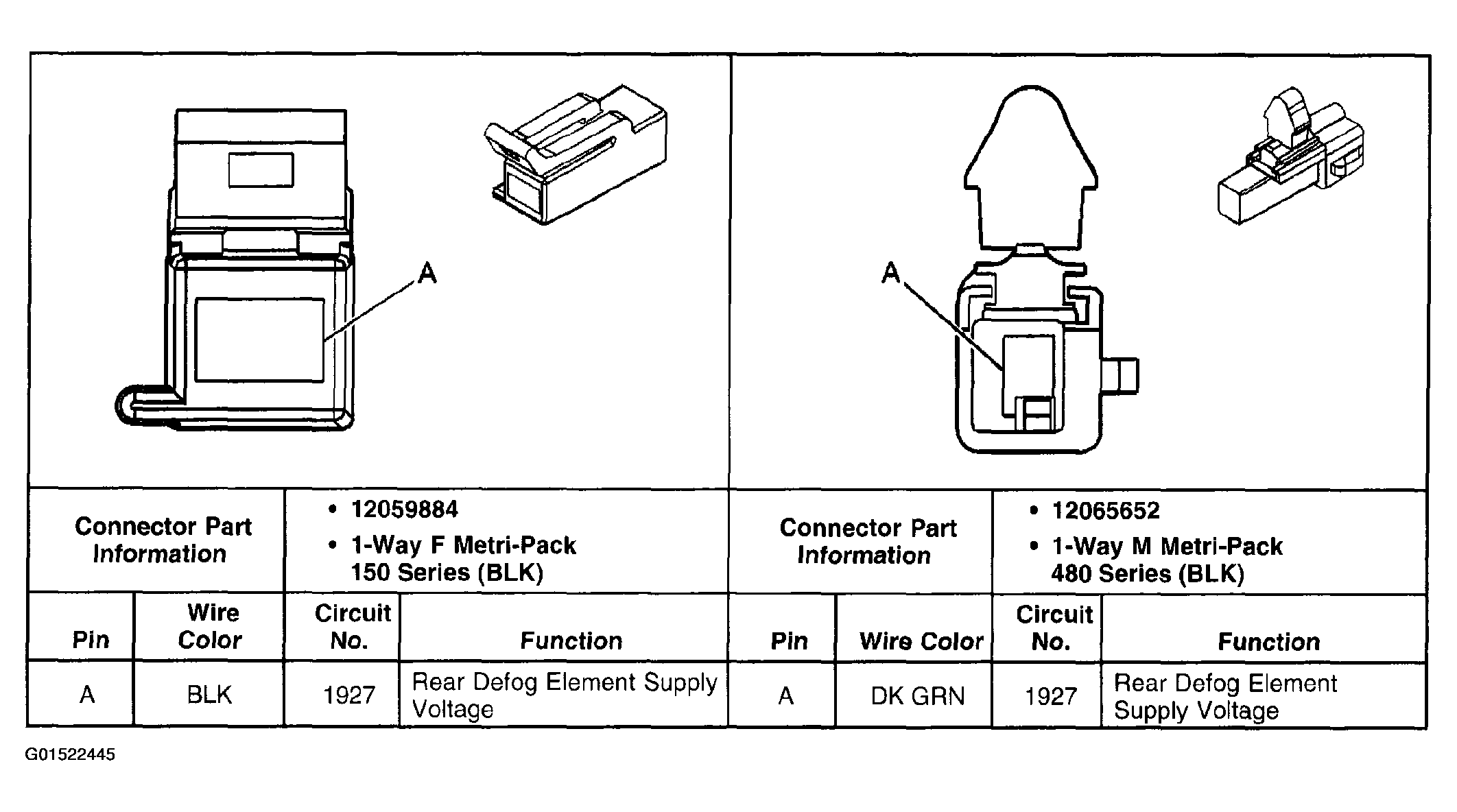

Fig 49: Identifying In-Line Harness Connector End View C321
G01522445Courtesy of GENERAL MOTORS CORP.

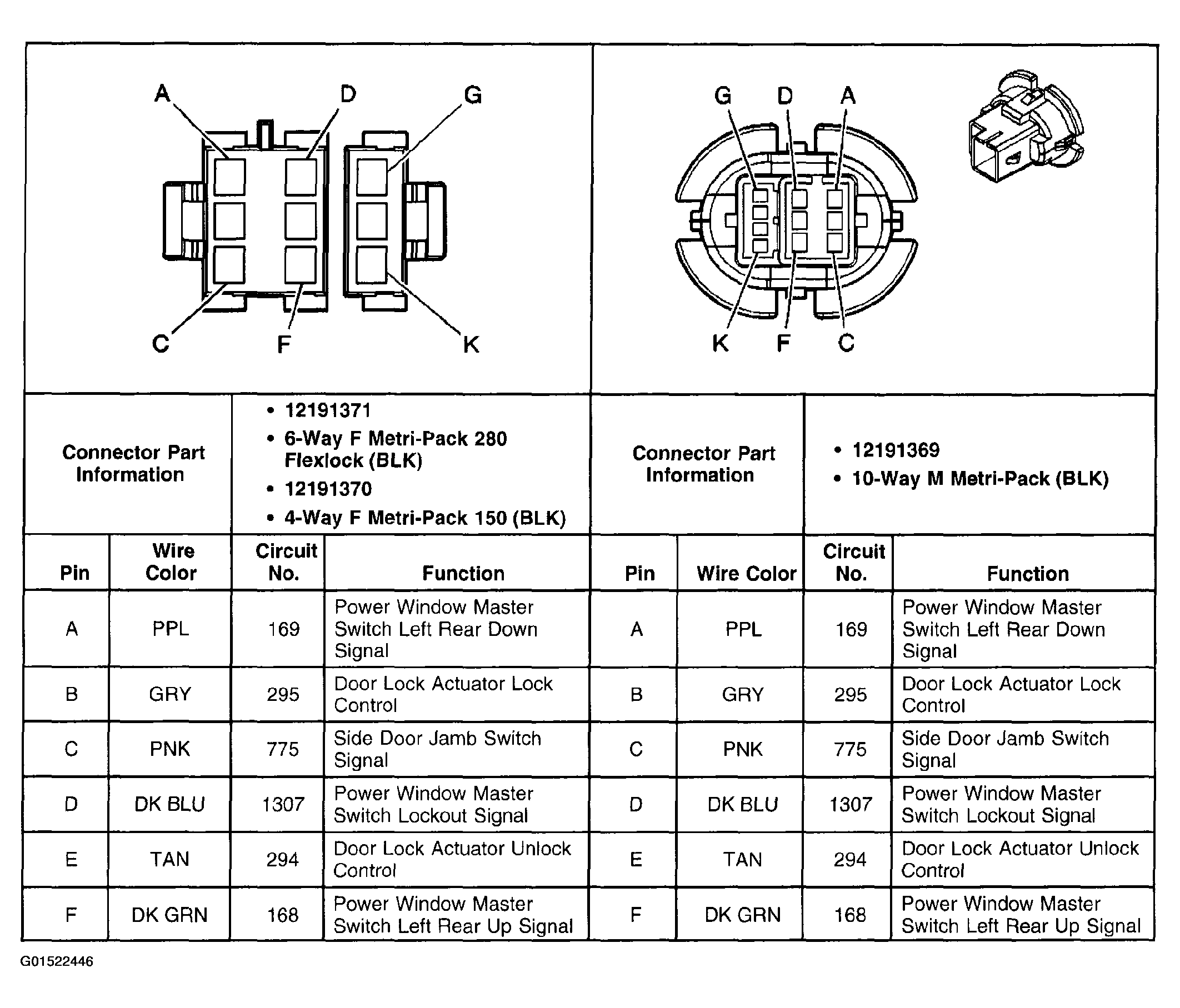

Fig 50: Identifying In-Line Harness Connector End View C351 (1 Of 2)
G01522446Courtesy of GENERAL MOTORS CORP.

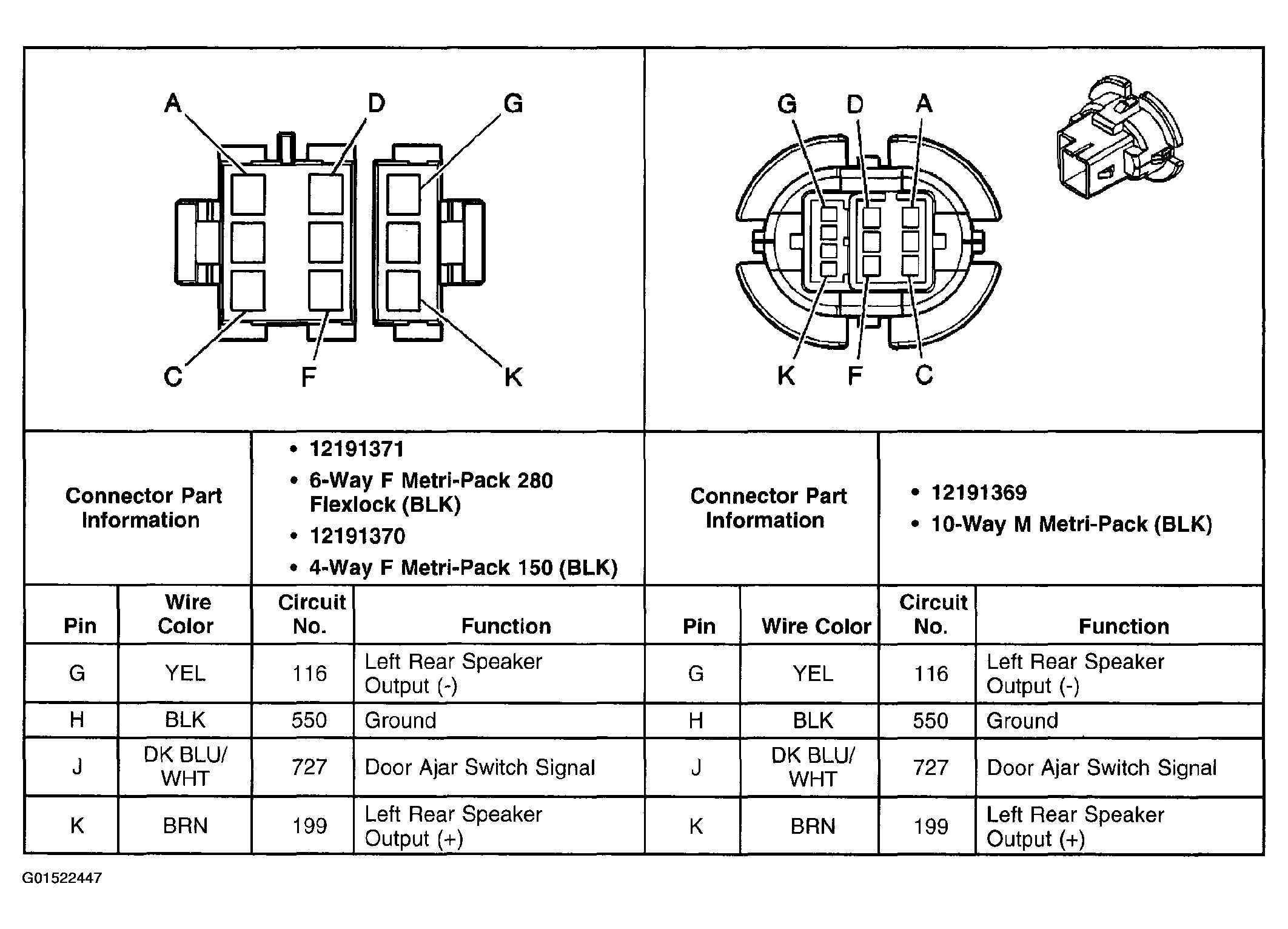

Fig 51: Identifying In-Line Harness Connector End View C351 (2 Of 2)
G01522447Courtesy of GENERAL MOTORS CORP.

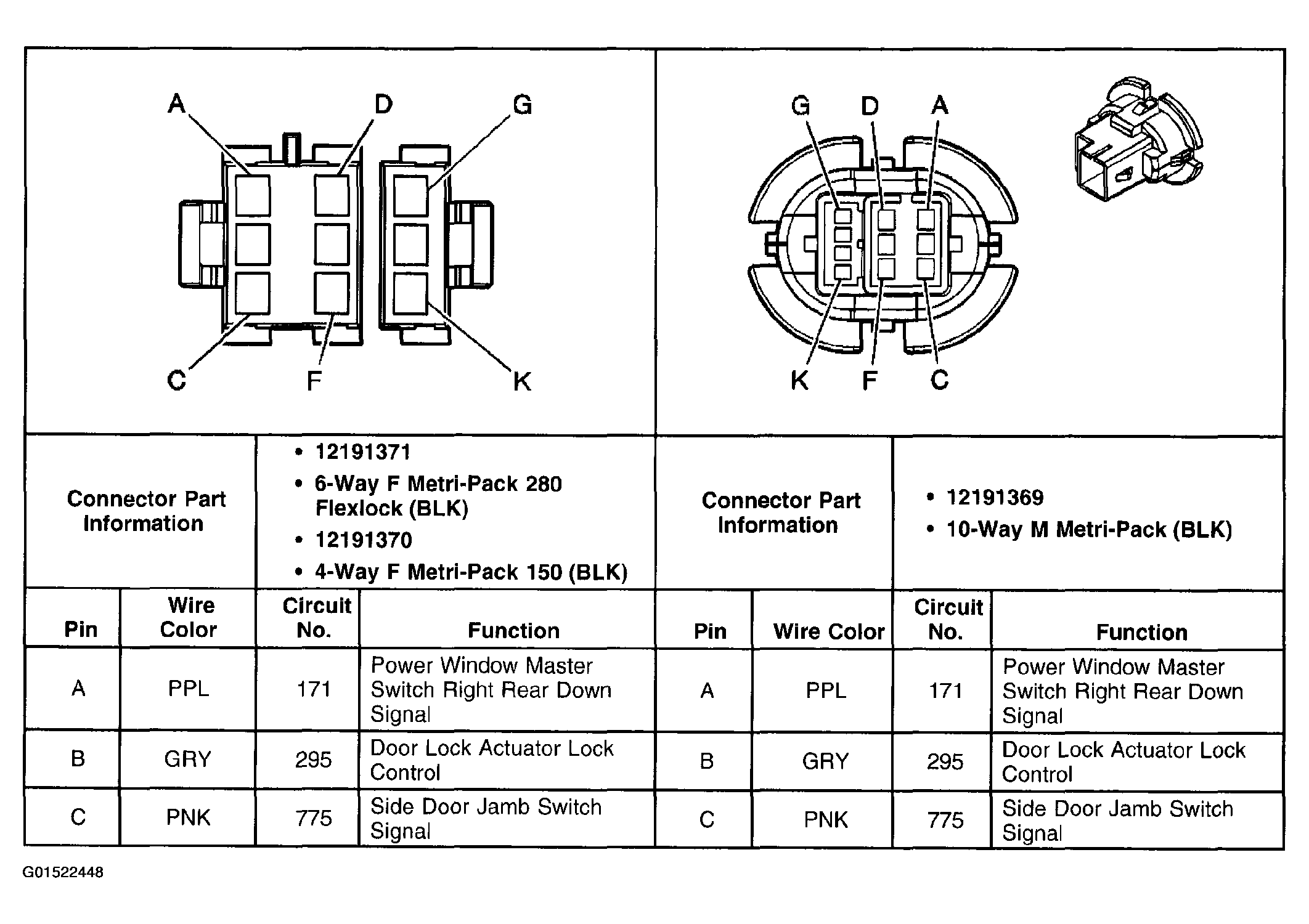

Fig 52: Identifying In-Line Harness Connector End View C352 (1 Of 2)
G01522448Courtesy of GENERAL MOTORS CORP.

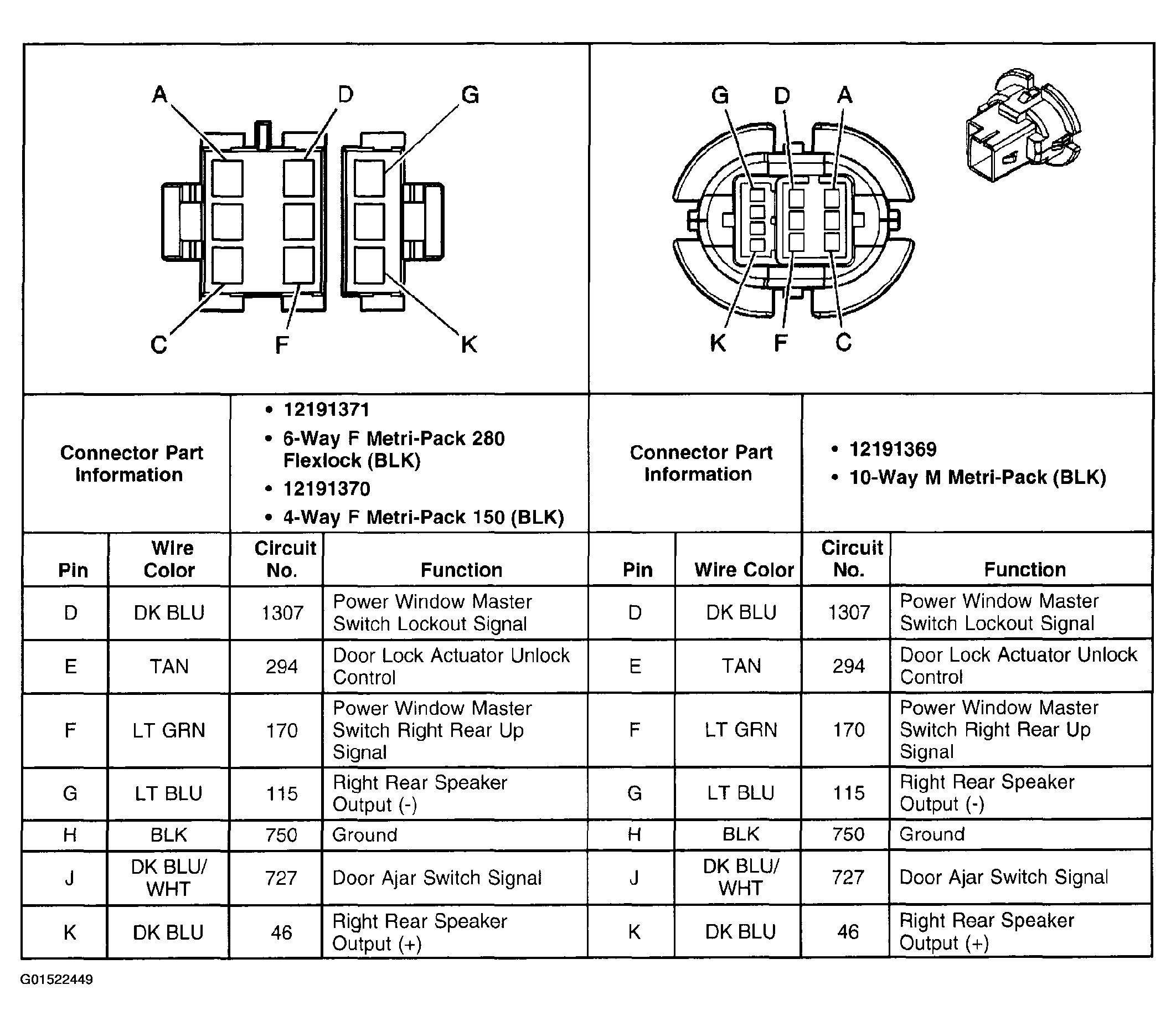

Fig 53: Identifying In-Line Harness Connector End View C352 (2 Of 2)
G01522449Courtesy of GENERAL MOTORS CORP.

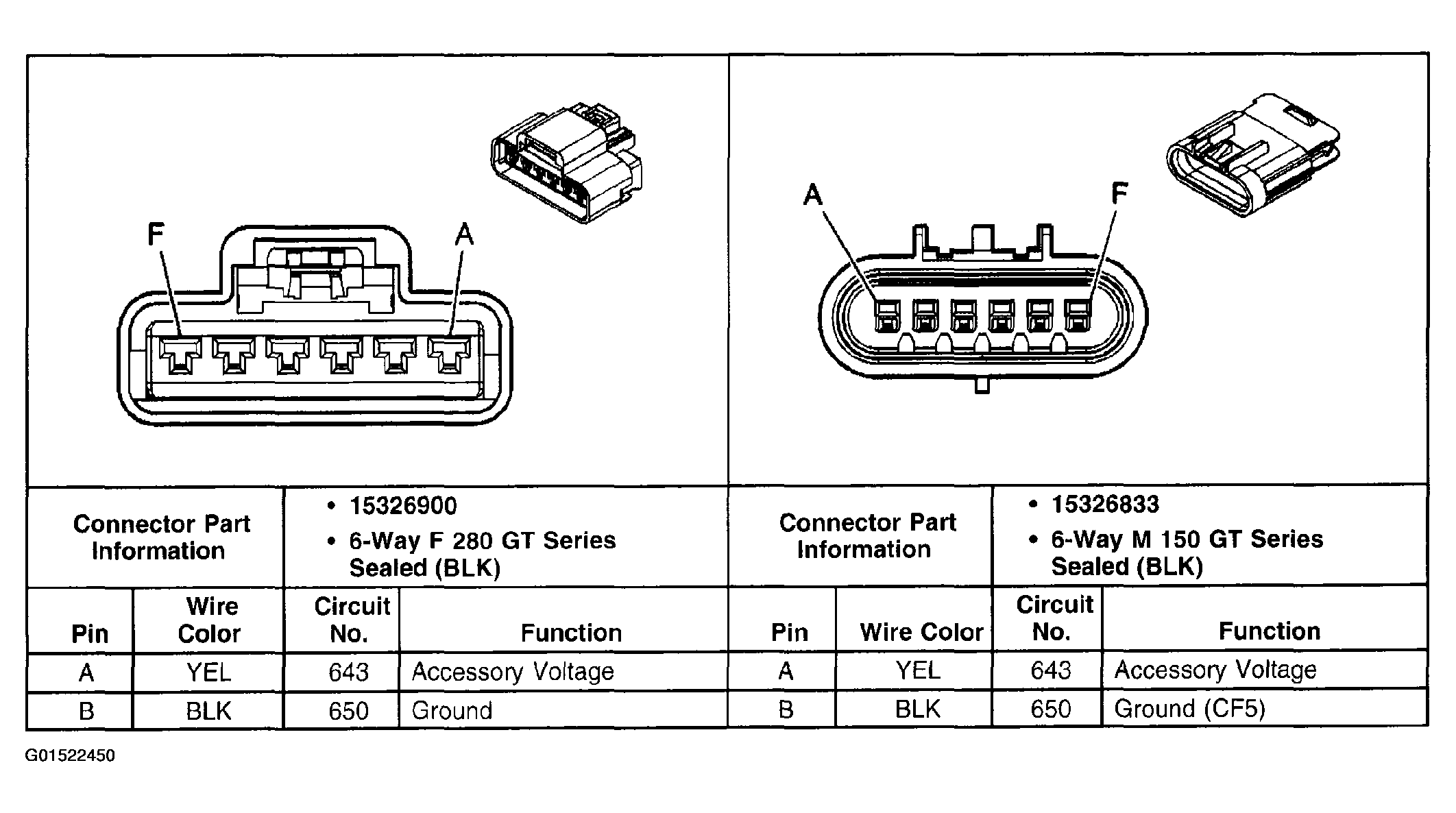

Fig 54: Identifying In-Line Harness Connector End View C397 (CFS)
G01522450Courtesy of GENERAL MOTORS CORP.

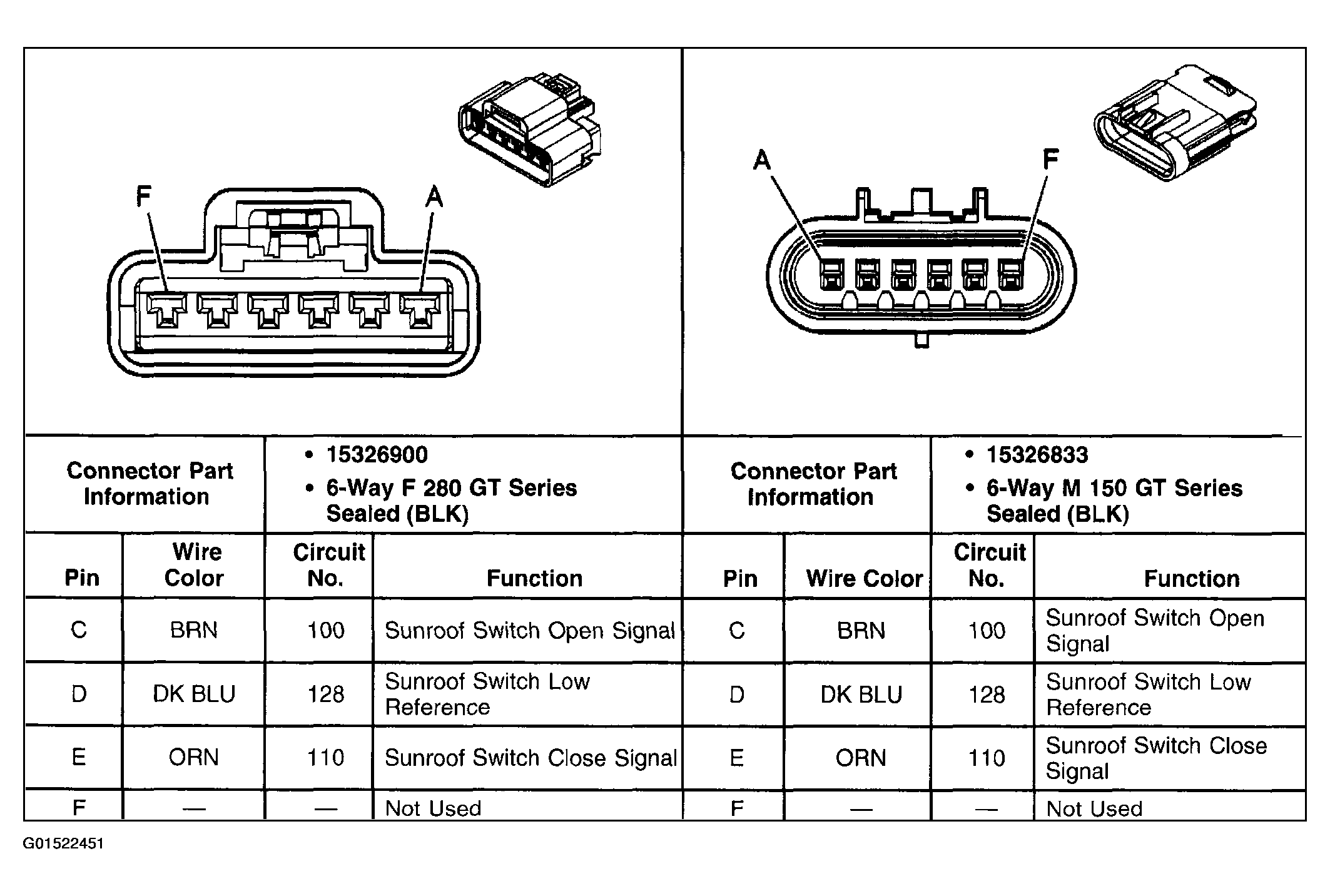

Fig 55: Identifying In-Line Harness Connector End View C397 (CFS)
G01522451Courtesy of GENERAL MOTORS CORP.

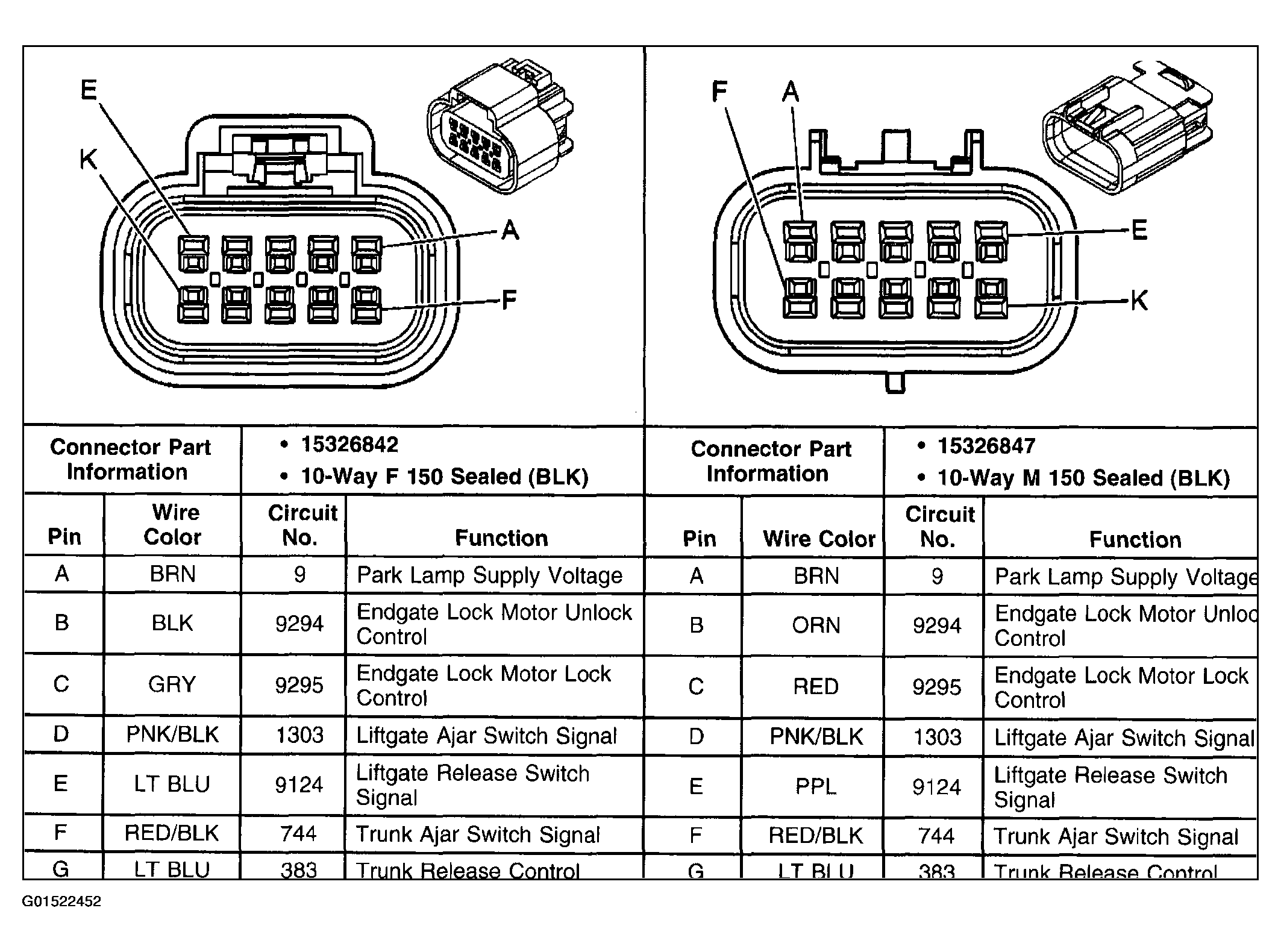

Fig 56: Identifying In-Line Harness Connector End View C403 (1 Of 2)
G01522452Courtesy of GENERAL MOTORS CORP.

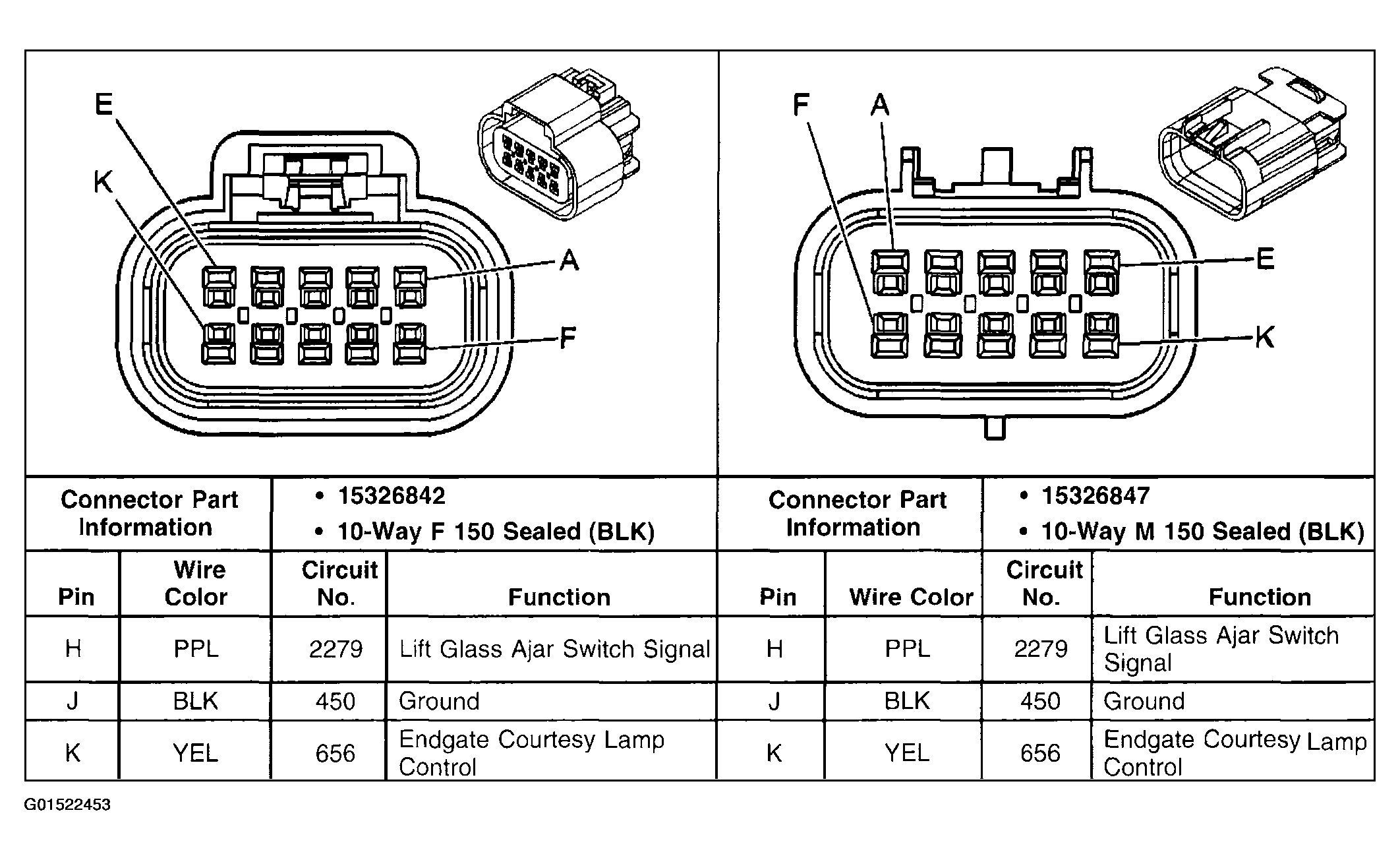

Fig 57: Identifying In-Line Harness Connector End View C403 (2 Of 2)
G01522453Courtesy of GENERAL MOTORS CORP.

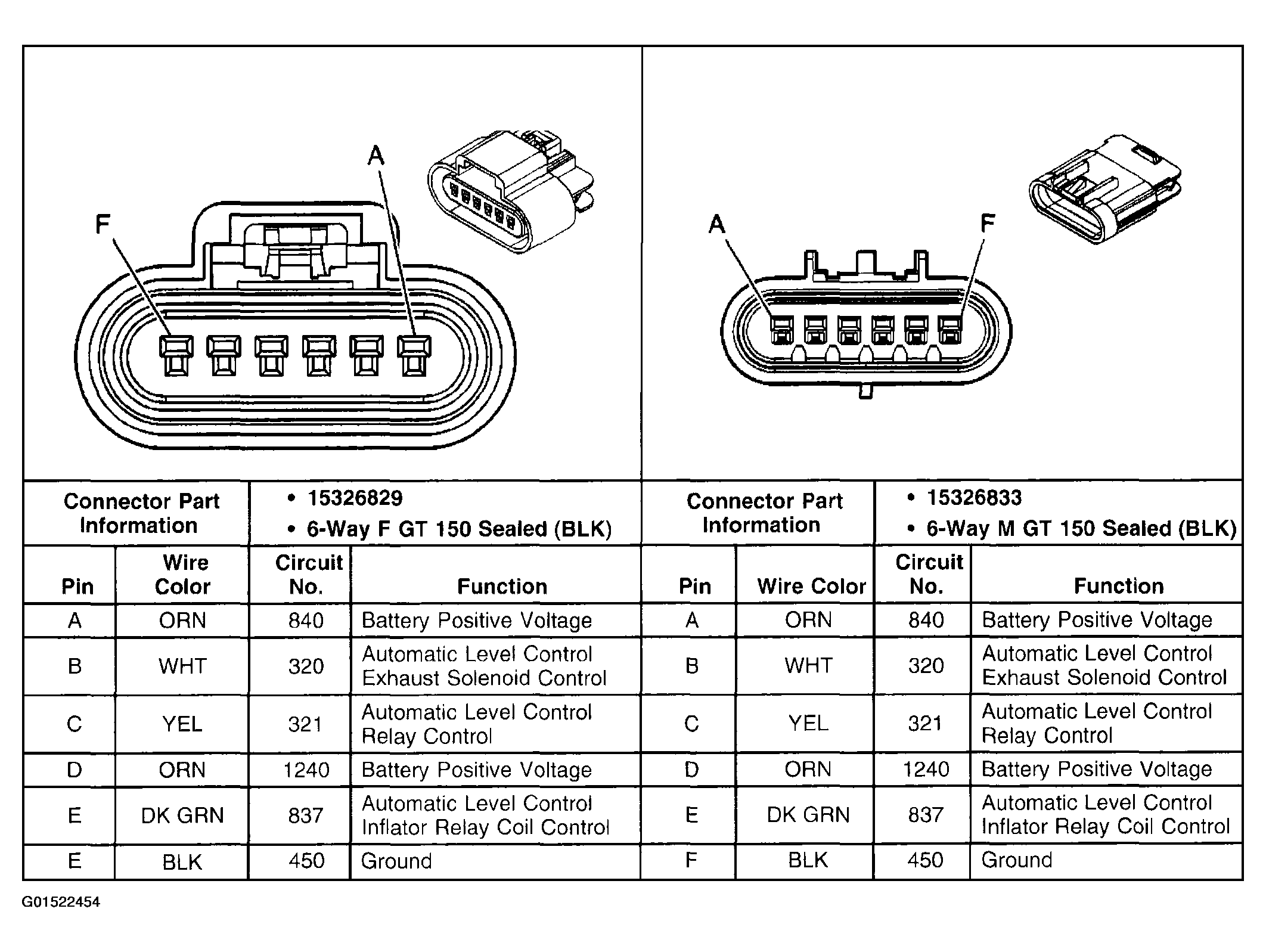

Fig 58: Identifying In-Line Harness Connector End View C405 (G67)
G01522454Courtesy of GENERAL MOTORS CORP.

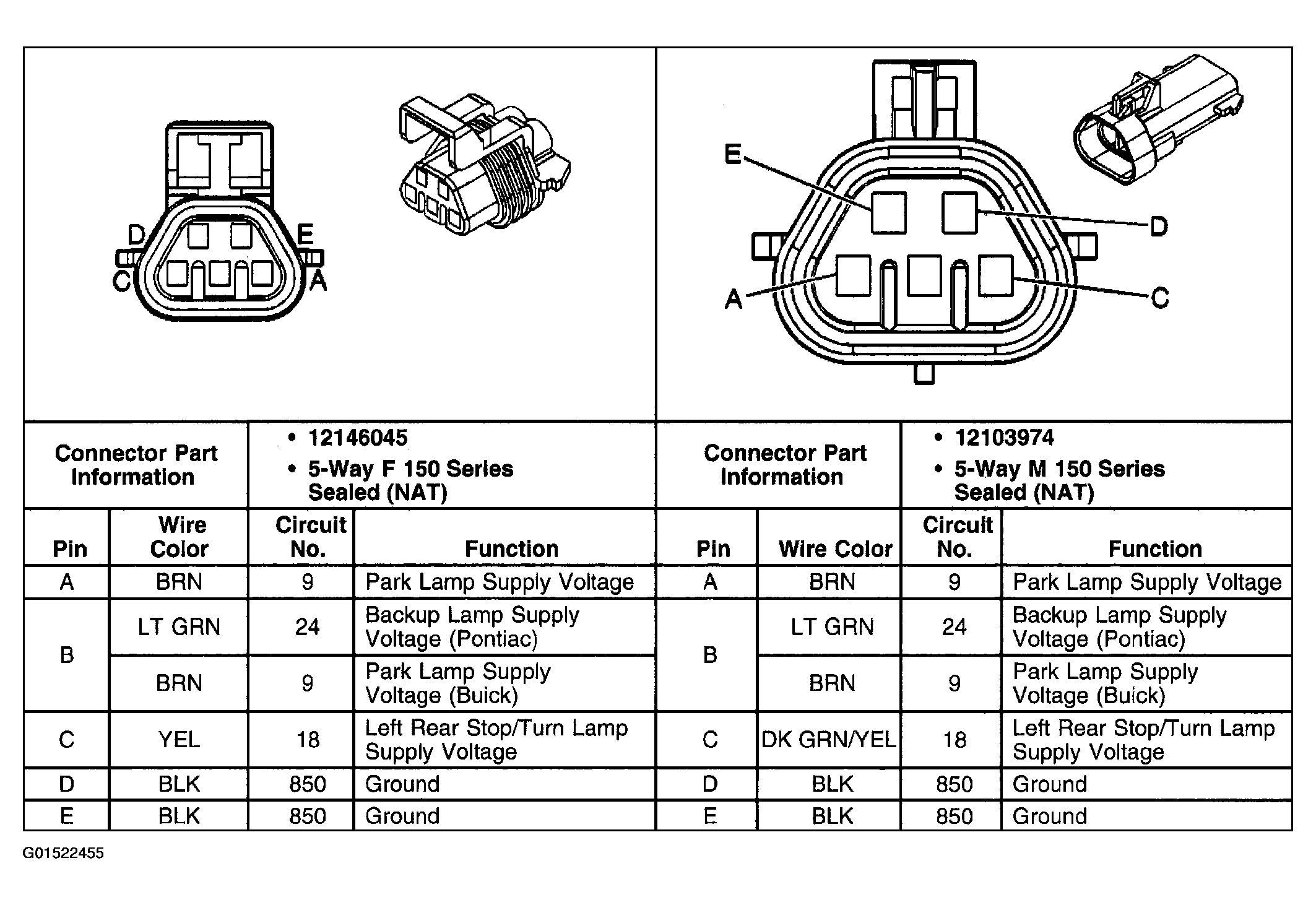

Fig 59: Identifying In-Line Harness Connector End View C407
G01522455Courtesy of GENERAL MOTORS CORP.
Fig 60: Identifying In-Line Harness Connector End View C408
G01522456Courtesy of GENERAL MOTORS CORP.
Fig 61: Identifying In-Line Harness Connector End View C411
G01522457Courtesy of GENERAL MOTORS CORP.

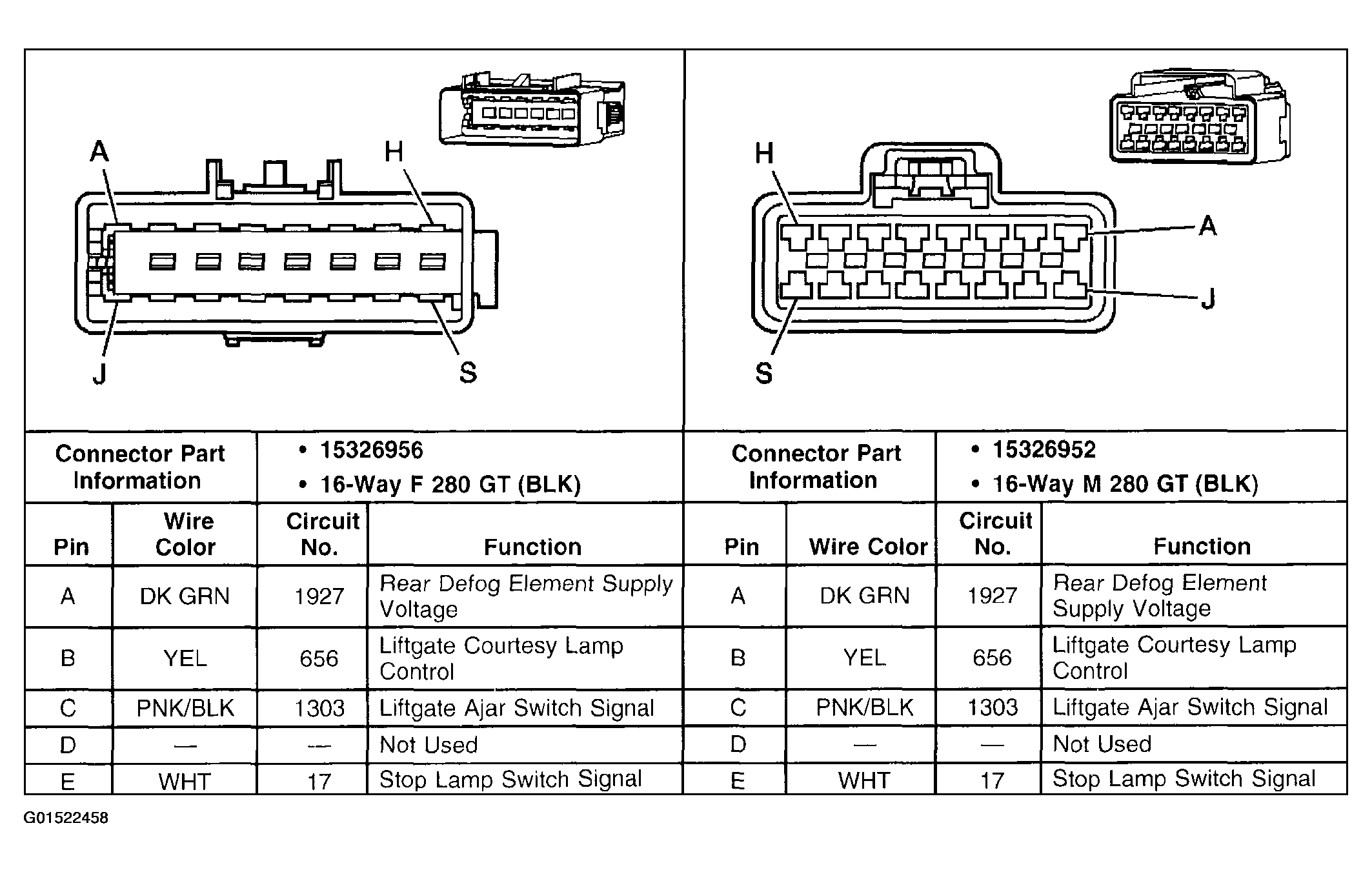

Fig 62: Identifying In-Line Harness Connector End View C413 (1 Of 2)
G01522458Courtesy of GENERAL MOTORS CORP.

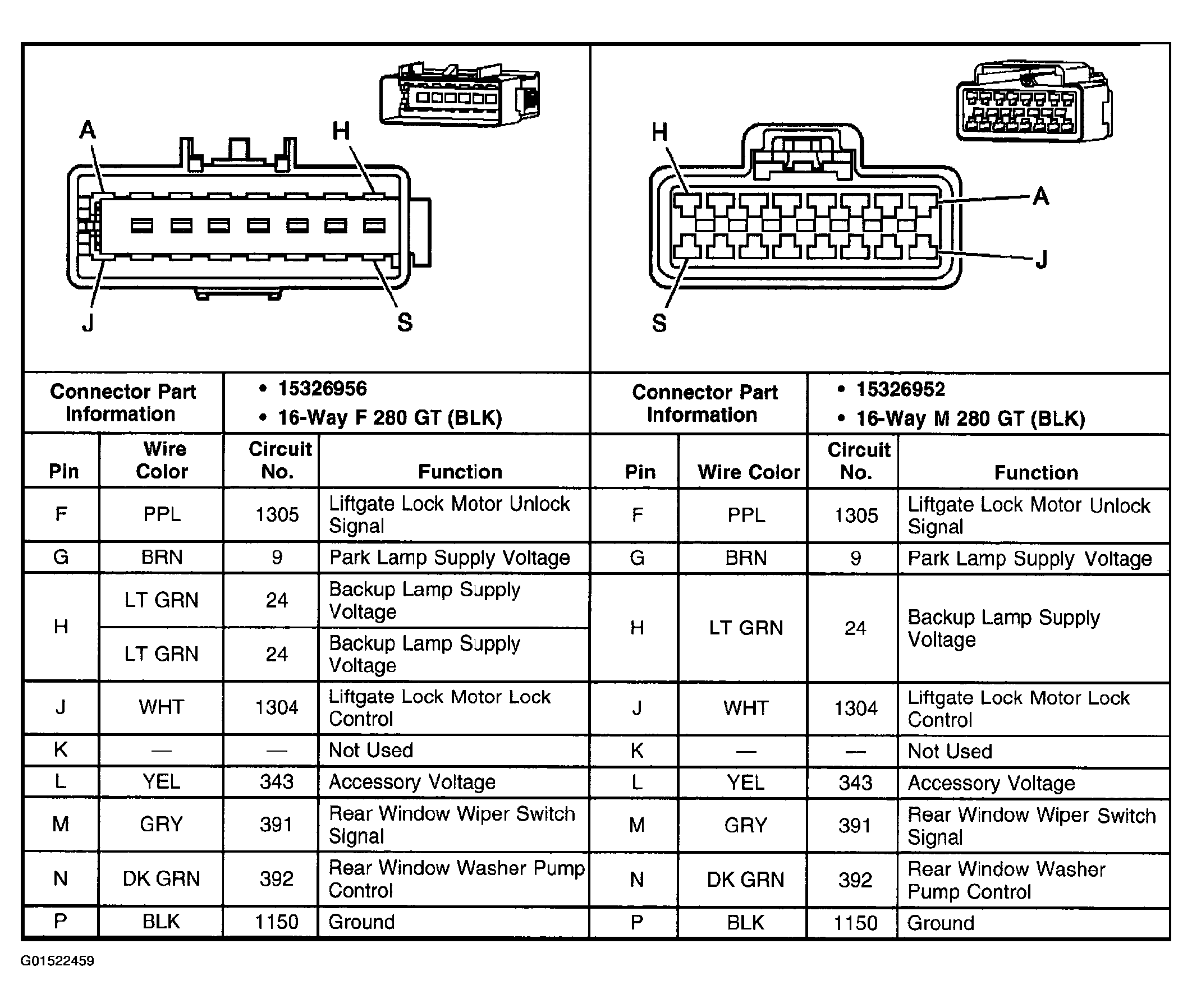

Fig 63: Identifying In-Line Harness Connector End View C413 (2 Of 2)
G01522459Courtesy of GENERAL MOTORS CORP.

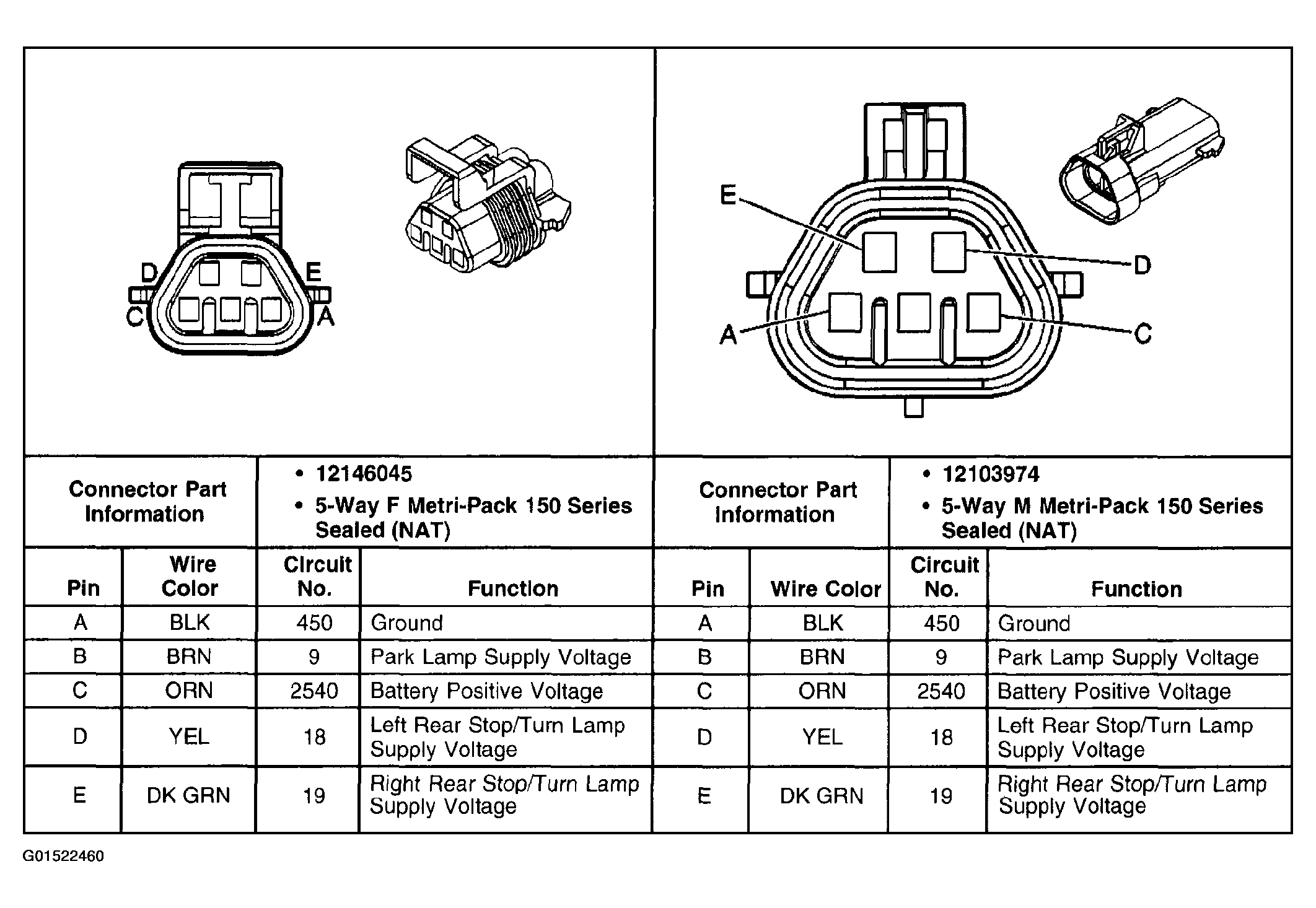

Fig 64: Identifying In-Line Harness Connector End View C420
G01522460Courtesy of GENERAL MOTORS CORP.
