Removal Procedure

  1. Remove the IP upper trim pad. Refer to TRIM PAD REPLACEMENT - INSTRUMENT PANEL (I/P) UPPER (AZTEK)  or TRIM PAD REPLACEMENT - INSTRUMENT PANEL (I/P) UPPER (RENDEZVOUS)  .
  2. Disconnect the electrical connectors.
  3. Remove the bolts that secure the heads up display module to the IP.
  4. Remove the heads up display module.

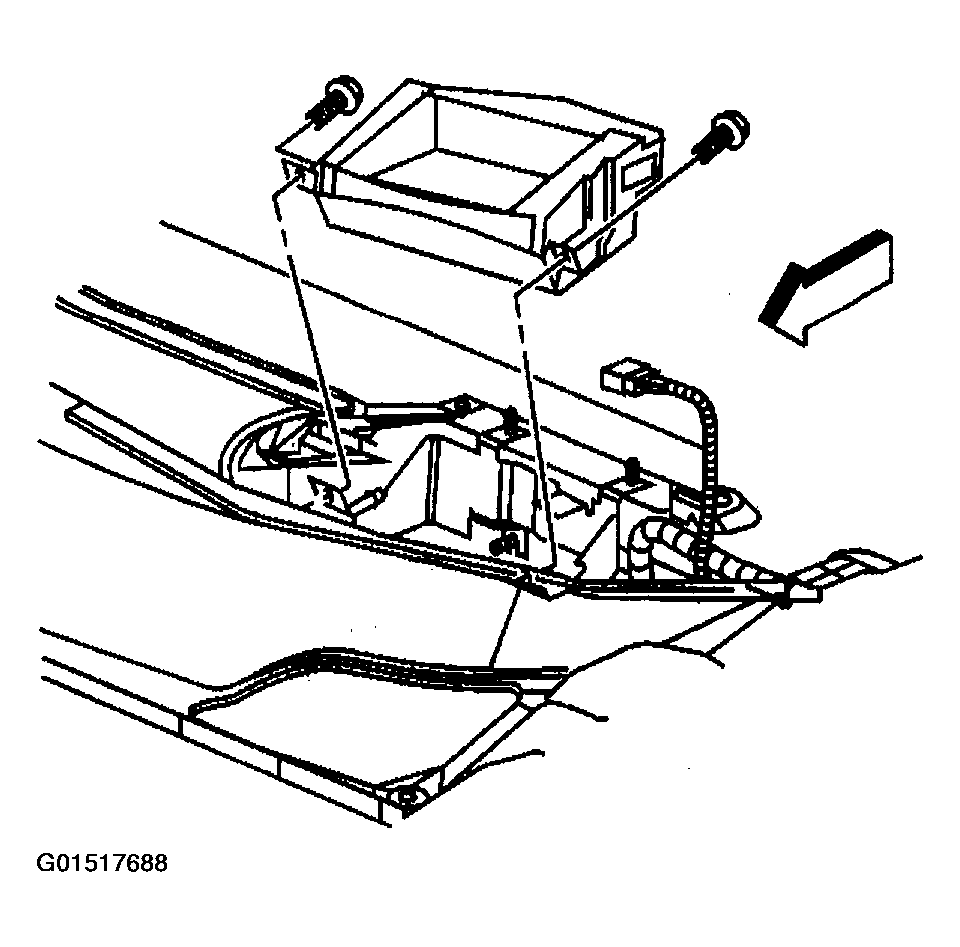

    Fig 1: Removing Heads Up Display Module
    G01517688Courtesy of GENERAL MOTORS CORP.
