Installation Procedure

  1. Install the electrical connections to the switch assembly.

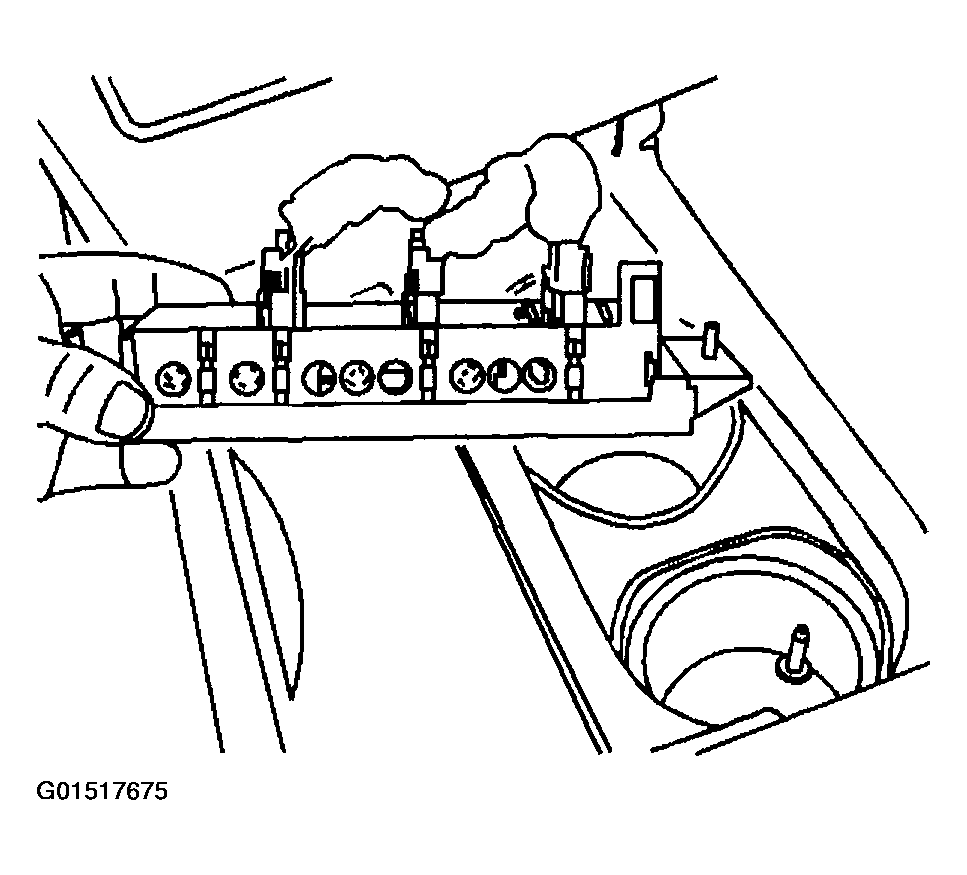

    Fig 1: Installing Electrical Connections To Switch Assembly
    G01517675Courtesy of GENERAL MOTORS CORP.
  2. Install the bolts to the switch assembly of the rear object alarm module.

    Tighten

    Tighten the bolts to 2 N.m (18 lb in)

    Fig 2: Installing Bolts To Switch Assembly
    G01517676Courtesy of GENERAL MOTORS CORP.
  3. Install the I/P accessory trim plate. Refer to TRIM PLATE REPLACEMENT - INSTRUMENT PANEL (I/P) ACCESSORY (AZTEK)  .
  4. Install the front floor console. Refer to TRIM PLATE REPLACEMENT - FRONT FLOOR CONSOLE (AZTEK)  or TRIM PLATE REPLACEMENT - FRONT FLOOR CONSOLE (RENDEZVOUS)  .

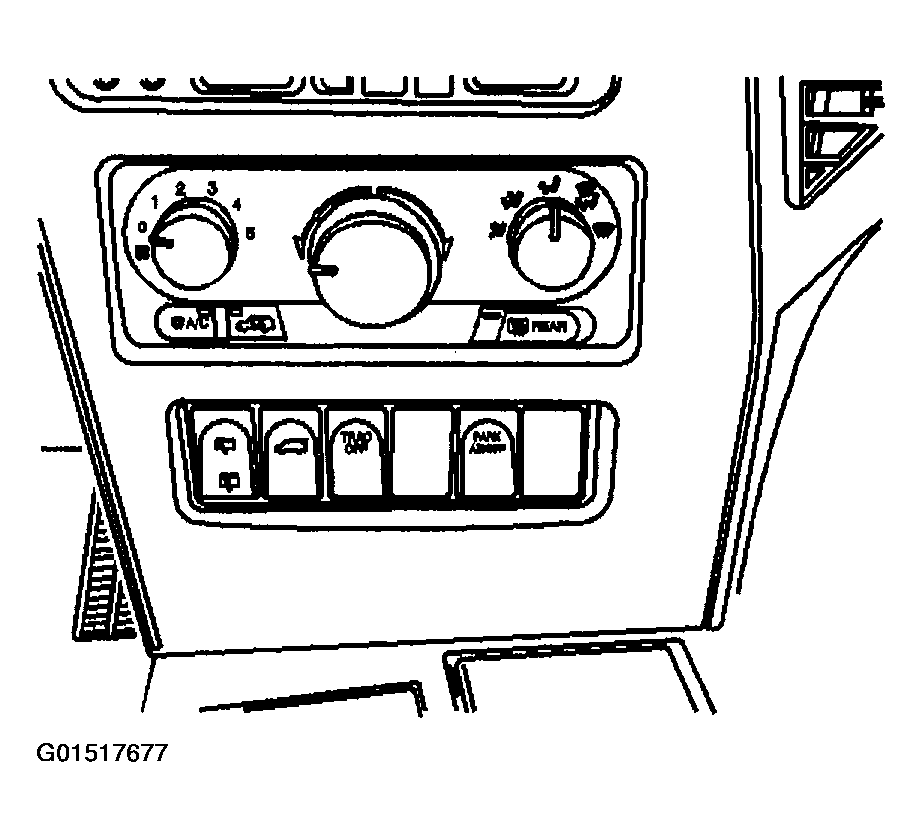

    Fig 3: Locating Instrument Panel Multifunction Switch Assembly
    G01517677Courtesy of GENERAL MOTORS CORP.
