Fuel Level Specifications

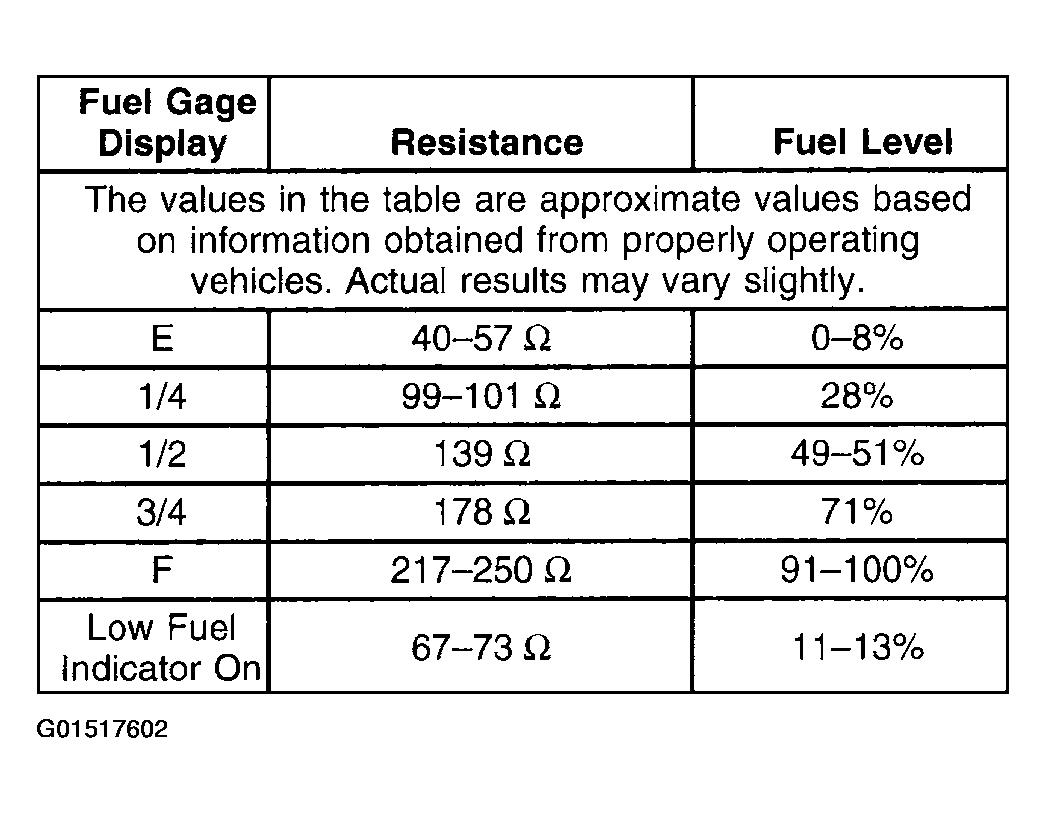

Fig 1: Fuel Gauge Level Resistance Specifications
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
