Schematic and Routing Diagrams

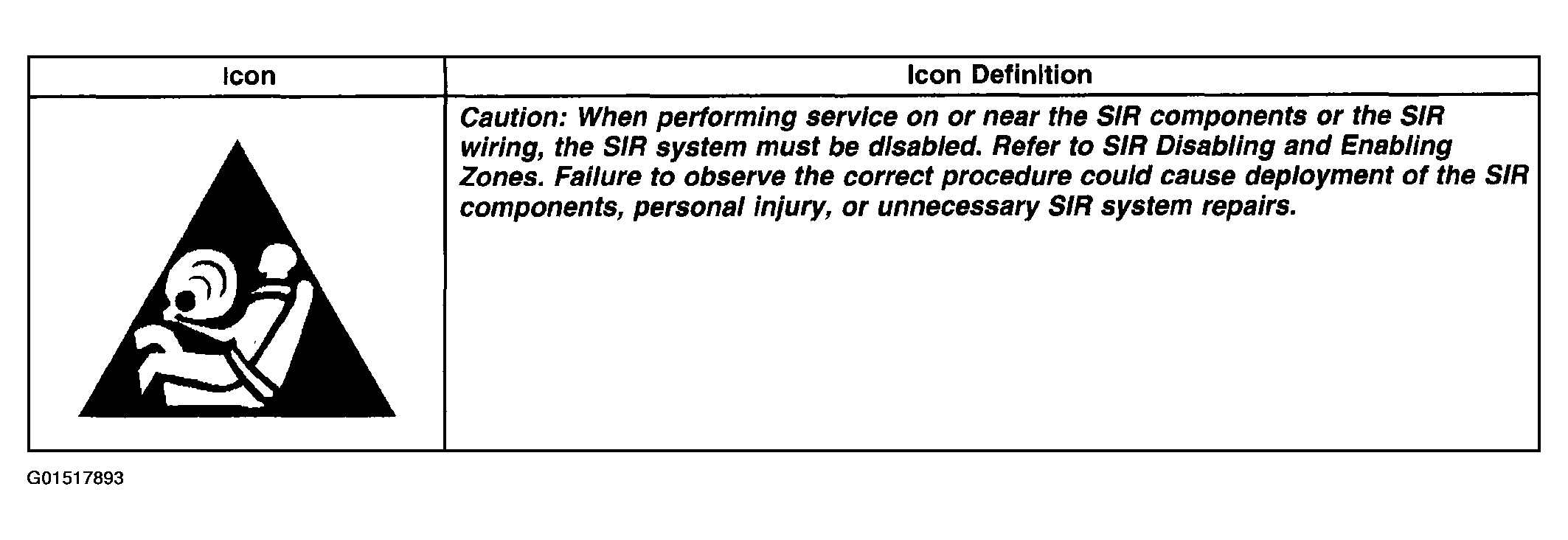

Fig 1: Horns Schematics Icons Definition
G01517893Courtesy of GENERAL MOTORS CORP.

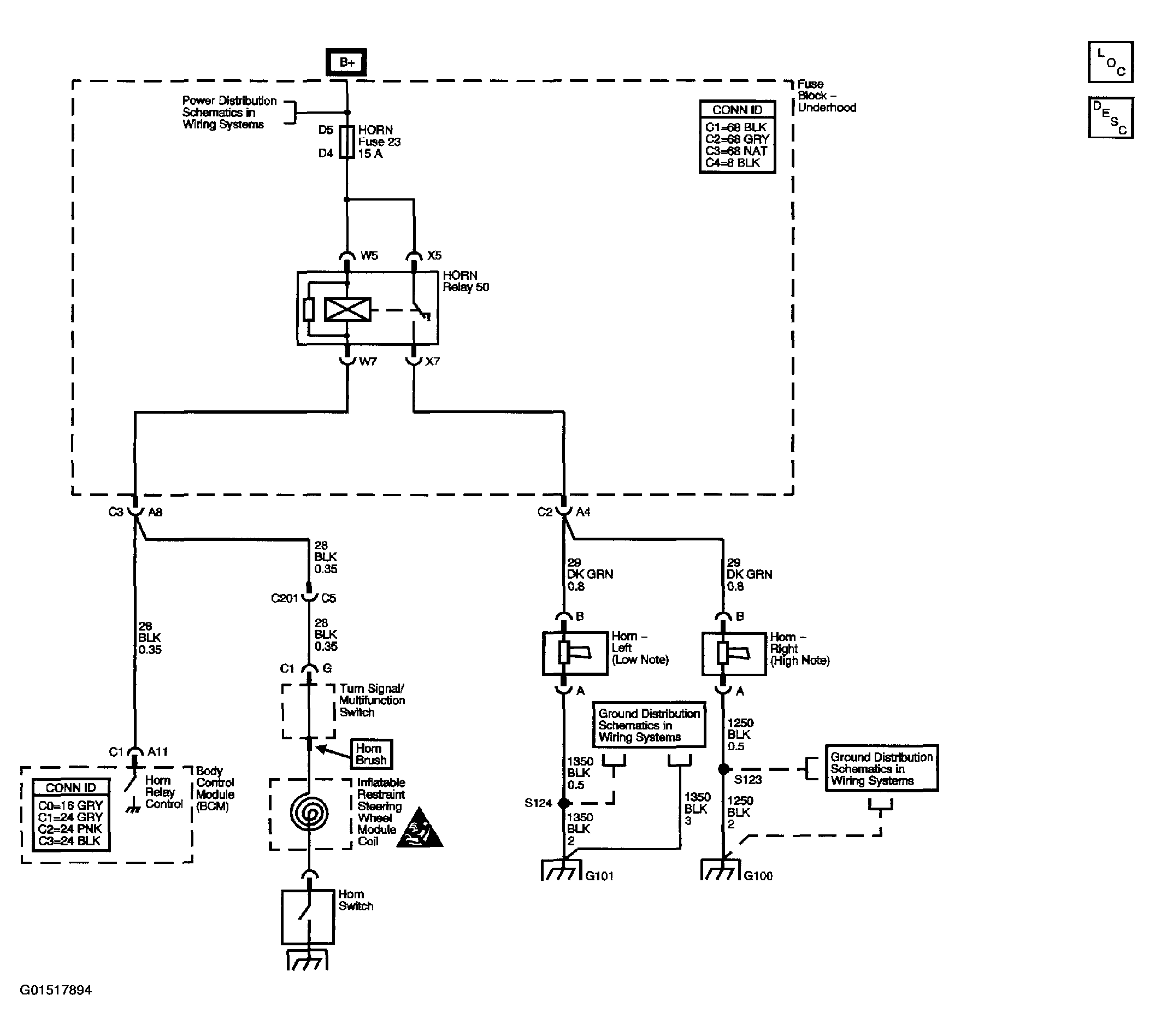

Fig 2: Horns Schematic
G01517894Courtesy of GENERAL MOTORS CORP.
