Scan Tool Output Controls

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Heating and Air Conditioning Scan Tool Output Controls

Courtesy of GENERAL MOTORS CORP.

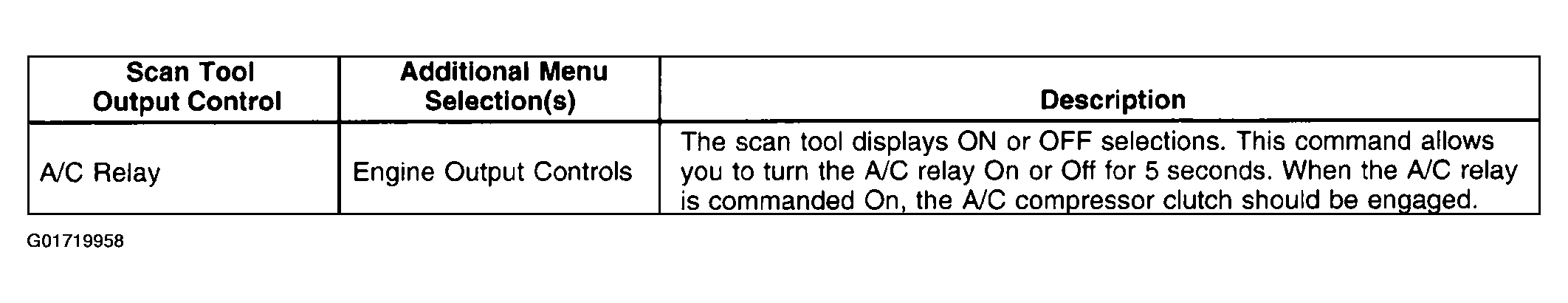

Fig 2: PCM Scan Tool Output Controls

Courtesy of GENERAL MOTORS CORP.

Fig 3: Radio Scan Tool Output Controls

Courtesy of GENERAL MOTORS CORP.
