Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front floor console, if equipped. Refer to CONSOLE REPLACEMENT - FRONT FLOOR (D06) or CONSOLE REPLACEMENT - FRONT FLOOR (D55) in GAUGES AND INSTRUMENT PANELS .
  2. Remove the instrument panel accessory trim plate. Refer to TRIM PLATE REPLACEMENT - IP ACCESSORY in GAUGES AND INSTRUMENT PANELS .
  3. Remove the HVAC control module mounting screws.

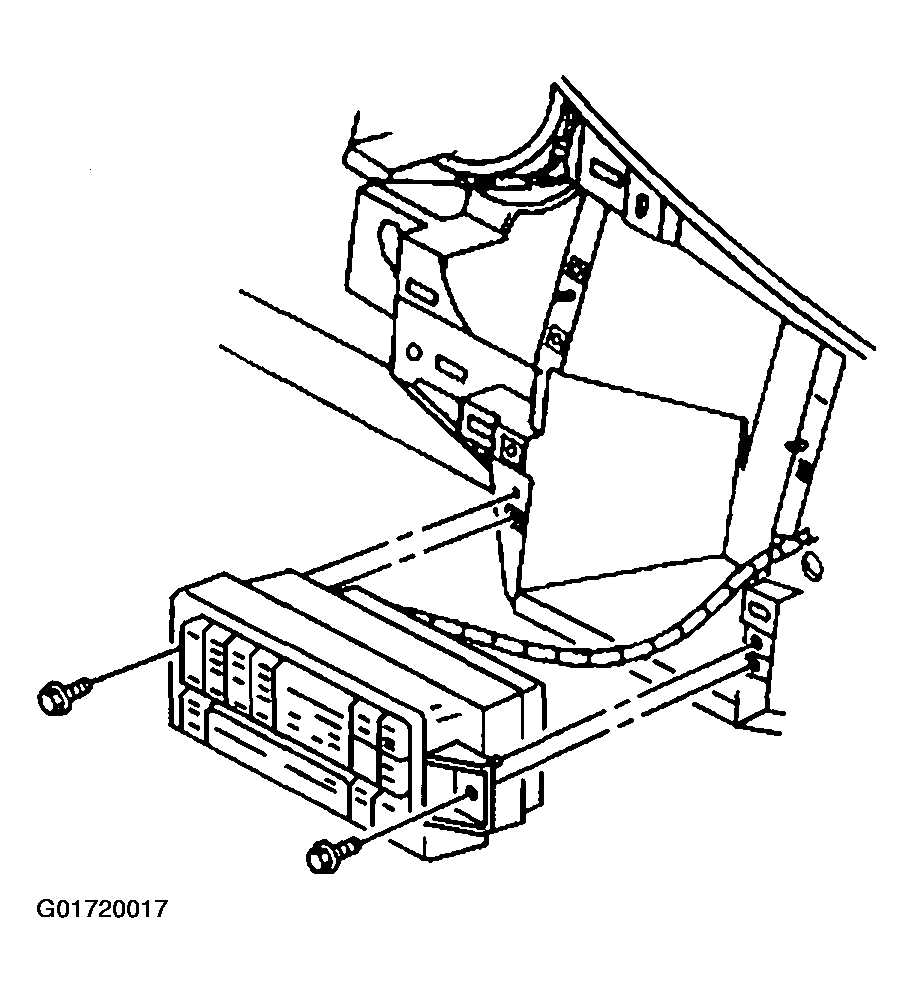

    Fig 1: HVAC Control Module Mounting Screws
    G01720017Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the HVAC control module electrical connector.
  5. Remove the HVAC control module.

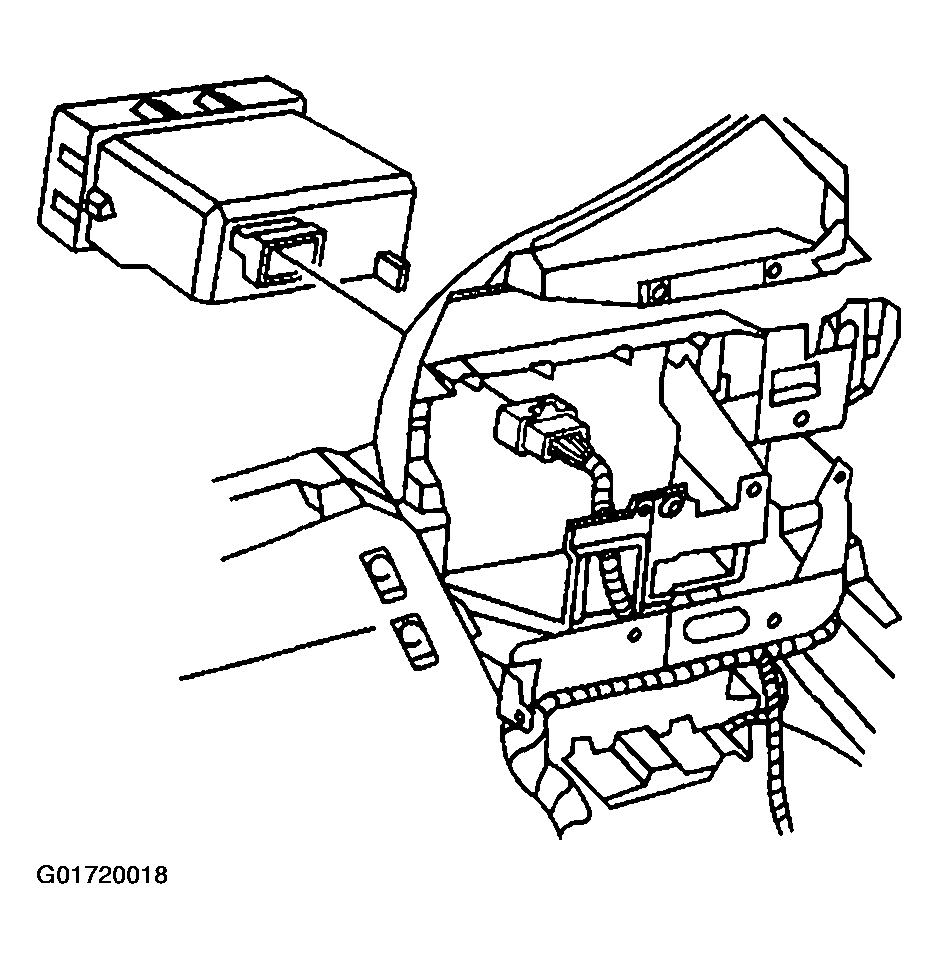

Fig 2: HVAC Control Module
G01720018Courtesy of GENERAL MOTORS CORP.
