Section 160 (Electrical Component Locator): Miscellaneous
WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
MISCELLANEOUS LOCATION
| Component | Location |
|---|---|
| Audio Amplifier | Under rear shelf panel. |
| Auxiliary Power Drop Connector | Behind right side of dash, taped to harness. |

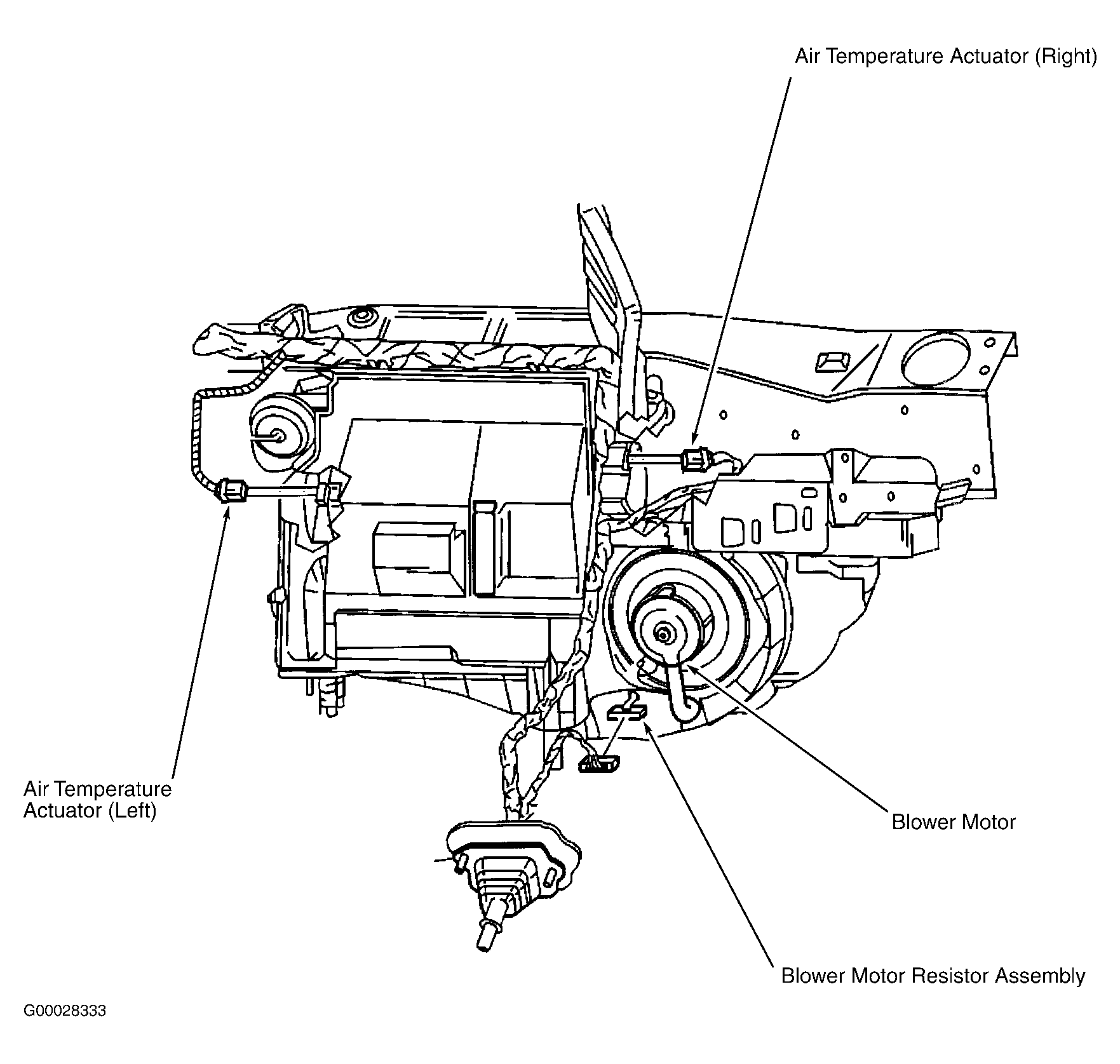

| Blower Motor Resistor Assembly | Under right side of dash, in right side of HVAC module. See Figure . |
| Data Link Connector | Under left side of dash, right of steering column. |
| Daytime Running Lamps Diode | Under left side of dash, mounted to cross beam above park brake. |
| Global Positioning Satellite Antenna | Near bottom center of rear window. |
| Rear Compartment Courtesy Lamp Diode | In rear compartment body wiring harness, near CHMSL breakout. |
| RF Filter | On right "C" pillar, behind trim. |
