Connector Identification

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

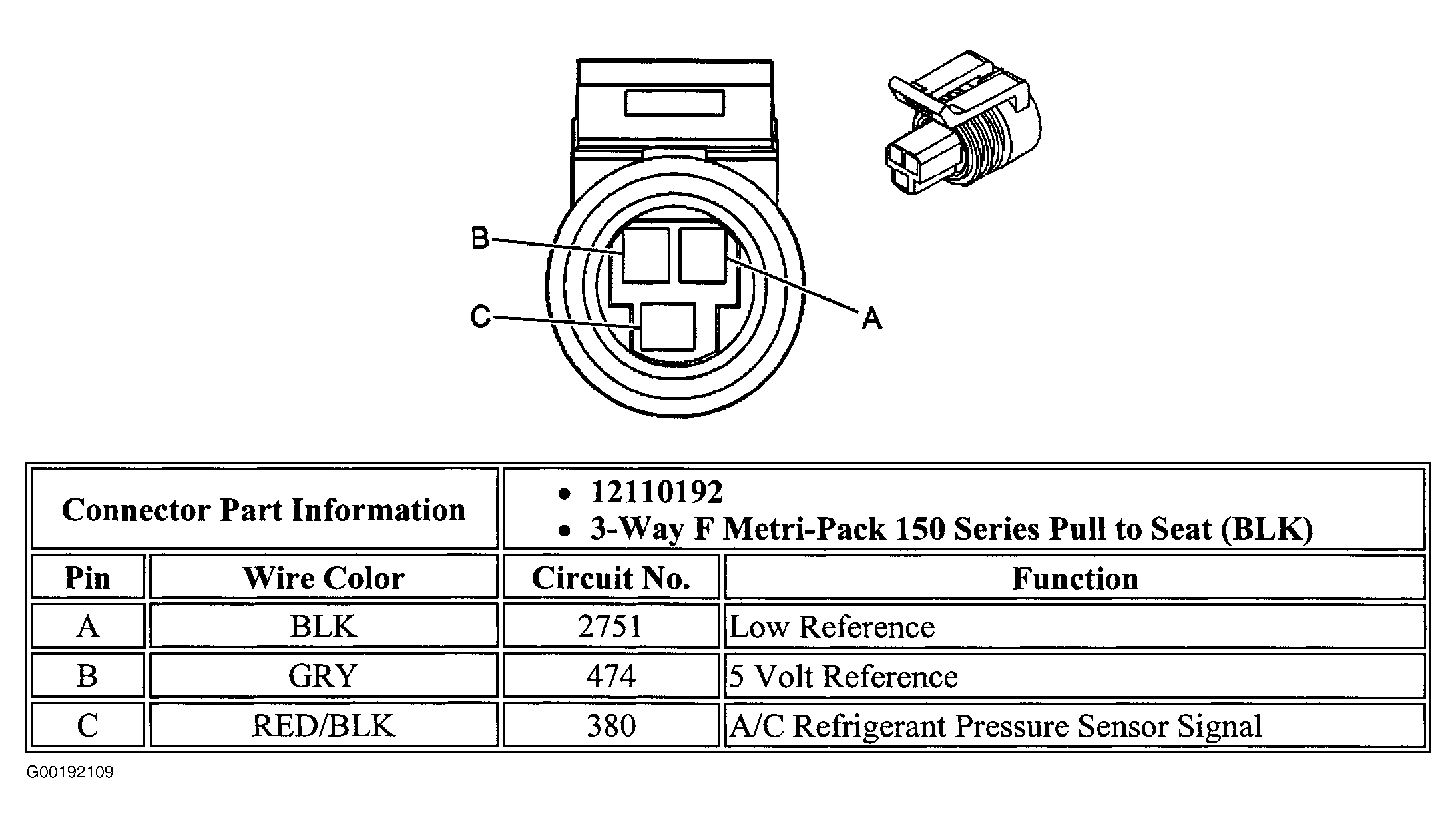

Fig 1: Identifying A/C Pressure Sensor Harness Connector Terminals

Courtesy of GENERAL MOTORS CORP.

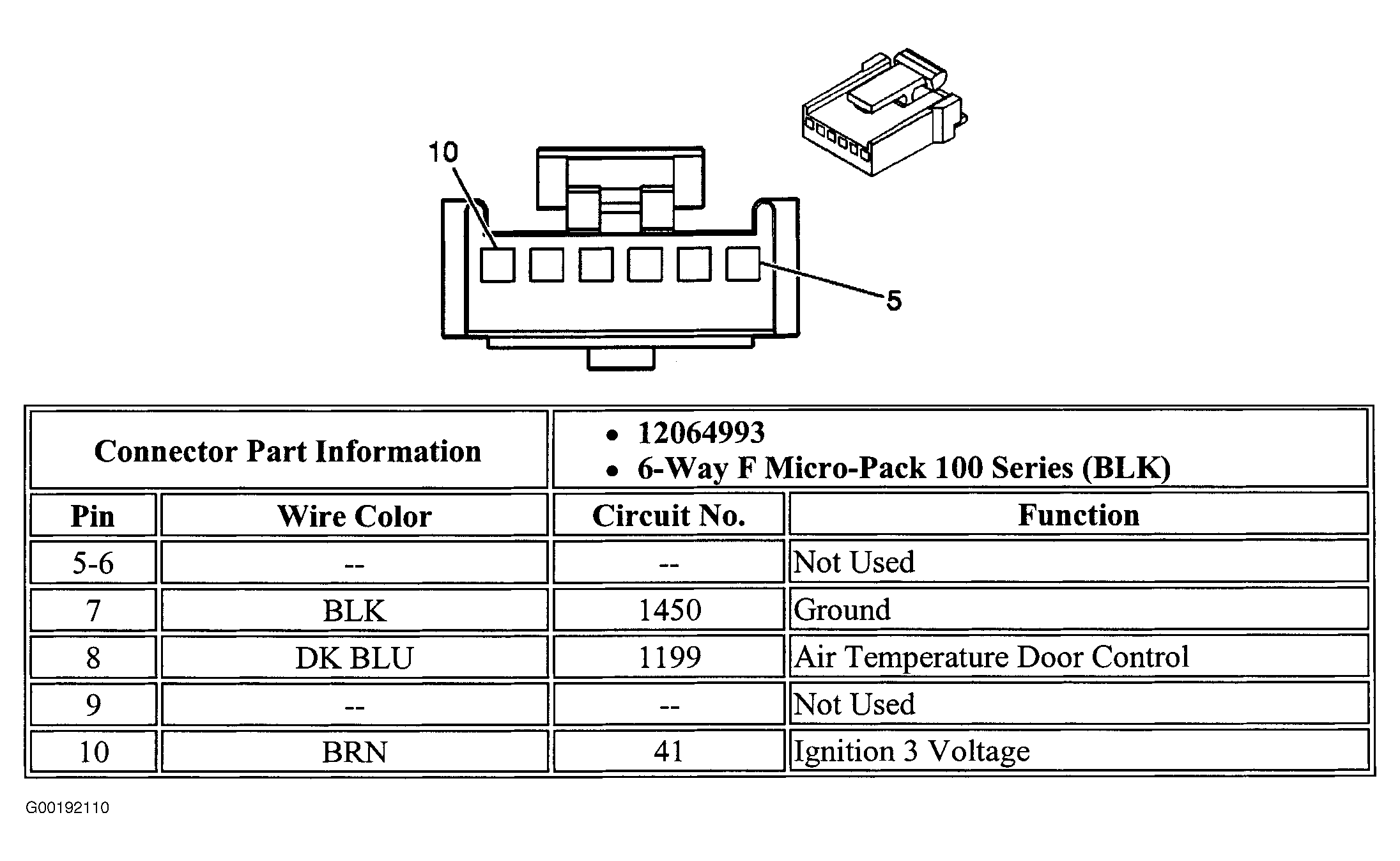

Fig 2: Identifying Left Temperature Actuator Harness Connector Terminals

Courtesy of GENERAL MOTORS CORP.

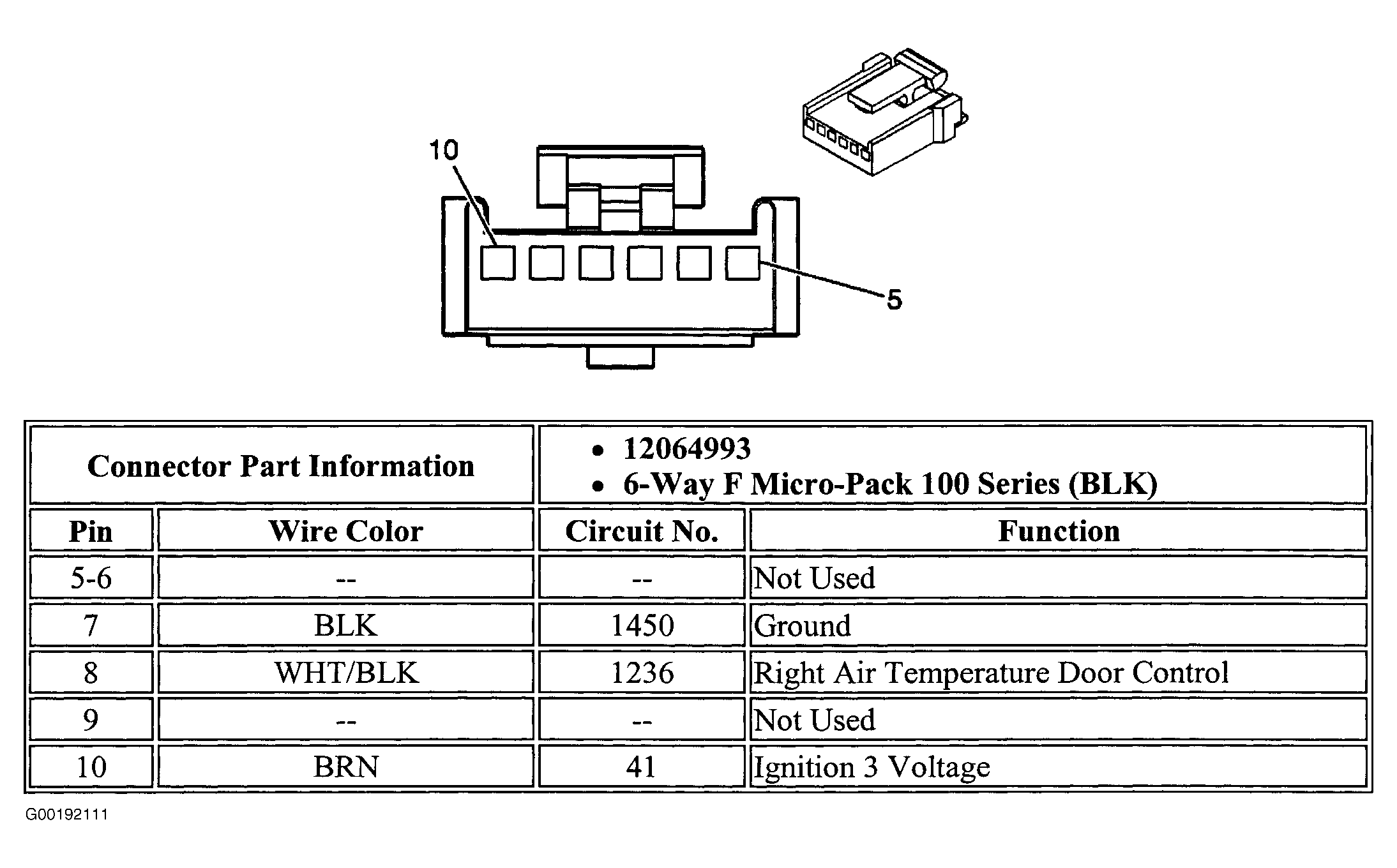

Fig 3: Identifying Right Temperature Actuator Harness Connector Terminals

Courtesy of GENERAL MOTORS CORP.

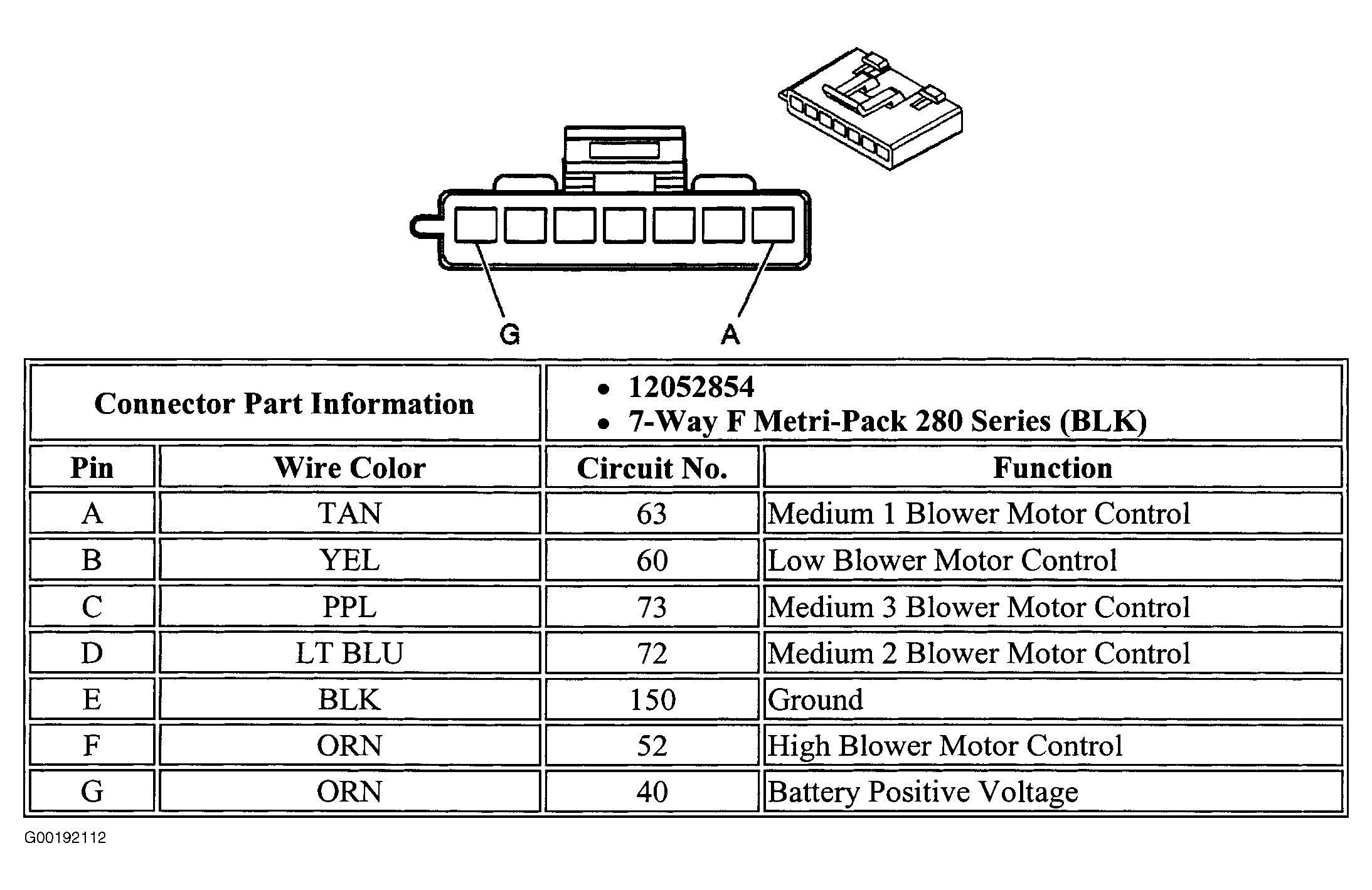

Fig 4: Identifying Blower Motor Resistor Harness Connector Terminals

Courtesy of GENERAL MOTORS CORP.

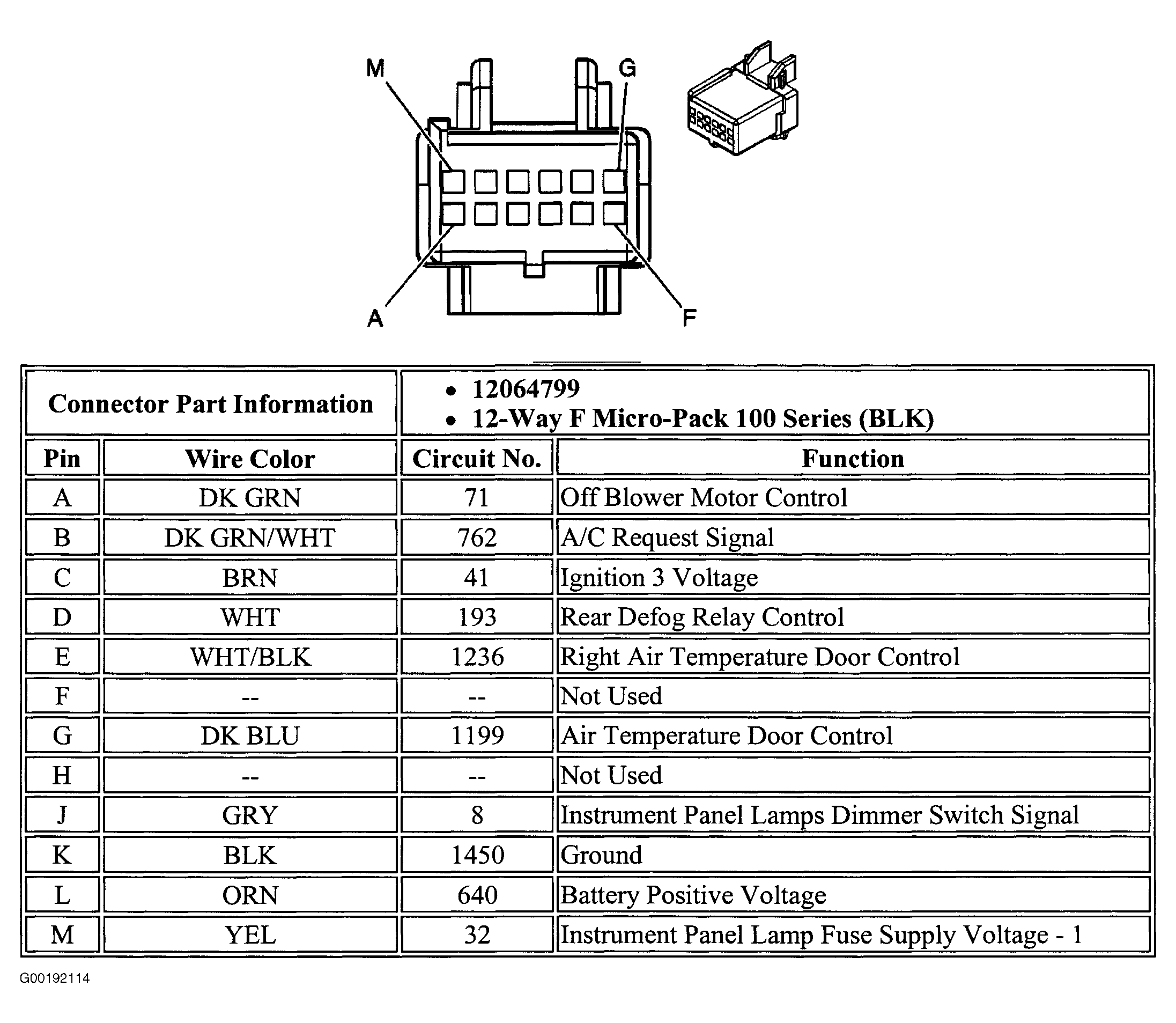

Fig 5: HVAC Control Module Harness Connector (C1) Terminals

Courtesy of GENERAL MOTORS CORP.

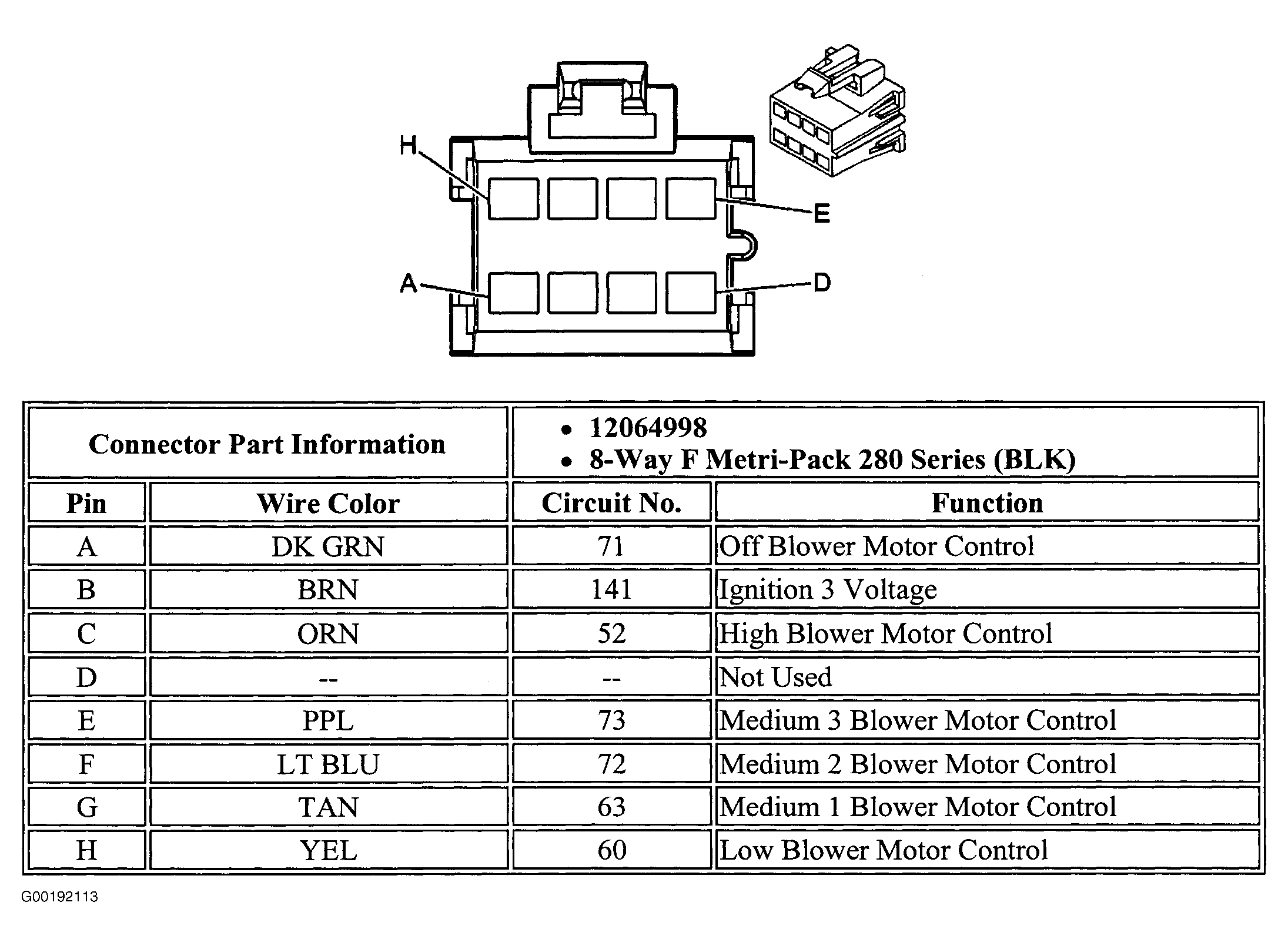

Fig 6: HVAC Control Module Harness Connector (C1) Terminals

Courtesy of GENERAL MOTORS CORP.
