Cooling System Component Views

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.

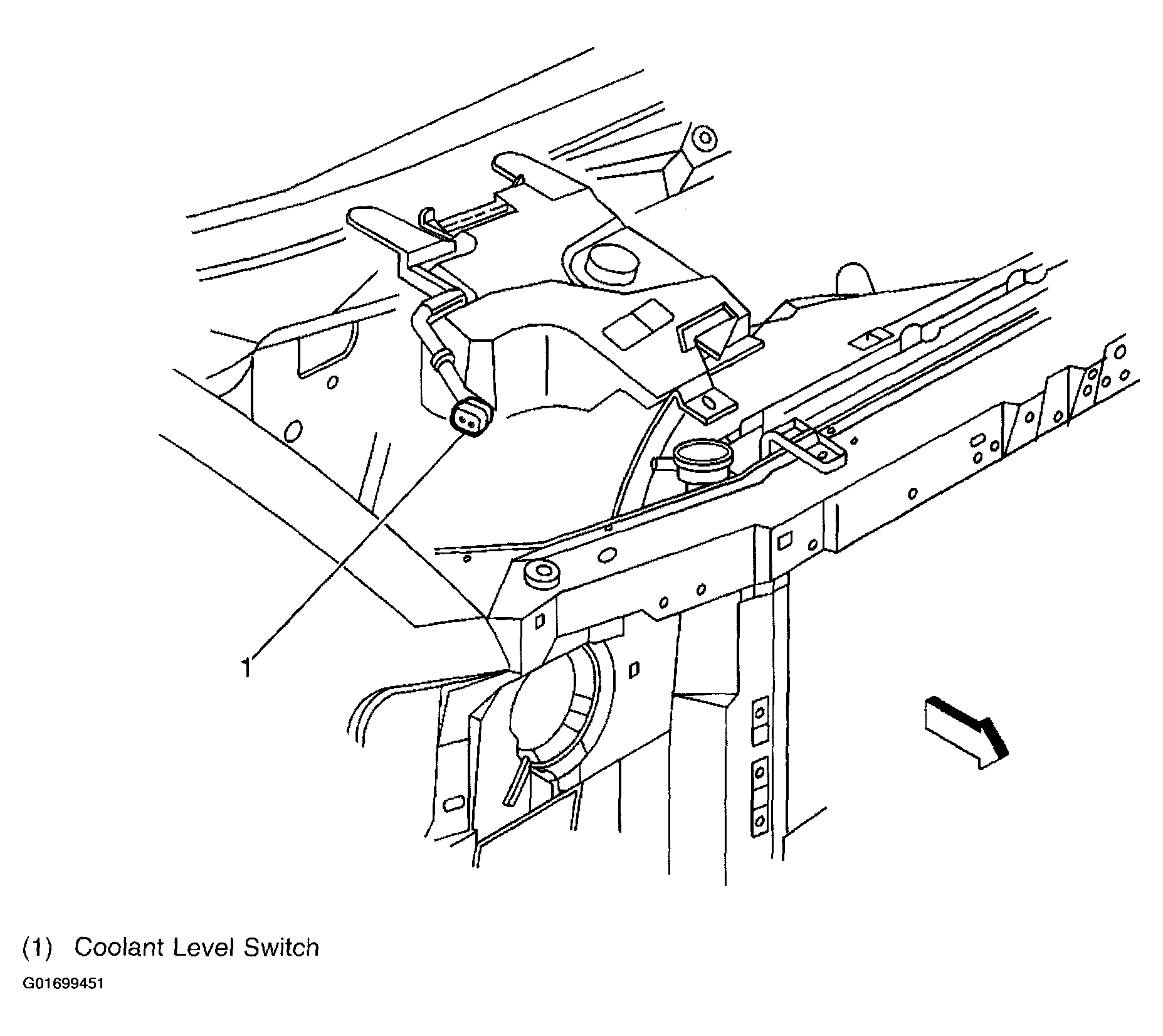

Fig 1: Coolant Recovery Tank
G01699451Courtesy of GENERAL MOTORS CORP.

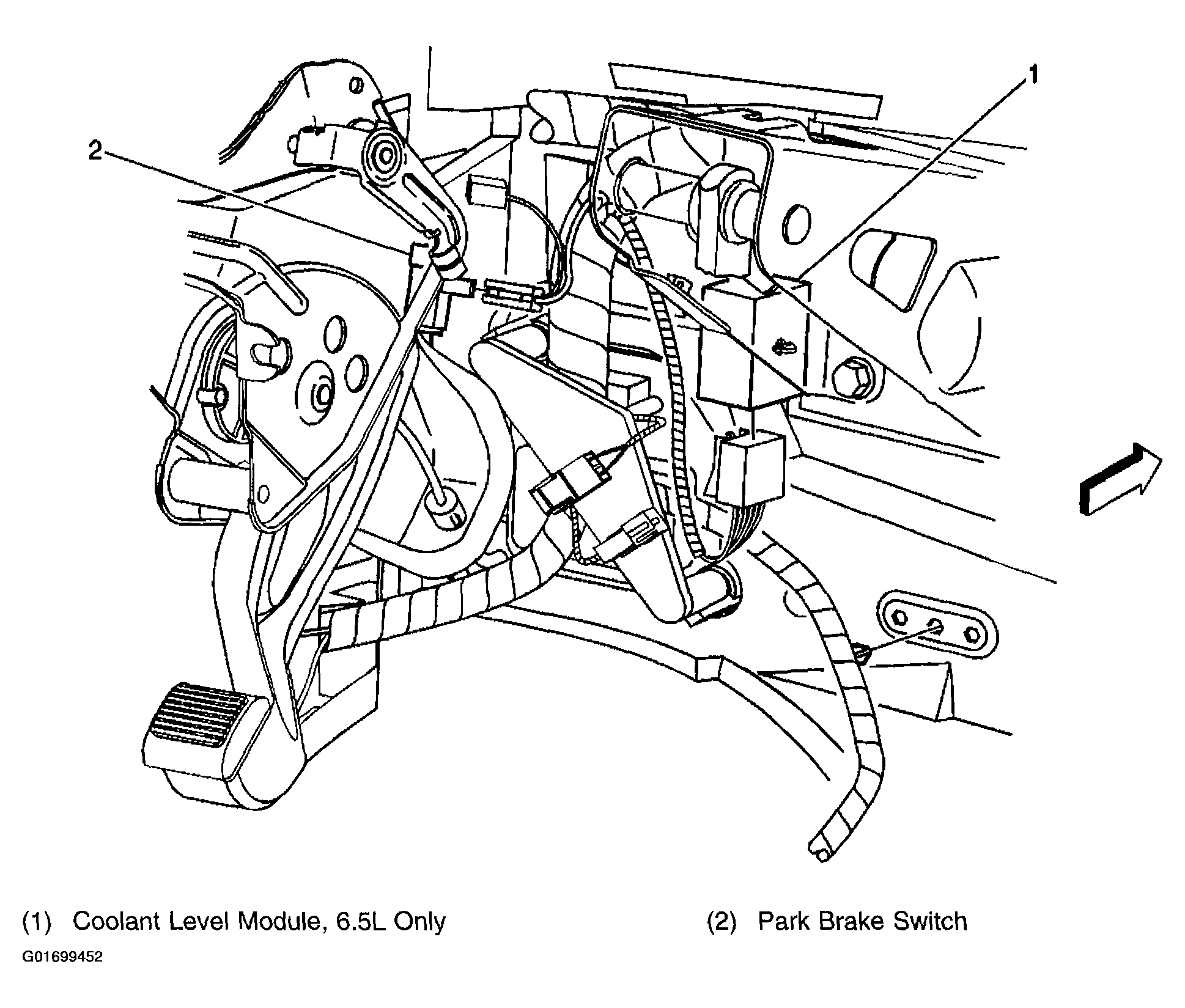

Fig 2: Instrument Panel, Driver Outer Knee Bolster Bracket
G01699452Courtesy of GENERAL MOTORS CORP.
