Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the passenger side body side protector to the vehicle.

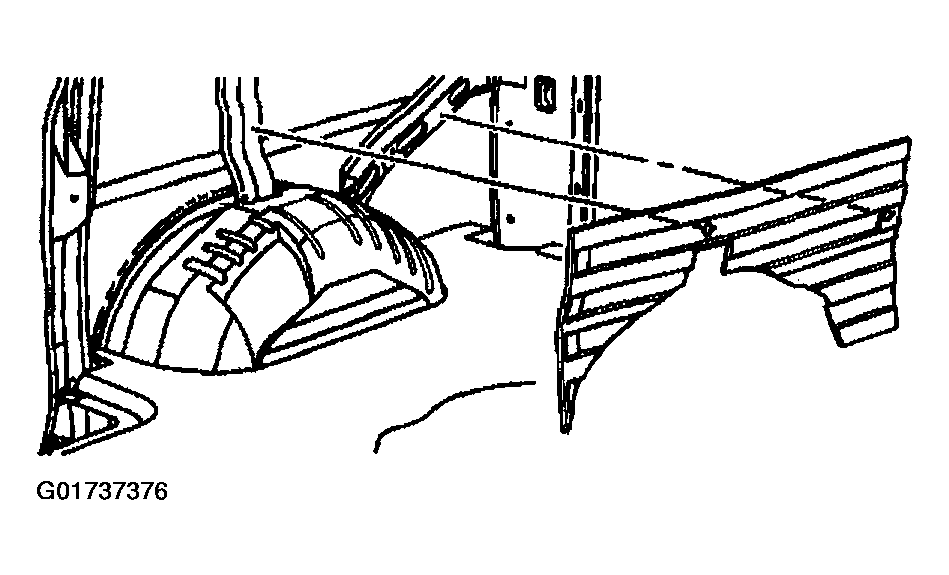

    Fig 1: Installing Passenger Side Body Side Protector
    G01737376Courtesy of GENERAL MOTORS CORP.
  2. Install the driver side body side rear protector to the vehicle.

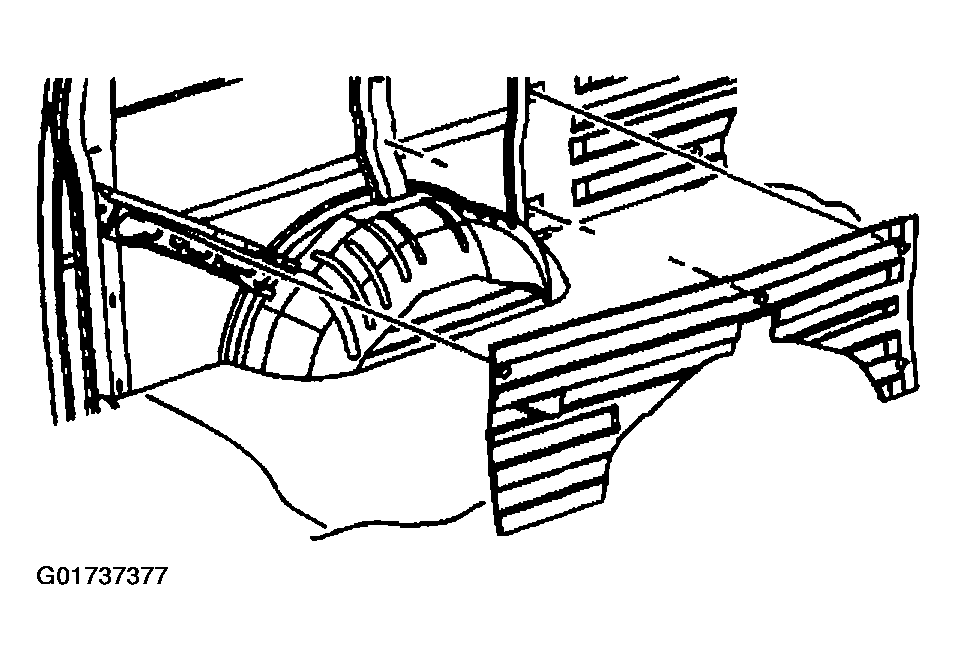

    Fig 2: Installing Driver Side Body Side Rear Protector
    G01737377Courtesy of GENERAL MOTORS CORP.
  3. Install the driver side body side front protector to the vehicle.
  4. Install the retainers to the body side protectors.

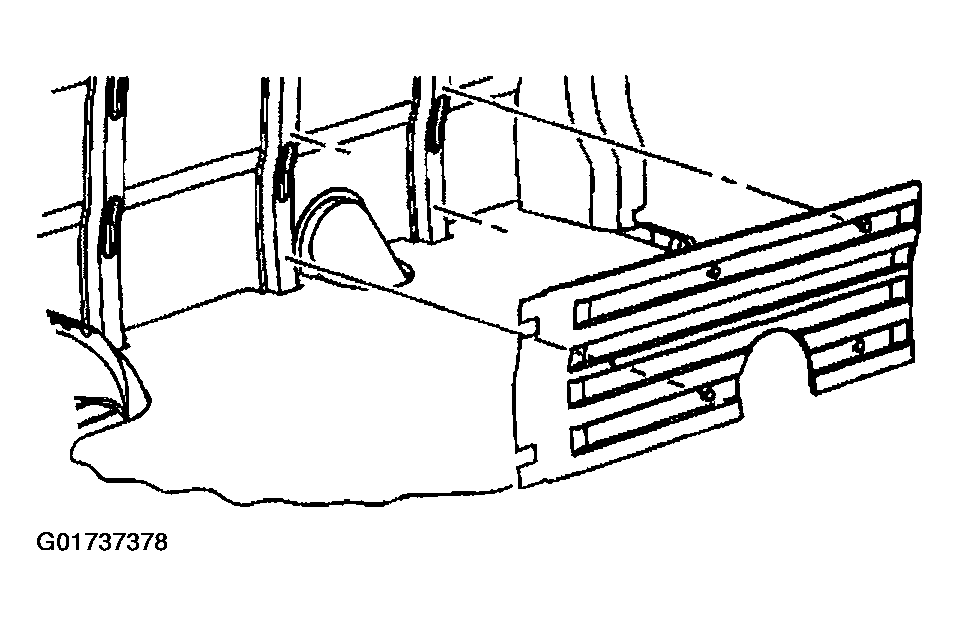

    Fig 3: Installing Driver Side Body Side Front Protector & Retainers
    G01737378Courtesy of GENERAL MOTORS CORP.
