Installation Procedure
WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
Important: Ensure that the engine cover sealing strip is properly seated between the engine cover and the vehicle.

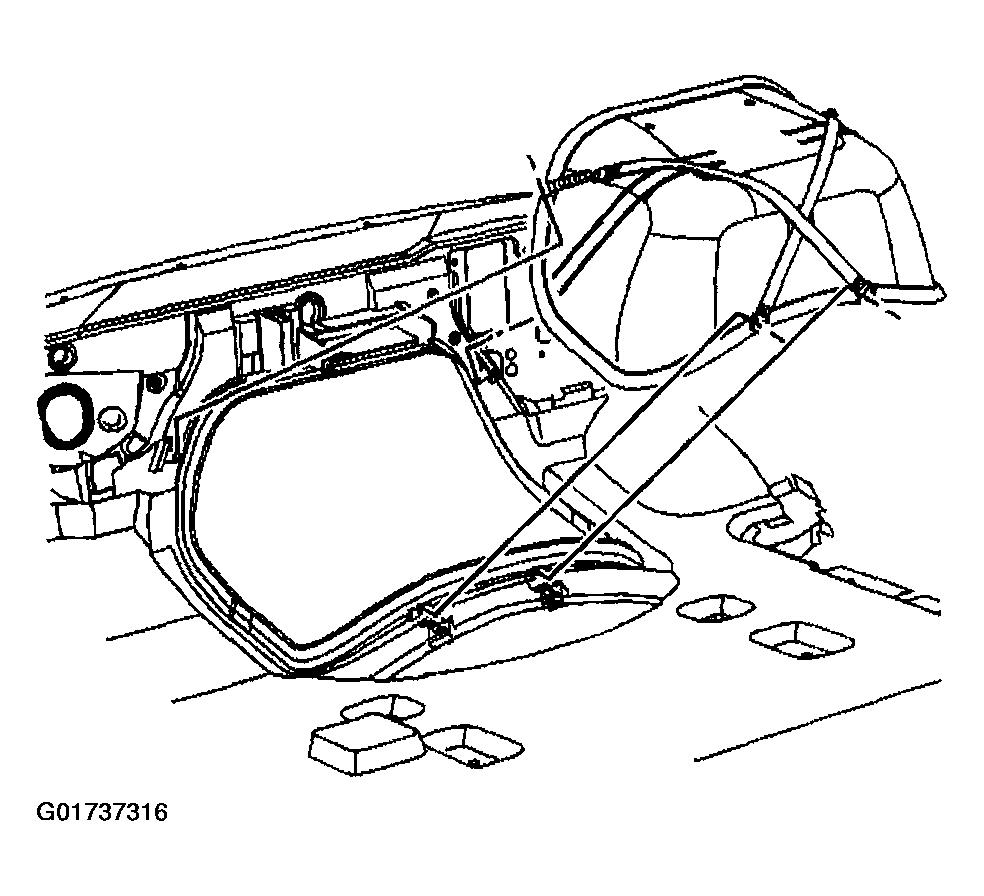

- Install the engine cover to the vehicle.
- Install the engine cover retaining straps.
- Install the passenger seat to the vehicle in 6.5L and the 8.1L Diesel engines. Refer to SEAT REPLACEMENT - BUCKET (ALL EXCEPT LUXURY) or SEAT REPLACEMENT - BUCKET (LUXURY Y91) .
- Install the instrument panel lower extension. Refer to INSTRUMENT PANEL (I/P) EXTENSION REPLACEMENT .
