Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the front door stepwell mat to the vehicle.
  2. Connect the electrical connector for the stepwell lamp.
  3. Press down on the front door stepwell mat in order to engage the retaining clips.
  4. Install the front door lower pillar garnish molding. Refer to Garnish Molding Replacement - Lower Pillar .
  5. Install the hinge pillar trim panel. Refer to Trim Replacement - Hinge Pillar .

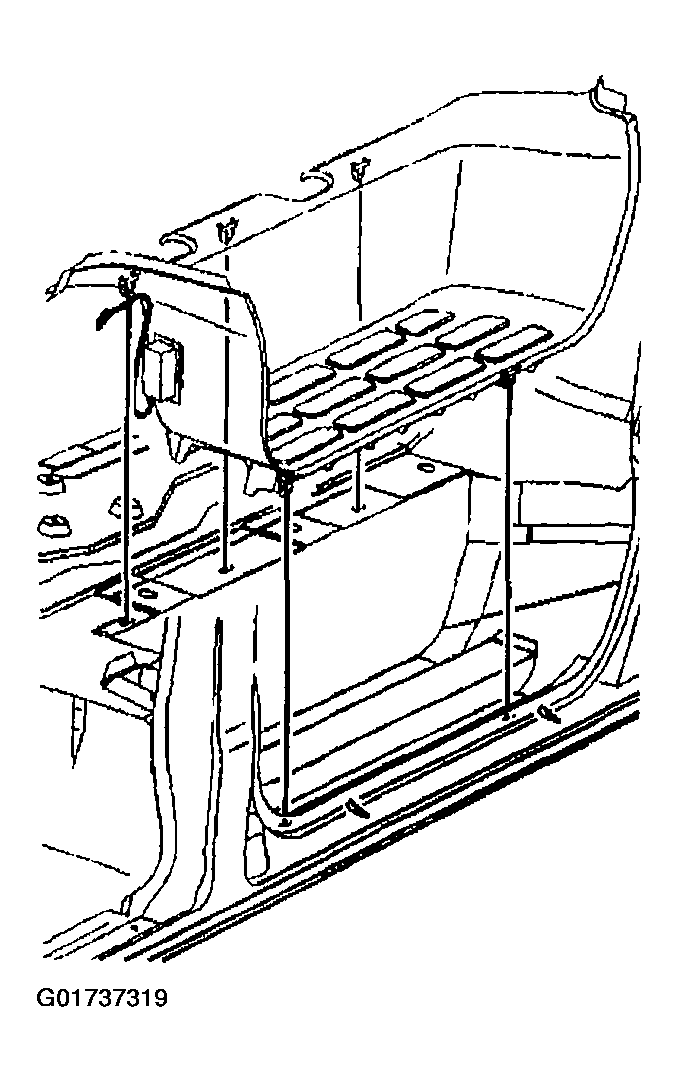

    Fig 1: Installing Stepwell Mat Components
    G01737319Courtesy of GENERAL MOTORS CORP.
