Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

Install the fog lamp bulb/socket to the fog lamp rotating clockwise until fully seated.

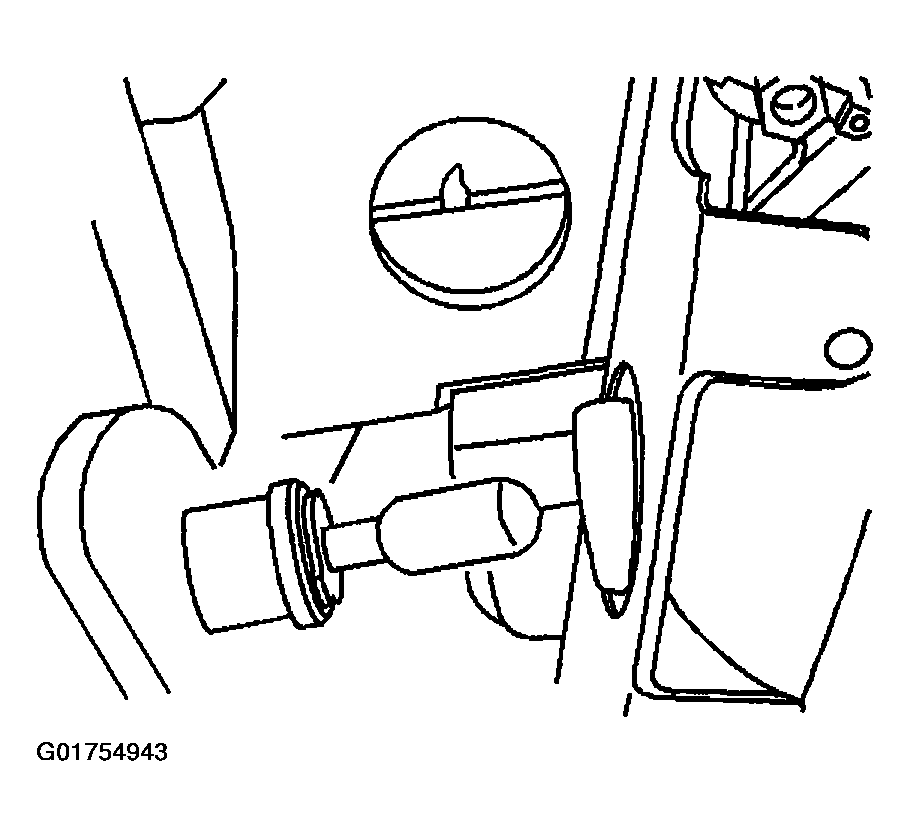

Fig 1: Installing Fog Lamp Bulb/Socket From Fog Lamp
Courtesy of GENERAL MOTORS CORP.
CAUTION:
Halogen bulbs contain gas under pressure. Handling a bulb improperly could cause it to shatter into flying glass fragments. To help avoid personal injury:
- Turn off the lamp switch and allow the bulb to cool before changing the bulb.
- Leave the lamp switch OFF until the bulb change is complete.
- Always wear eye protection when changing a halogen bulb.
- Handle the bulb only by its base. Avoid touching the glass.
- Keep dirt and moisture off the bulb.
- Properly dispose of the used bulb.
- Keep halogen bulbs out of the reach of children.
Connect the electrical connector to the front fog lamp bulb/socket.

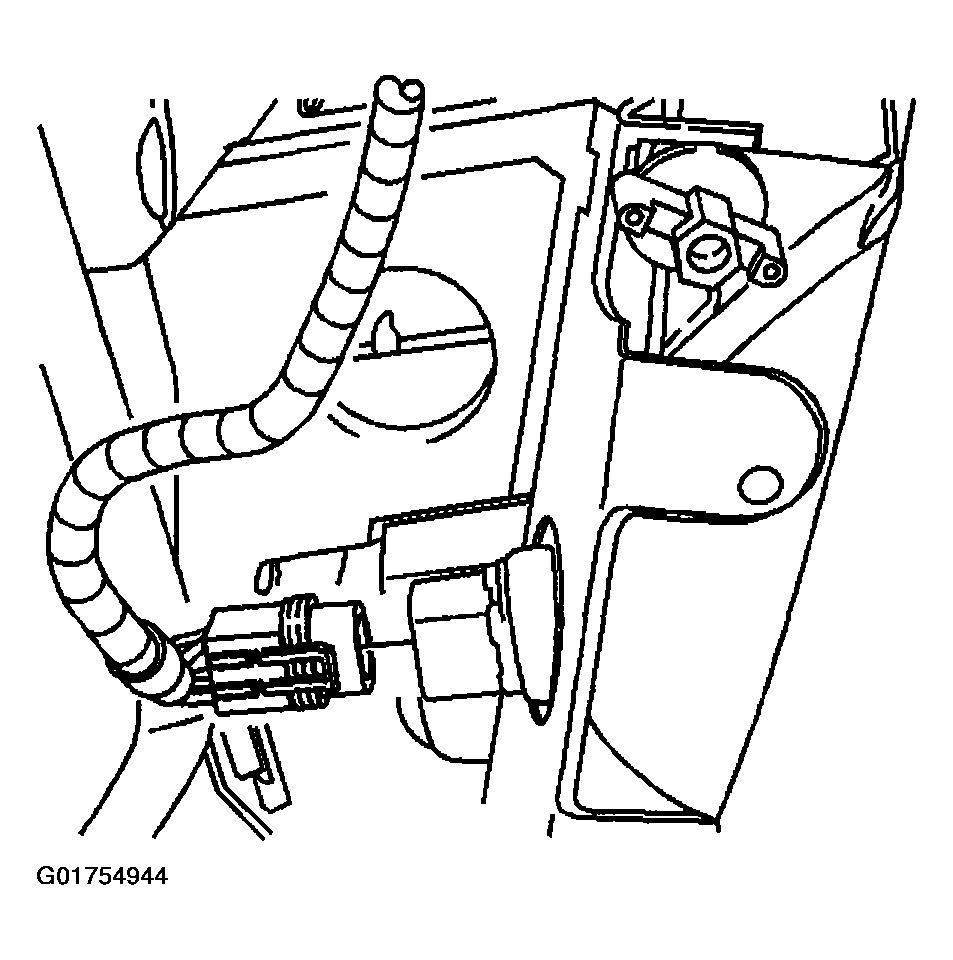

Fig 2: Identifying Front Fog Lamp Assembly Electrical Connector

Courtesy of GENERAL MOTORS CORP.

Install the front bumper fascia deflector. Refer to Front Bumper Fascia Deflector Replacement - Side .
