Cellular Communication Component Views

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

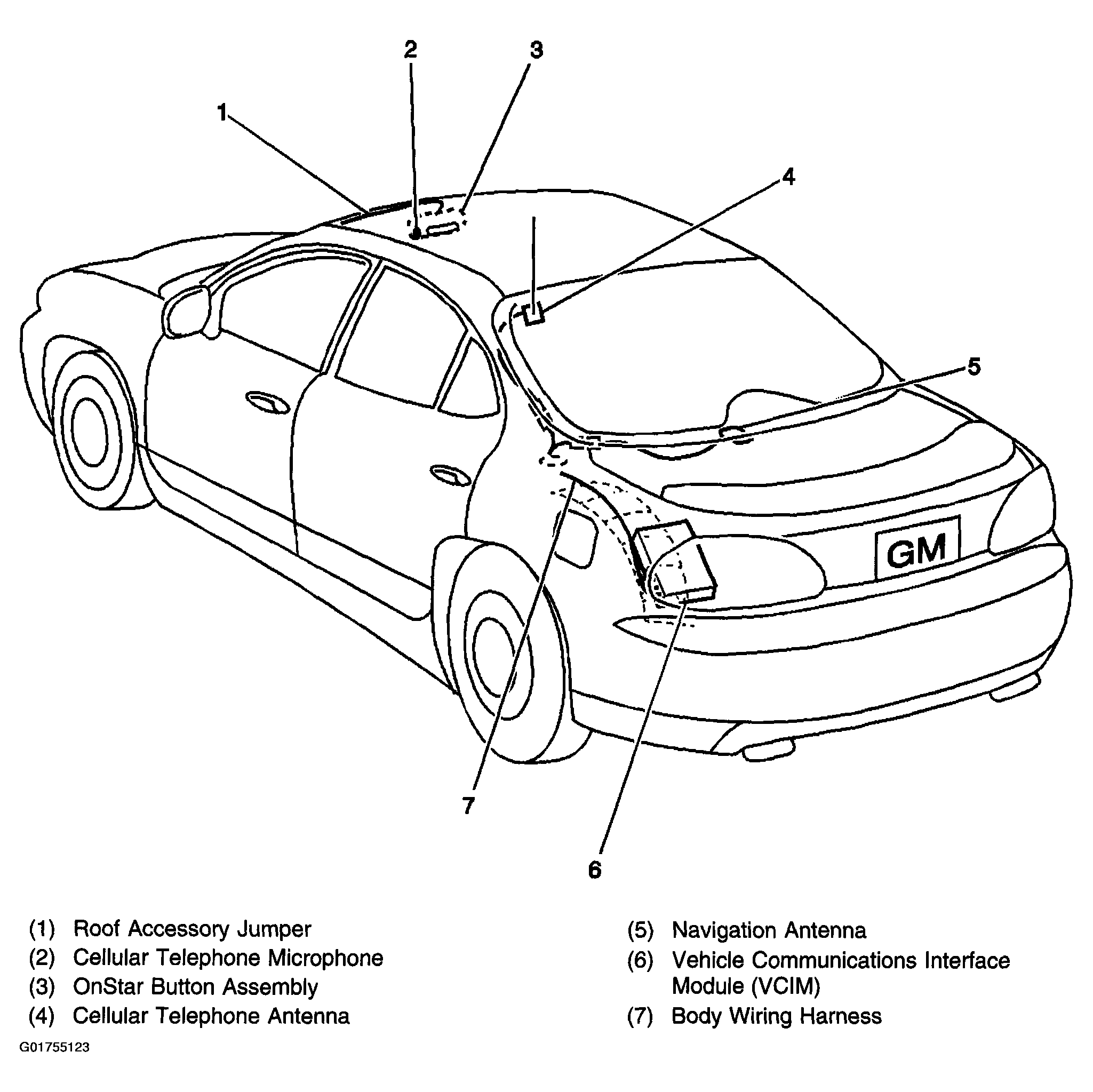

Fig 1: Identifying OnStar System Component View

Courtesy of GENERAL MOTORS CORP.

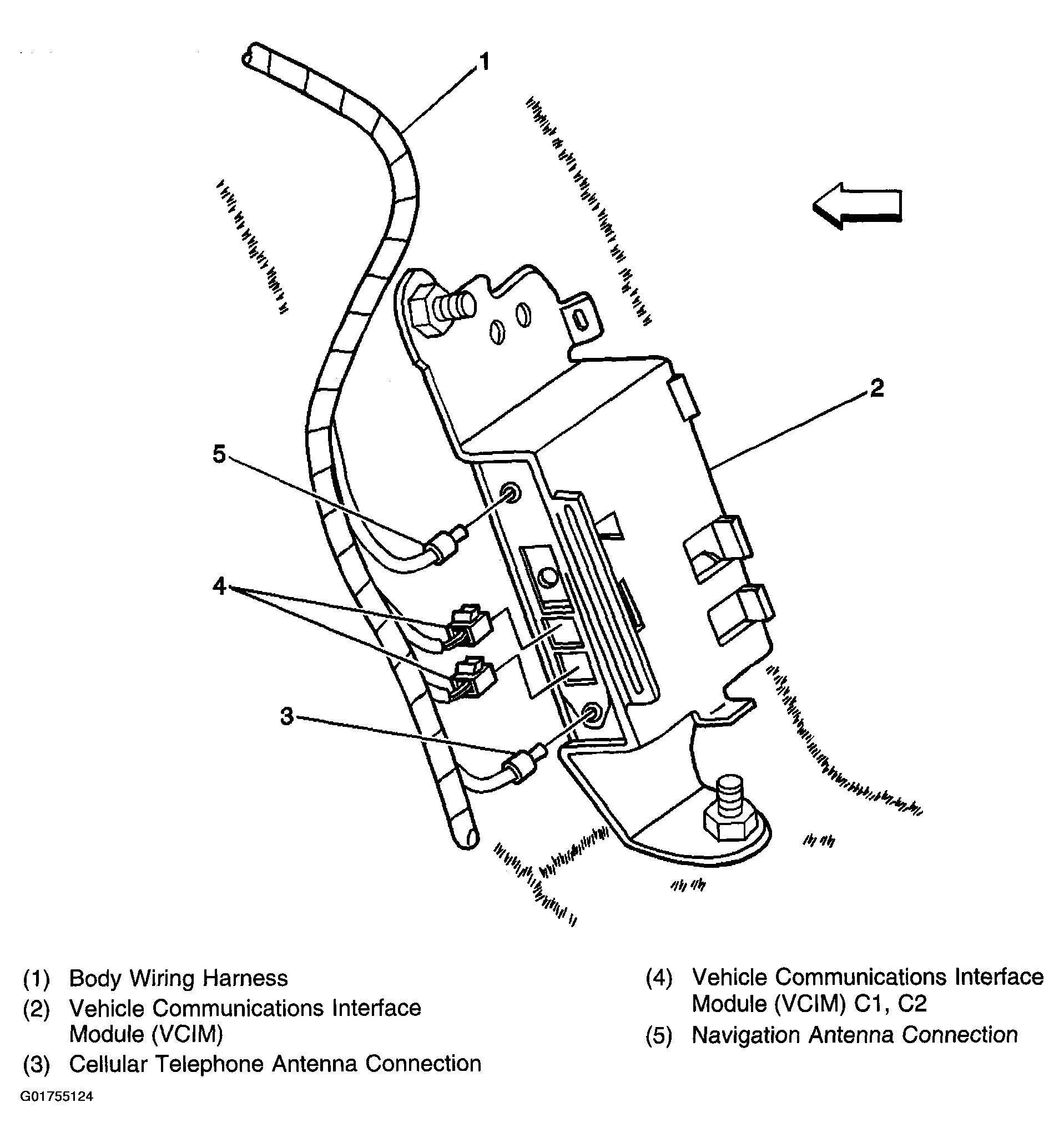

Fig 2: Identifying Vehicle Communications Interface Module (VCIM) - Left Rear Wheelhouse Component View

Courtesy of GENERAL MOTORS CORP.

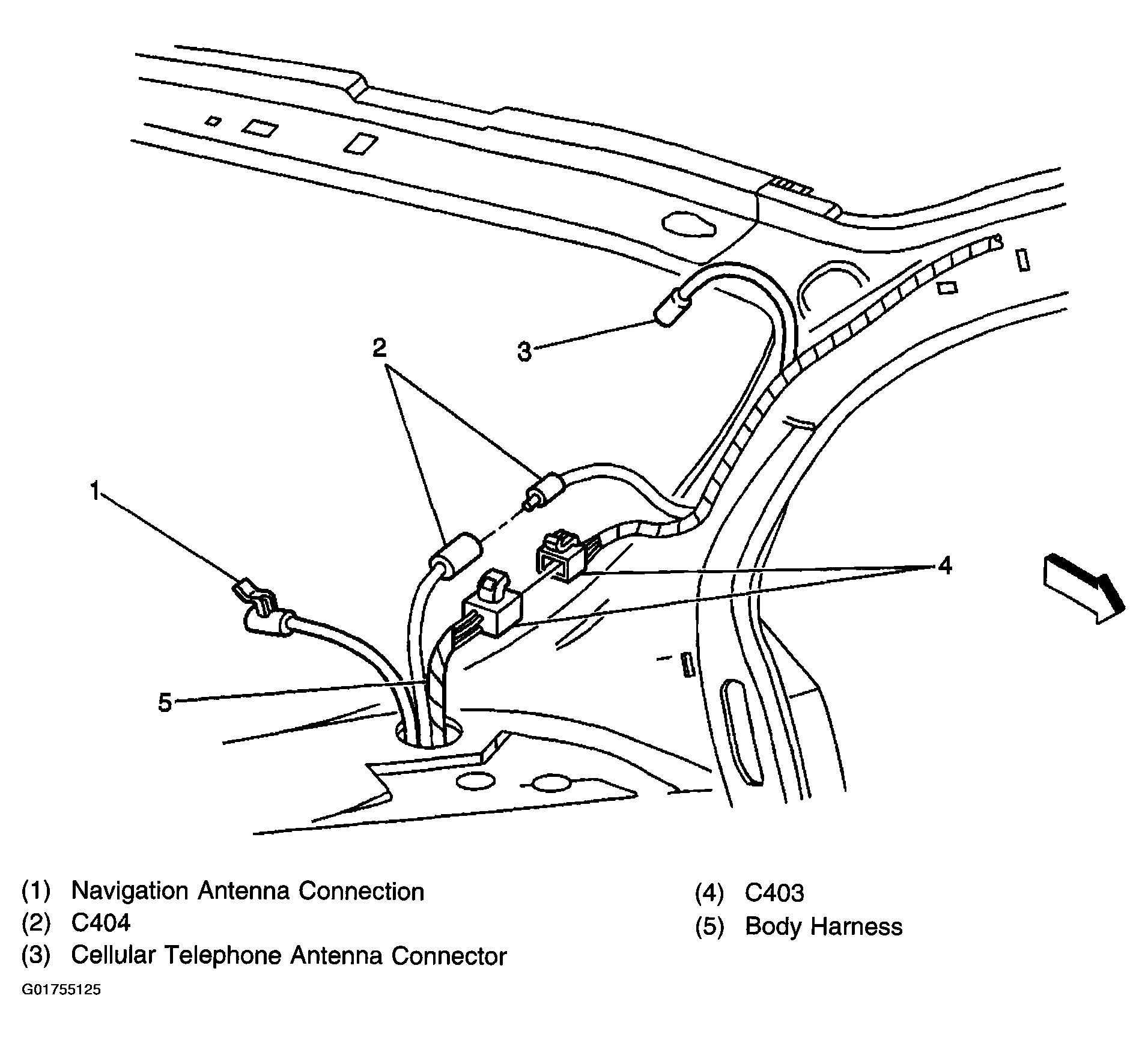

Fig 3: Identifying Rear Package Shelf-Left Component View

Courtesy of GENERAL MOTORS CORP.
