Power Door Systems Component Views: Notes

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

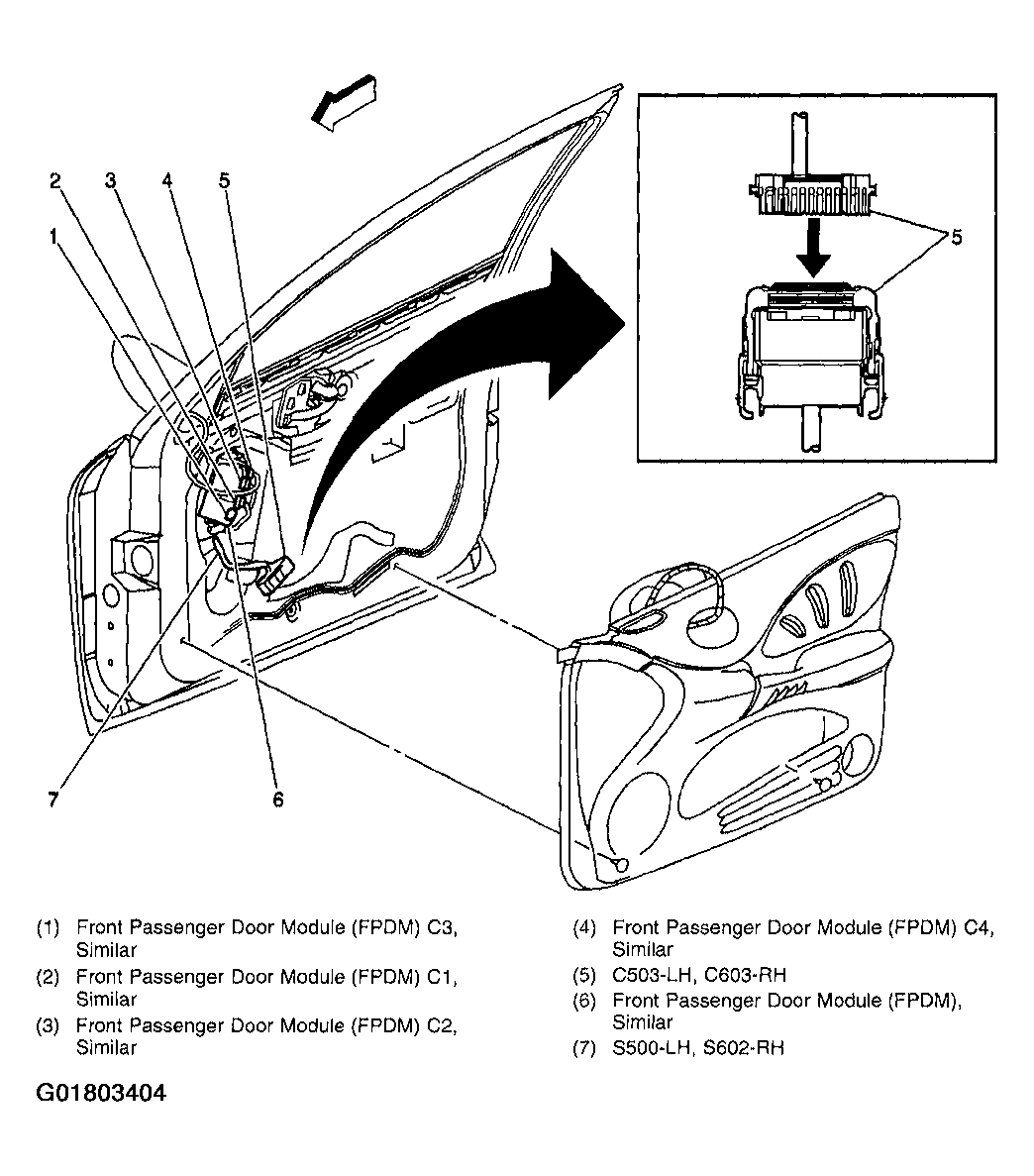

Fig 1: Front Door Passenger Module (FDPM)
G01803404Courtesy of GENERAL MOTORS CORP.

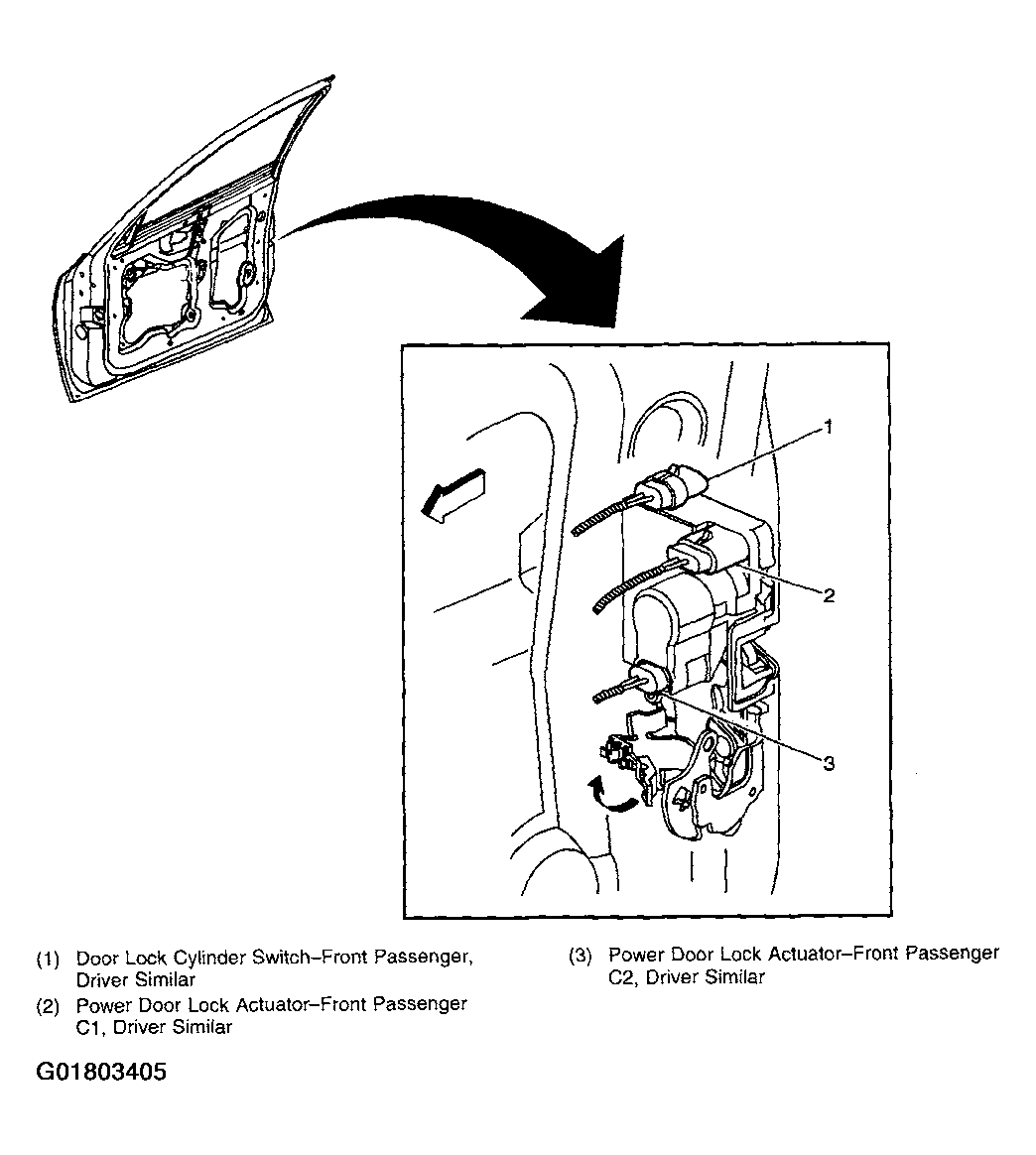

Fig 2: Right Front Door Latch Assembly
G01803405Courtesy of GENERAL MOTORS CORP.

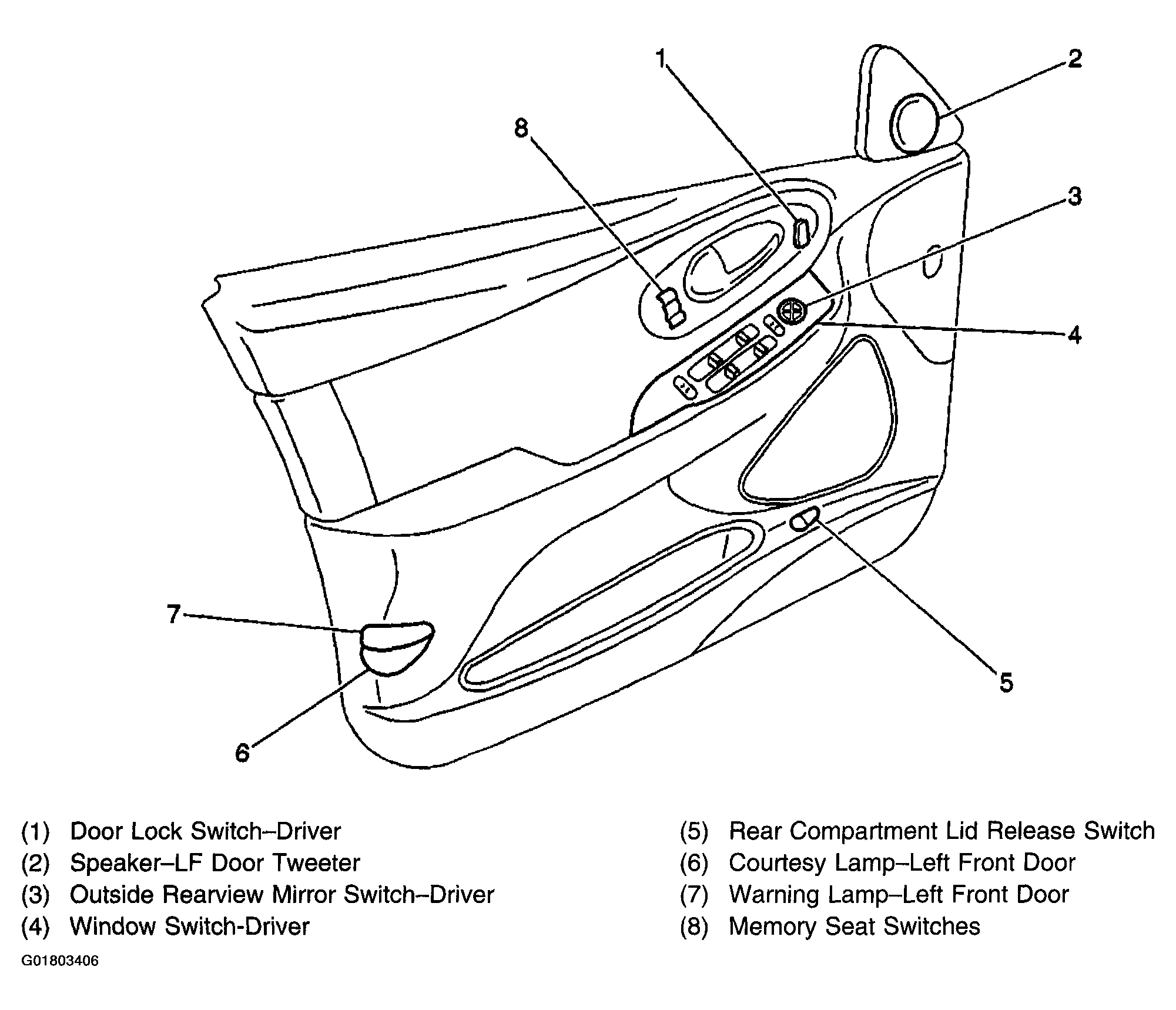

Fig 3: Left Front Door Trim Panel
G01803406Courtesy of GENERAL MOTORS CORP.

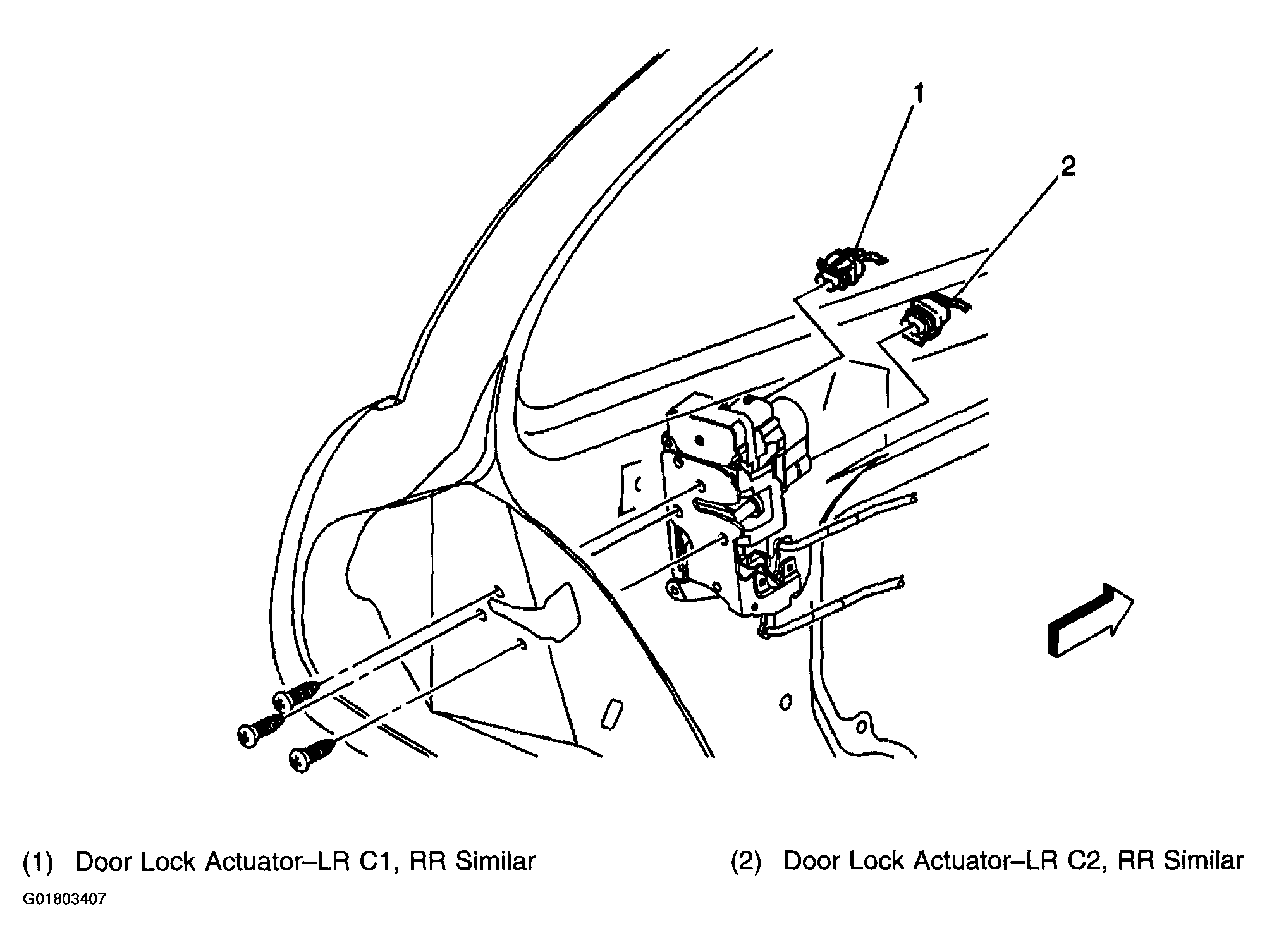

Fig 4: Left Rear Power Door Lock Actuator
G01803407Courtesy of GENERAL MOTORS CORP.

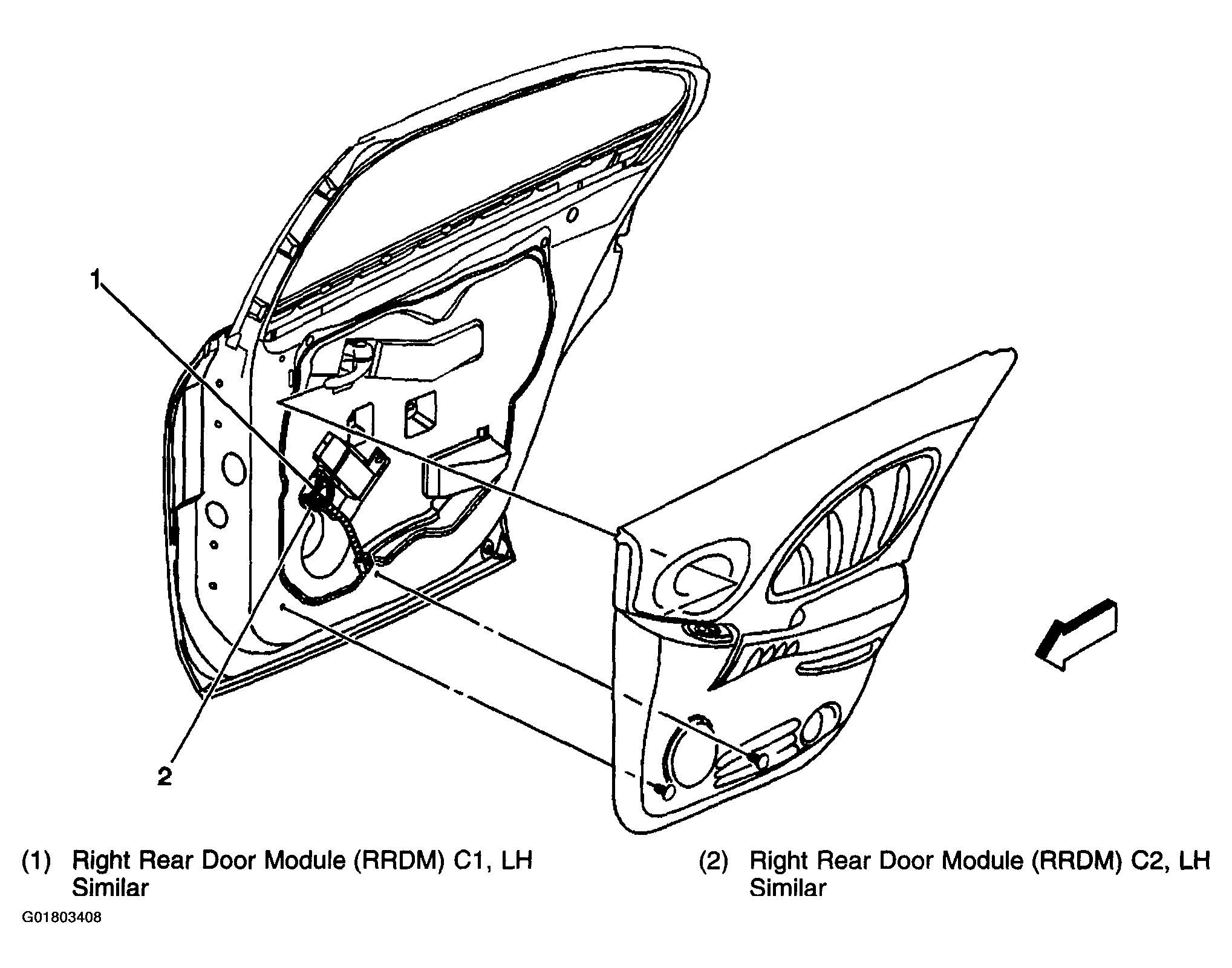

Fig 5: Right Rear Door Module (RRDM)
G01803408Courtesy of GENERAL MOTORS CORP.

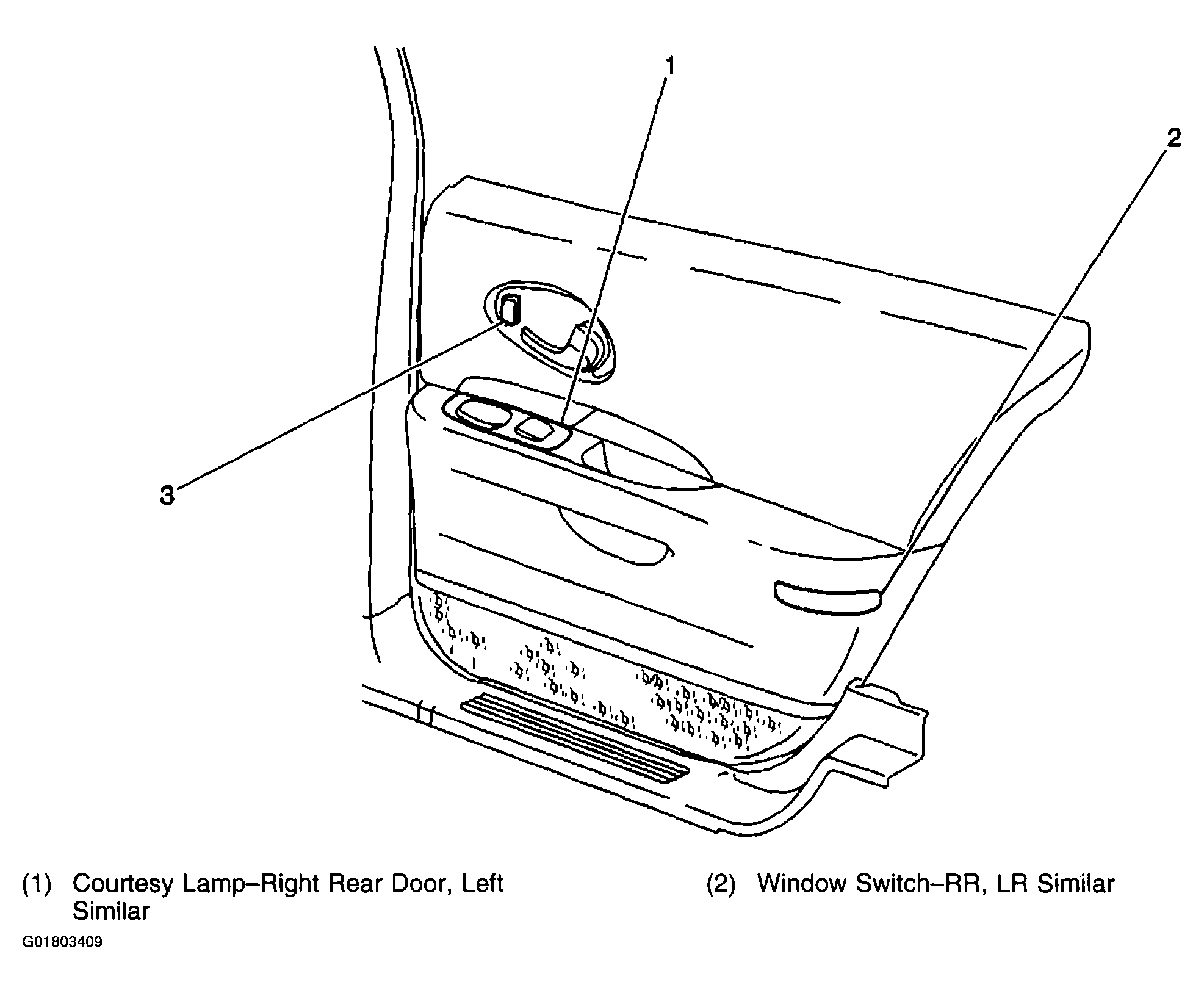

Fig 6: Right Rear Door Trim Panel
G01803409Courtesy of GENERAL MOTORS CORP.

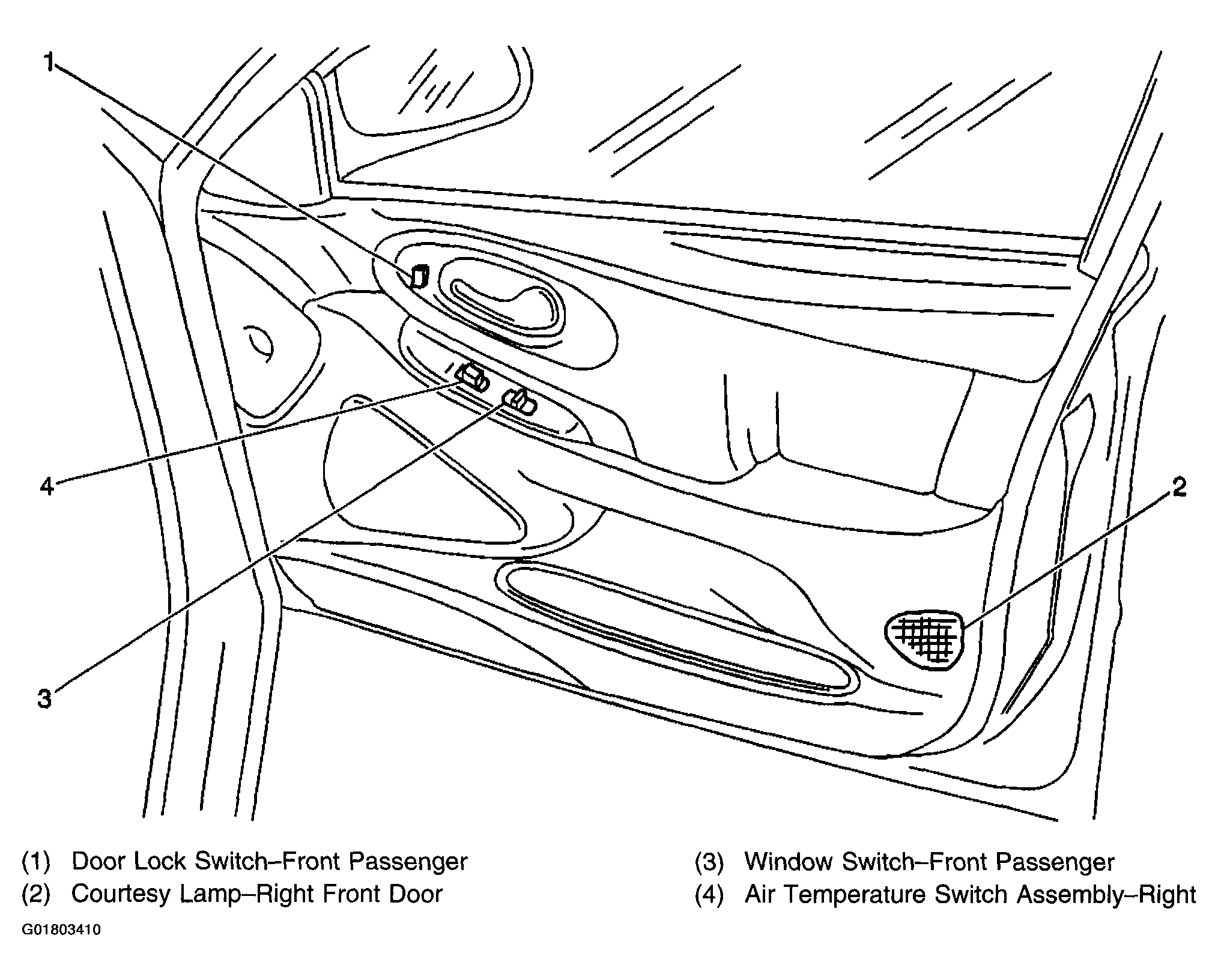

Fig 7: Right Front Door Trim Panel
G01803410Courtesy of GENERAL MOTORS CORP.

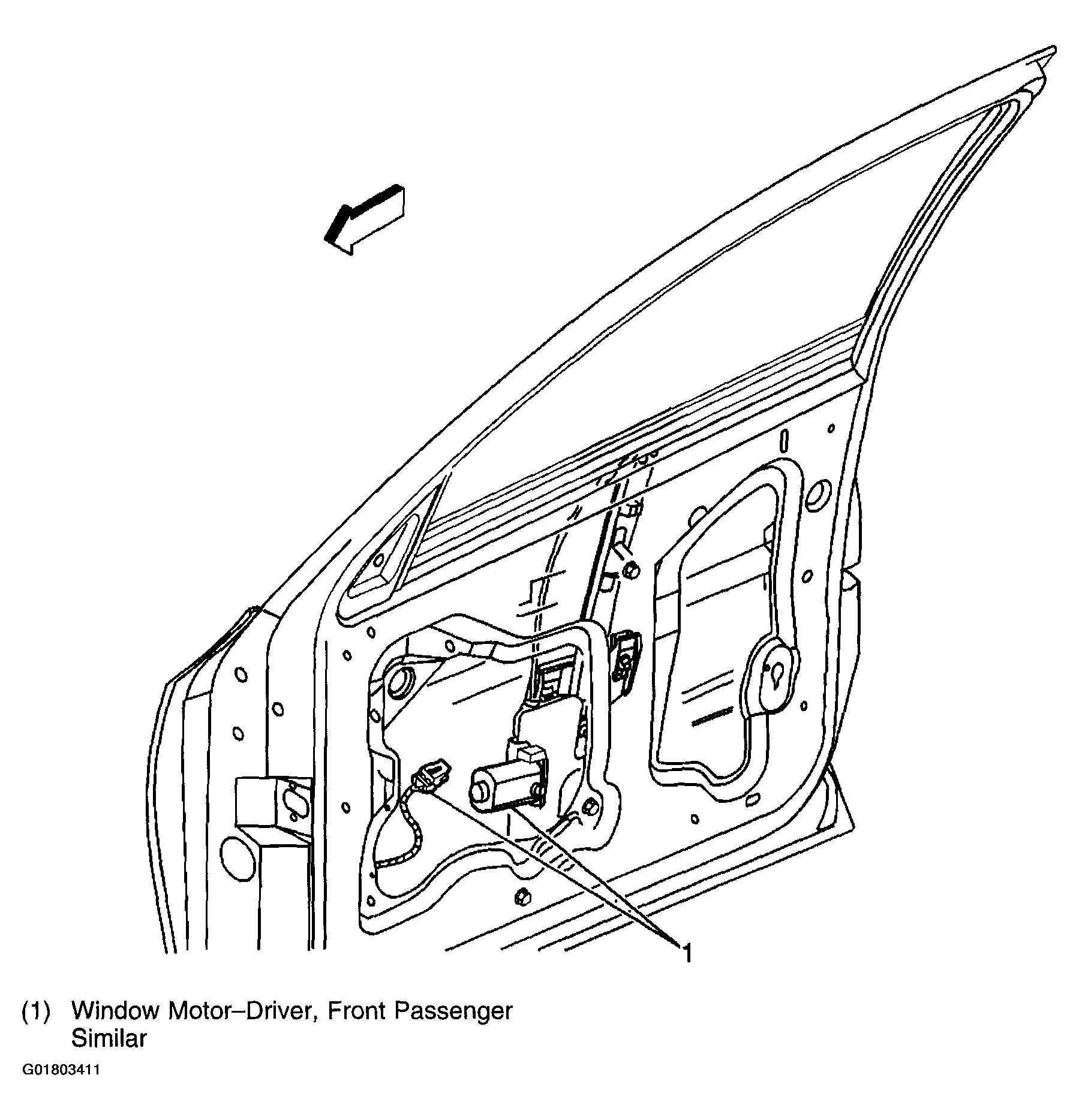

Fig 8: Driver Power Window Motor
G01803411Courtesy of GENERAL MOTORS CORP.
