Installation Procedure

WARNING: This page is about a different car, the 2004 Pontiac Aztek and 2004 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

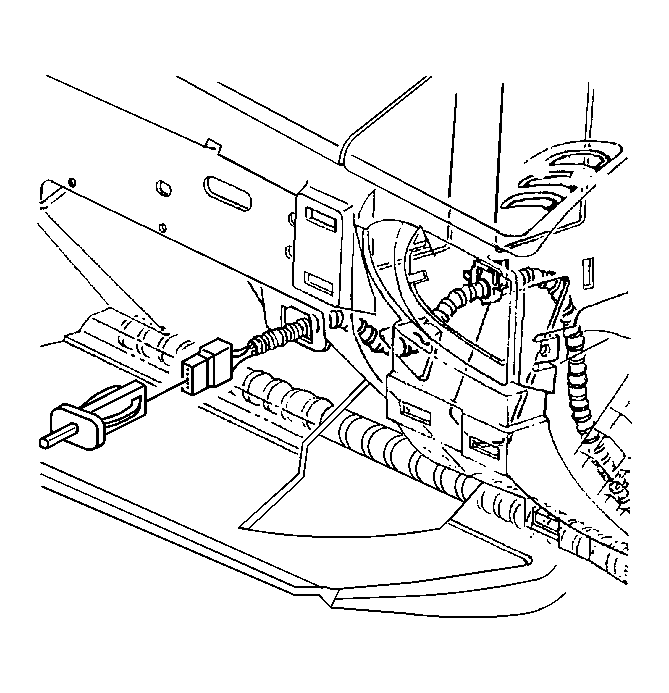

    Fig 1: Locating Electrical Connector On Instrument Panel Compartment Lamp Switch
    GM575232Courtesy of GENERAL MOTORS CORP.
  1. Press the bulb into the instrument panel compartment lamp switch socket.
  2. Connect the electrical connector to the instrument panel compartment lamp switch.
  3. Align the instrument panel compartment lamp switch into instrument panel compartment.
  4. Install the instrument panel compartment lamp switch.

    Press the instrument panel compartment lamp switch until retainers are fully seated.
