Installation Procedure

WARNING: This page is about a different car, the 2004 Pontiac Aztek and 2004 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

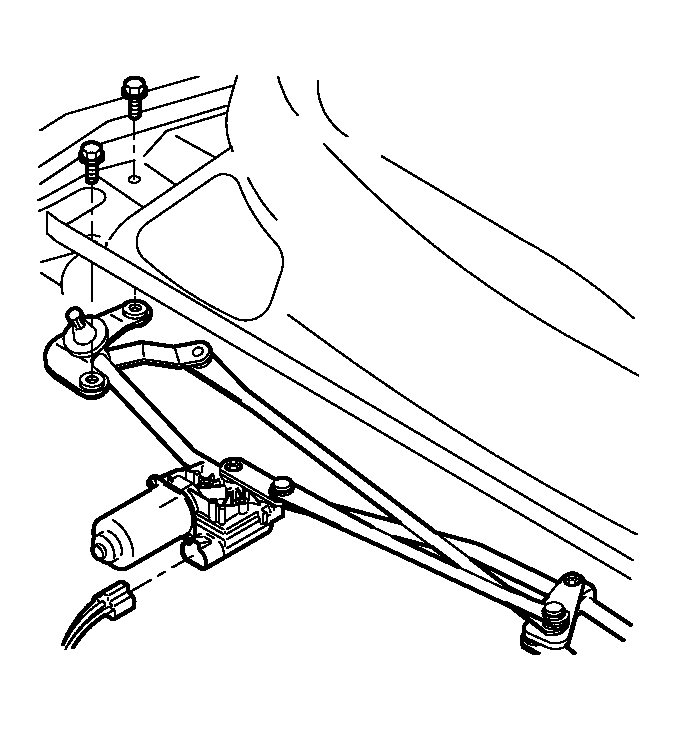

    Fig 1: View Of Wiper Motor Module
    GM697659Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  1. Position the wiper system drive module to the cowl.
  2. Install the wiper system drive module bolts.

    Tighten:  Tighten the bolts to 9 N.m (80 lb in).

  3. Connect the wiper motor cover electrical connector.
  4. Install the cruise control module and bracket. Refer to Cruise Control Module Replacement in Cruise Control.
  5. Install the underhood electrical center. Refer to Underhood Electrical Center or Junction Block Replacement in Wiring Systems.
  6. Install the air inlet grille panel. Refer to Air Inlet Grille Panel Replacement in Body Front End.
  7. Install the wiper arms. Refer to Wiper Arm Replacement .
