Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the strut upper nuts.

    Important:  Lift the vehicle using ONLY a frame-contact vehicle lift. Do NOT lift the vehicle using a suspension-contact vehicle lift.

  2. Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
  3. Remove the tire and wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .

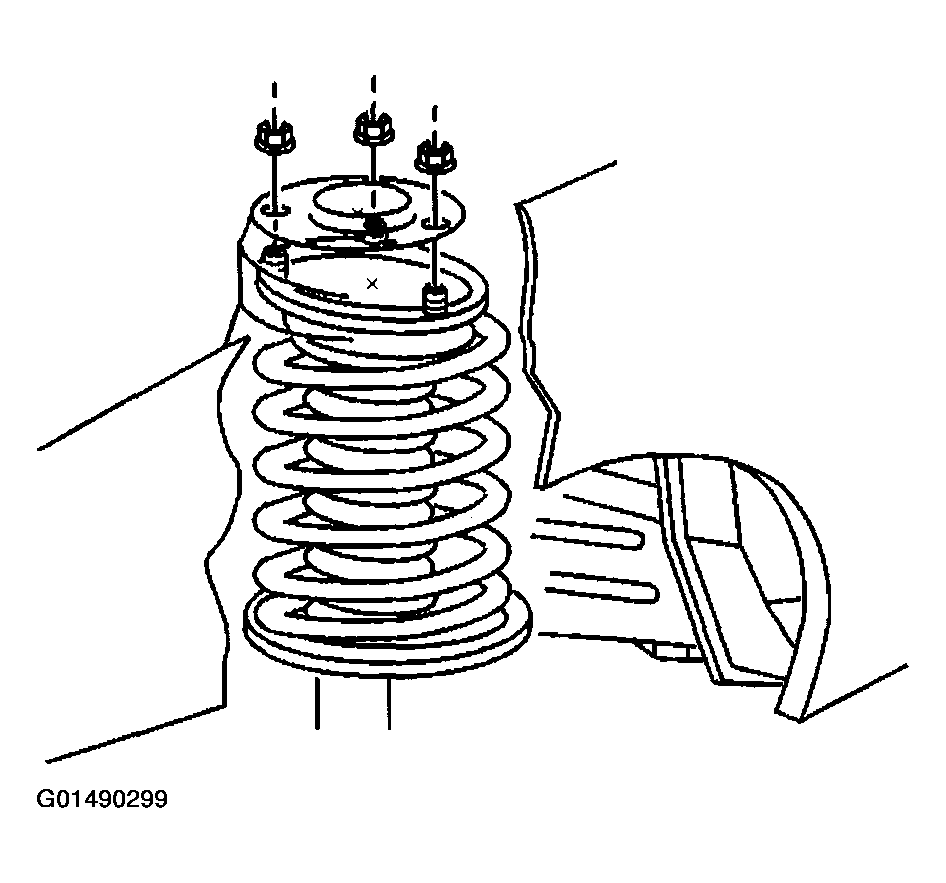

    Fig 1: Removing Strut Upper Nuts
    G01490299Courtesy of GENERAL MOTORS CORP.
  4. Scribe the strut to the knuckle.

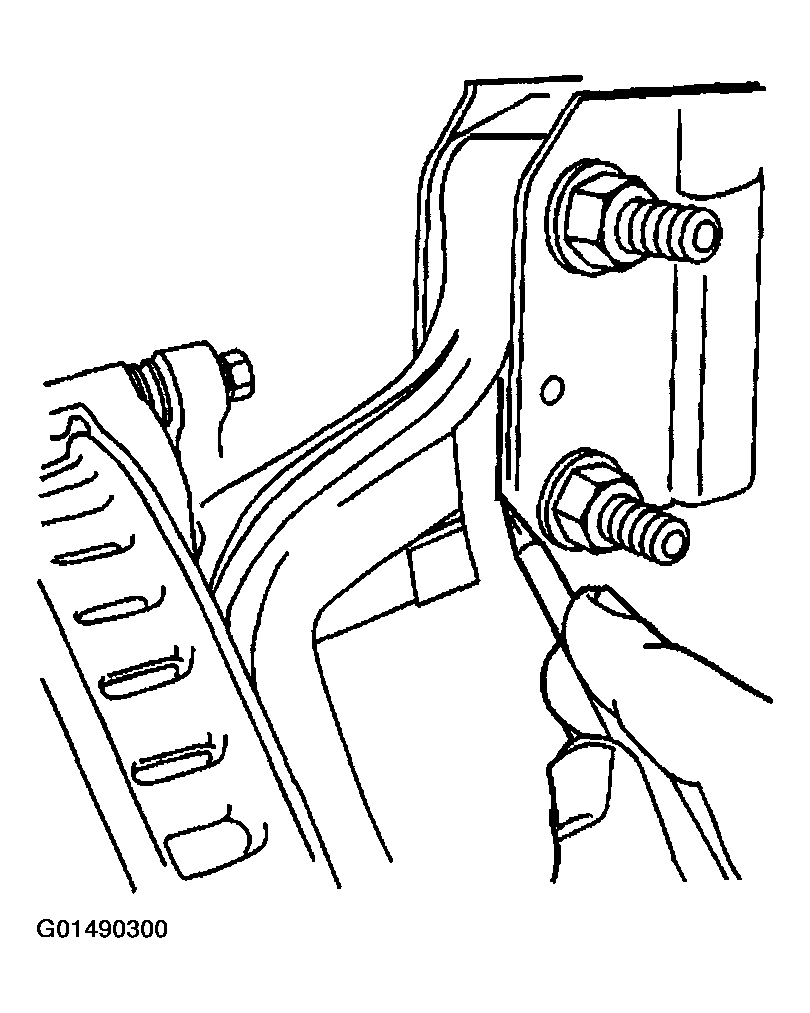

    Fig 2: Scribing Strut To Knuckle
    G01490300Courtesy of GENERAL MOTORS CORP.
  5. Remove the strut lower bolts and nuts.
  6. Remove the strut.

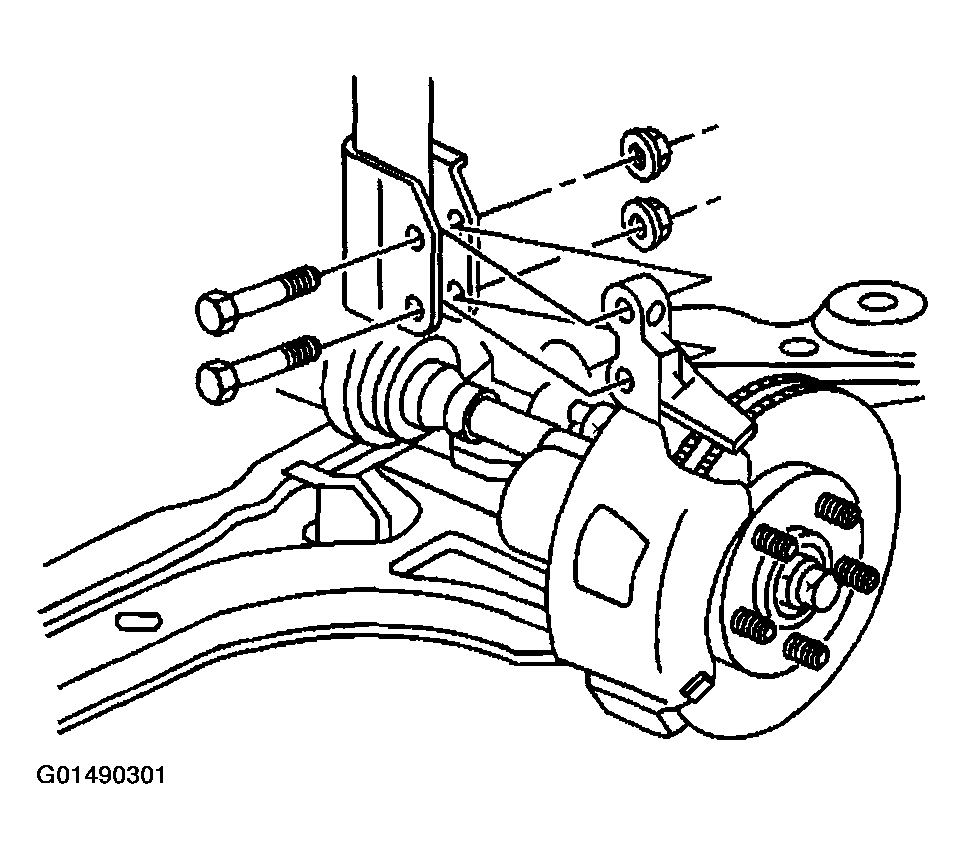

    Fig 3: Removing Strut, Lower Bolts & Nuts
    G01490301Courtesy of GENERAL MOTORS CORP.
