Disassembled Views

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

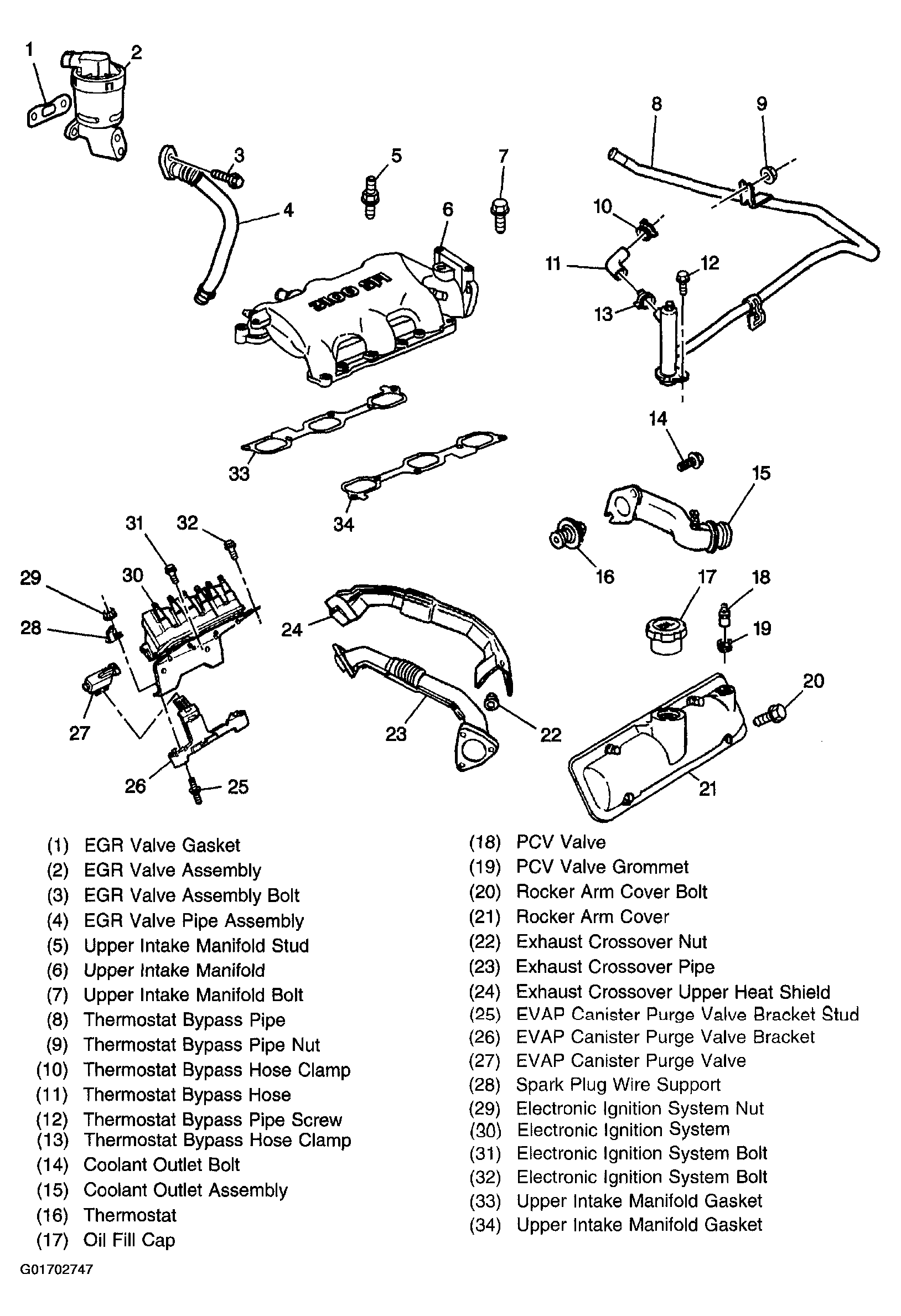

Fig 1: Upper Intake Manifold & Components Disassembled View

Courtesy of GENERAL MOTORS CORP.

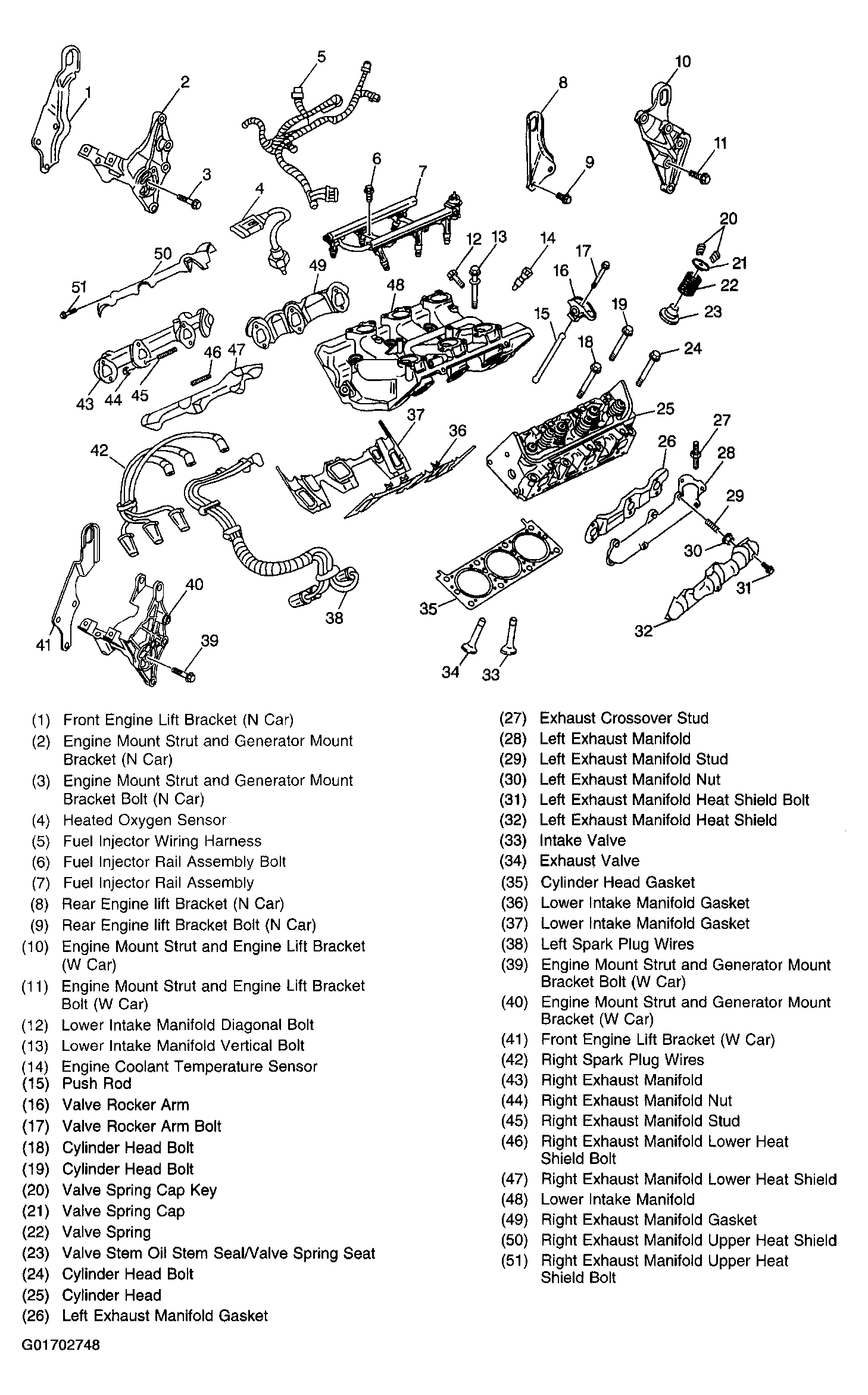

Fig 2: Lower Intake Manifold, Cylinder Head, & Components Disassembled View

Courtesy of GENERAL MOTORS CORP.

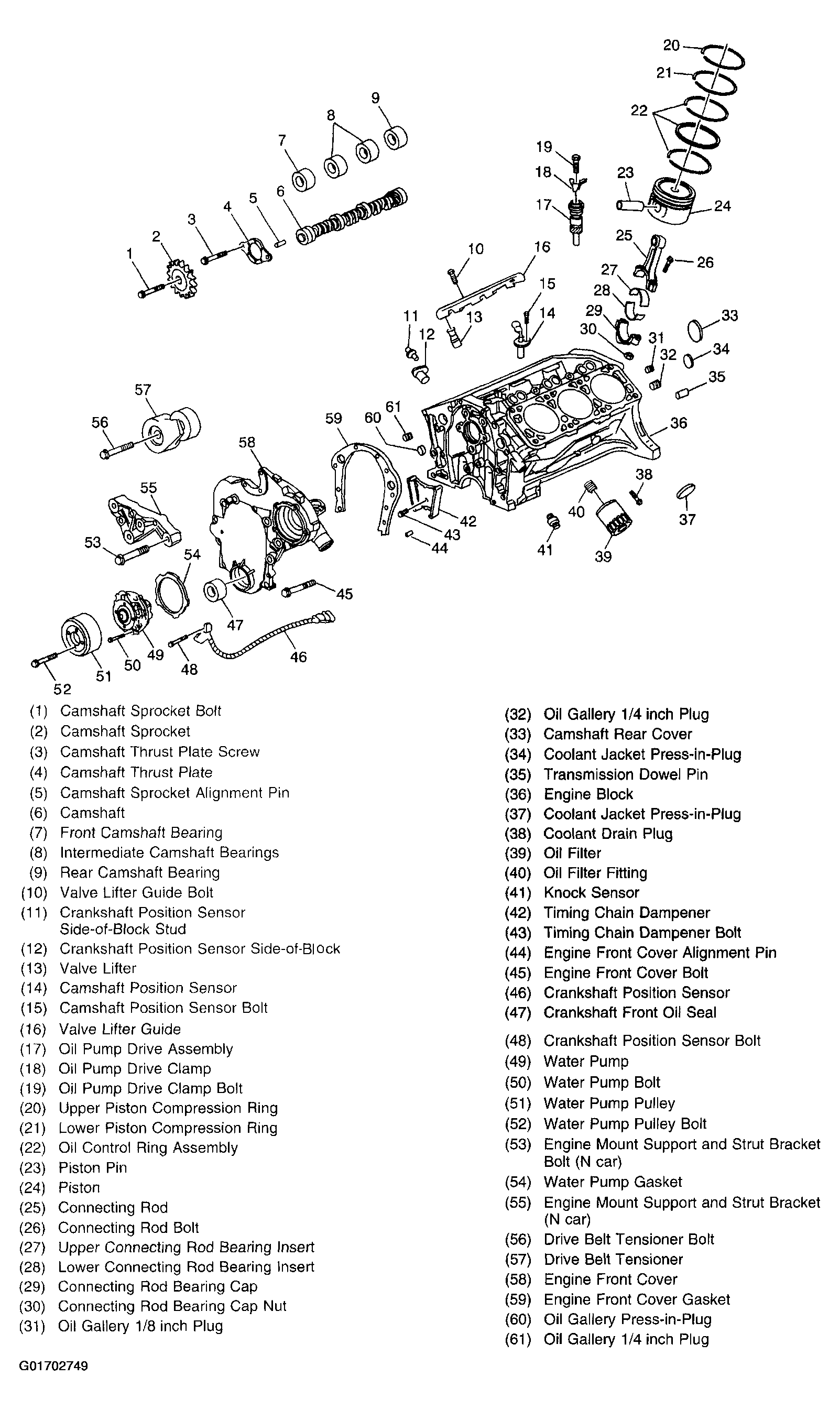

Fig 3: Engine Block & Components Disassembled View

Courtesy of GENERAL MOTORS CORP.

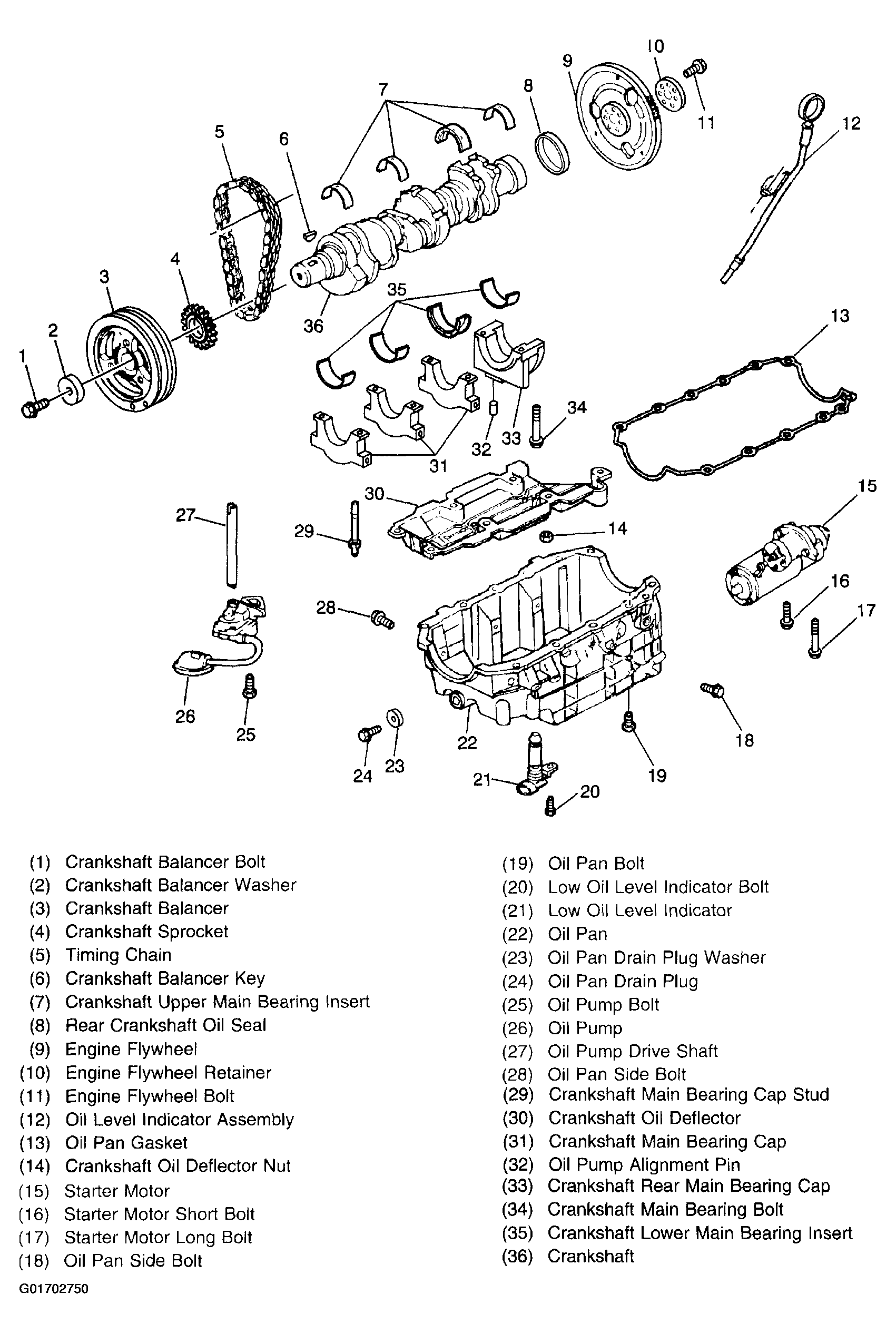

Fig 4: Crankshaft & Components Disassembled View

Courtesy of GENERAL MOTORS CORP.
