Installation Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT: Align the blower motor control processor forward retaining slots onto the screws and seat the blower motor control processor against HVAC module.
  1. Install the blower motor control processor.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the blower motor control processor rearward screw.

    Tighten

    Tighten the screw to 1.5 N.m (13 lb in).

  3. Tighten the blower motor control processor forward screws.

    Tighten

    Tighten the screws to 1.5 N.m (13 lb in).

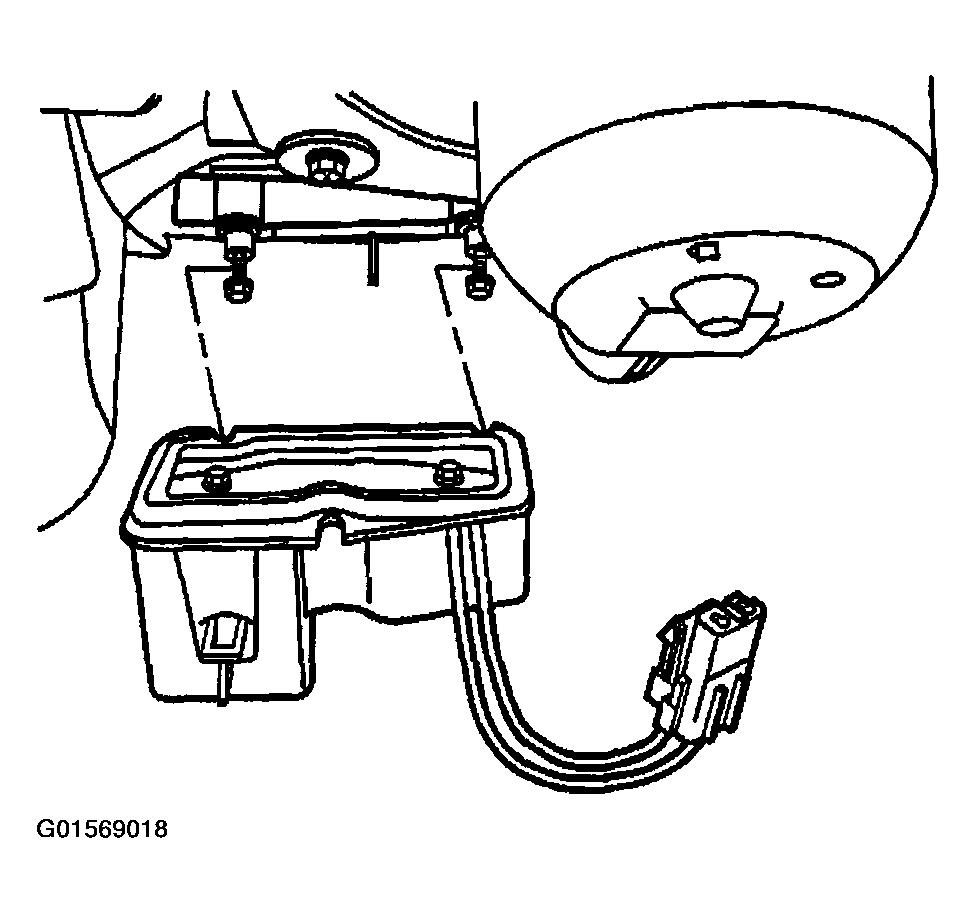

    Fig 1: Installing Blower Motor Control Processor
    G01569018Courtesy of GENERAL MOTORS CORP.
  4. Connect the blower motor control processor electrical connector to the blower motor.

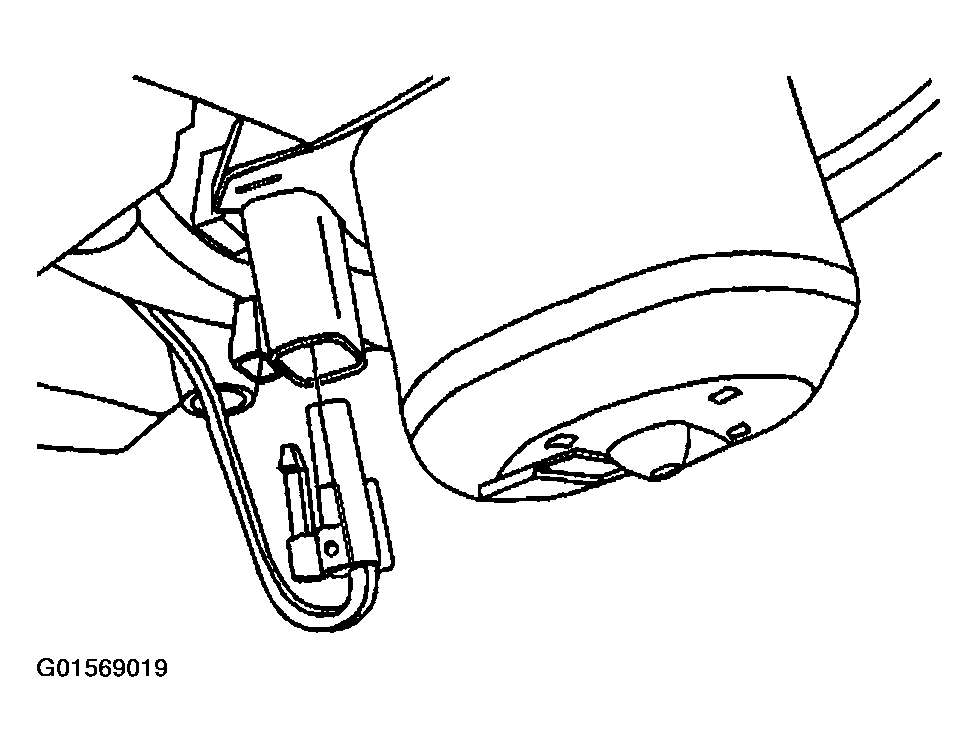

    Fig 2: Connecting Blower Motor Control Processor Electrical Connector To Blower Motor
    G01569019Courtesy of GENERAL MOTORS CORP.
  5. Connect the electrical connector from the blower motor control processor.
  6. Install the right side IP insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - RIGHT in Instrument Panel, Gages and Console.

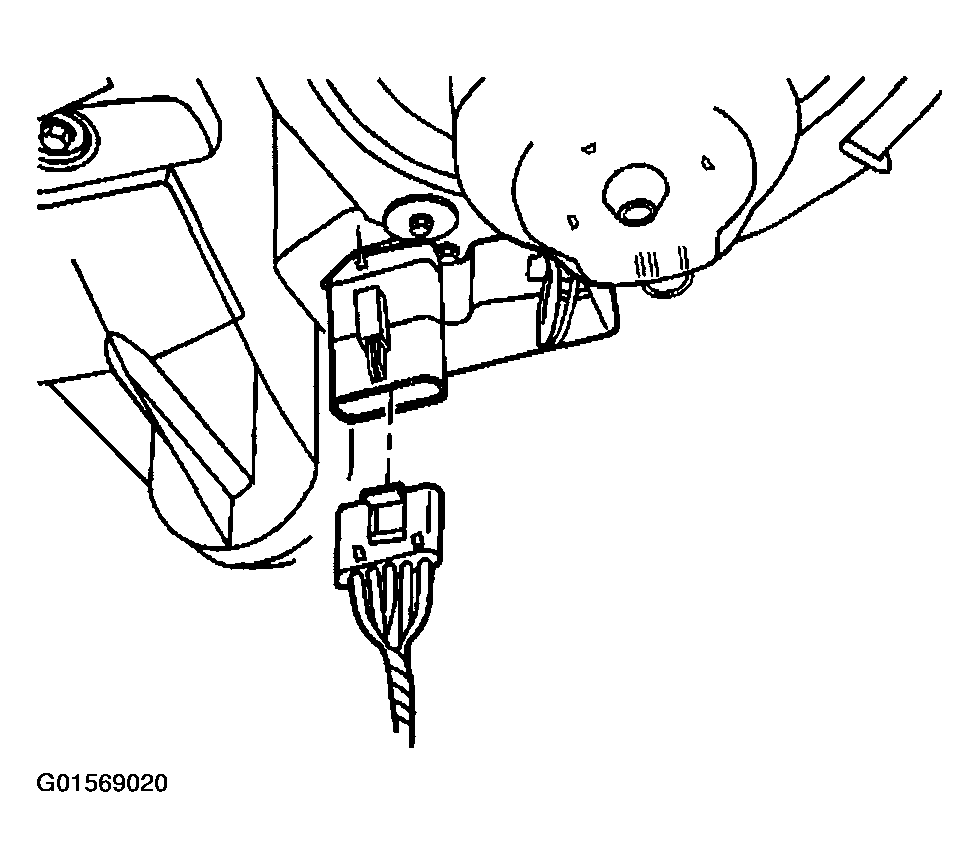

    Fig 3: Connecting Electrical Connector From Blower Motor Control Processor
    G01569020Courtesy of GENERAL MOTORS CORP.
