Wiper/Washer System Connector End Views

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

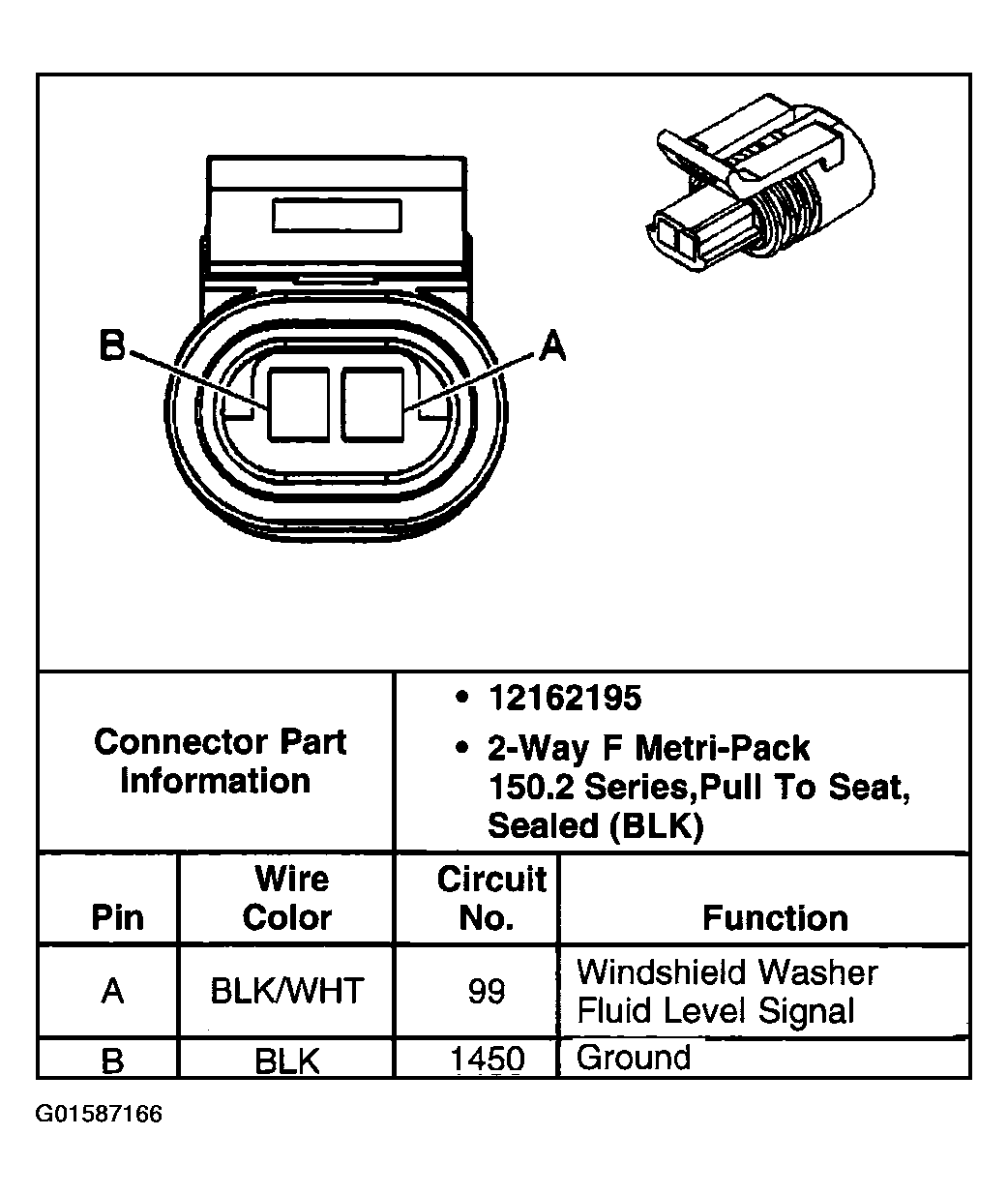

Fig 1: Windshield Washer Fluid Level Switch Connector

Courtesy of GENERAL MOTORS CORP.

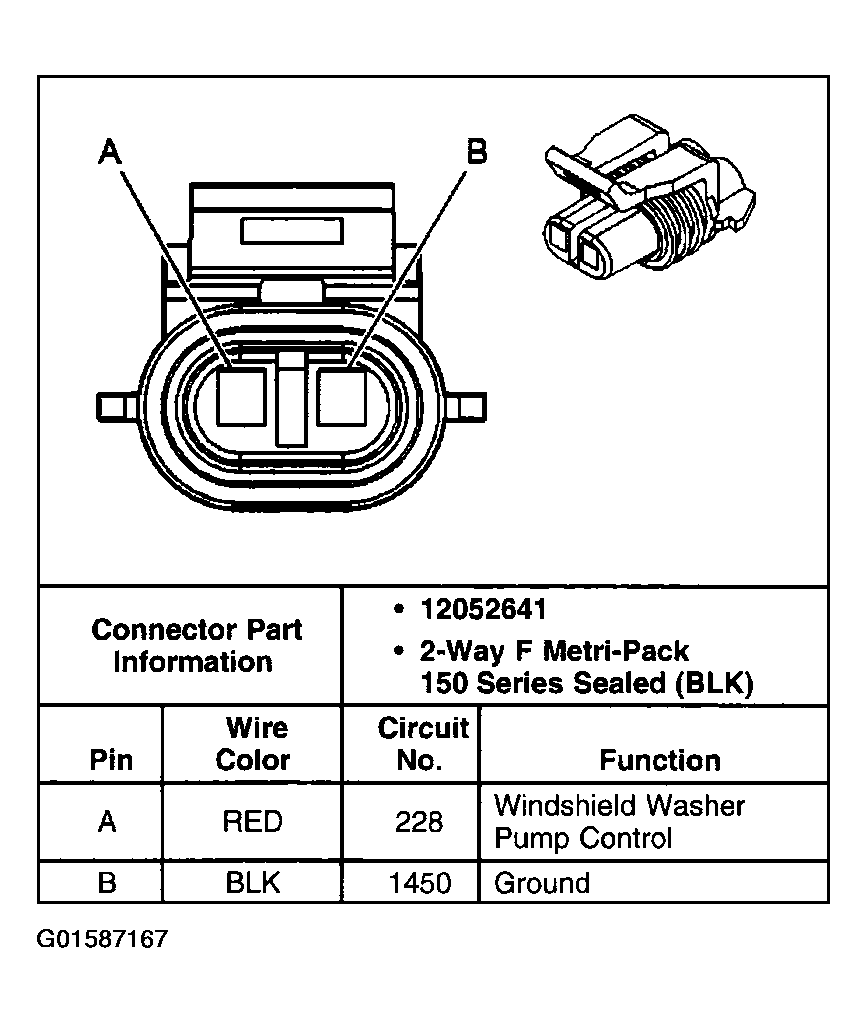

Fig 2: Windshield Washer Fluid Pump Connector

Courtesy of GENERAL MOTORS CORP.

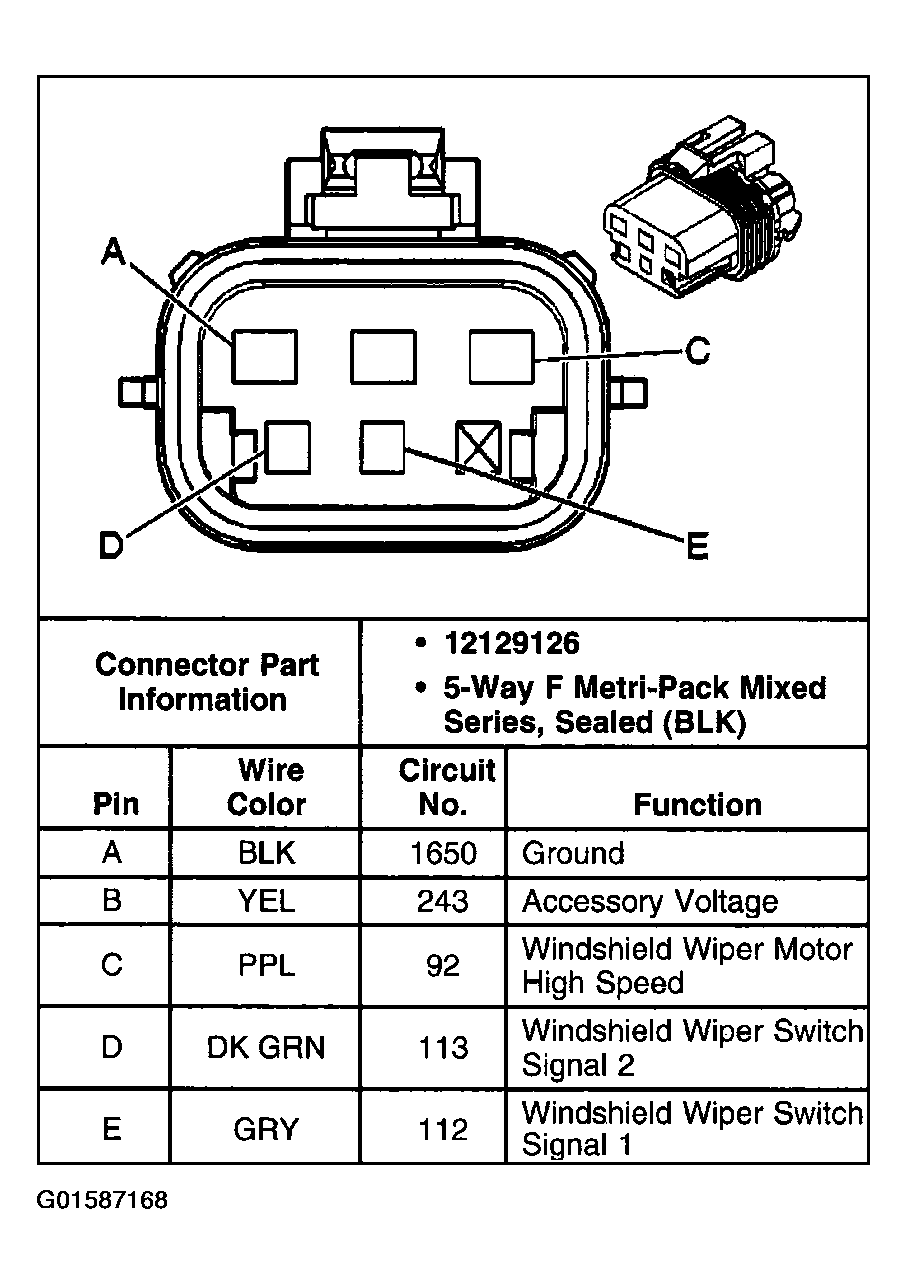

Fig 3: Windshield Wiper Motor Connector

Courtesy of GENERAL MOTORS CORP.
