Installation Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the wiper drive system module to the vehicle.
  2. Connect the wiper motor electrical connector.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the wiper drive system screws.

    Tighten

    Tighten the screws to 10 N.m (89 lb in).

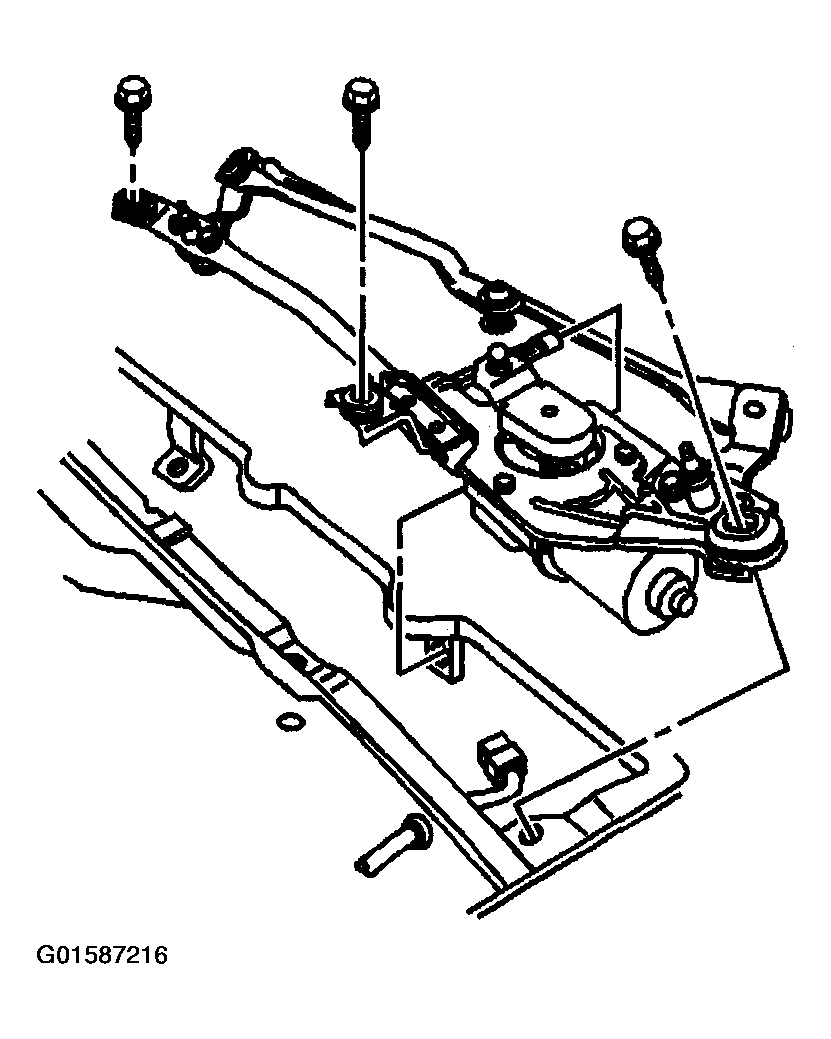

    Fig 1: Installing Wiper Drive System Module & Screws
    G01587216Courtesy of GENERAL MOTORS CORP.
  4. Using the J 39529,  Install the wiper transmission to the wiper motor crank arm.
  5. Install the wiper motor water deflector. Refer to WIPER MOTOR WATER DEFLECTOR REPLACEMENT  .
  6. Install the air inlet grille panel. Refer to AIR INLET GRILLE PANEL REPLACEMENT in Body Front End.
  7. Inspect the wipers for proper operation.
