Wiper/Washer System Connector End Views

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

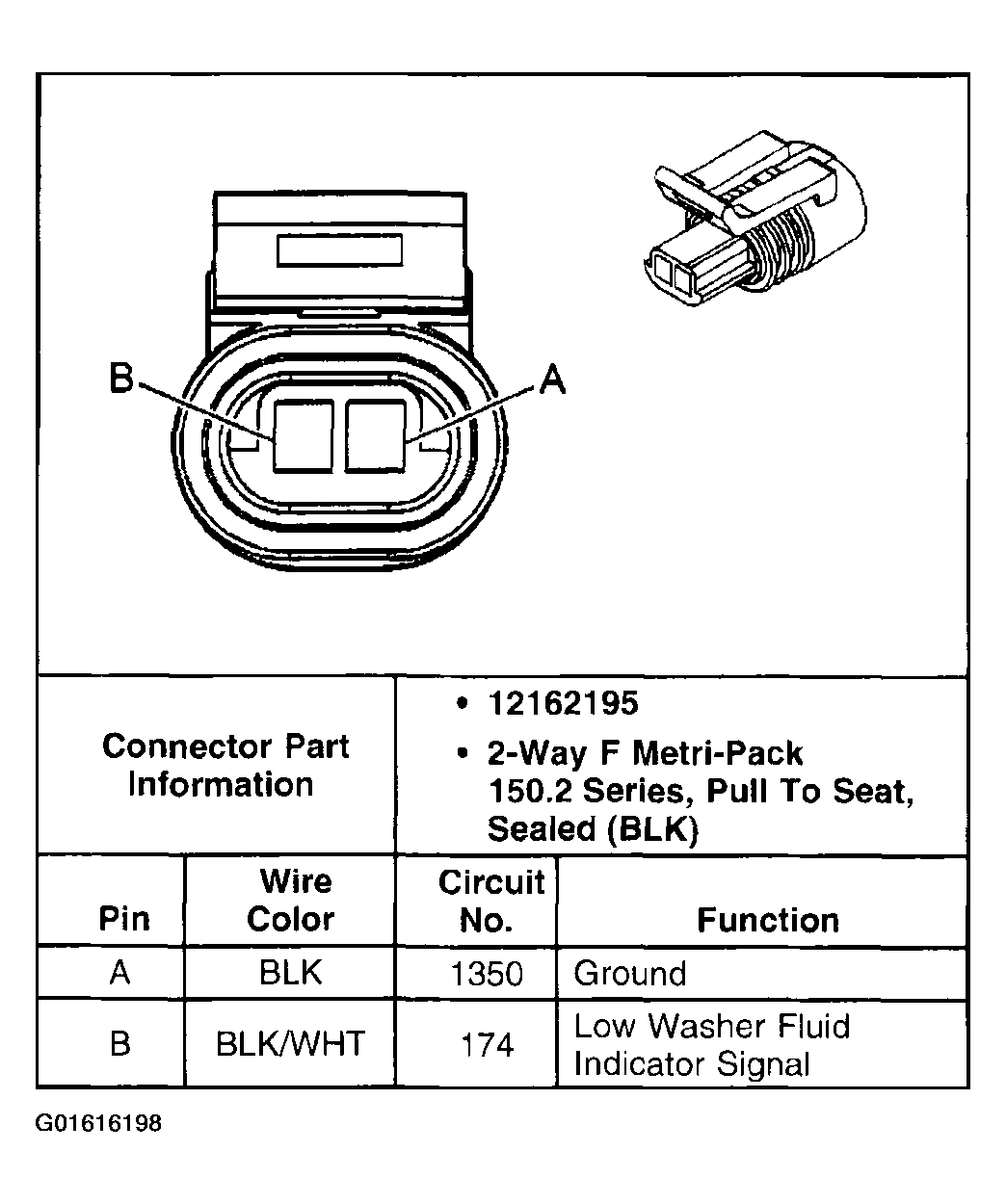

Fig 1: Windshield Washer Fluid Level Switch

Courtesy of GENERAL MOTORS CORP.

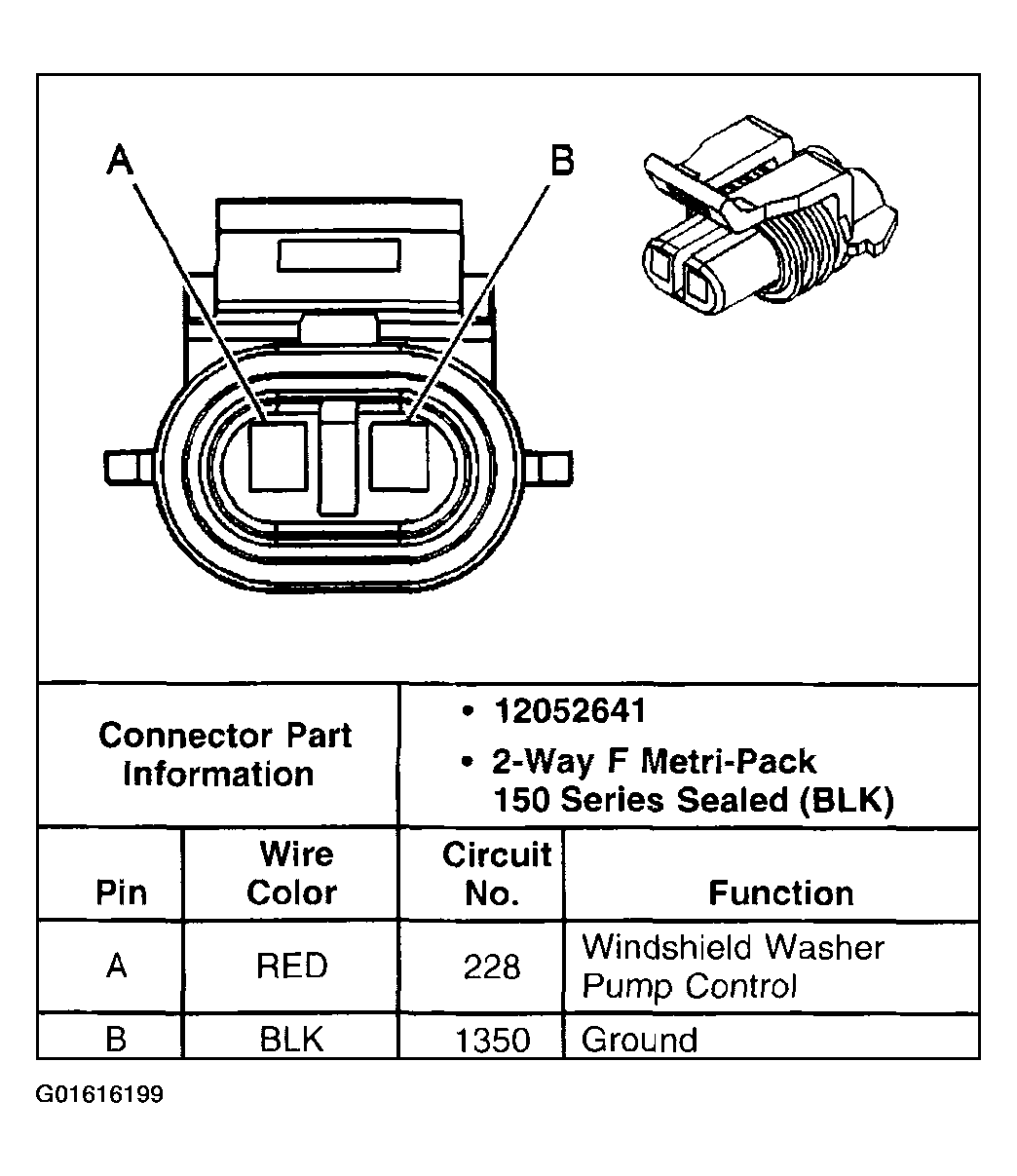

Fig 2: Windshield Washer Fluid Pump

Courtesy of GENERAL MOTORS CORP.

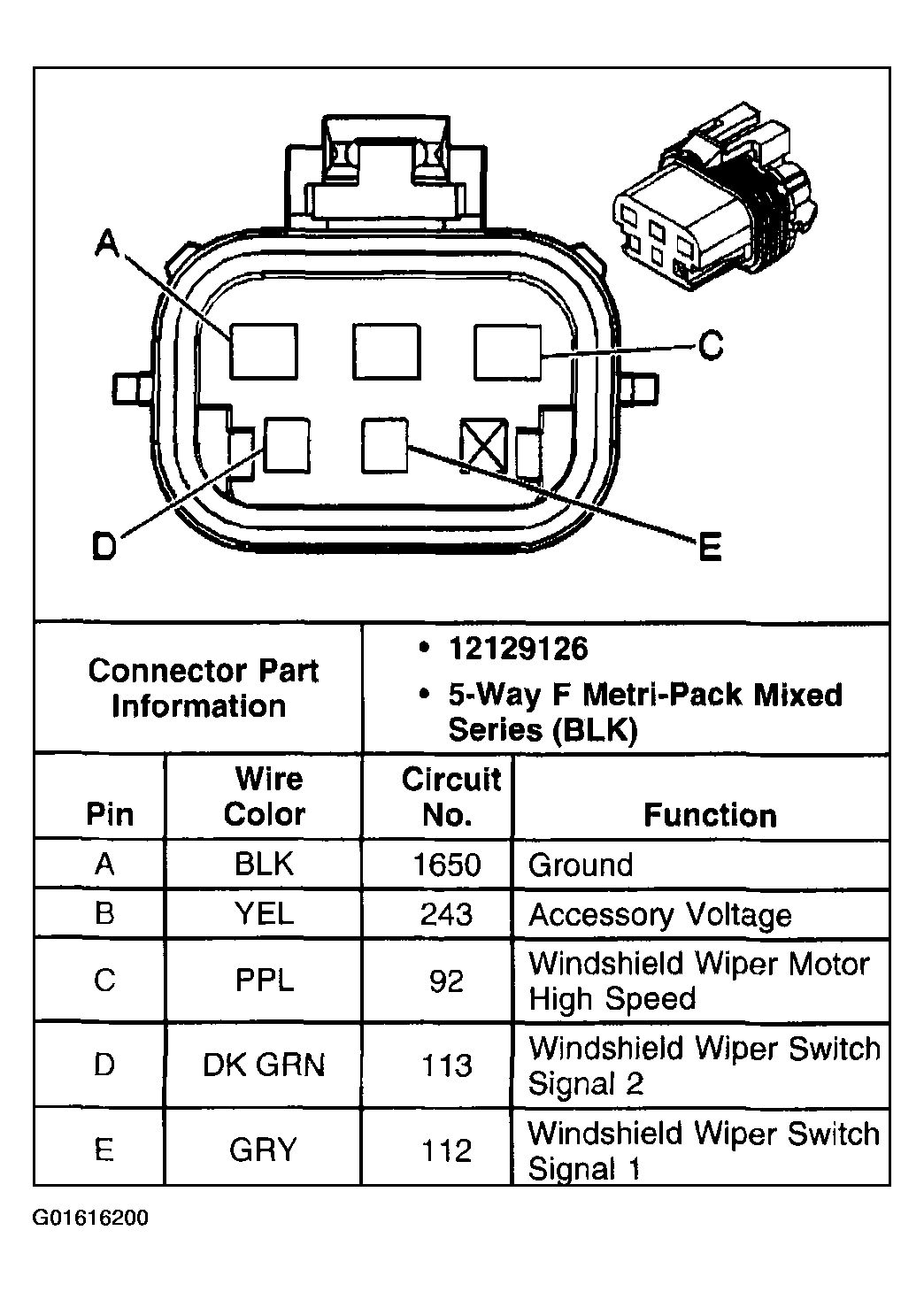

Fig 3: Windshield Wiper Motor

Courtesy of GENERAL MOTORS CORP.
