Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the wiper drive system module to the vehicle.
  2. Connect the wiper motor electrical connector.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the wiper drive system screws.

    Tighten

    Tighten the screws to 10 N.m (89 lb in).

  4. Using the J 39529,  Install the wiper transmission to the wiper motor crank arm.
  5. Install the wiper motor water deflector. Refer to Wiper Motor Water Deflector Replacement .
  6. Install air inlet grille panel. Refer to AIR INLET GRILLE PANEL REPLACEMENT .
  7. Check the wipers for proper operation.

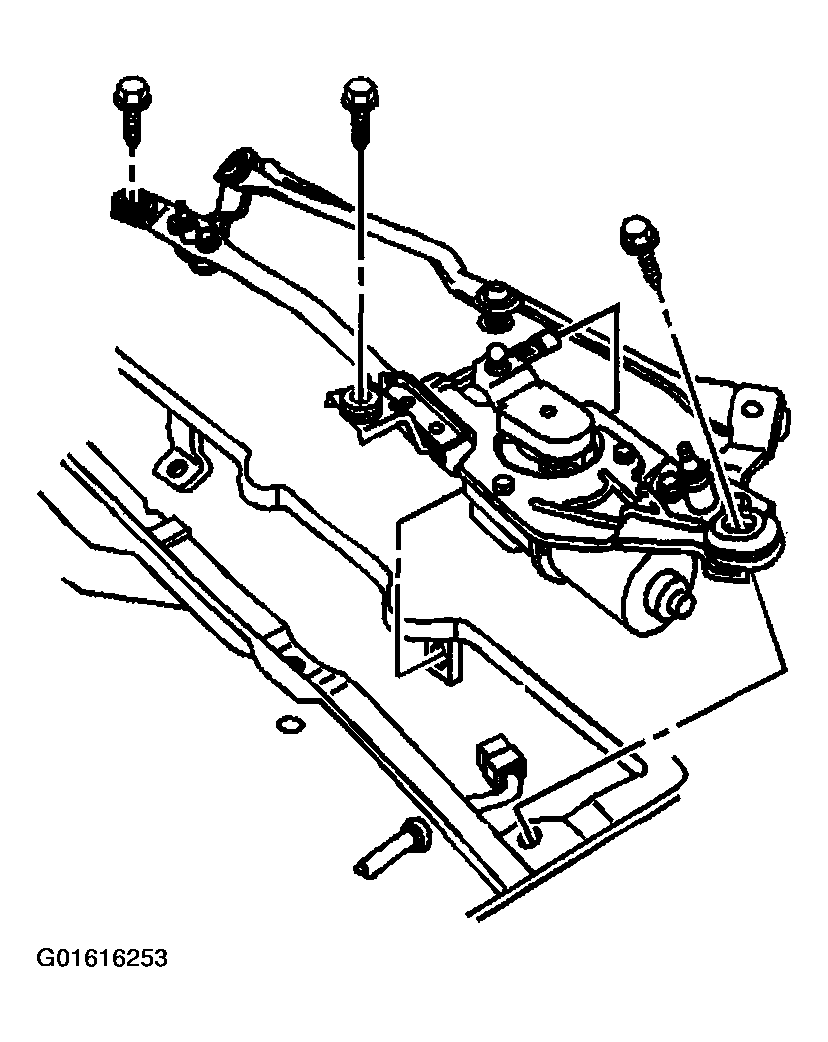

    Fig 1: Wiper Drive System Module
    G01616253Courtesy of GENERAL MOTORS CORP.
