Horns Component Views

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

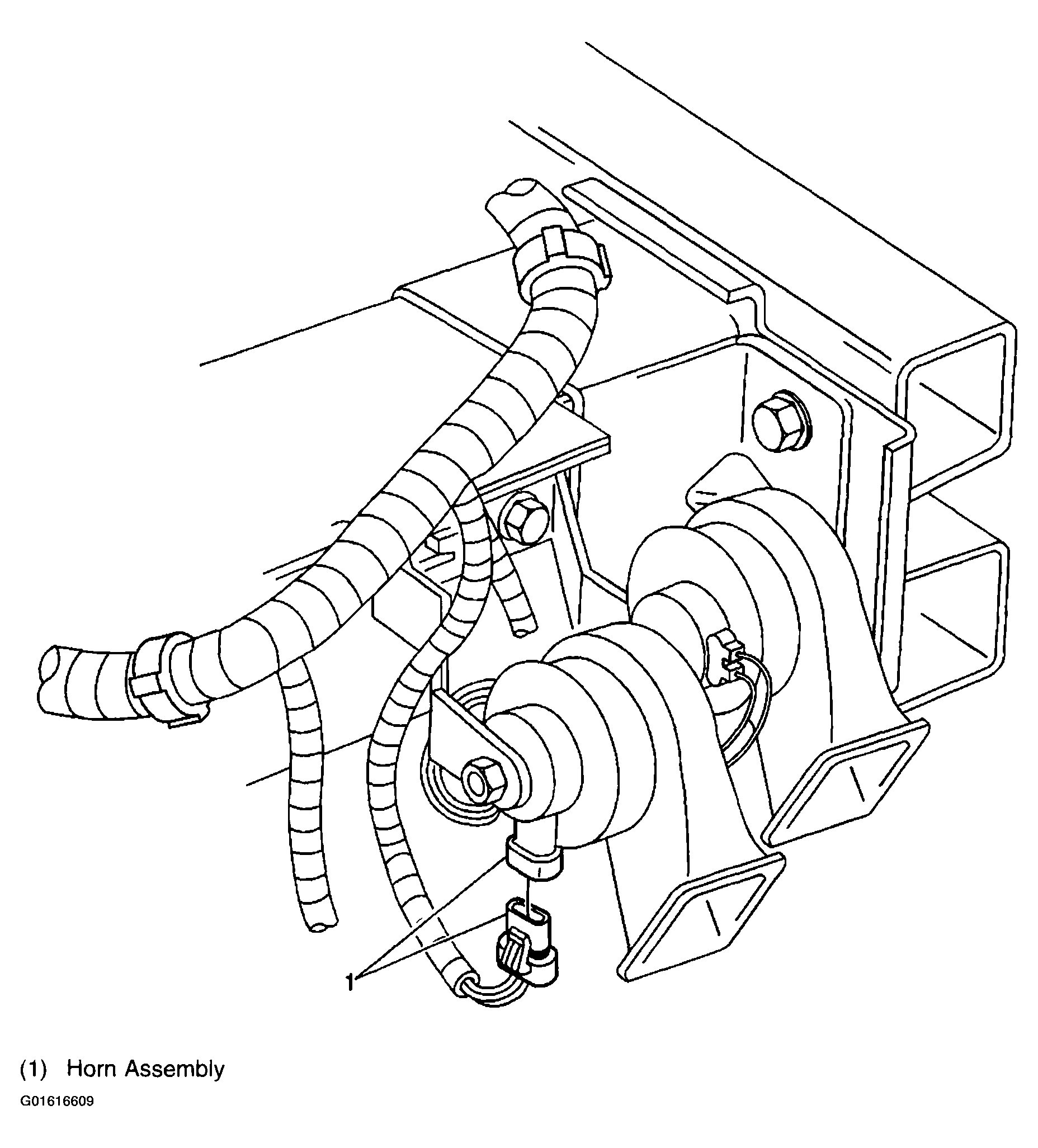

Fig 1: Right Front Frame Rail, Near Fender
G01616609Courtesy of GENERAL MOTORS CORP.

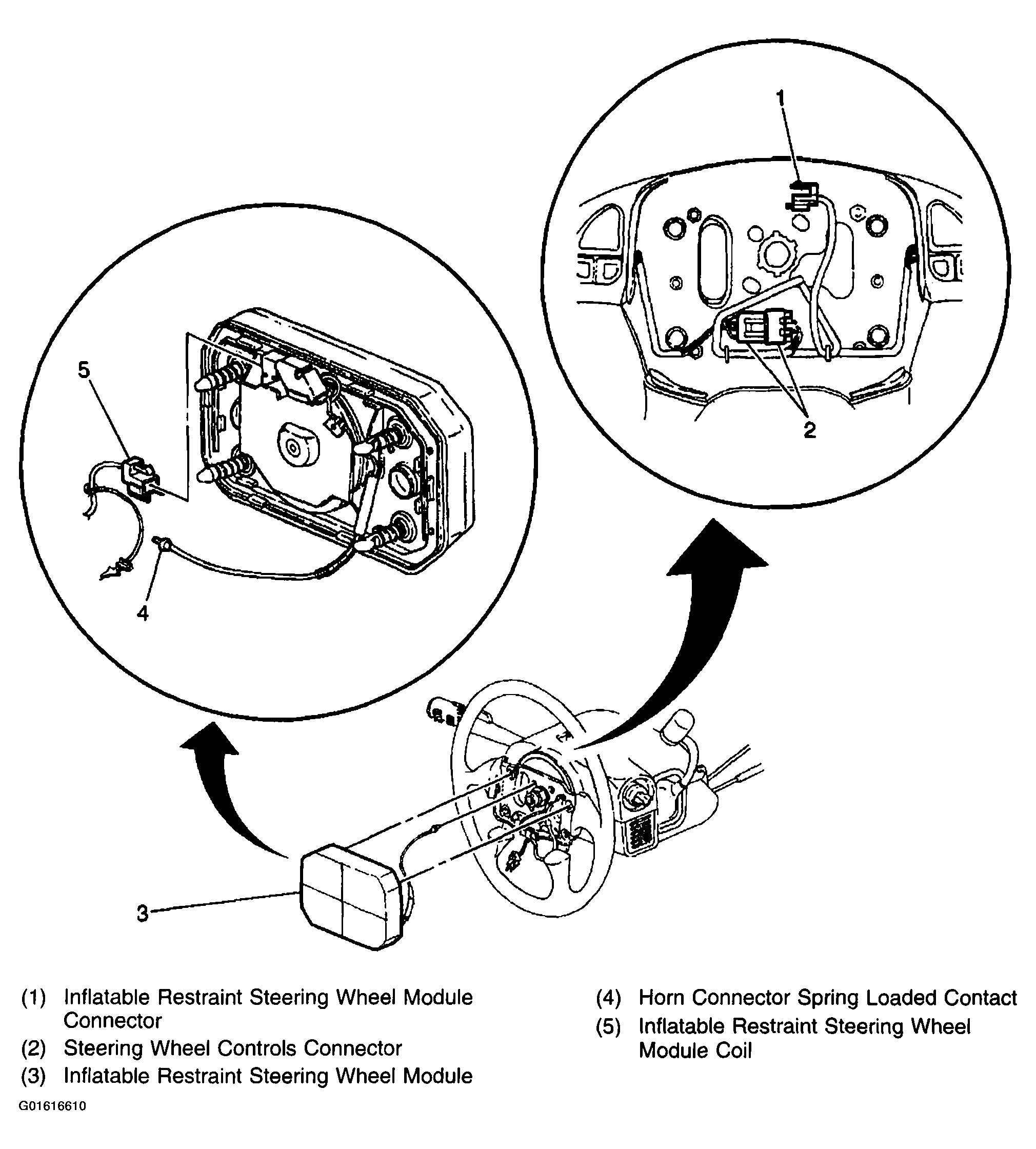

Fig 2: Front Of Steering Wheel Component Views
G01616610Courtesy of GENERAL MOTORS CORP.
