Brake Modulator Assembly Replacement: Notes

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

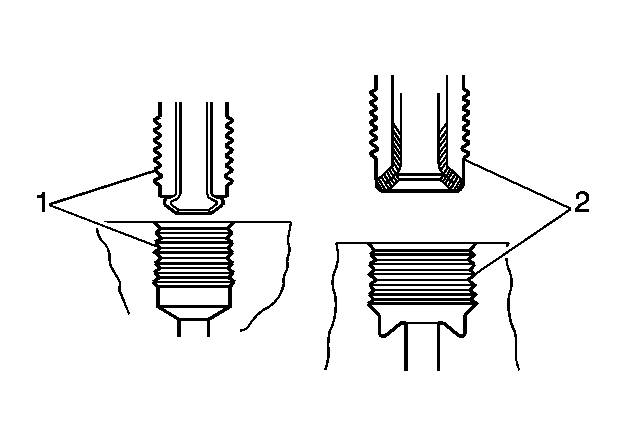

Fig 1: ISO Flare & Double Inverted Flare

Courtesy of GENERAL MOTORS CORP.

CAUTION: Refer to BRAKE FLUID IRRITANT CAUTION in Cautions and Notices.

NOTE: Refer to BRAKE FLUID EFFECTS ON PAINT & ELECTRICAL COMPONENTS NOTICE in Cautions and Notices.

NOTE: Always connect or disconnect the wiring harness connector from the EBCM/EBTCM with the ignition switch in the OFF position. Failure to observe this precaution could result in damage to the EBCM/EBTCM.

NOTE: There is a first design and second design of brake pipe flare for the hydraulic brake pipes and system components used on this vehicle. Do NOT mis-match flare types. If the flare types are mis-matched, damage to the pipes and/or components, and/or a brake fluid leak may occur.

First design, ISO flare (1)
Second design, double inverted flare (2)
