Schematic & Routing Diagrams

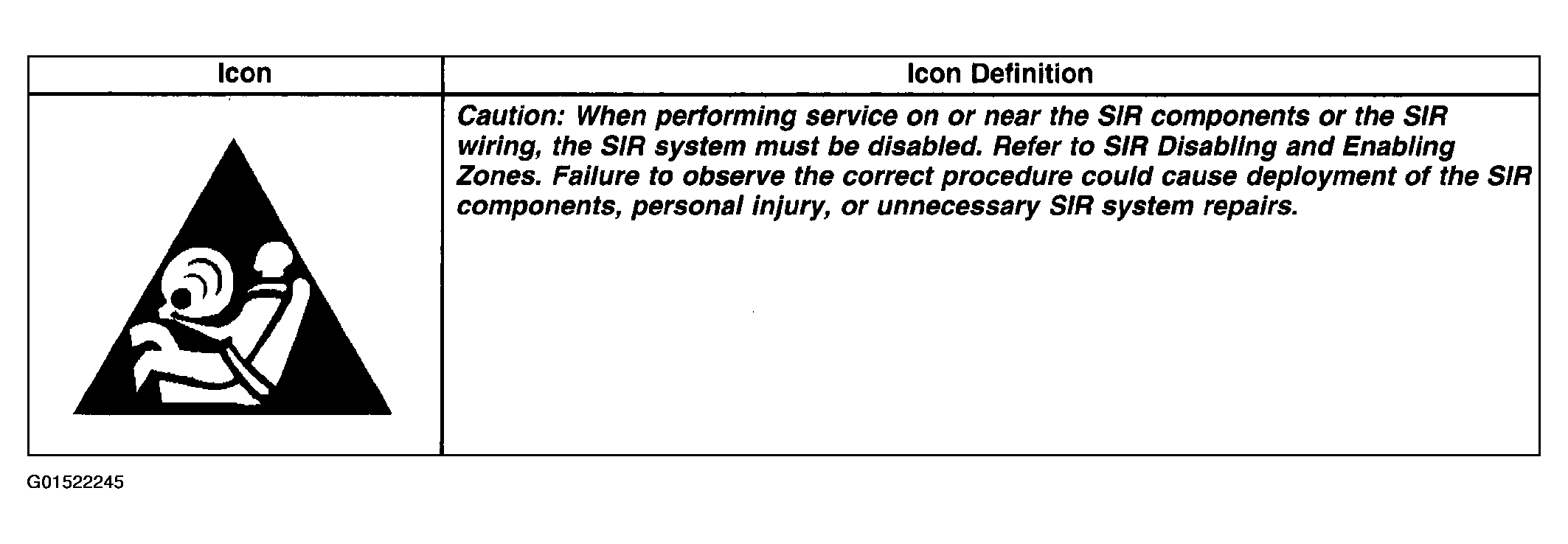

Fig 1: Example Of An Icon
Courtesy of GENERAL MOTORS CORP.

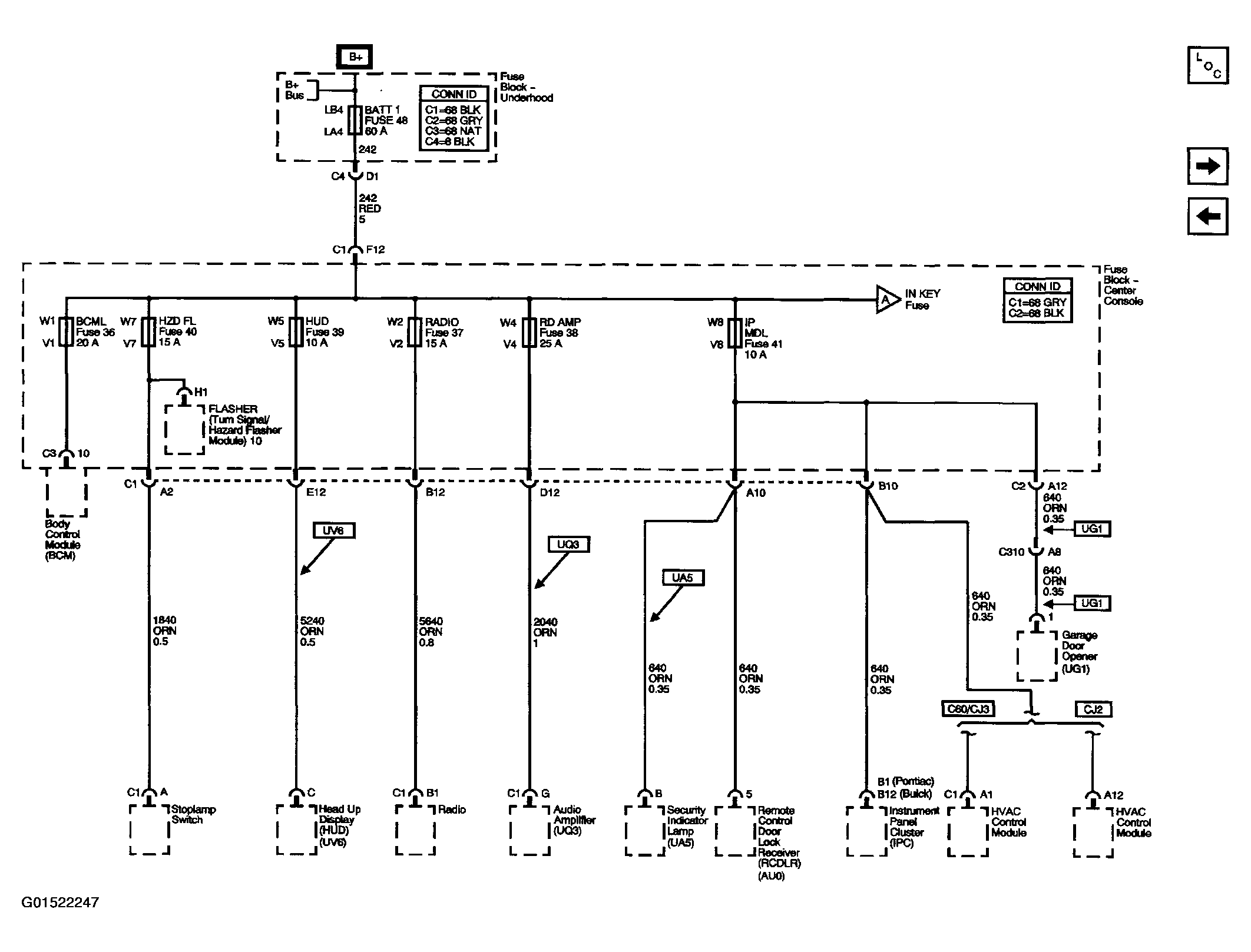

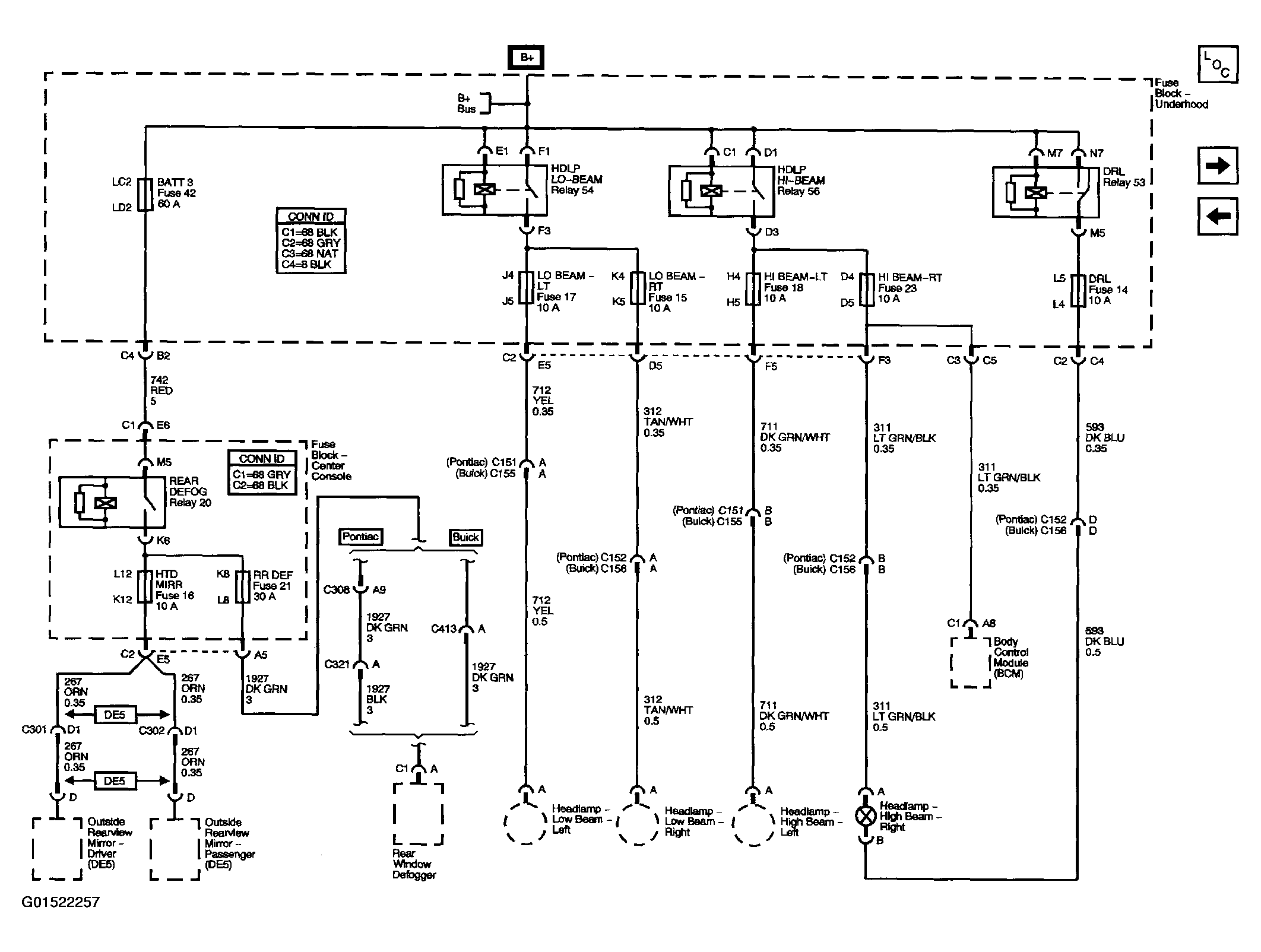

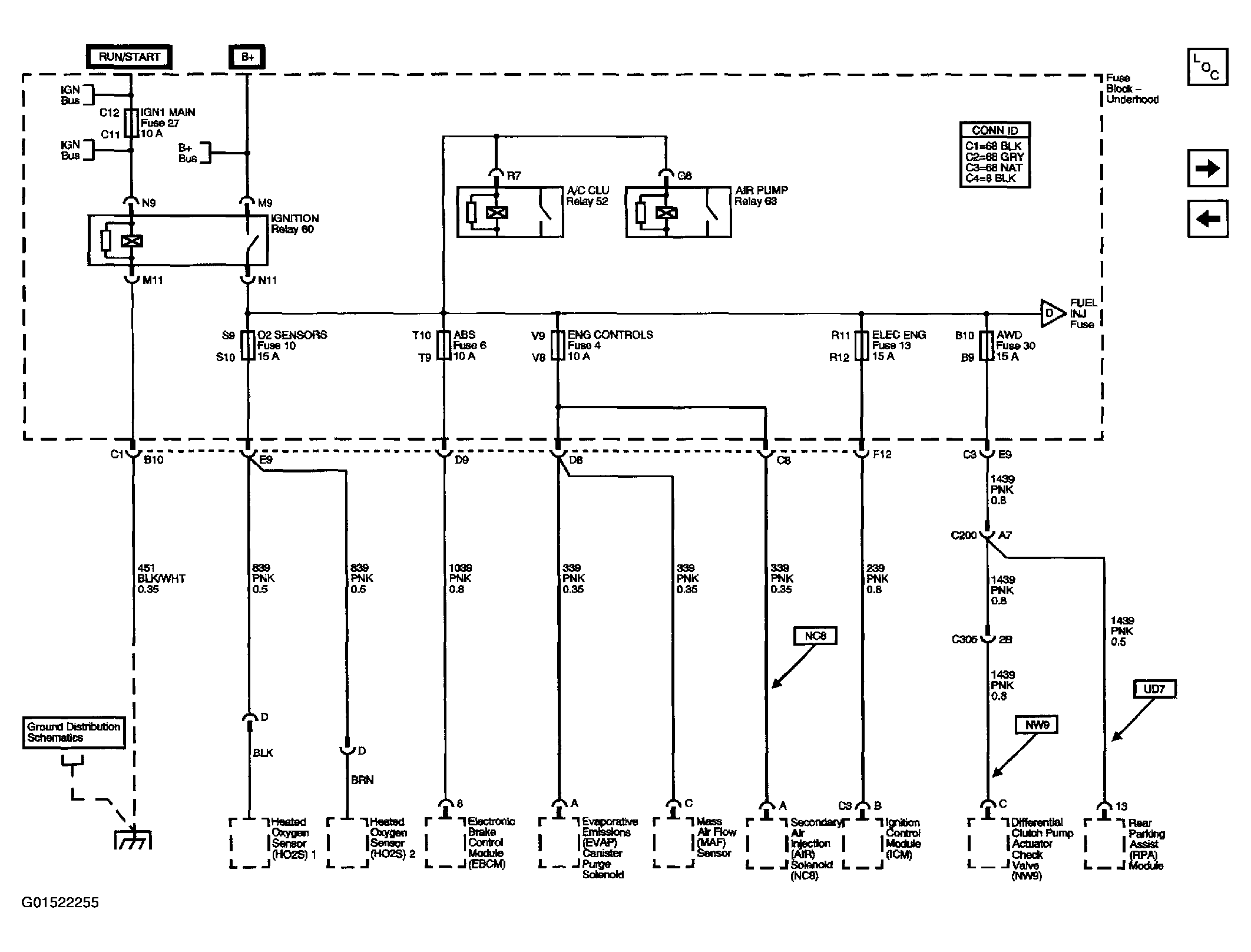

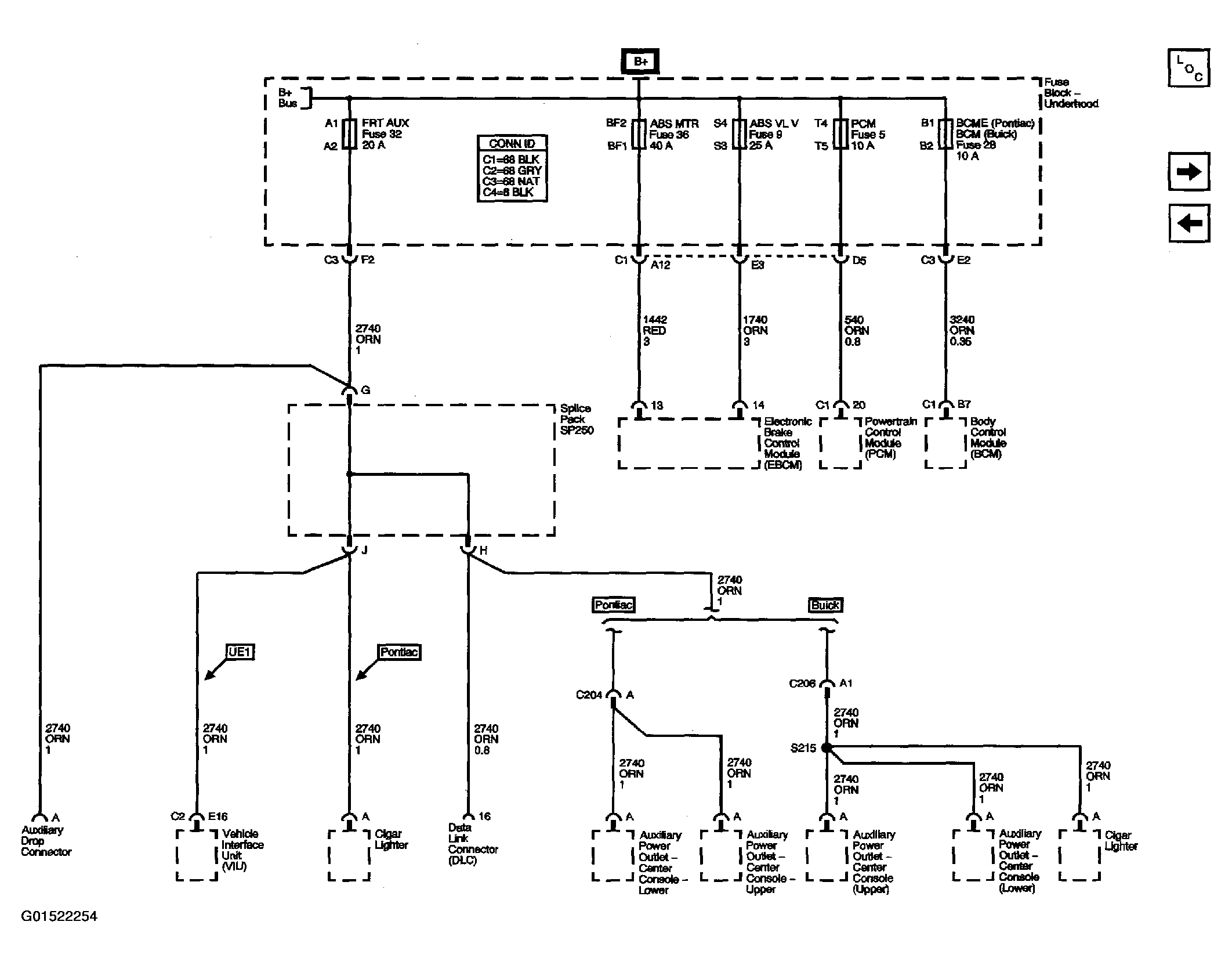

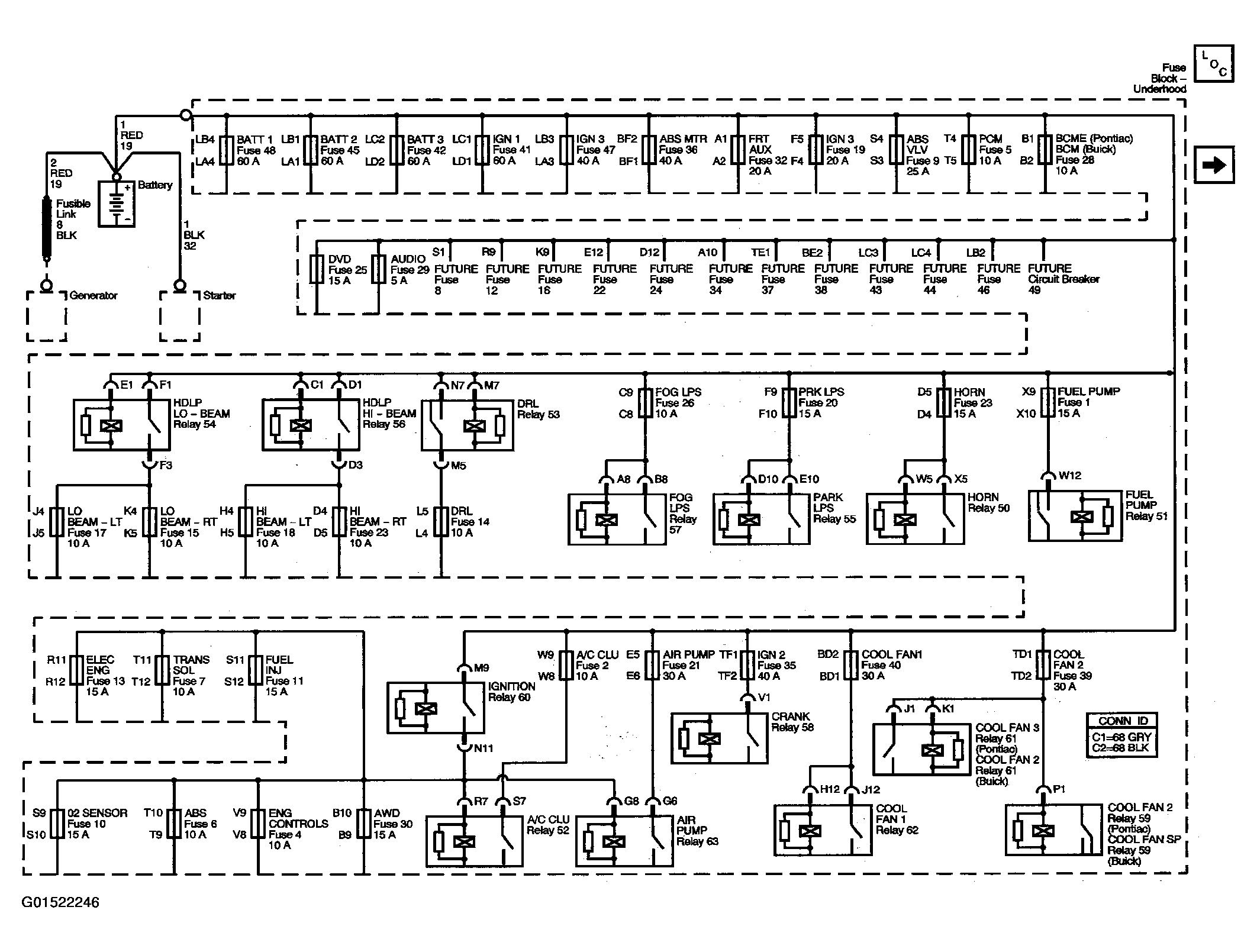

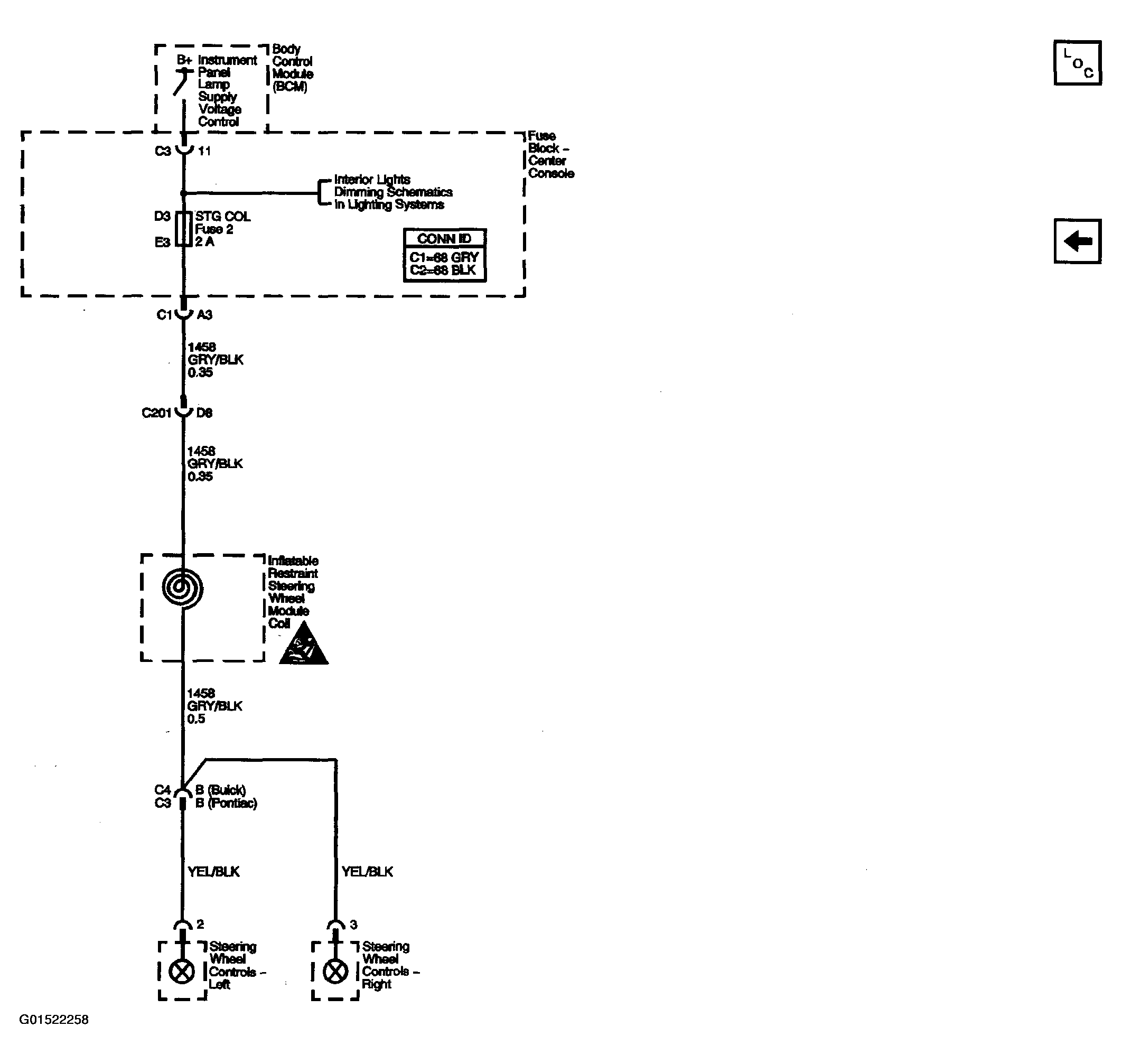

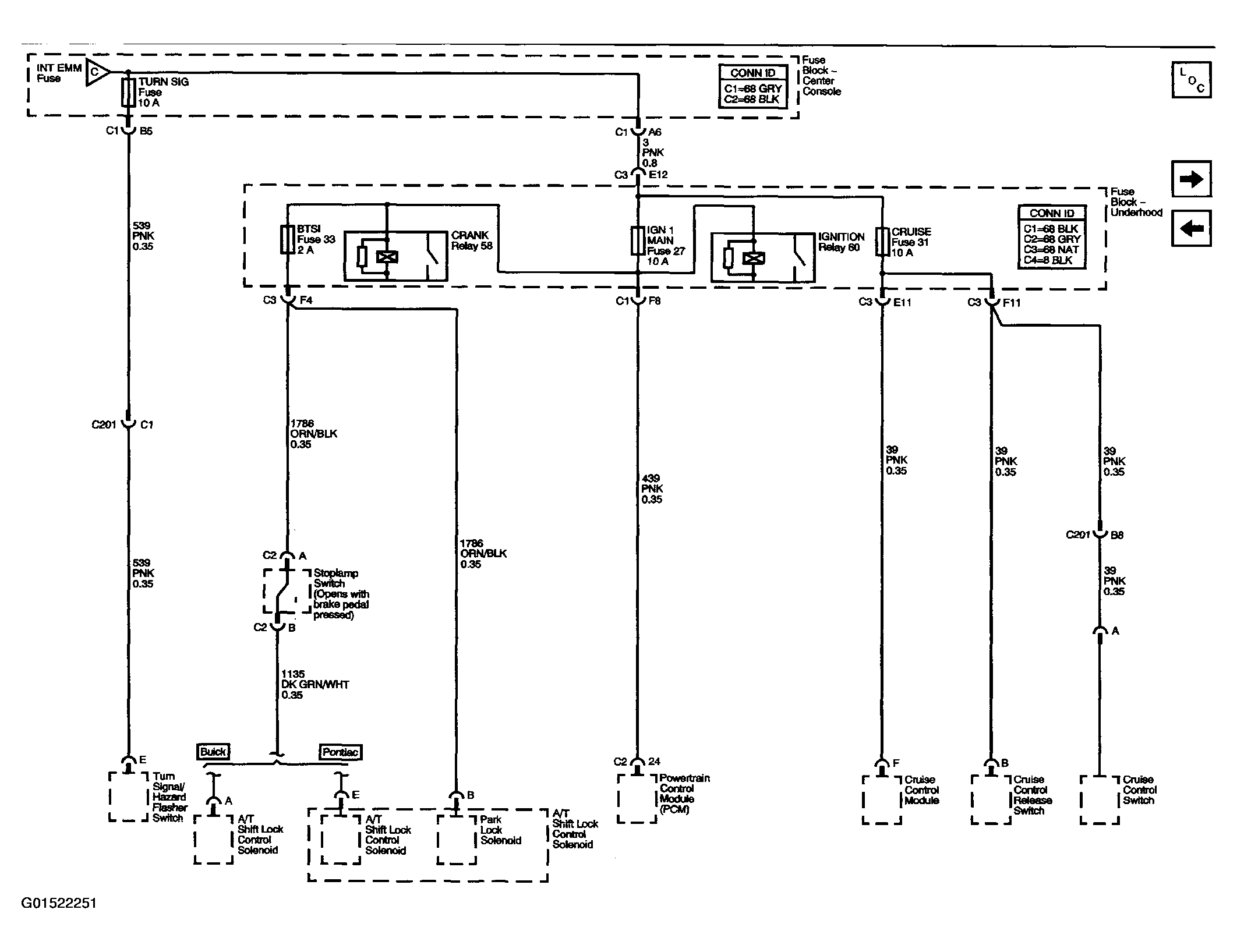

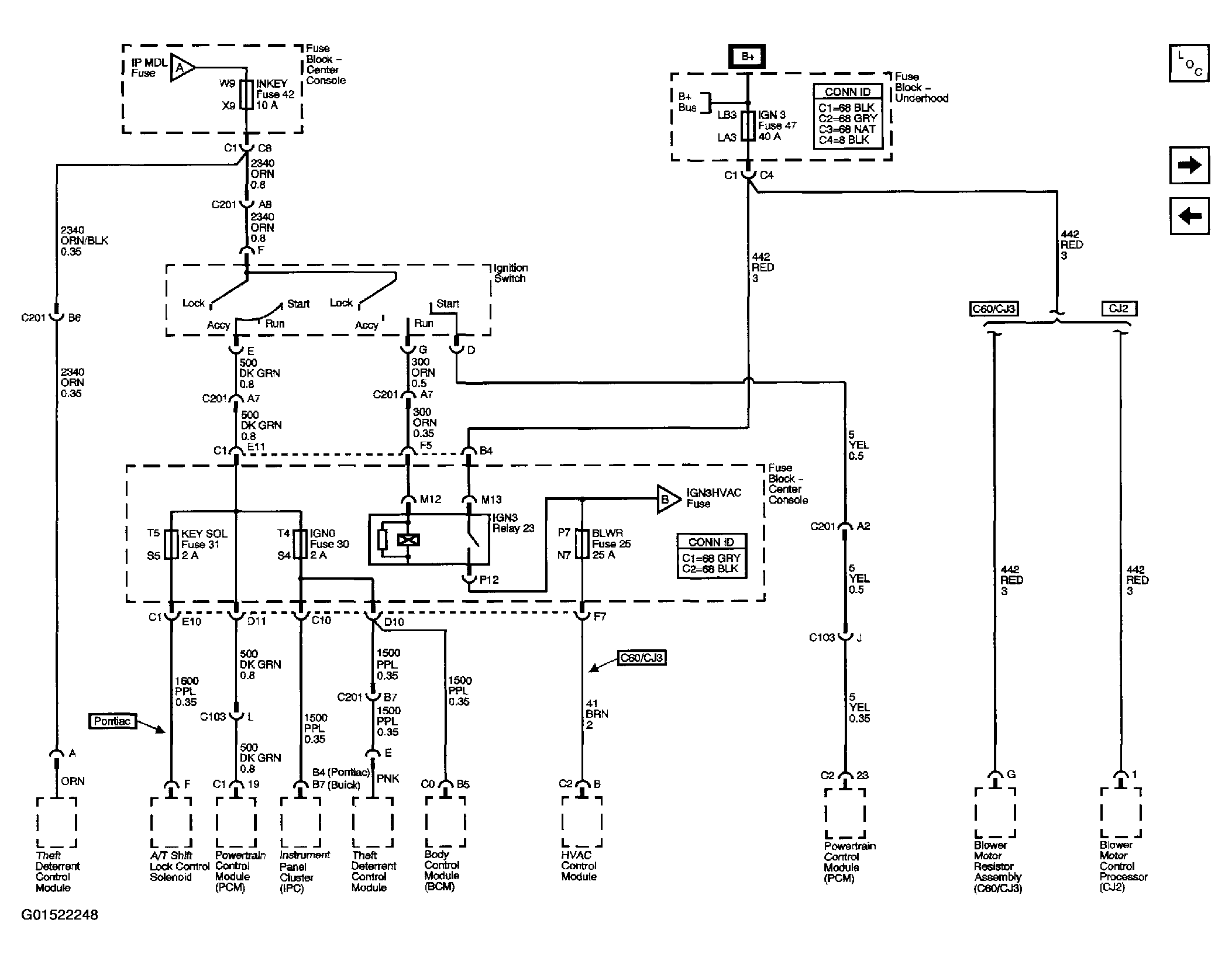

Fig 2: Power Distribution Schematic (1 Of 3)
Courtesy of GENERAL MOTORS CORP.

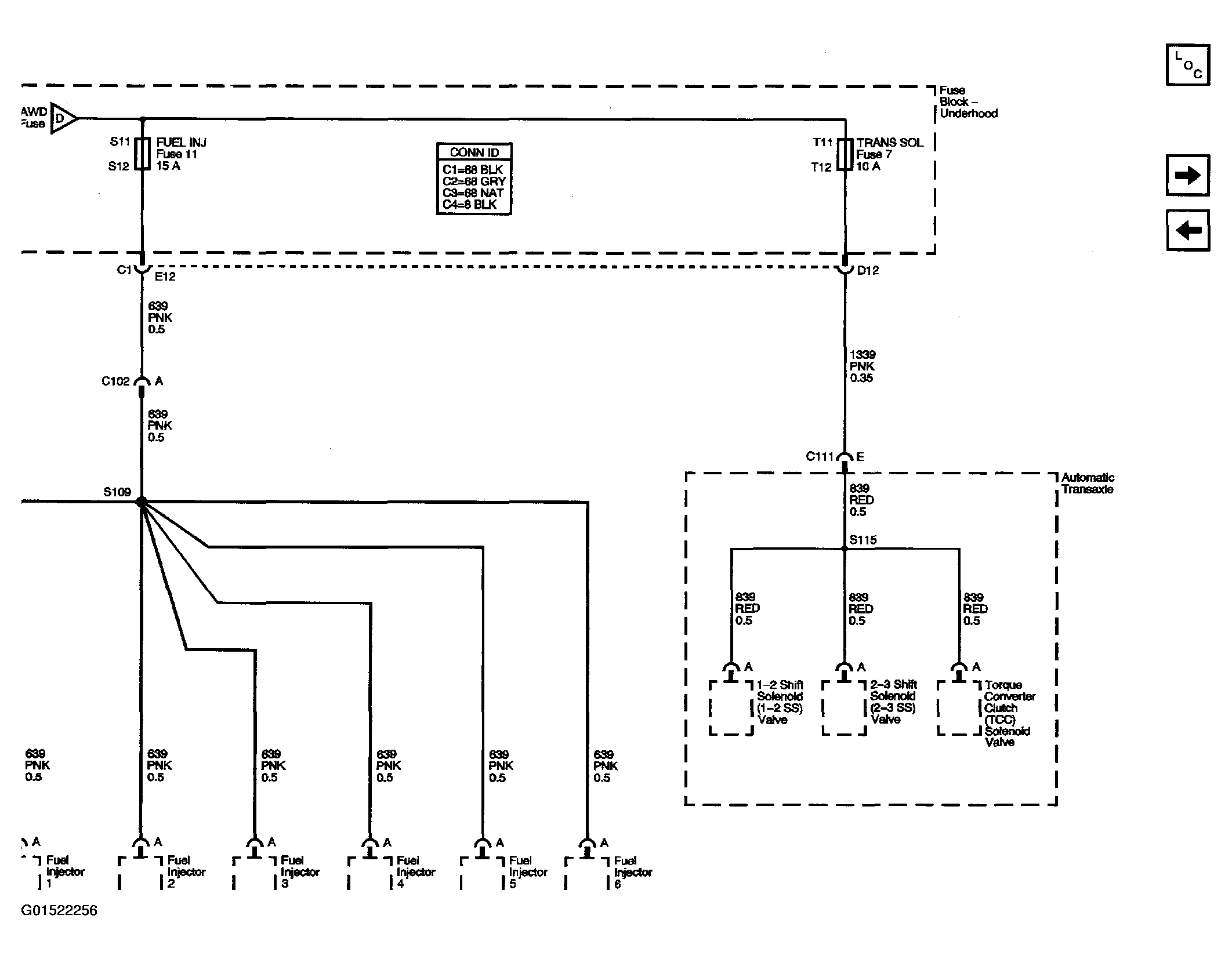

Fig 3: Power Distribution Schematic (2 Of 3)
Courtesy of GENERAL MOTORS CORP.
Fig 4: Power Distribution Schematic (3 Of 3)
Courtesy of GENERAL MOTORS CORP.
Fig 5: Power Distribution Schematic
Courtesy of GENERAL MOTORS CORP.

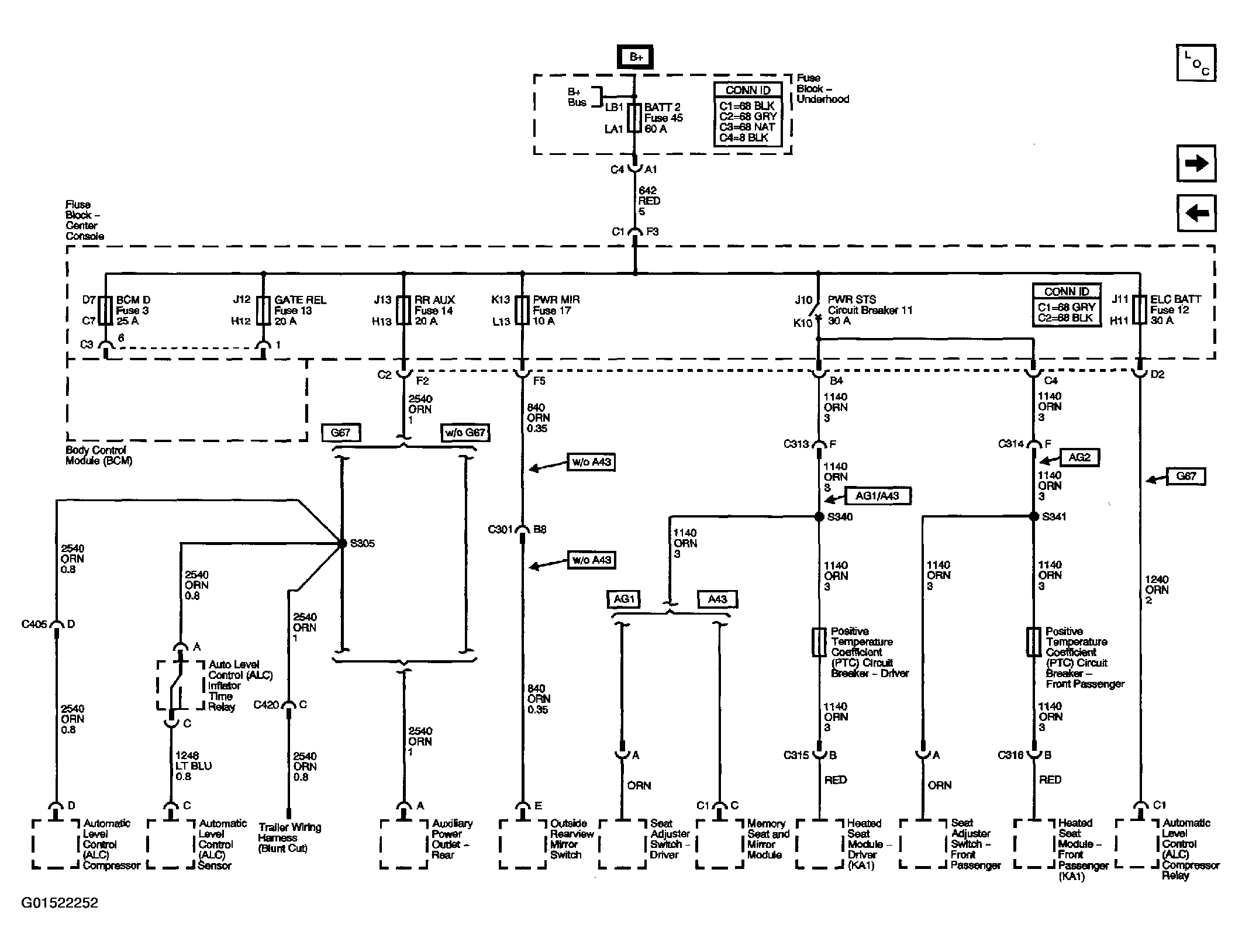

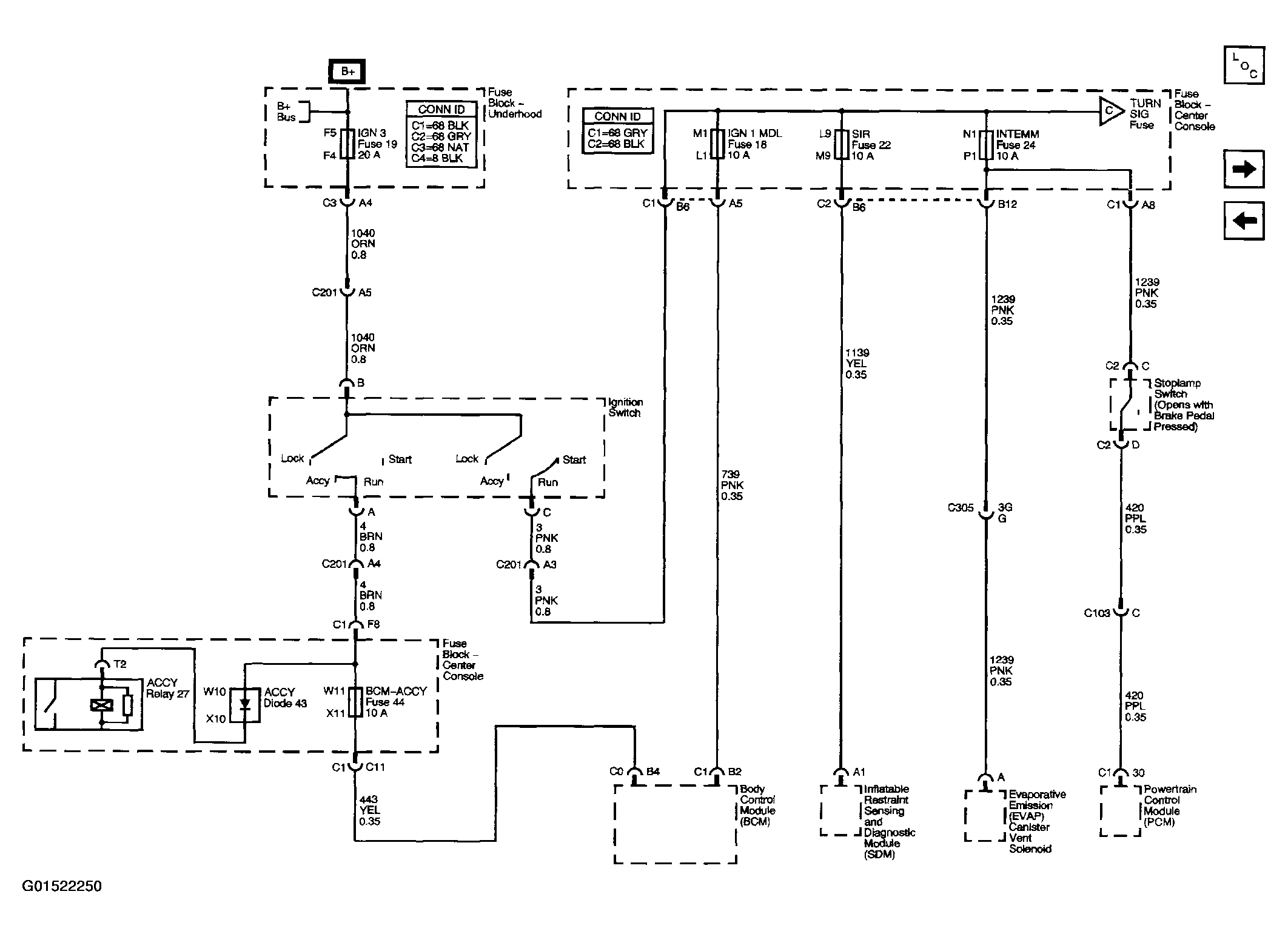

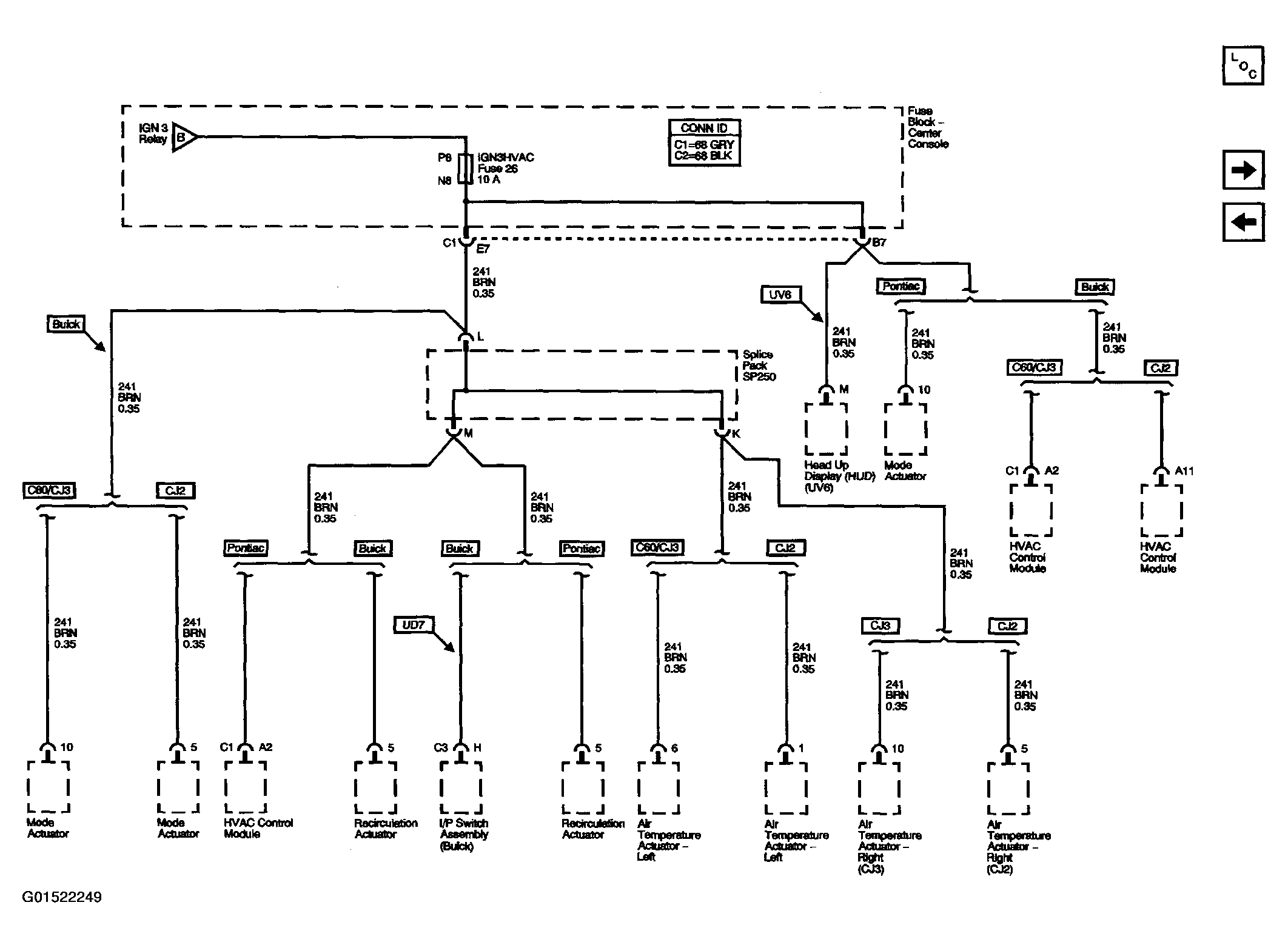

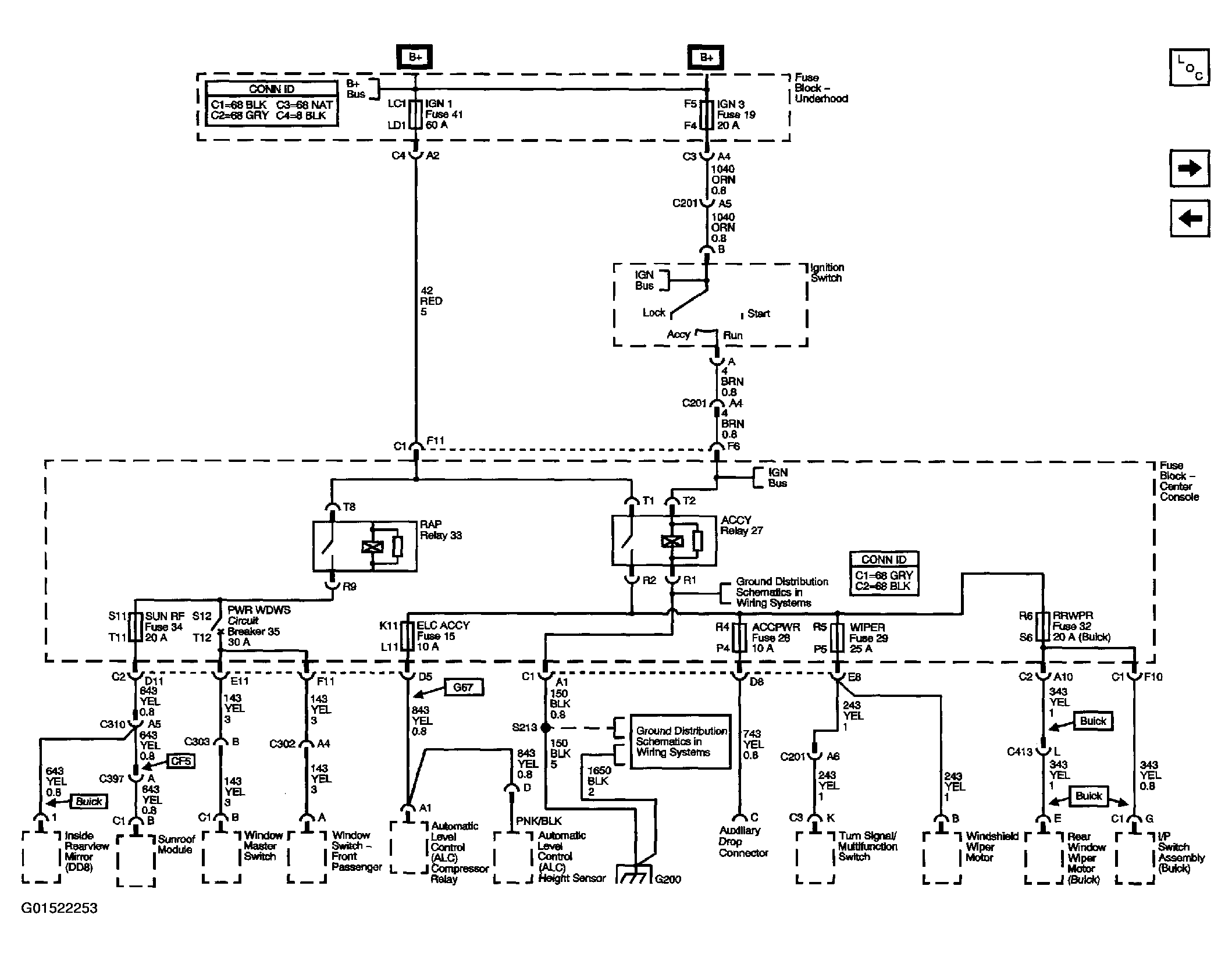

Fig 6: Power Distribution Schematic (1 Of 9)
Courtesy of GENERAL MOTORS CORP.
Fig 7: Power Distribution Schematic (2 Of 9)
Courtesy of GENERAL MOTORS CORP.
Fig 8: Power Distribution Schematic (3 Of 9)
Courtesy of GENERAL MOTORS CORP.
Fig 9: Power Distribution Schematic (4 Of 9)
Courtesy of GENERAL MOTORS CORP.
Fig 10: Power Distribution Schematic (5 Of 9)
Courtesy of GENERAL MOTORS CORP.
Fig 11: Power Distribution Schematic (6 Of 9)
Courtesy of GENERAL MOTORS CORP.
Fig 12: Power Distribution Schematic (7 Of 9)
Courtesy of GENERAL MOTORS CORP.
Fig 13: Power Distribution Schematic (8 Of 9)
Courtesy of GENERAL MOTORS CORP.
Fig 14: Power Distribution Schematic (9 Of 9)
Courtesy of GENERAL MOTORS CORP.

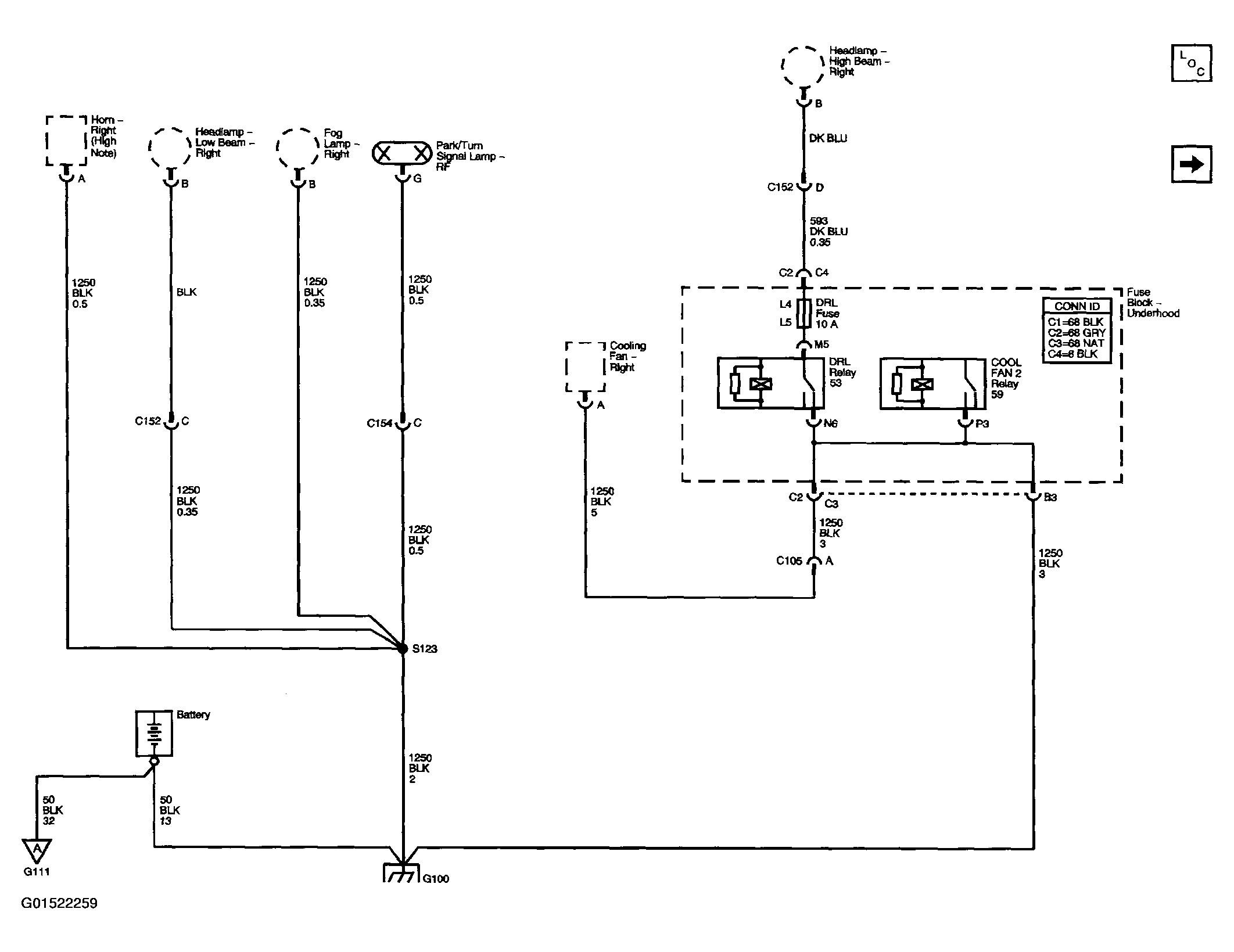

Fig 15: Ground Distribution Schematics (Ground G100 - Pontiac)
Courtesy of GENERAL MOTORS CORP.

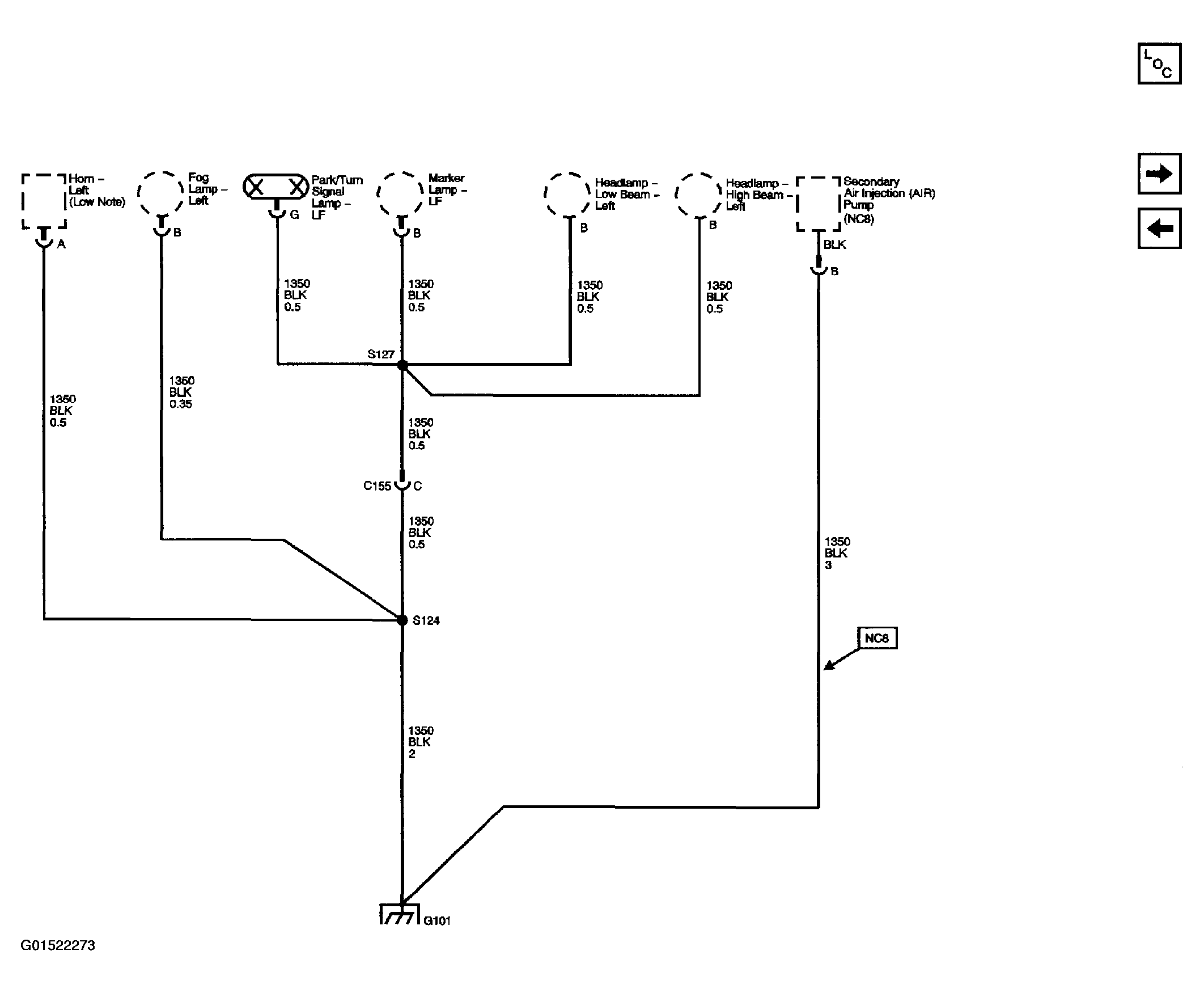

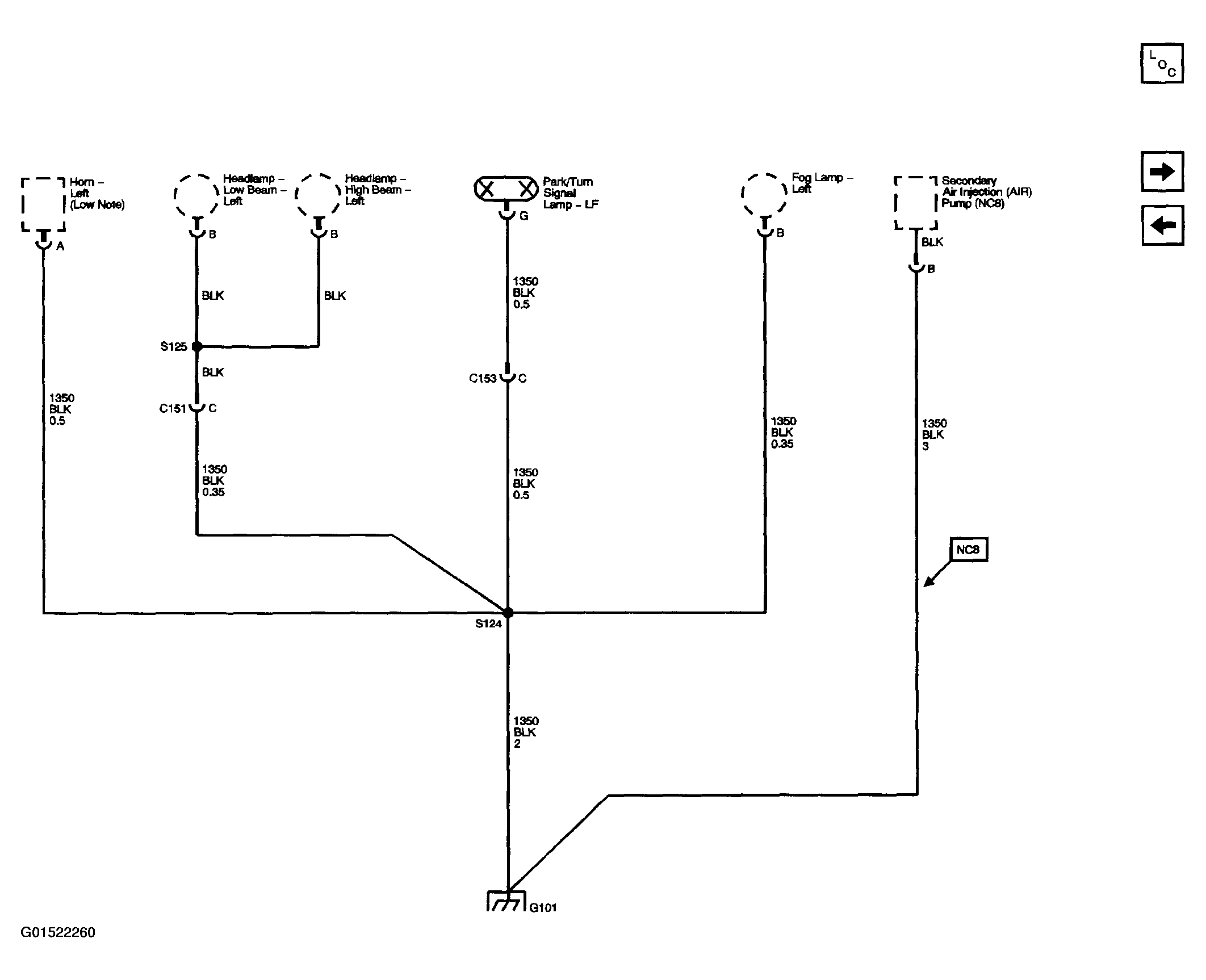

Fig 16: Ground Distribution Schematics (Ground G101 - Pontiac)
Courtesy of GENERAL MOTORS CORP.

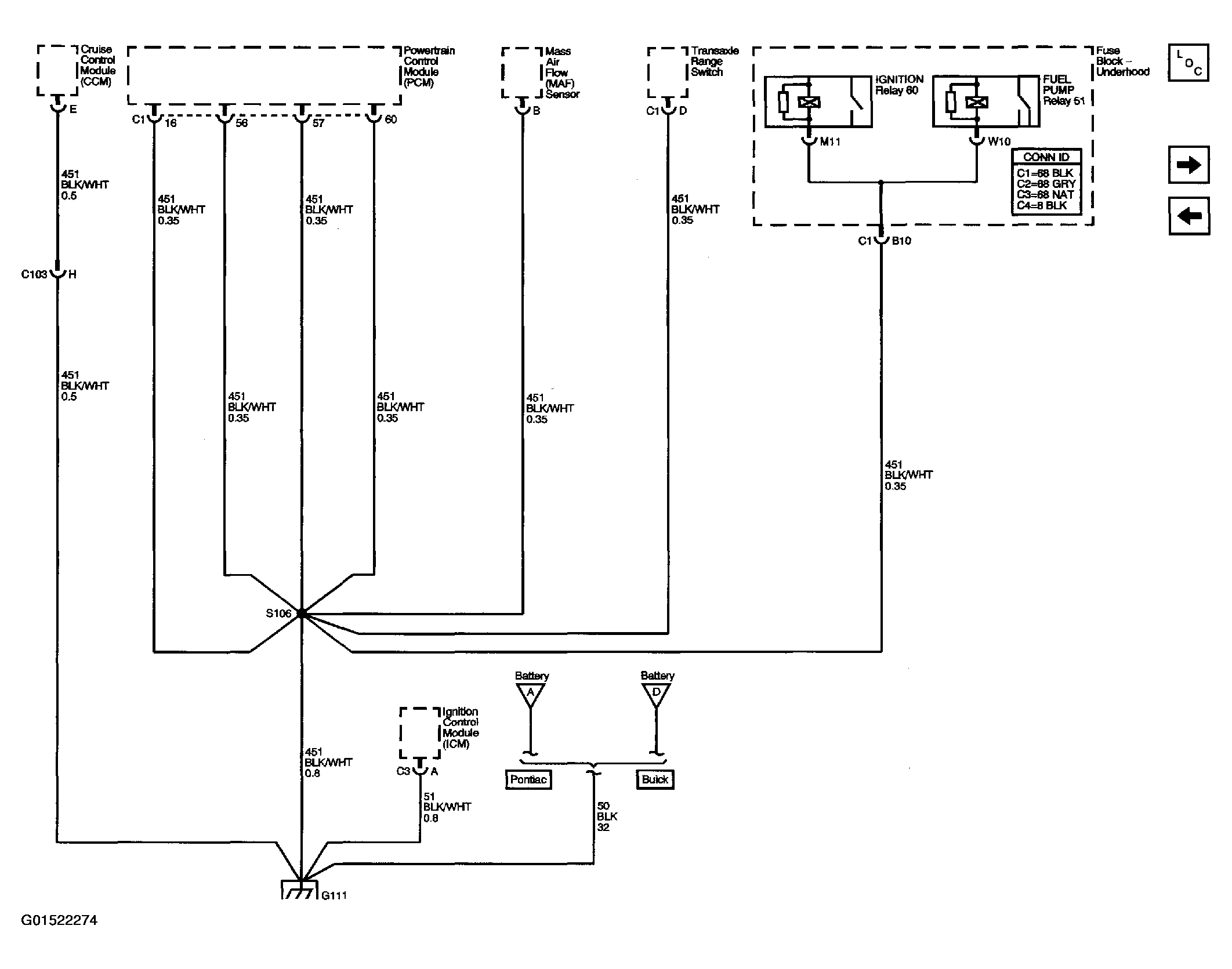

Fig 17: Ground Distribution Schematics (Ground G111 - Pontiac)
Courtesy of GENERAL MOTORS CORP.

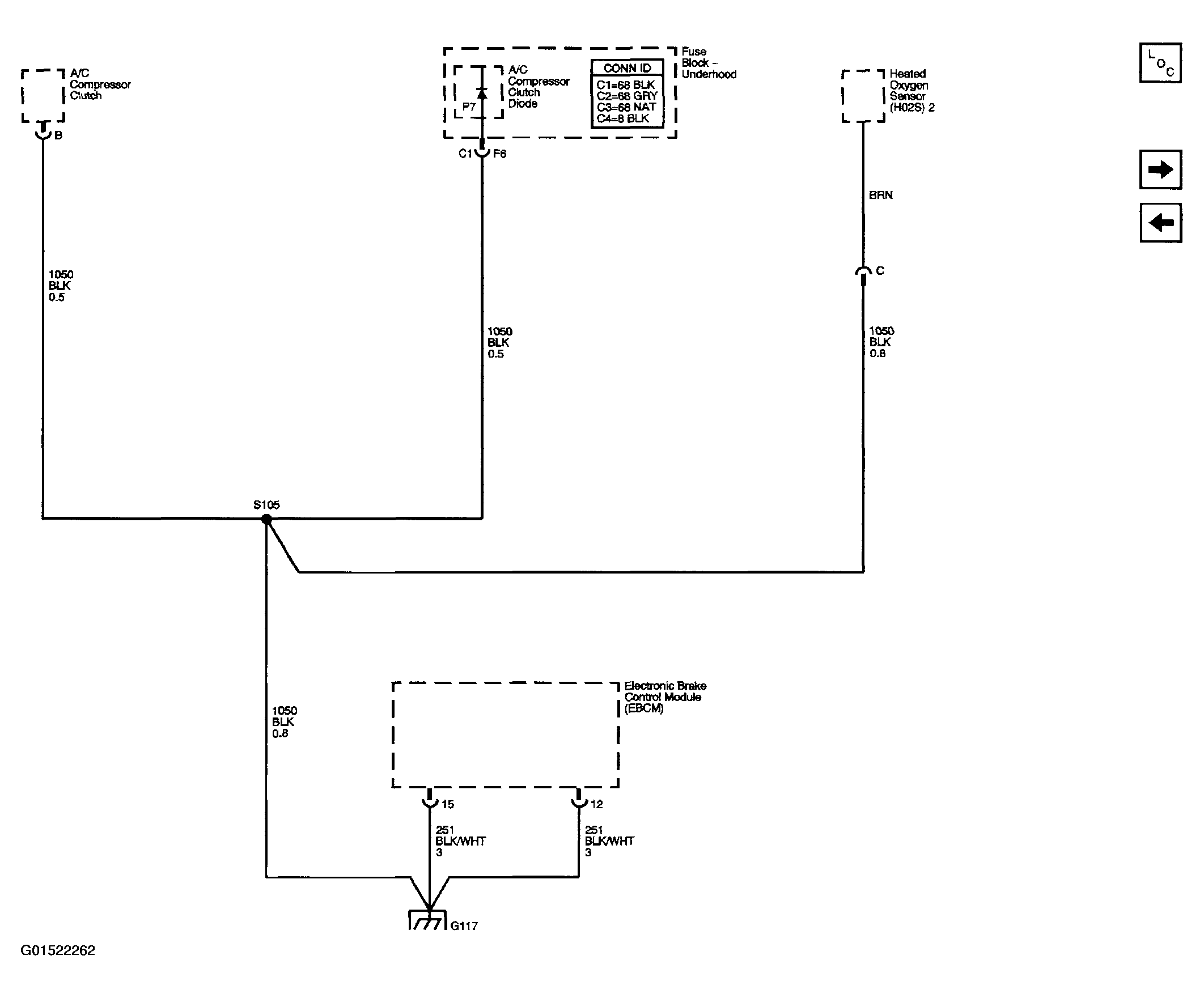

Fig 18: Ground Distribution Schematic (Ground G117 - Pontiac)
Courtesy of GENERAL MOTORS CORP.

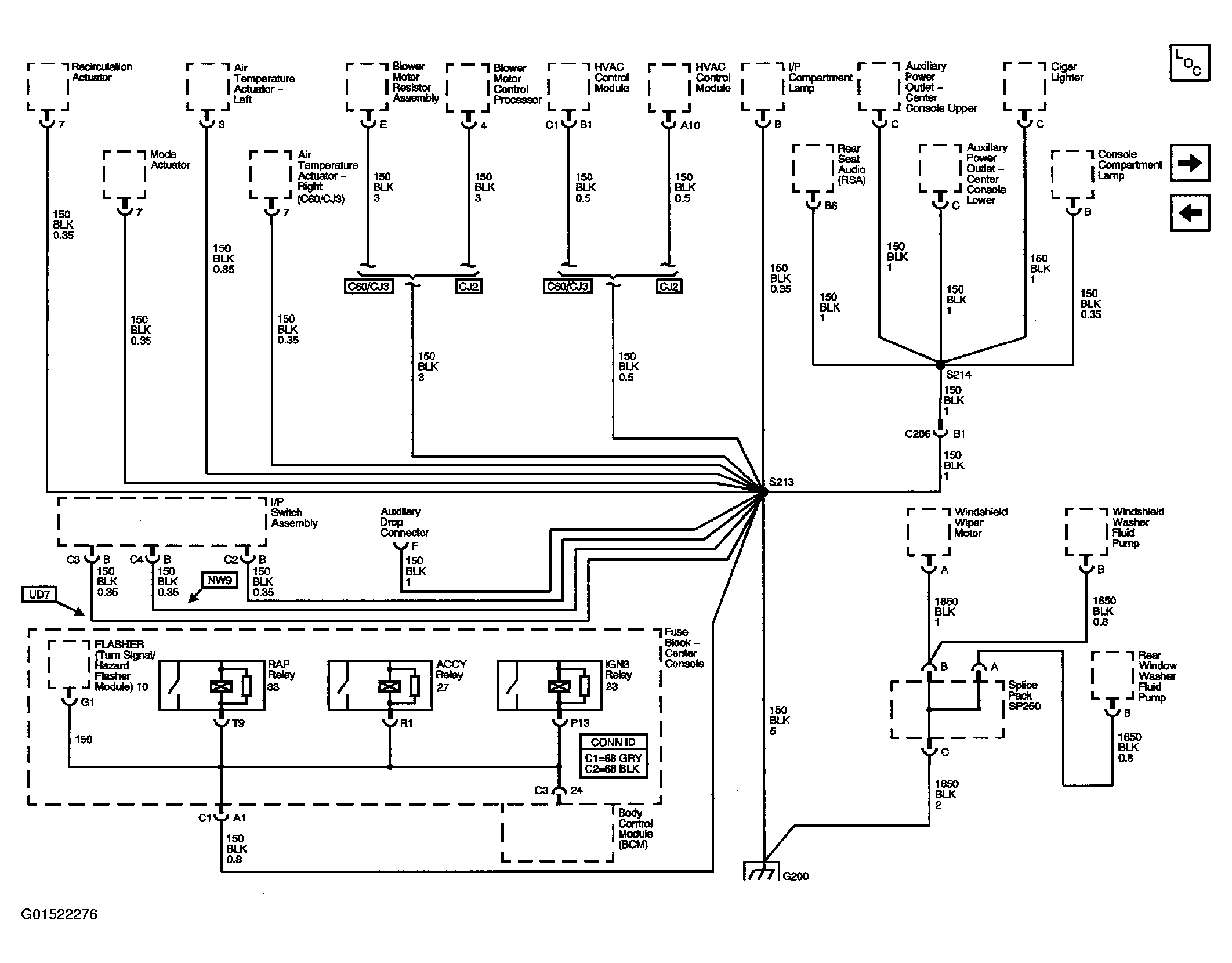

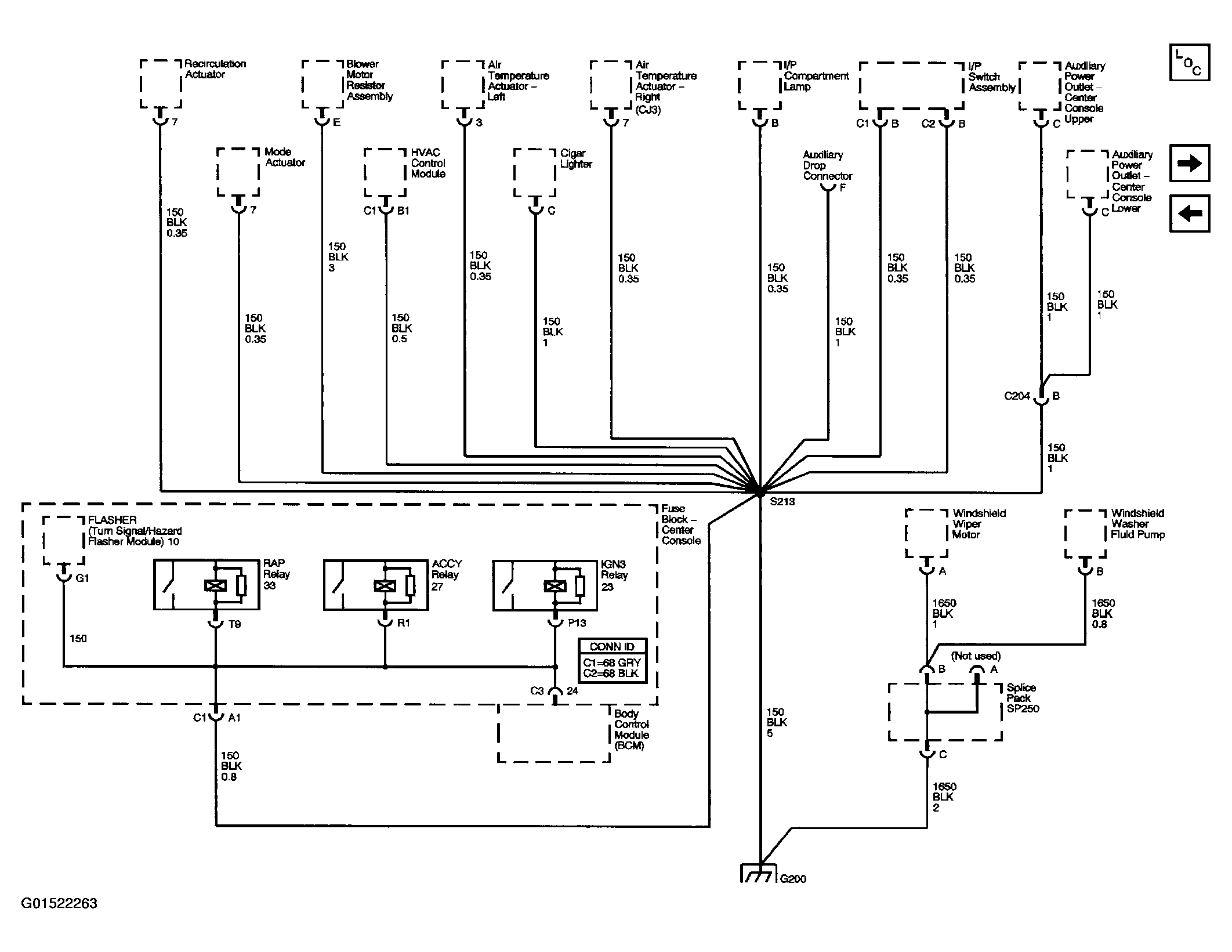

Fig 19: Ground Distribution Schematic (Ground G200 - Pontiac)
Courtesy of GENERAL MOTORS CORP.

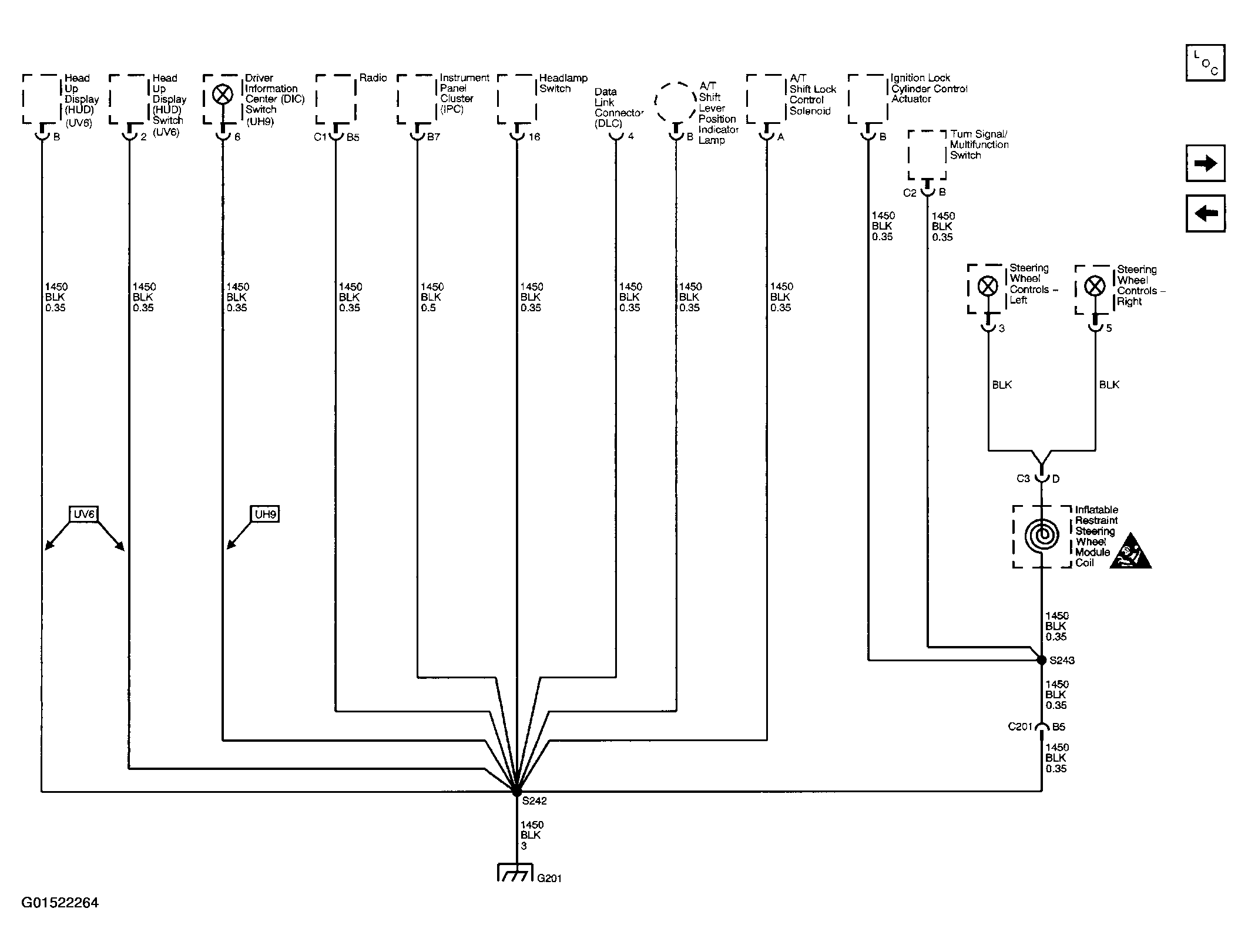

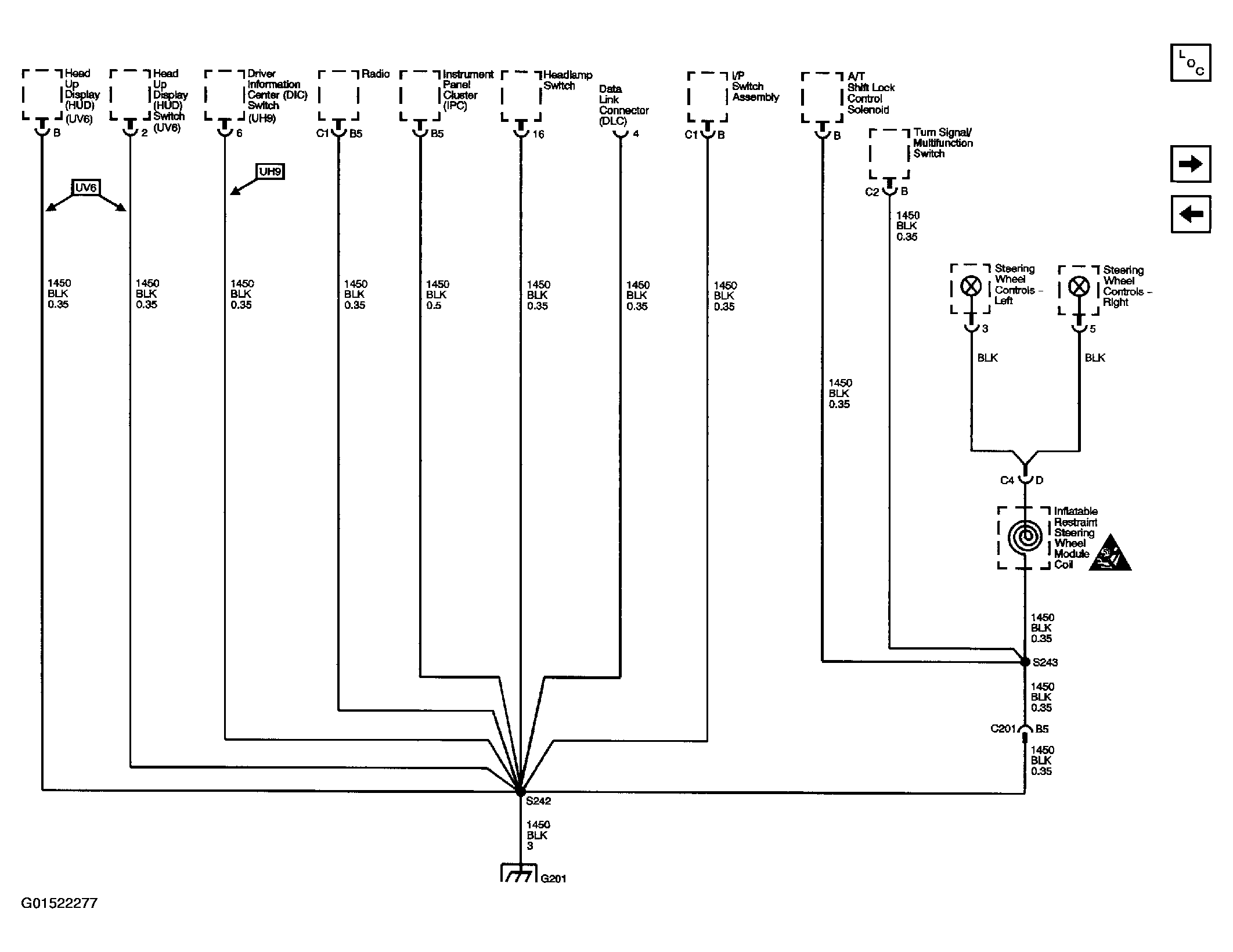

Fig 20: Ground Distribution Schematic (Ground G201 - Pontiac)
Courtesy of GENERAL MOTORS CORP.

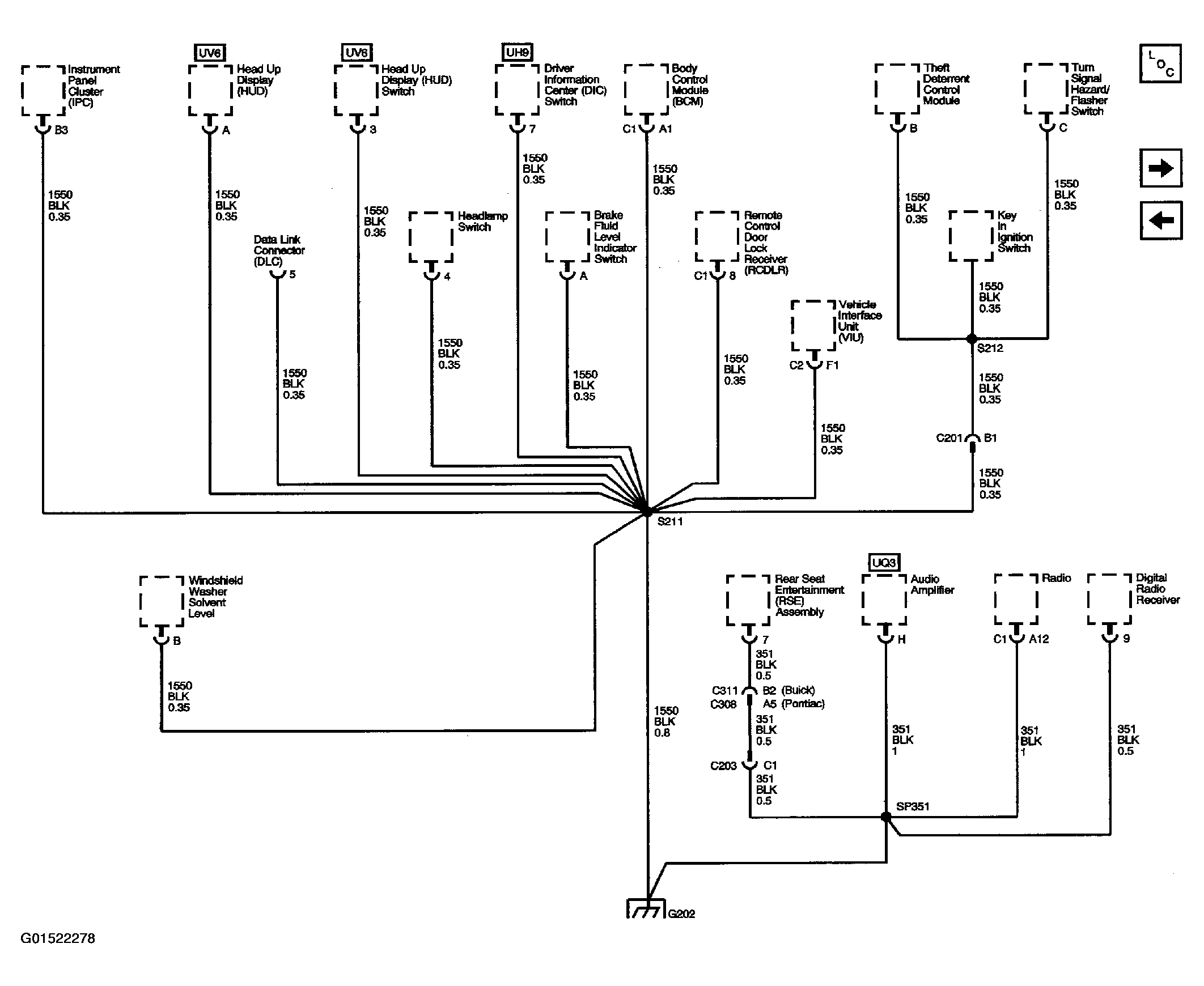

Fig 21: Ground Distribution Schematic (Ground G202 - Pontiac)
Courtesy of GENERAL MOTORS CORP.

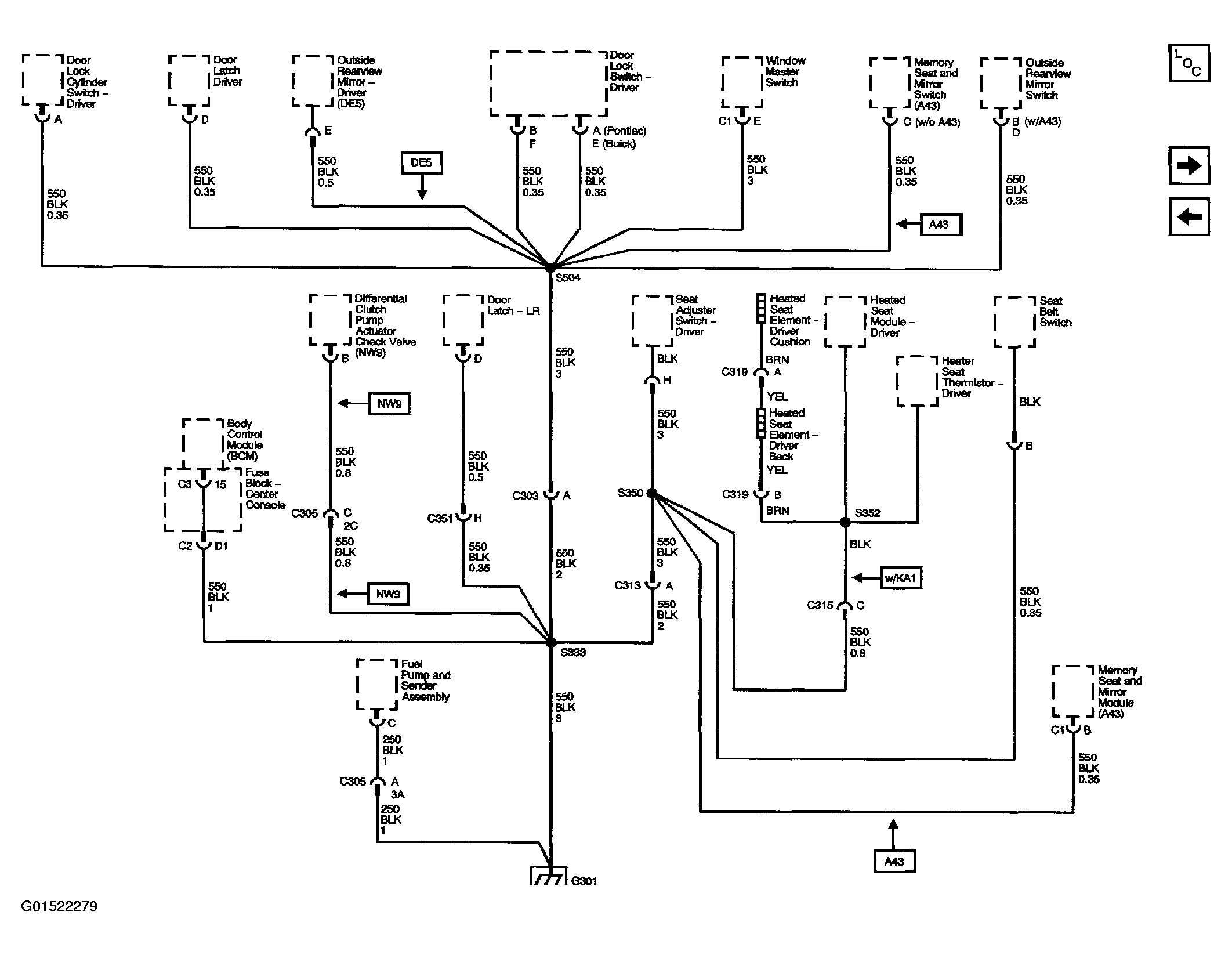

Fig 22: Ground Distribution Schematic (Ground G301 - Pontiac)
Courtesy of GENERAL MOTORS CORP.

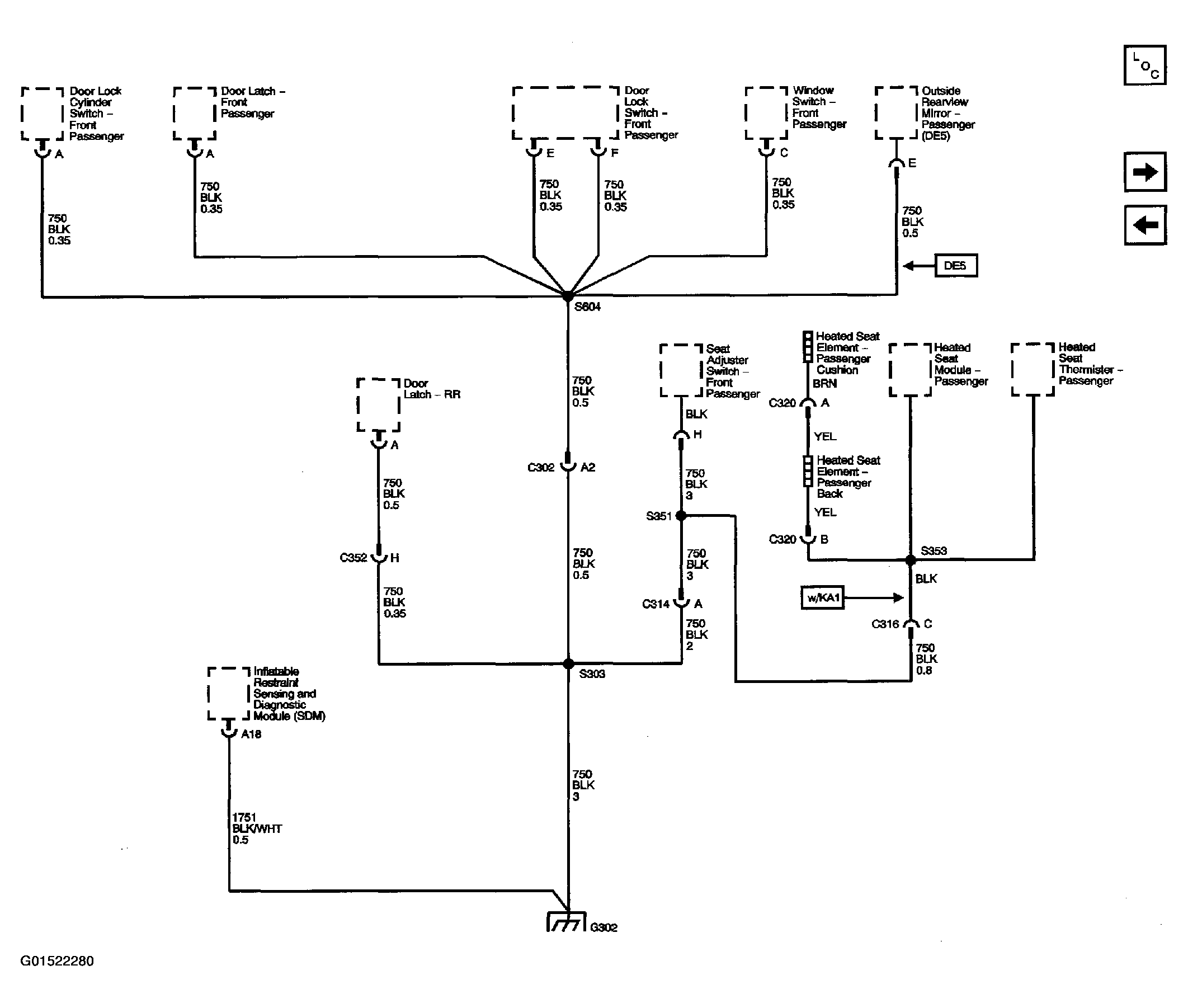

Fig 23: Ground Distribution Schematic (Ground G302 - Pontiac)
Courtesy of GENERAL MOTORS CORP.

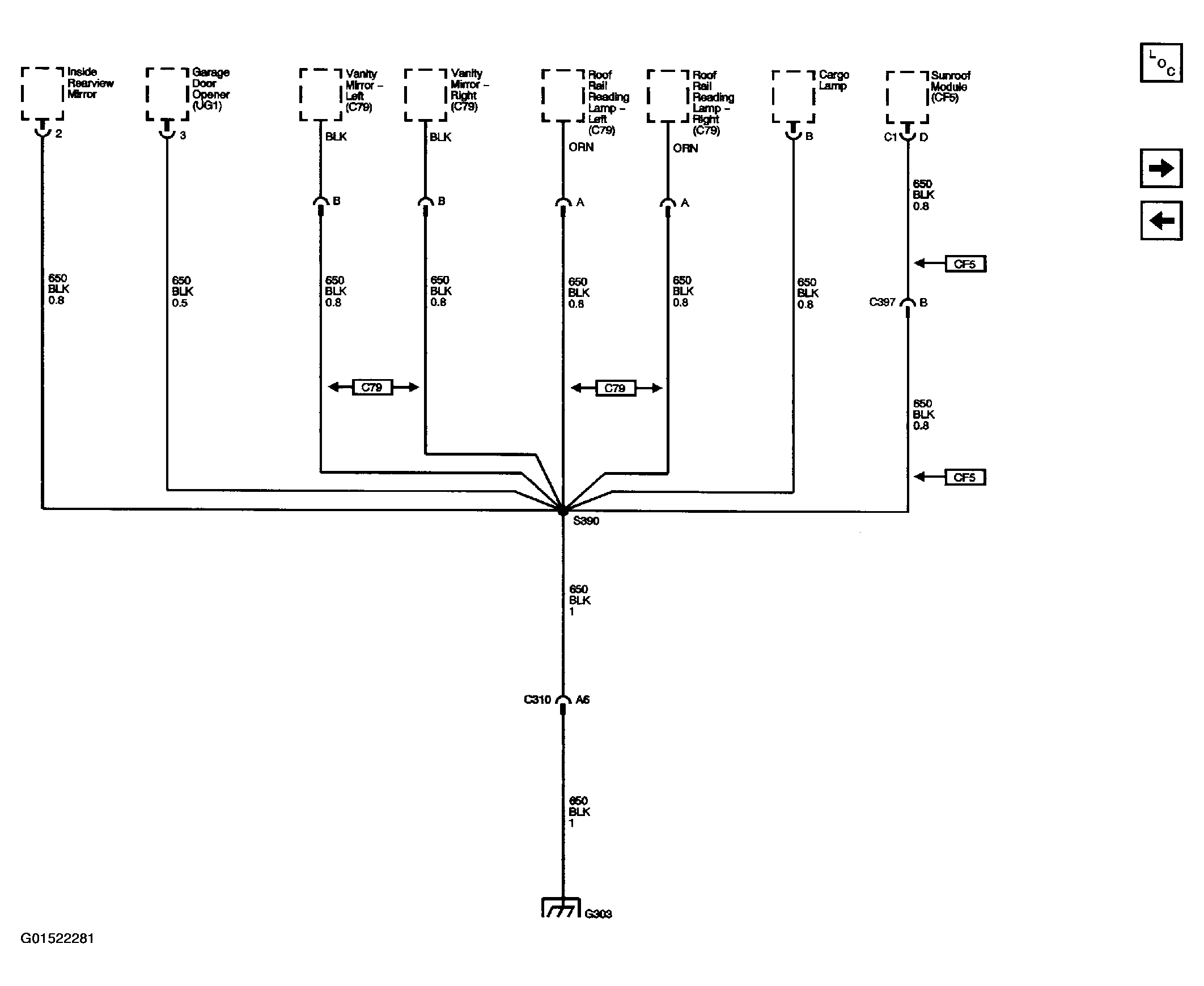

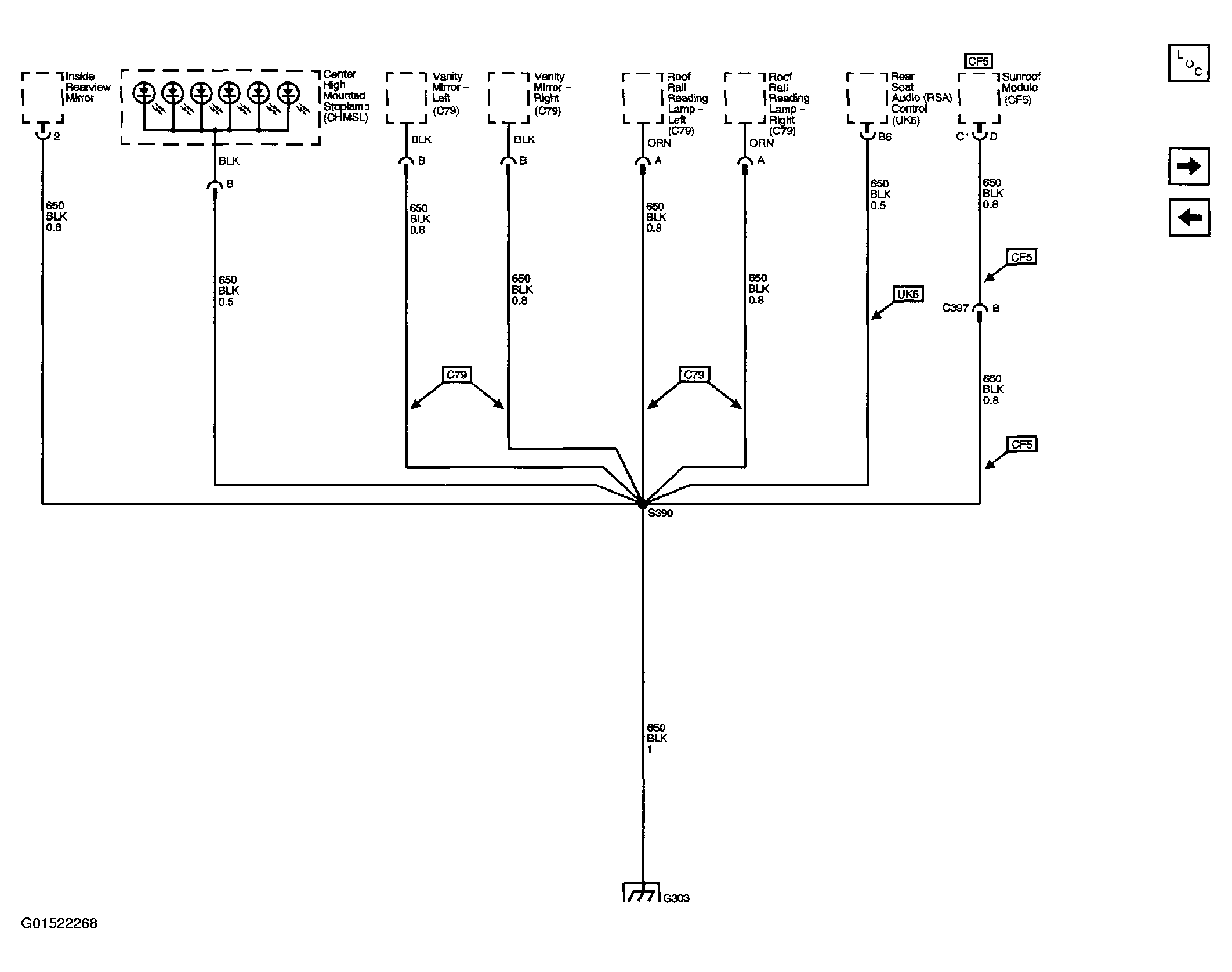

Fig 24: Ground Distribution Schematic (Ground G303 - Pontiac)
Courtesy of GENERAL MOTORS CORP.

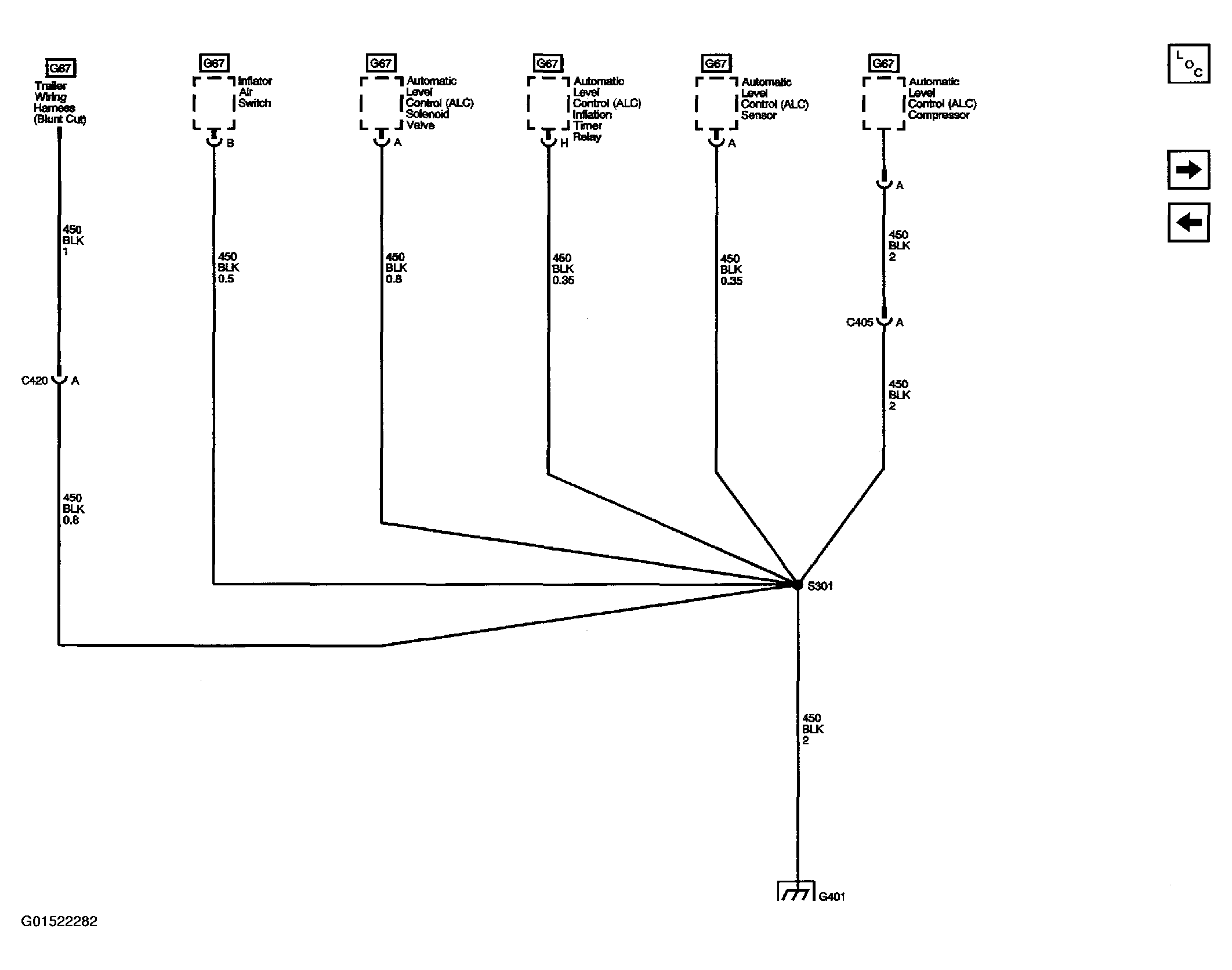

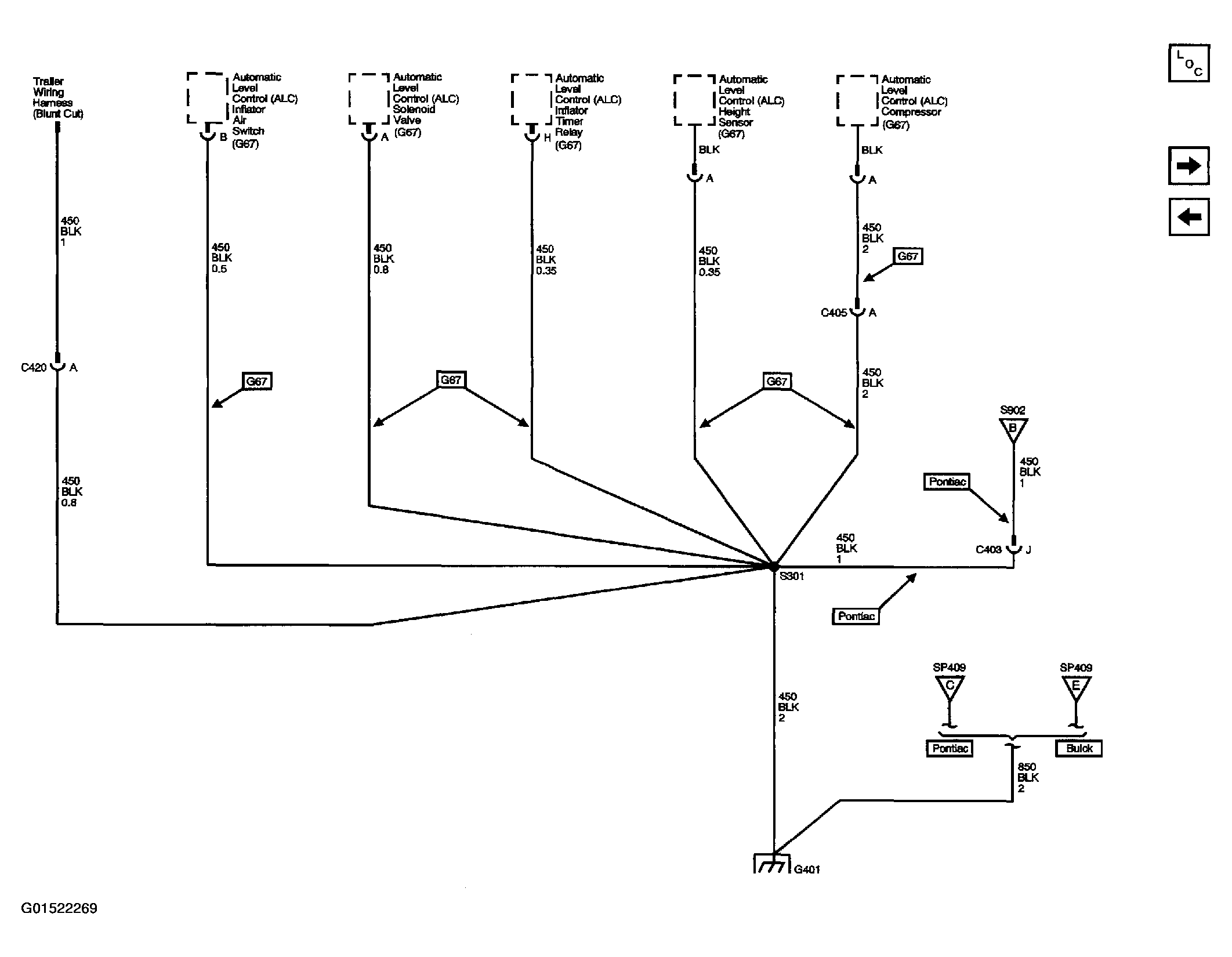

Fig 25: Ground Distribution Schematic (Ground G401 - Pontiac) (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

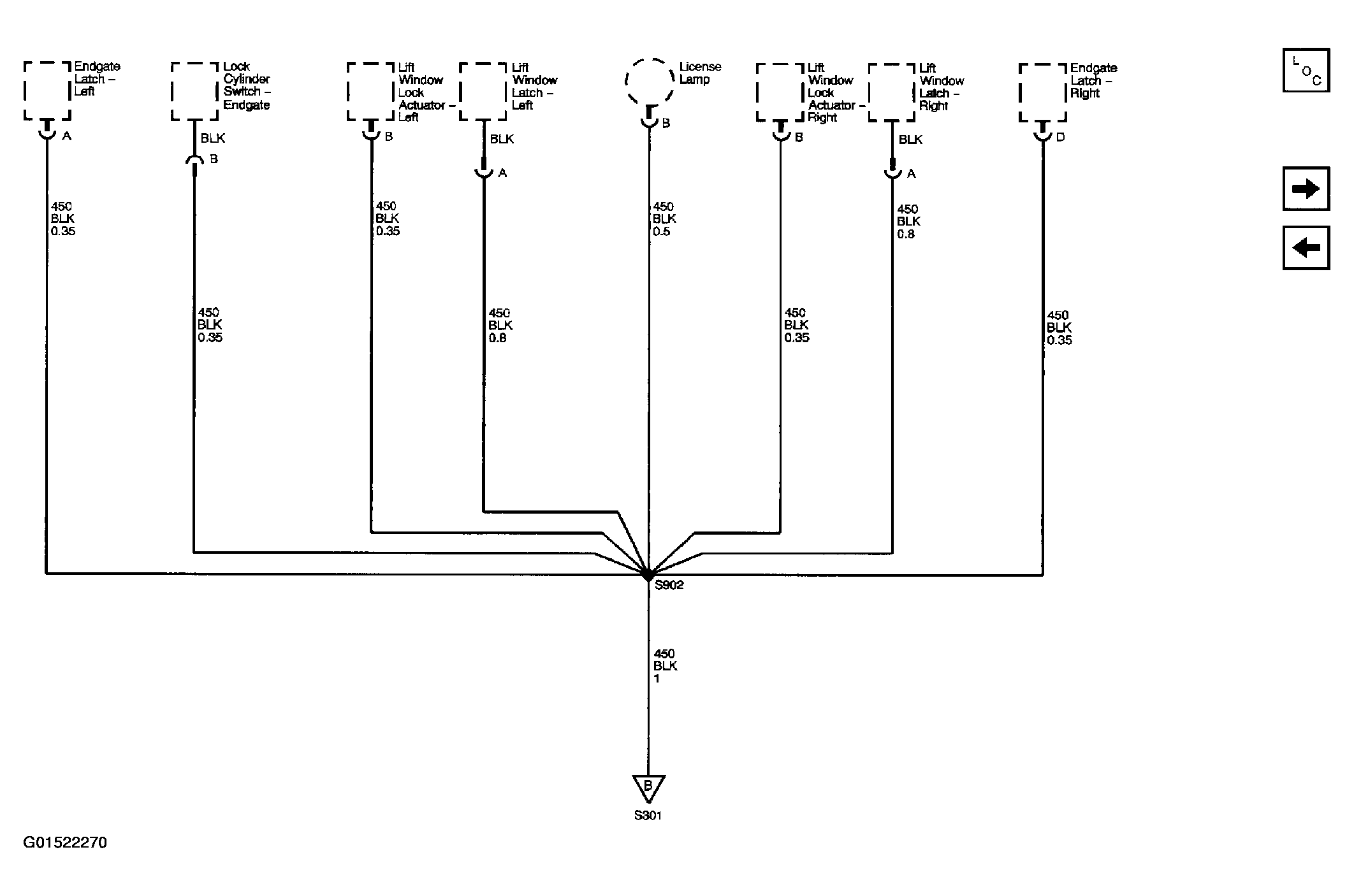

Fig 26: Ground Distribution Schematic (Ground G401 - Pontiac) (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

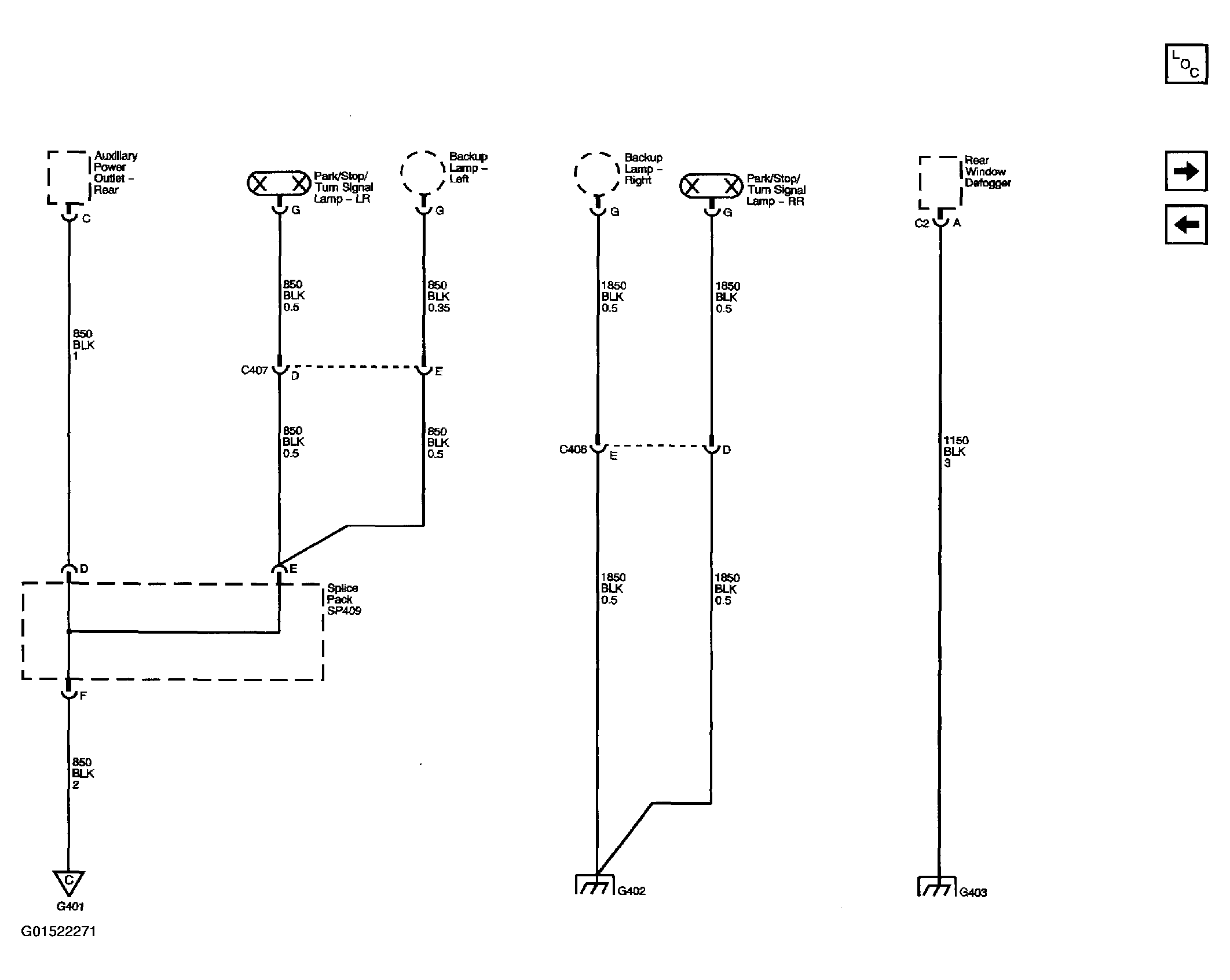

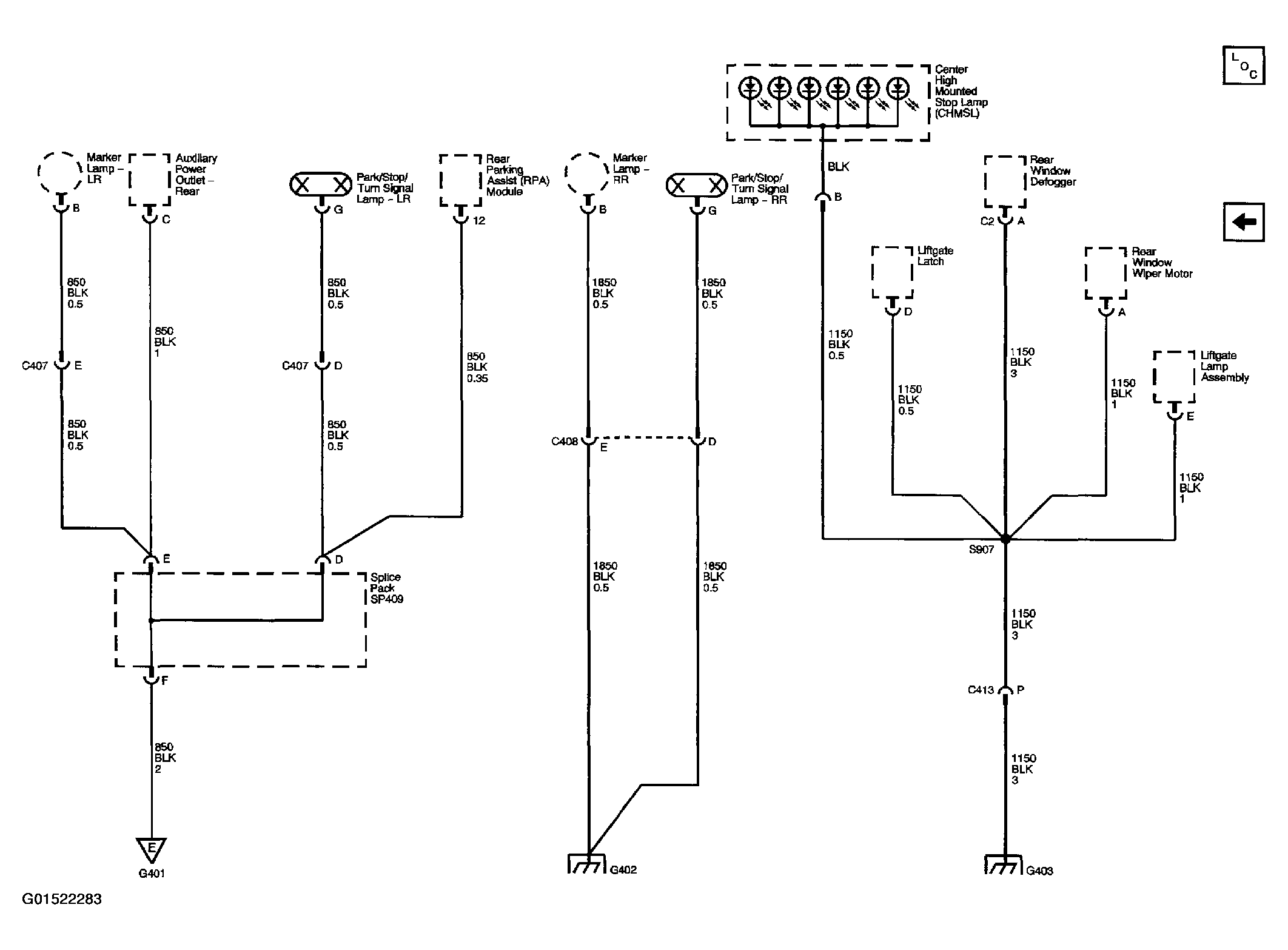

Fig 27: Ground Distribution Schematic (Ground G401, G402 & G403 - Pontiac)
Courtesy of GENERAL MOTORS CORP.

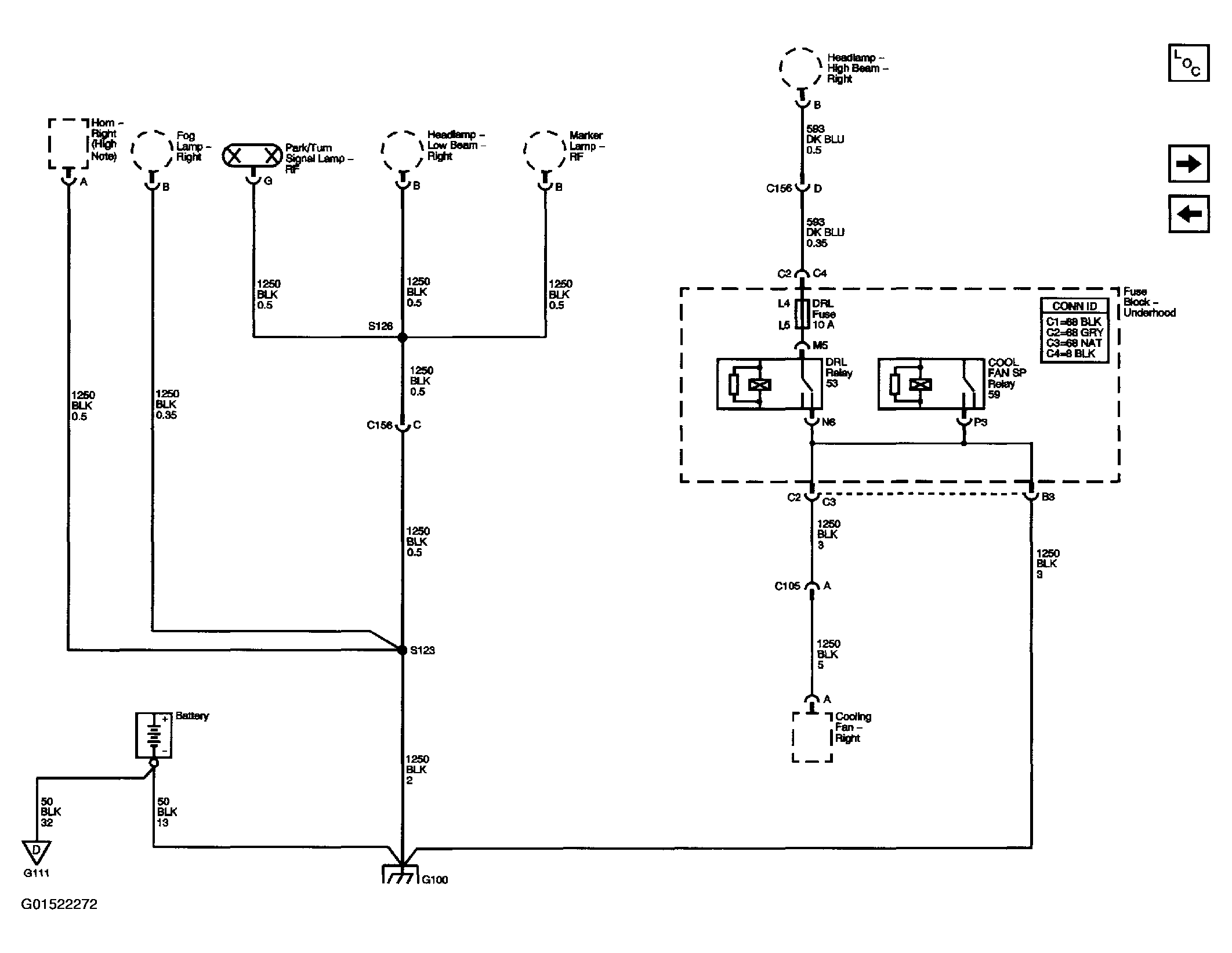

Fig 28: Ground Distribution Schematic (Ground G100 - Buick)
Courtesy of GENERAL MOTORS CORP.
Fig 29: Ground Distribution Schematic (Ground G101 - Buick)
Courtesy of GENERAL MOTORS CORP.
Fig 30: Ground Distribution Schematic (Ground G111 - Buick)
Courtesy of GENERAL MOTORS CORP.
Fig 31: Ground Distribution Schematic (Ground G117 - Buick)
Courtesy of GENERAL MOTORS CORP.
Fig 32: Ground Distribution Schematic (Ground G200 - Buick)
Courtesy of GENERAL MOTORS CORP.
Fig 33: Ground Distribution Schematic (Ground G201 - Buick)
Courtesy of GENERAL MOTORS CORP.
Fig 34: Ground Distribution Schematic (Ground G202 - Buick)
Courtesy of GENERAL MOTORS CORP.

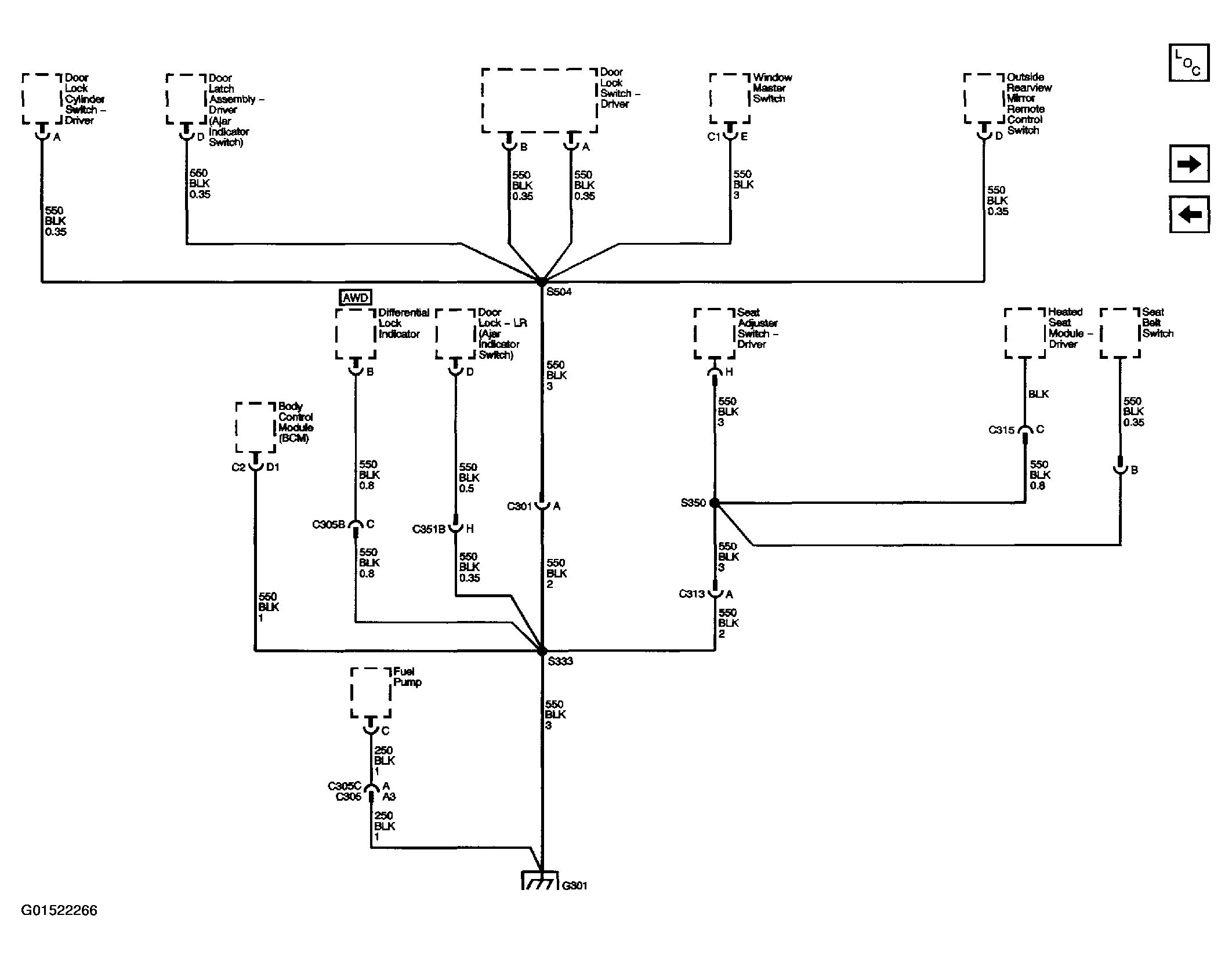

Fig 35: Ground Distribution Schematic (Ground G301 - Buick)
Courtesy of GENERAL MOTORS CORP.

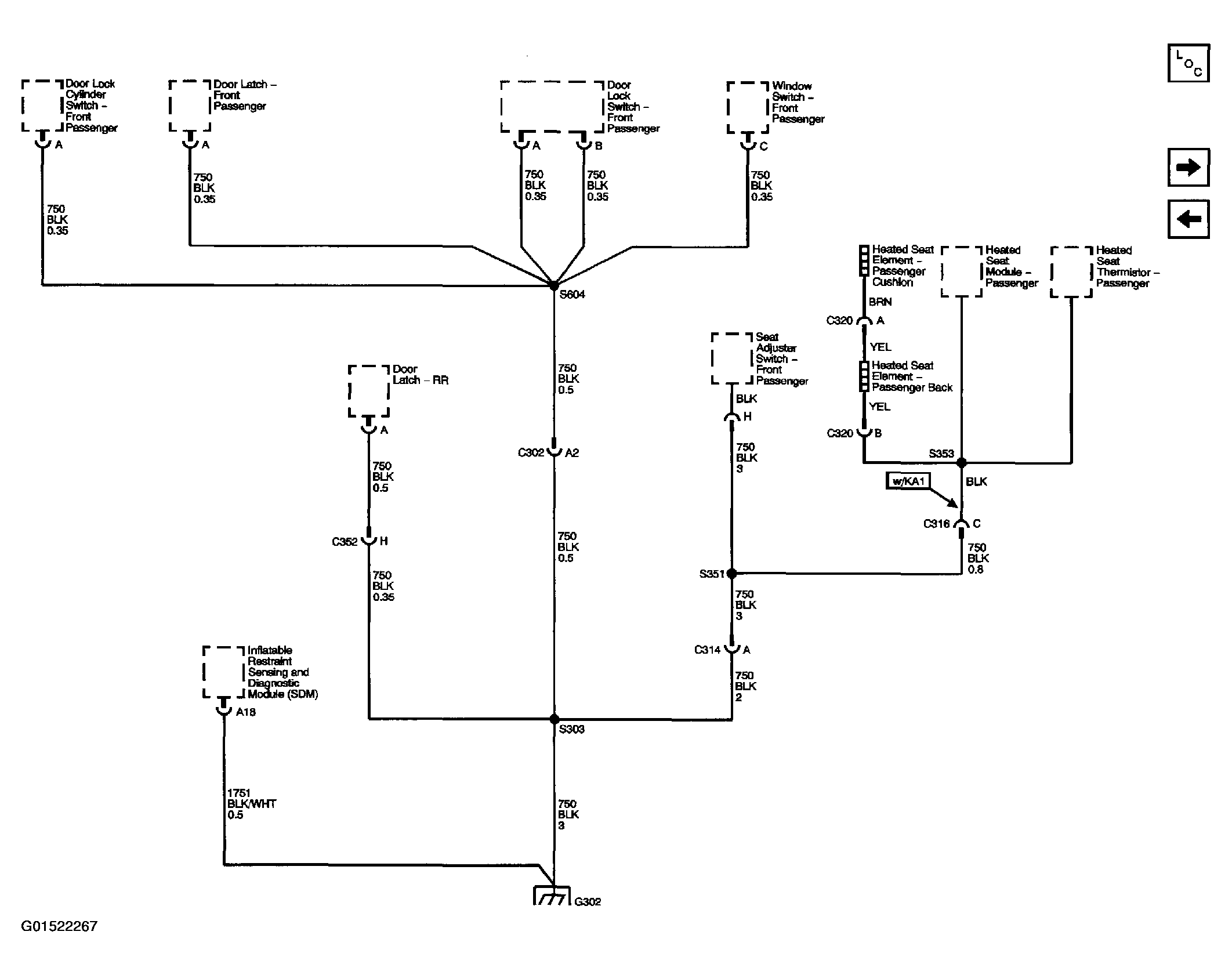

Fig 36: Ground Distribution Schematic (Ground G302 - Buick)
Courtesy of GENERAL MOTORS CORP.
Fig 37: Ground Distribution Schematic (Ground G303 - Buick)
Courtesy of GENERAL MOTORS CORP.
Fig 38: Ground Distribution Schematic (Ground G401 - Buick)
Courtesy of GENERAL MOTORS CORP.
Fig 39: Ground Distribution Schematic (Ground G401, G402 & G403 - Buick)
Courtesy of GENERAL MOTORS CORP.

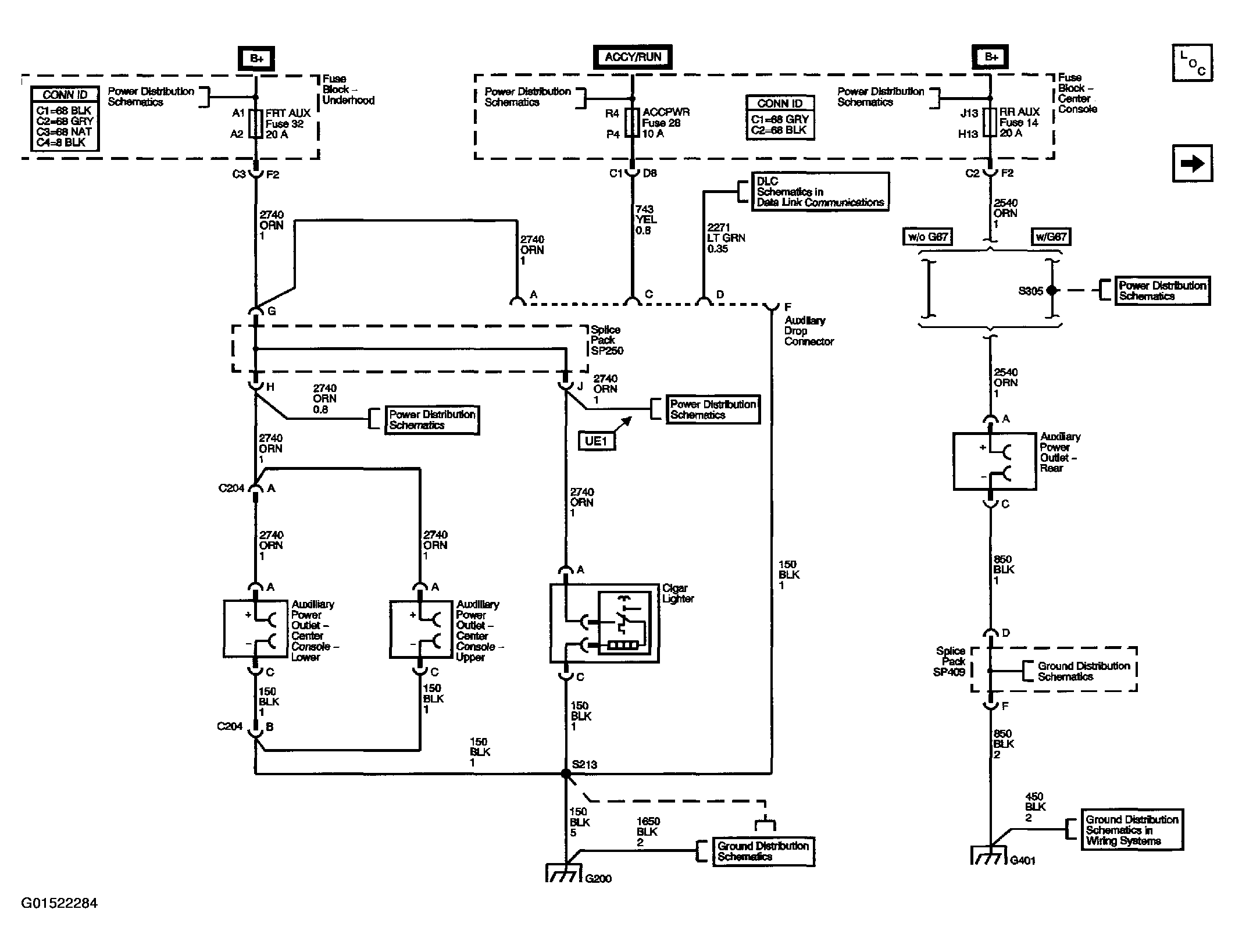

Fig 40: Cigar Lighter/Auxiliary Outlets Schematic (Pontiac)
Courtesy of GENERAL MOTORS CORP.

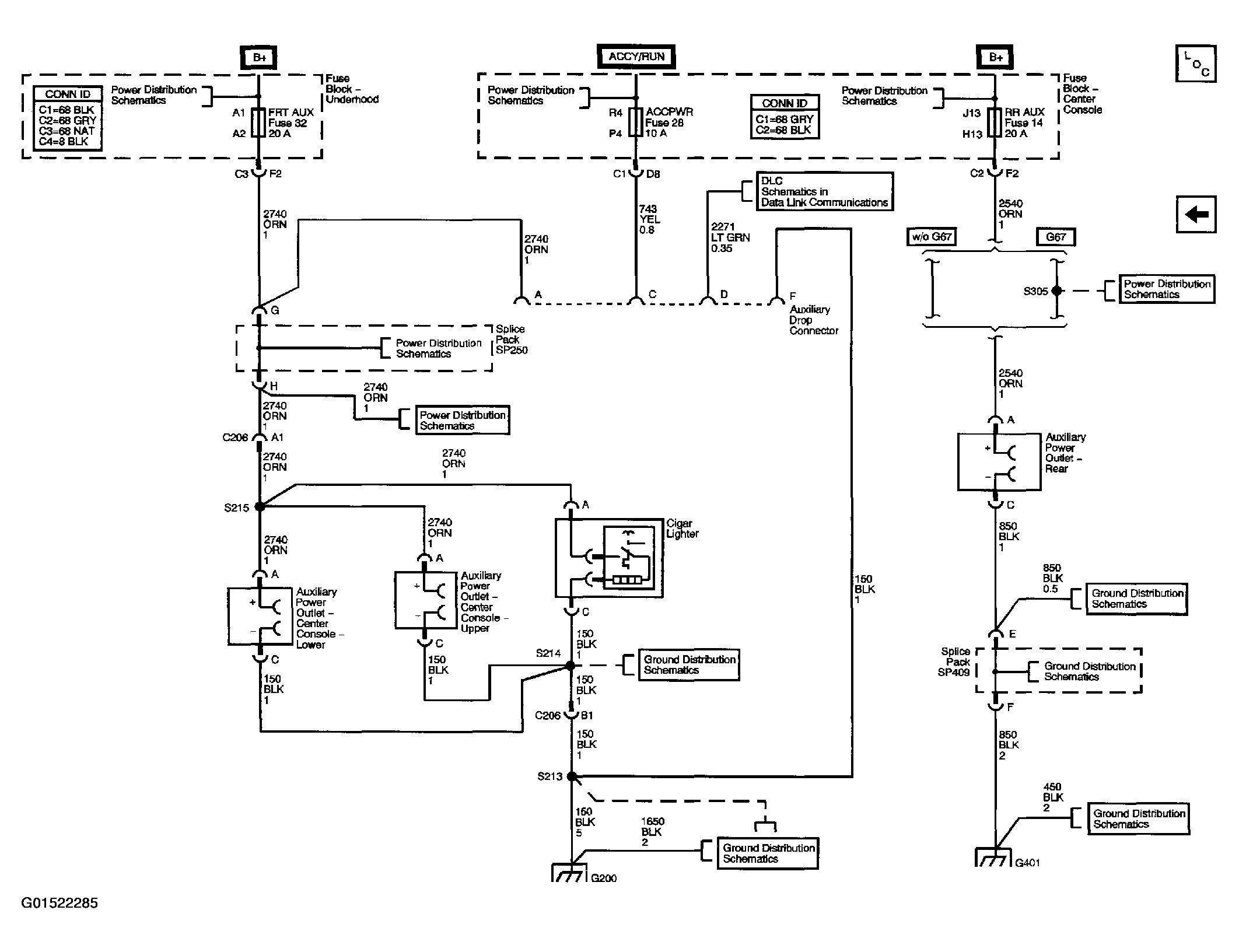

Fig 41: Cigar Lighter/Auxiliary Outlets Schematic (Buick)
Courtesy of GENERAL MOTORS CORP.

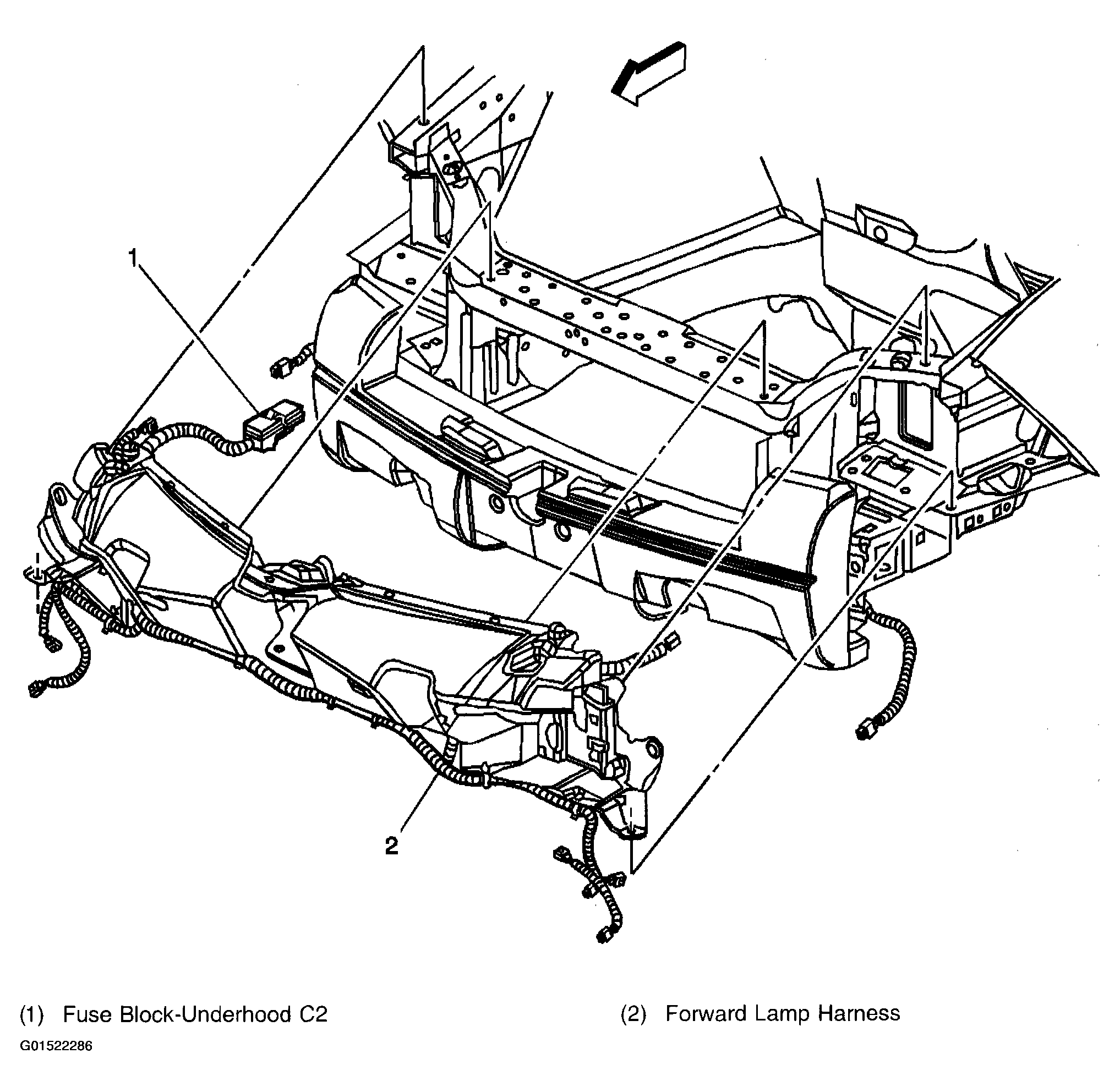

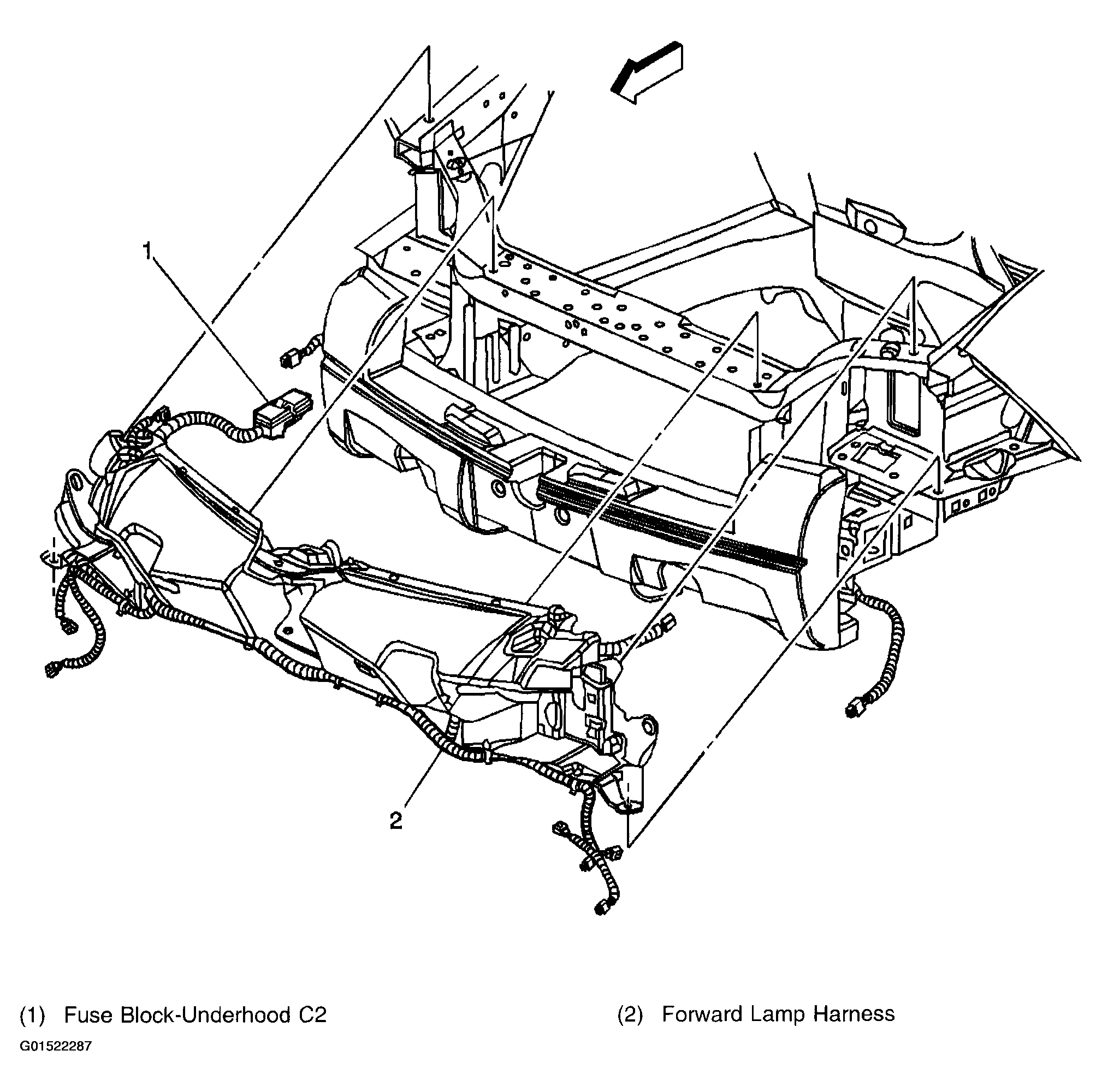

Fig 42: Identifying Forward Lamp Harness - Pontiac
Courtesy of GENERAL MOTORS CORP.
Fig 43: Identifying Forward Lamp Harness - Buick
Courtesy of GENERAL MOTORS CORP.

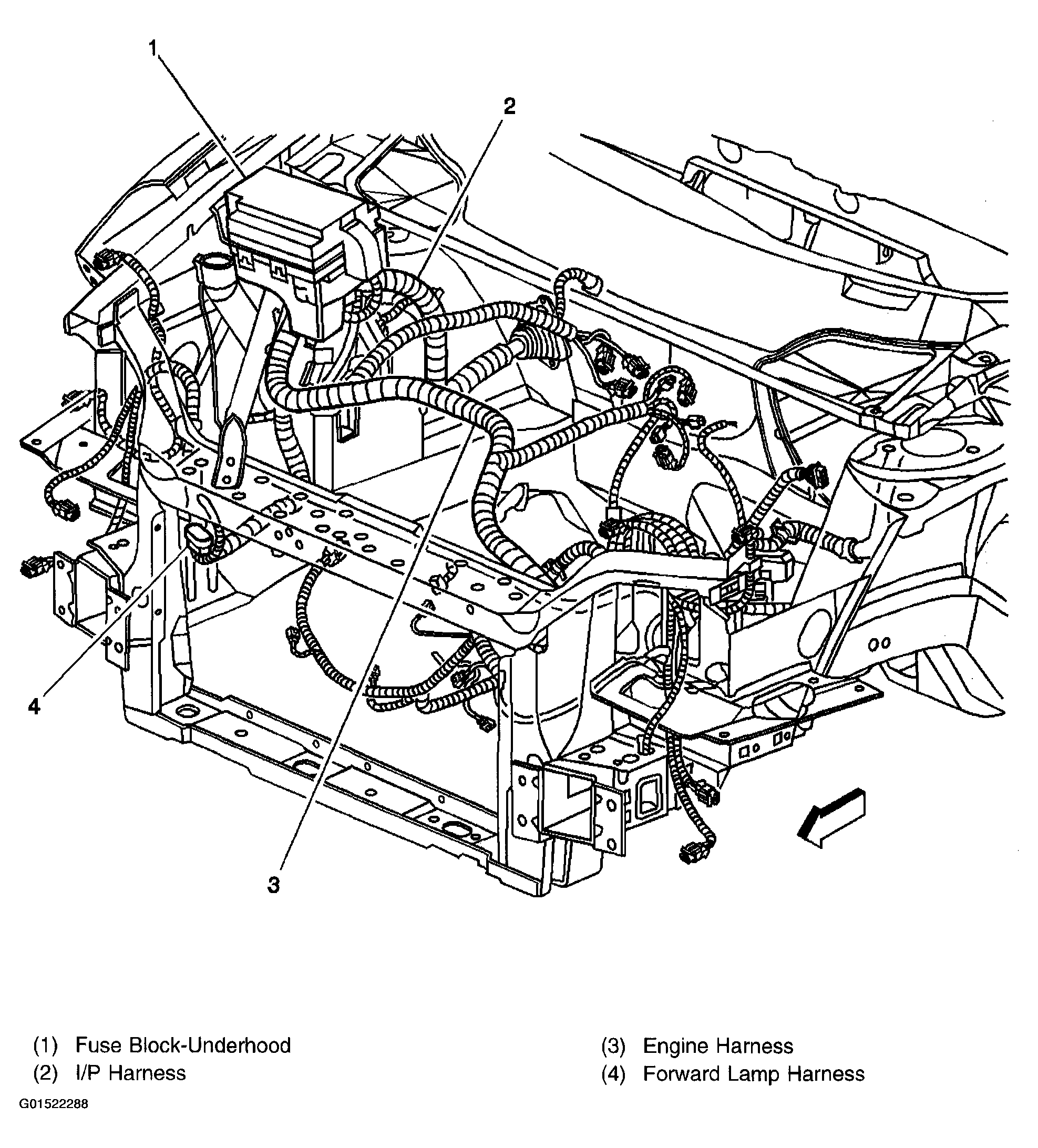

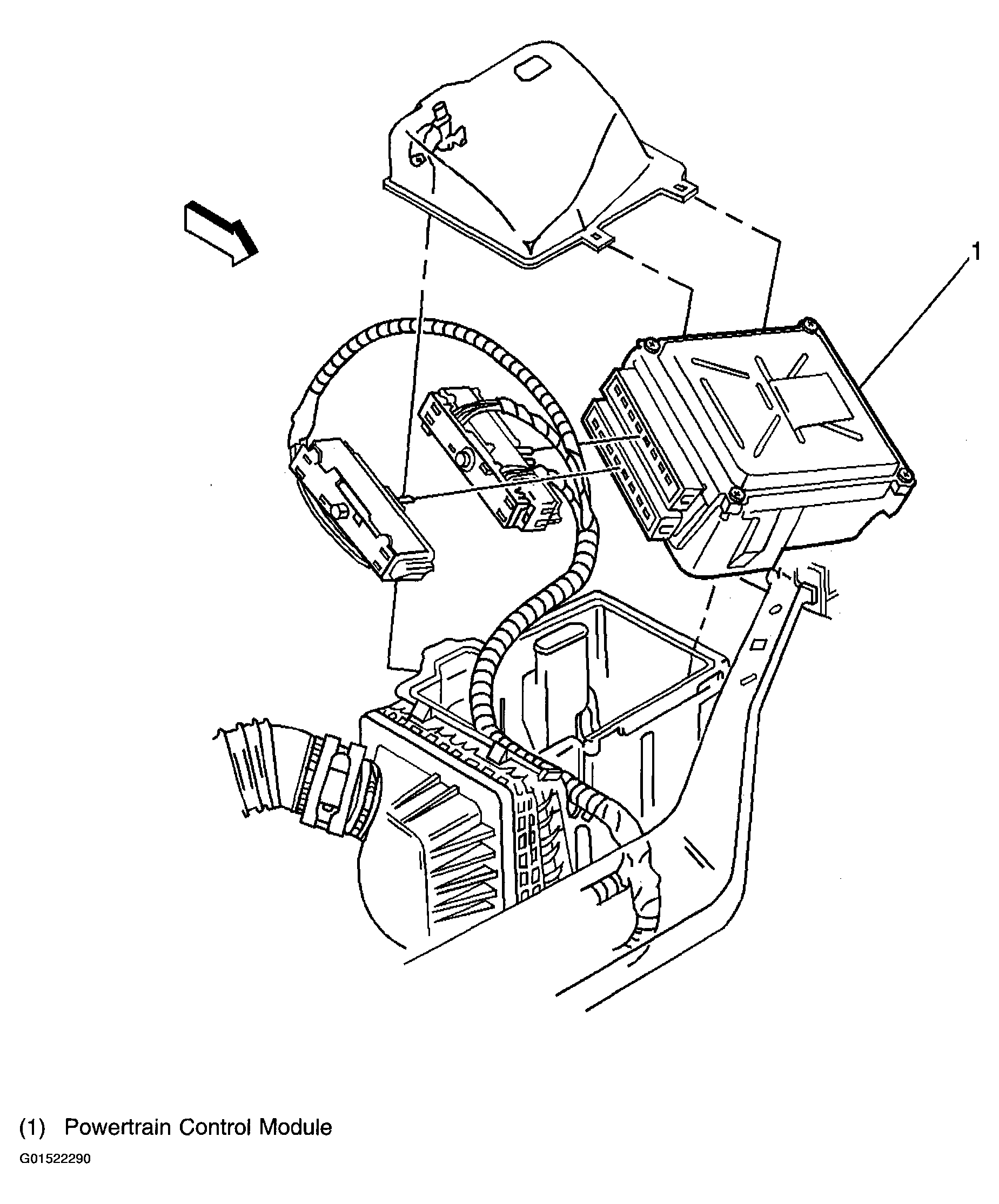

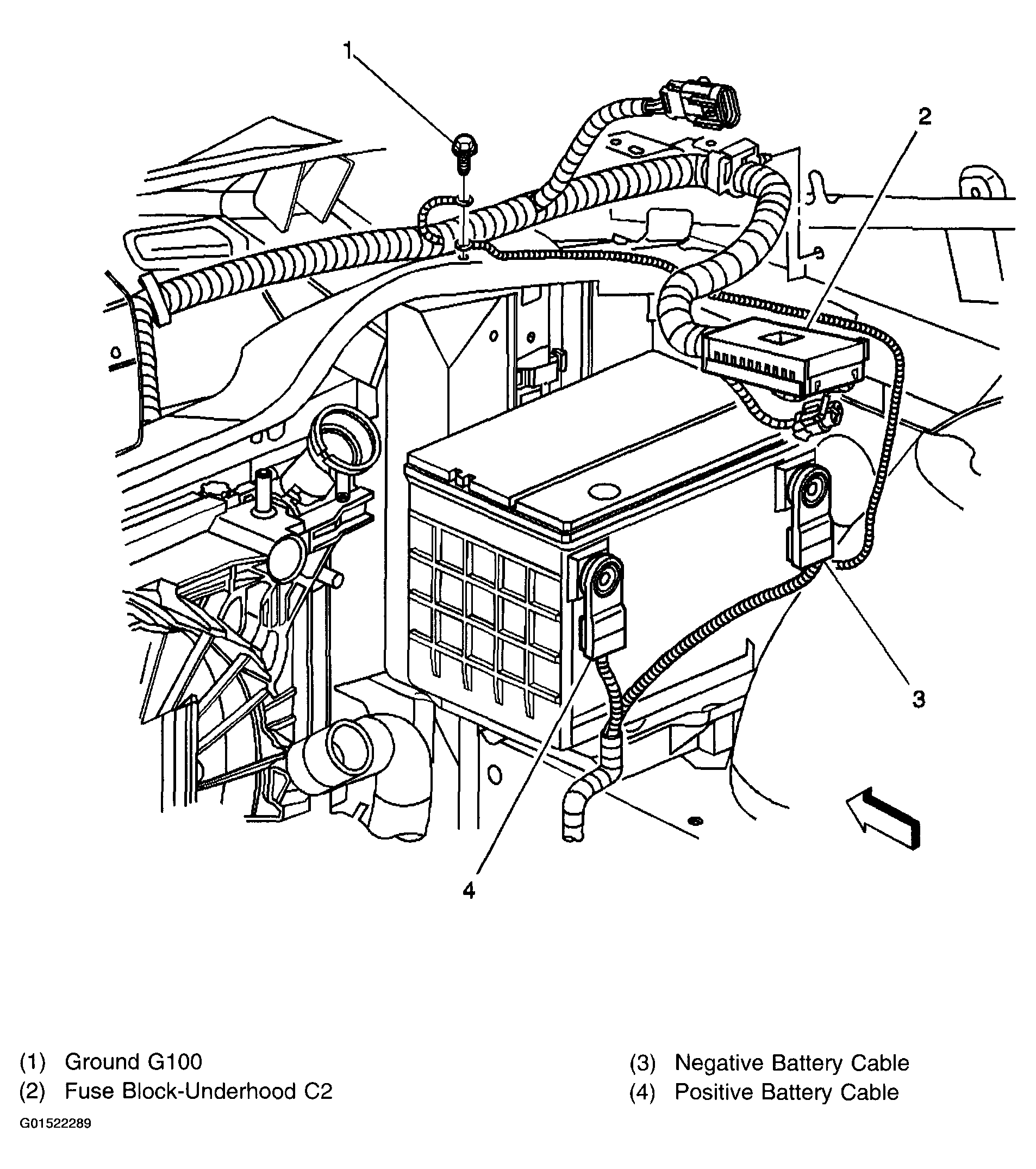

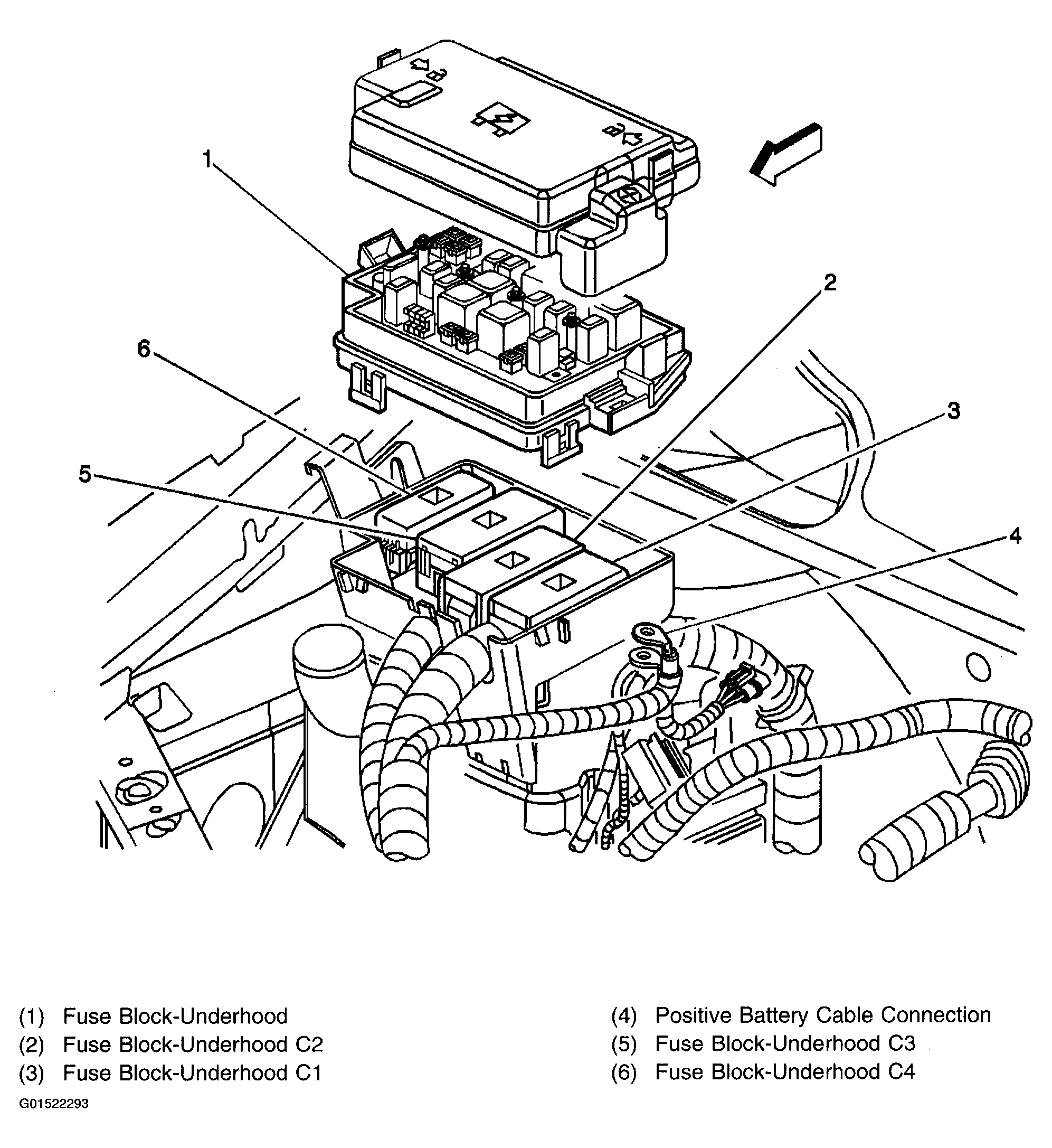

Fig 44: Identifying Harness Routing Views (Engine Compartment - LF)
Courtesy of GENERAL MOTORS CORP.
Fig 45: Harness Routing Views (Engine Compartment - RF)
Courtesy of GENERAL MOTORS CORP.

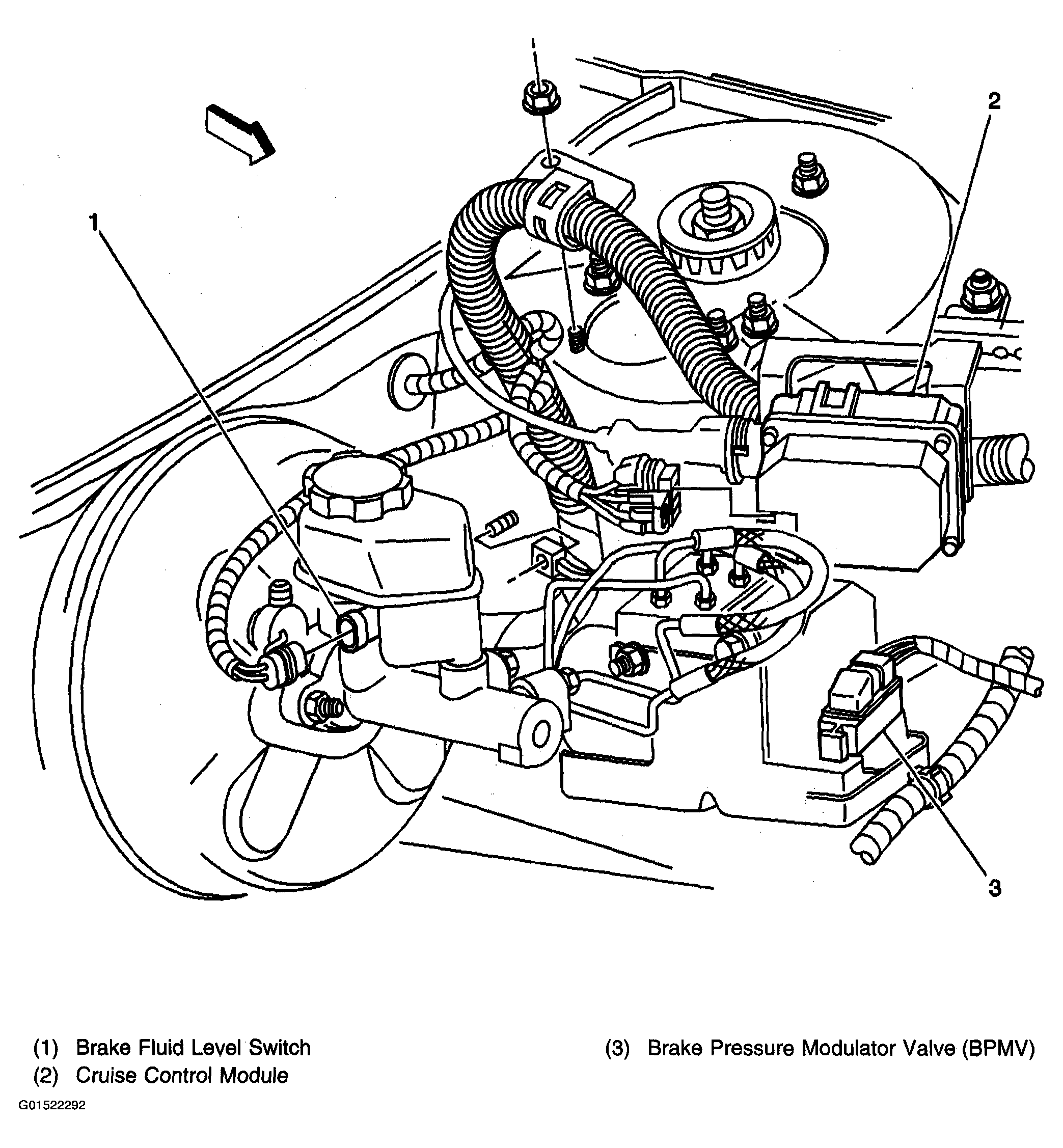

Fig 46: Identifying Harness Routing Views (LH Side of Engine Compartment)
Courtesy of GENERAL MOTORS CORP.

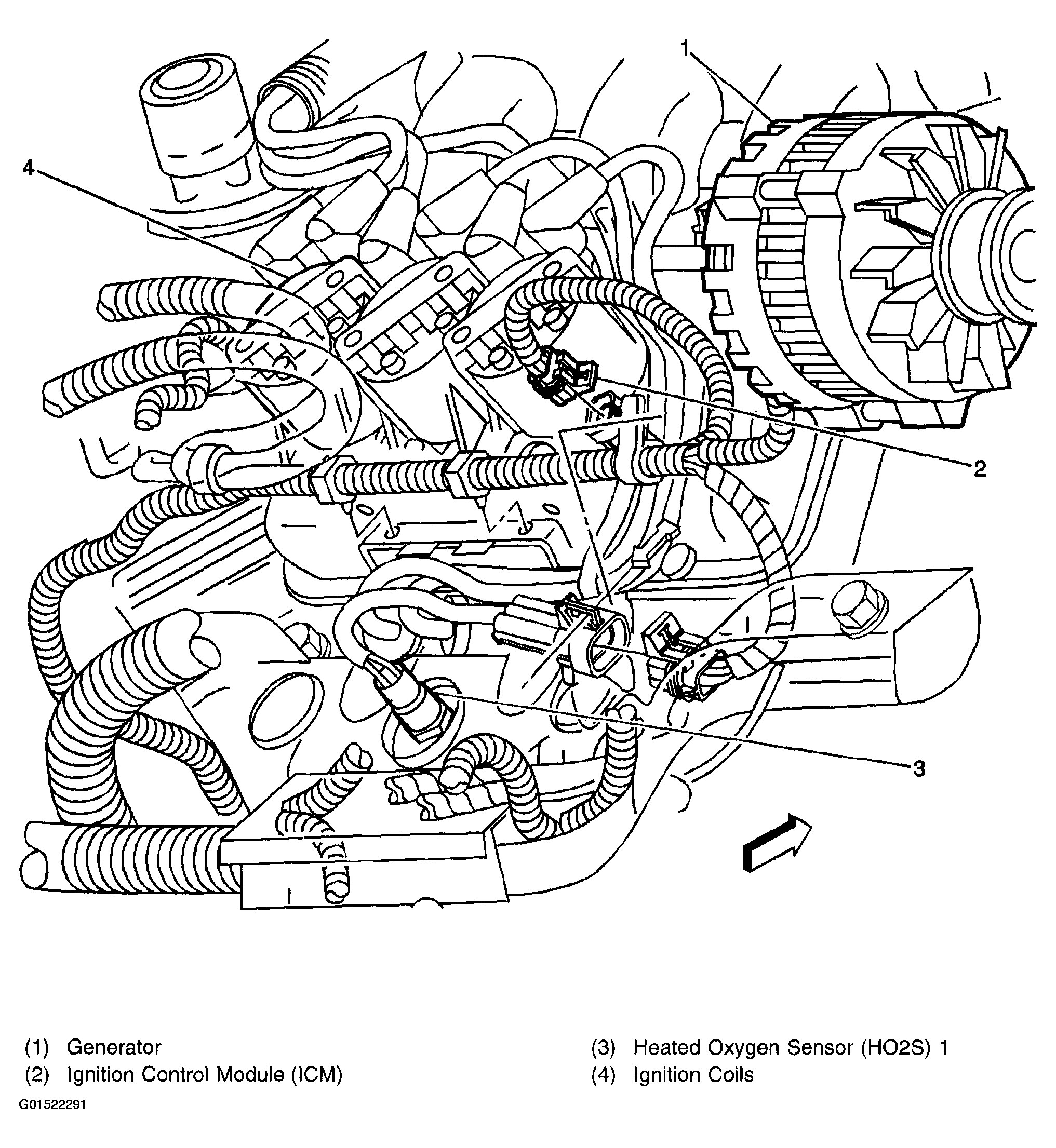

Fig 47: Identifying Harness Routing Views (LH Side of Engine)
Courtesy of GENERAL MOTORS CORP.
Fig 48: Harness Routing Views (LR Engine Compartment)
Courtesy of GENERAL MOTORS CORP.
Fig 49: Identifying Harness Routing Views (Engine Compartment - RR)
Courtesy of GENERAL MOTORS CORP.

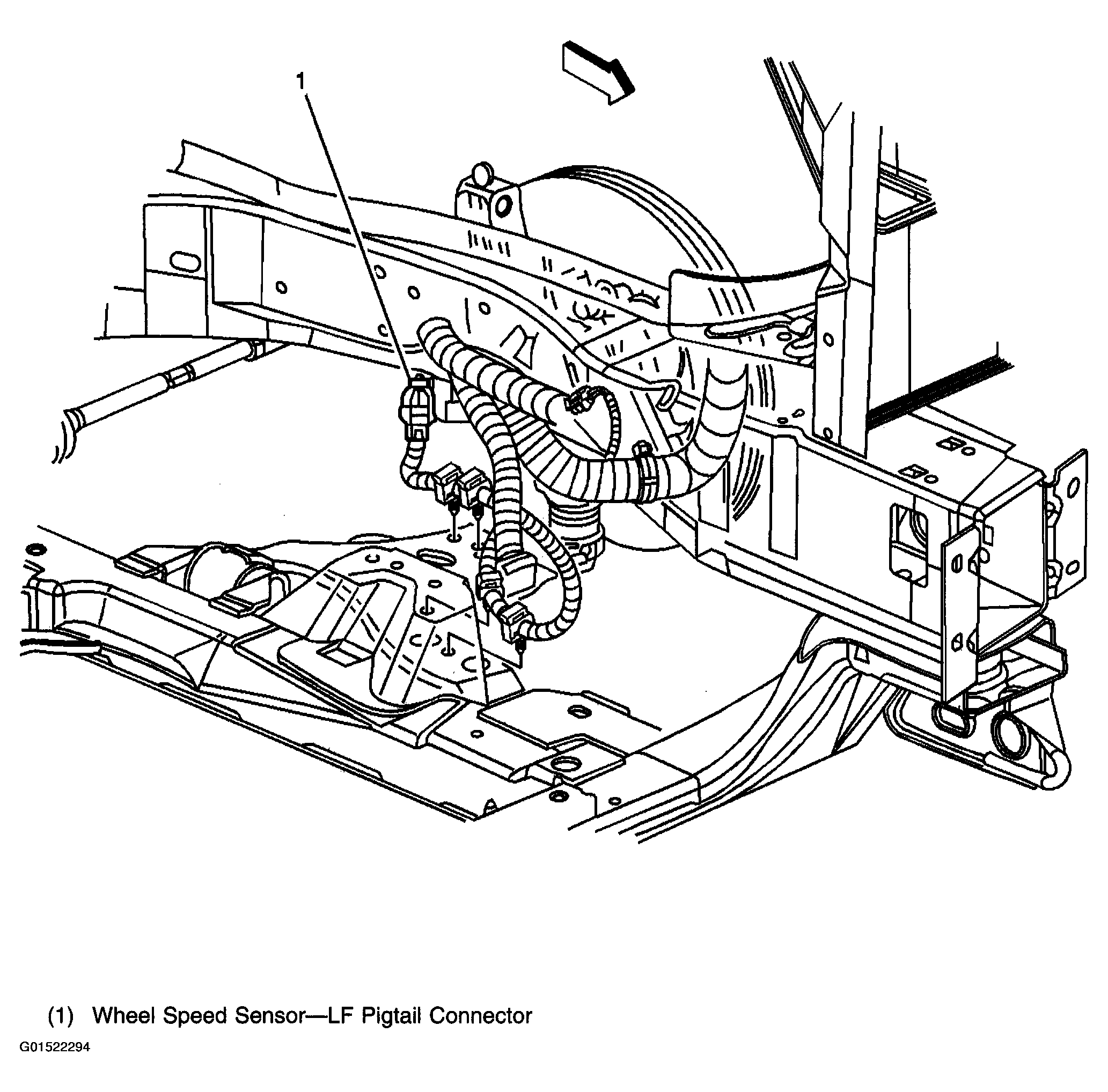

Fig 50: Identifying Harness Routing Views (Wheel - LF)
Courtesy of GENERAL MOTORS CORP.

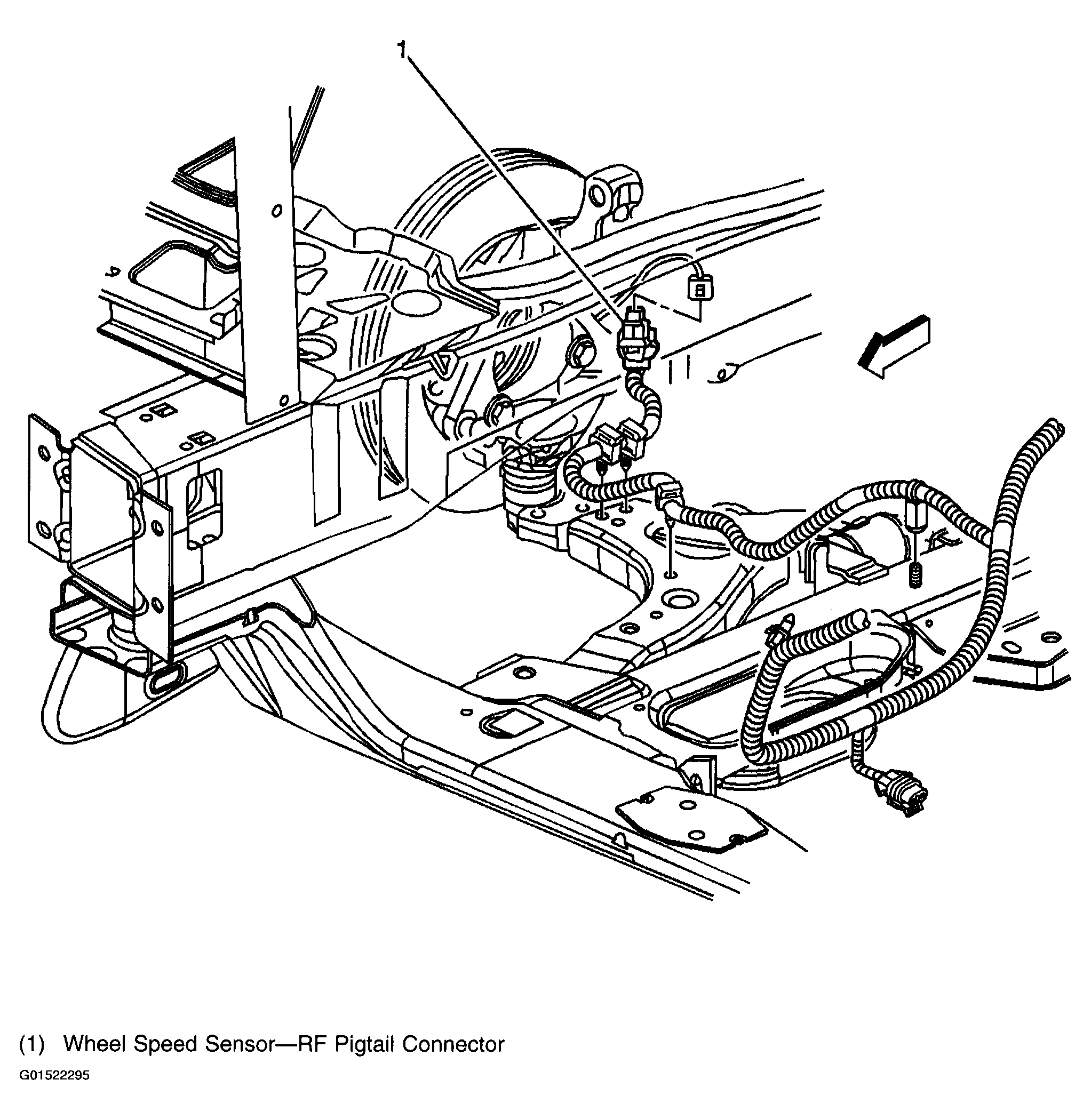

Fig 51: Identifying Harness Routing Views (Wheel - RF)
Courtesy of GENERAL MOTORS CORP.
Fig 52: Identifying Harness Routing Views (Body Harness)
Courtesy of GENERAL MOTORS CORP.

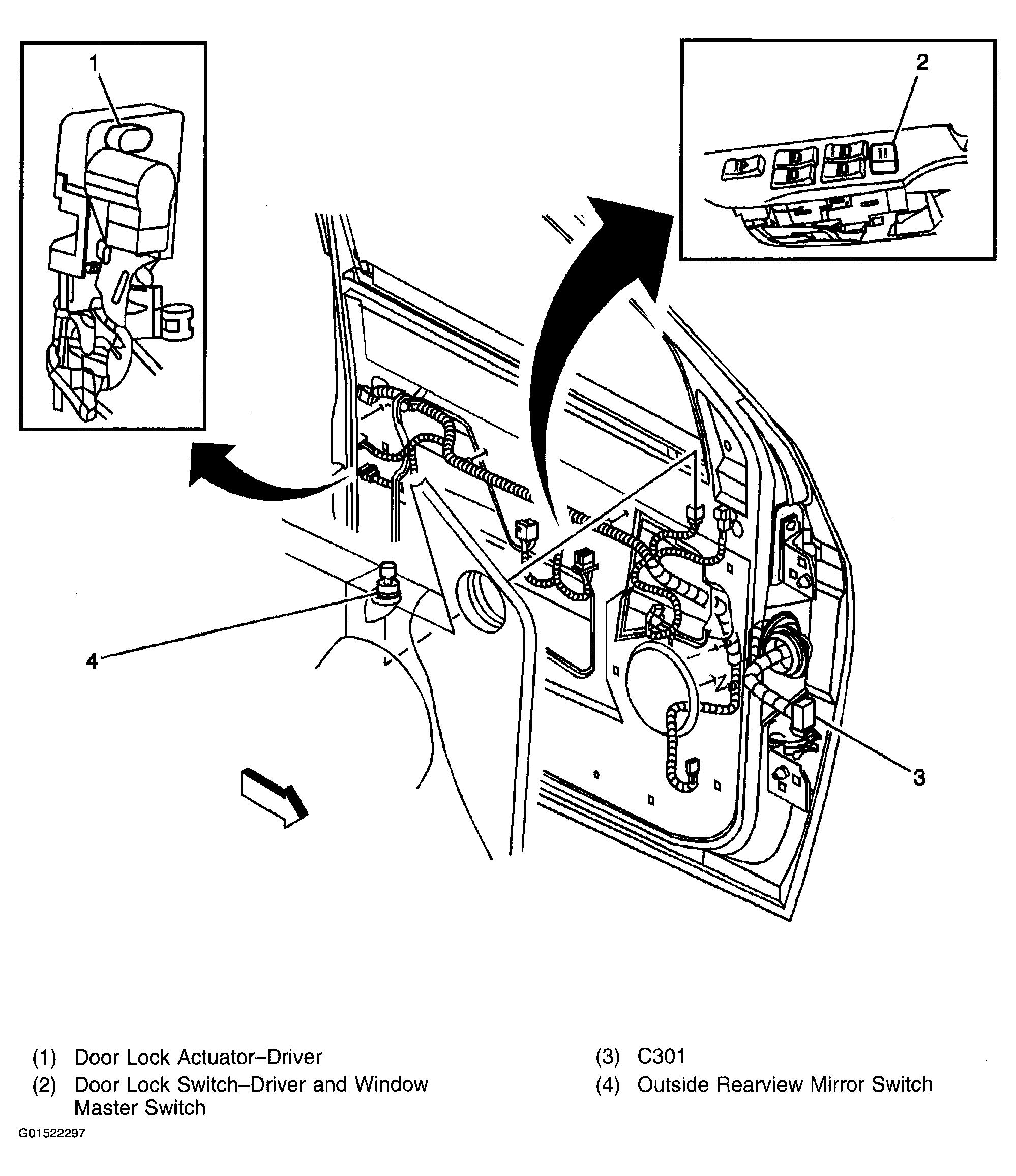

Fig 53: Identifying Harness Routing Views (Door - Driver)
Courtesy of GENERAL MOTORS CORP.

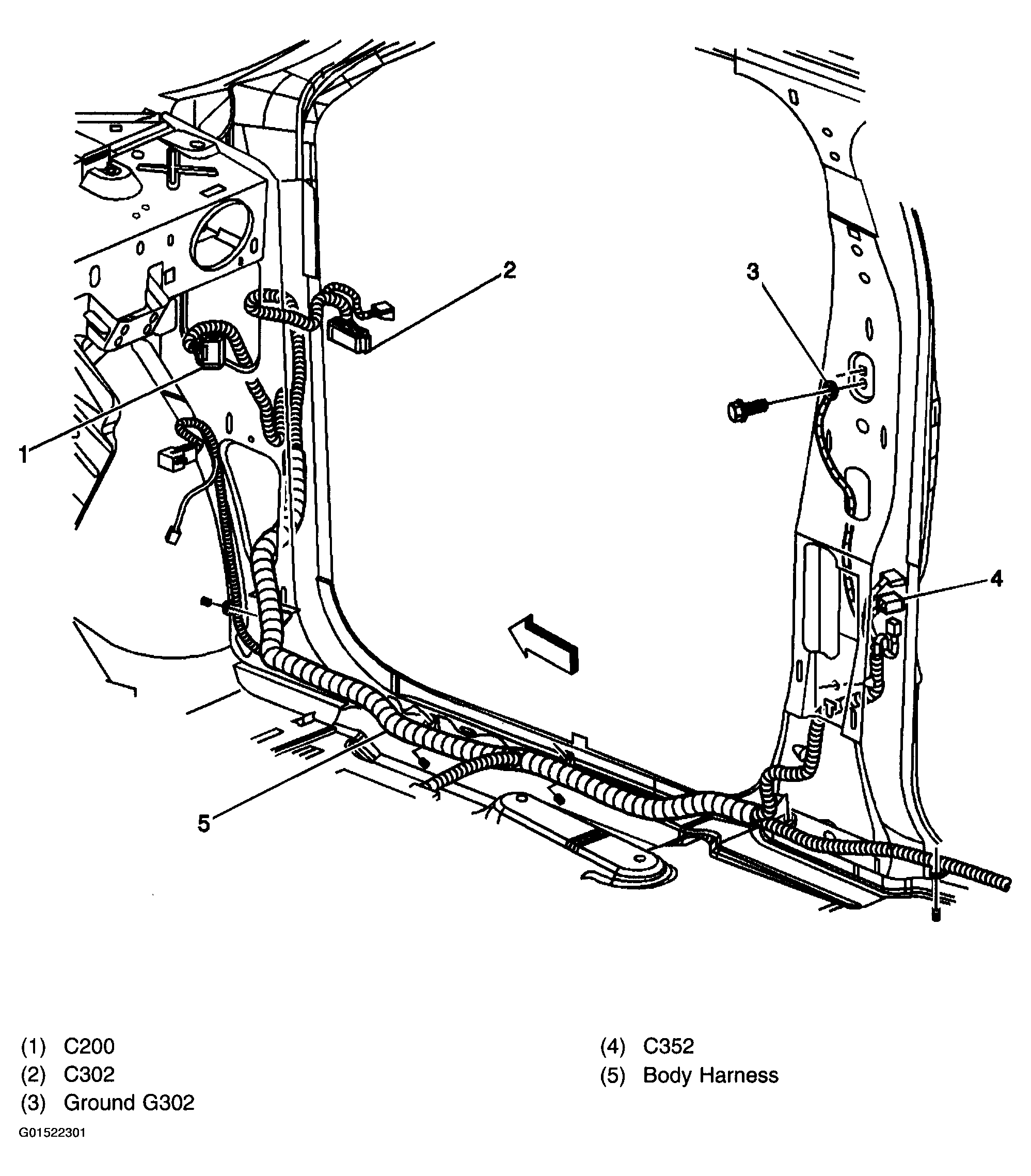

Fig 54: Identifying Harness Routing Views (Passenger Compartment - LF)
Courtesy of GENERAL MOTORS CORP.

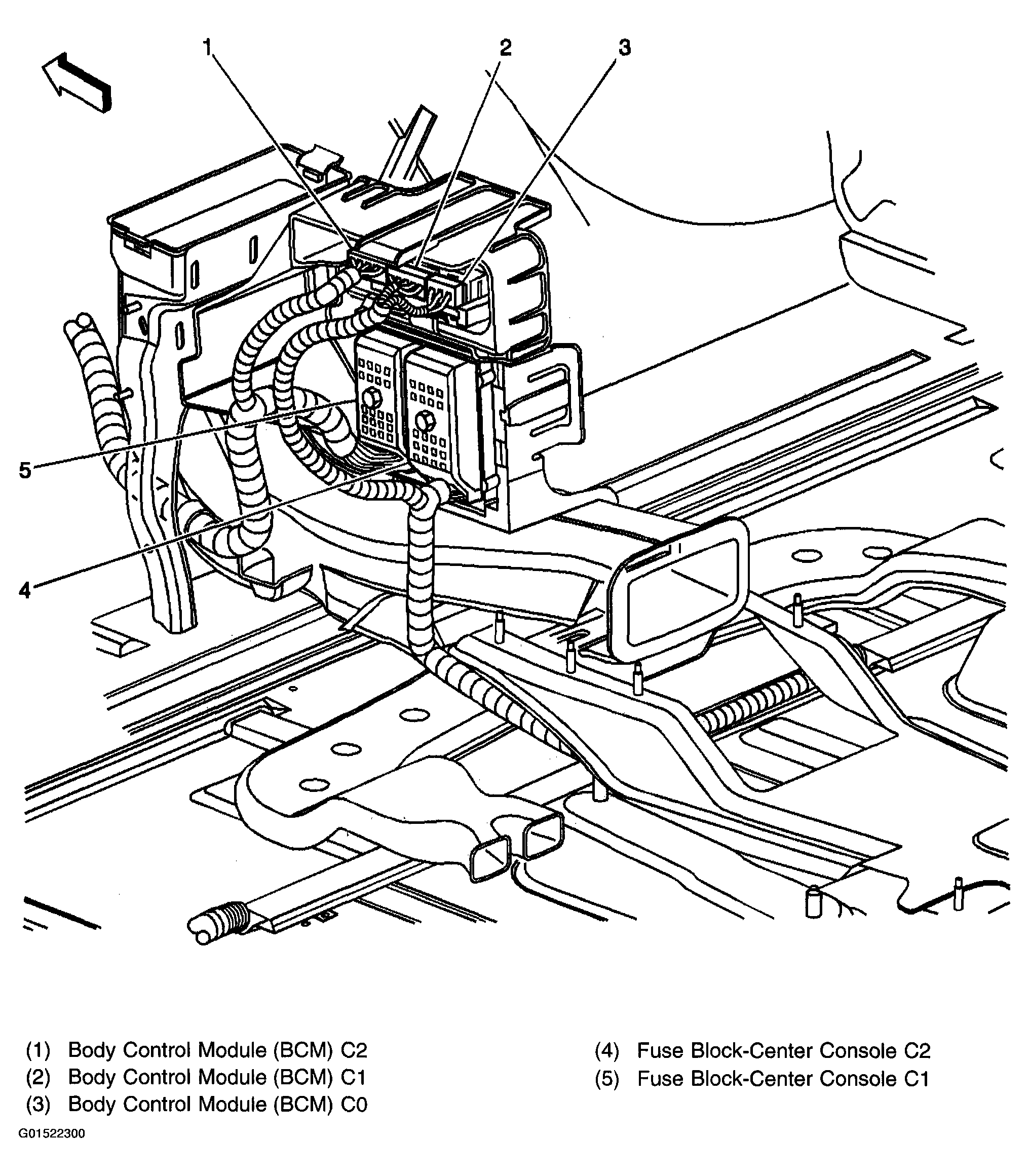

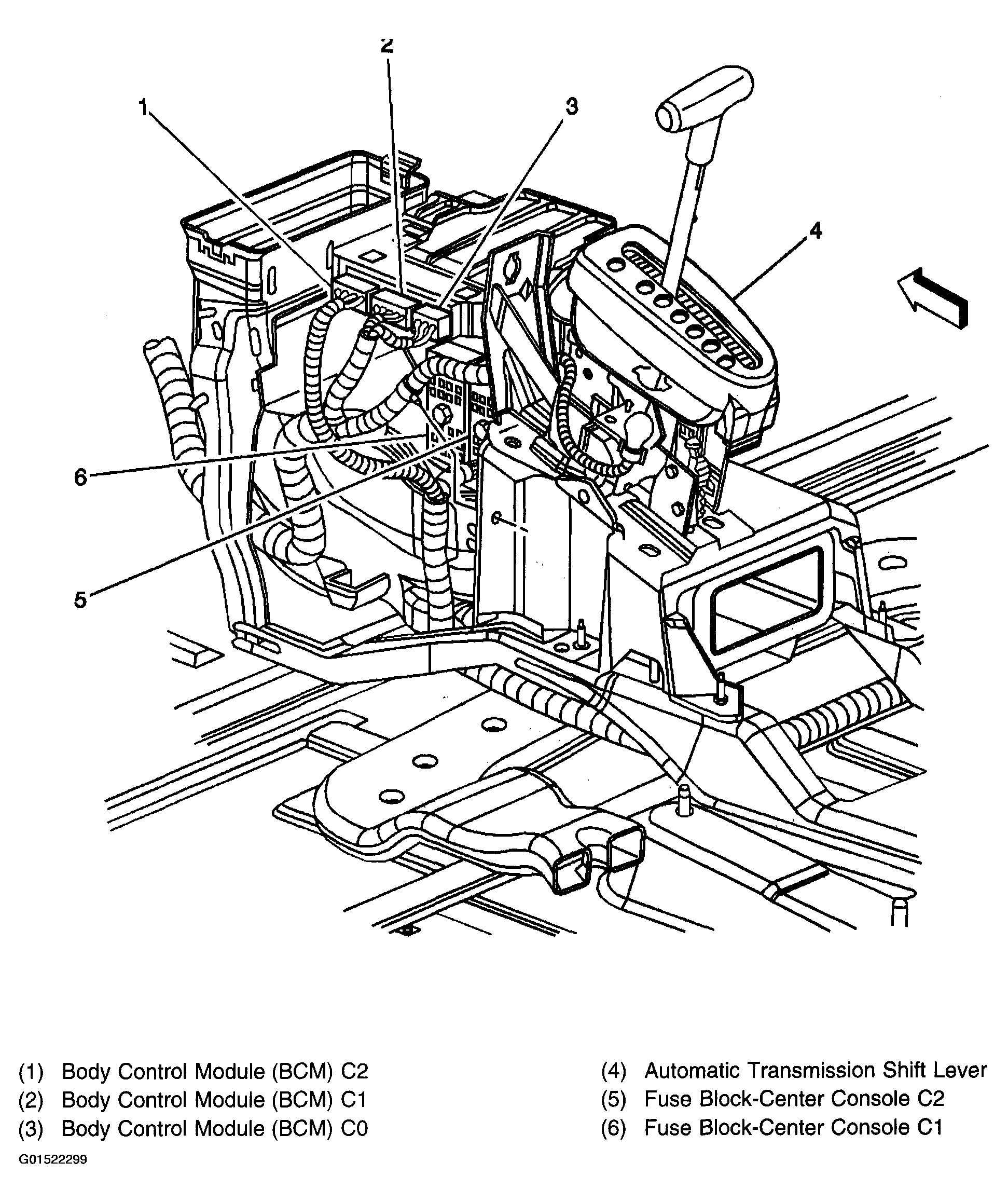

Fig 55: Identifying Harness Routing Views (Center Console - Pontiac)
Courtesy of GENERAL MOTORS CORP.
Fig 56: Identifying Harness Routing Views (Center Console - Buick)
Courtesy of GENERAL MOTORS CORP.
Fig 57: Identifying Harness Routing Views (Passenger Compartment - RF)
Courtesy of GENERAL MOTORS CORP.

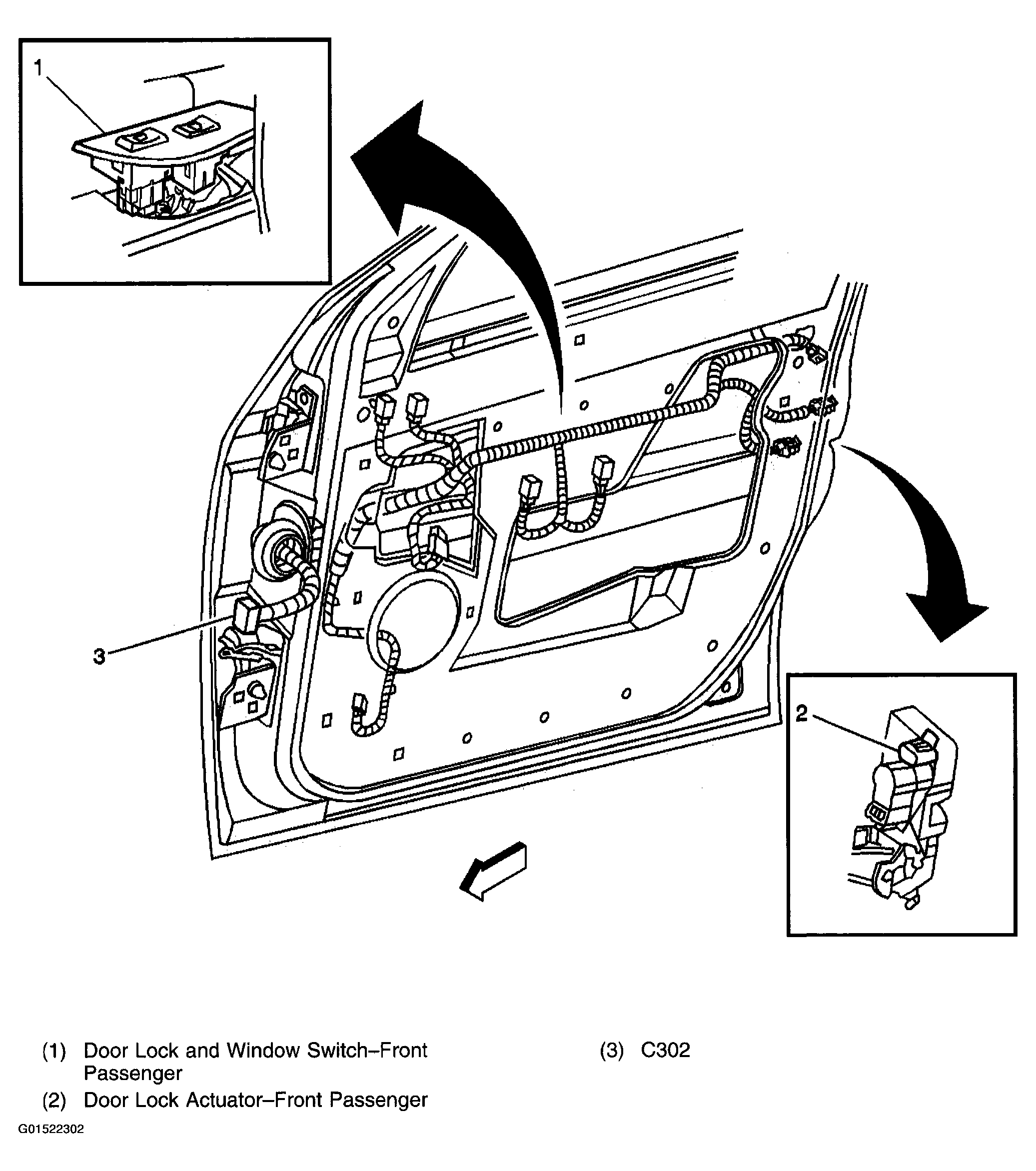

Fig 58: Identifying Harness Routing Views (Door - Front Passenger)
Courtesy of GENERAL MOTORS CORP.

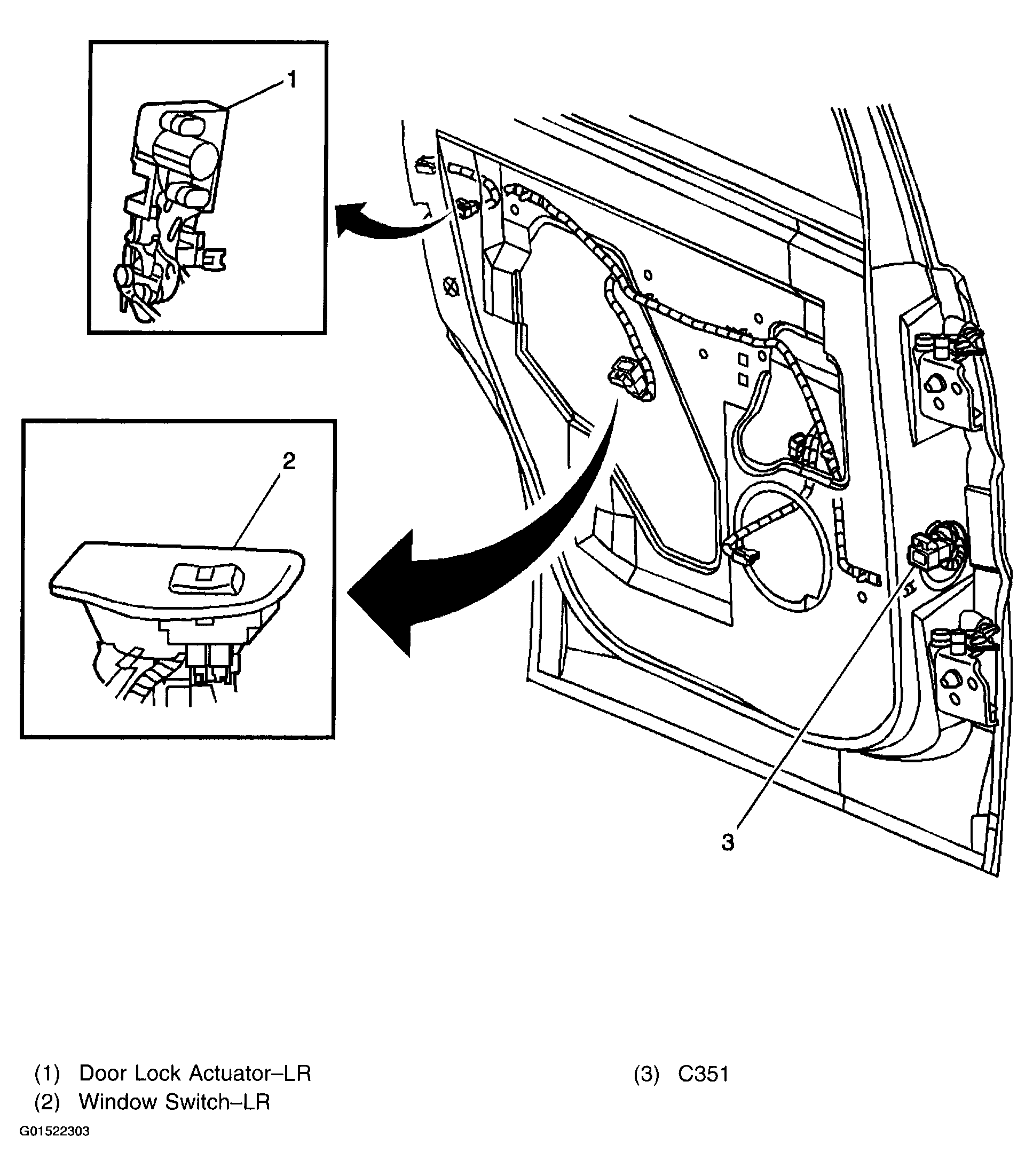

Fig 59: Identifying Harness Routing Views (Door - LR)
Courtesy of GENERAL MOTORS CORP.

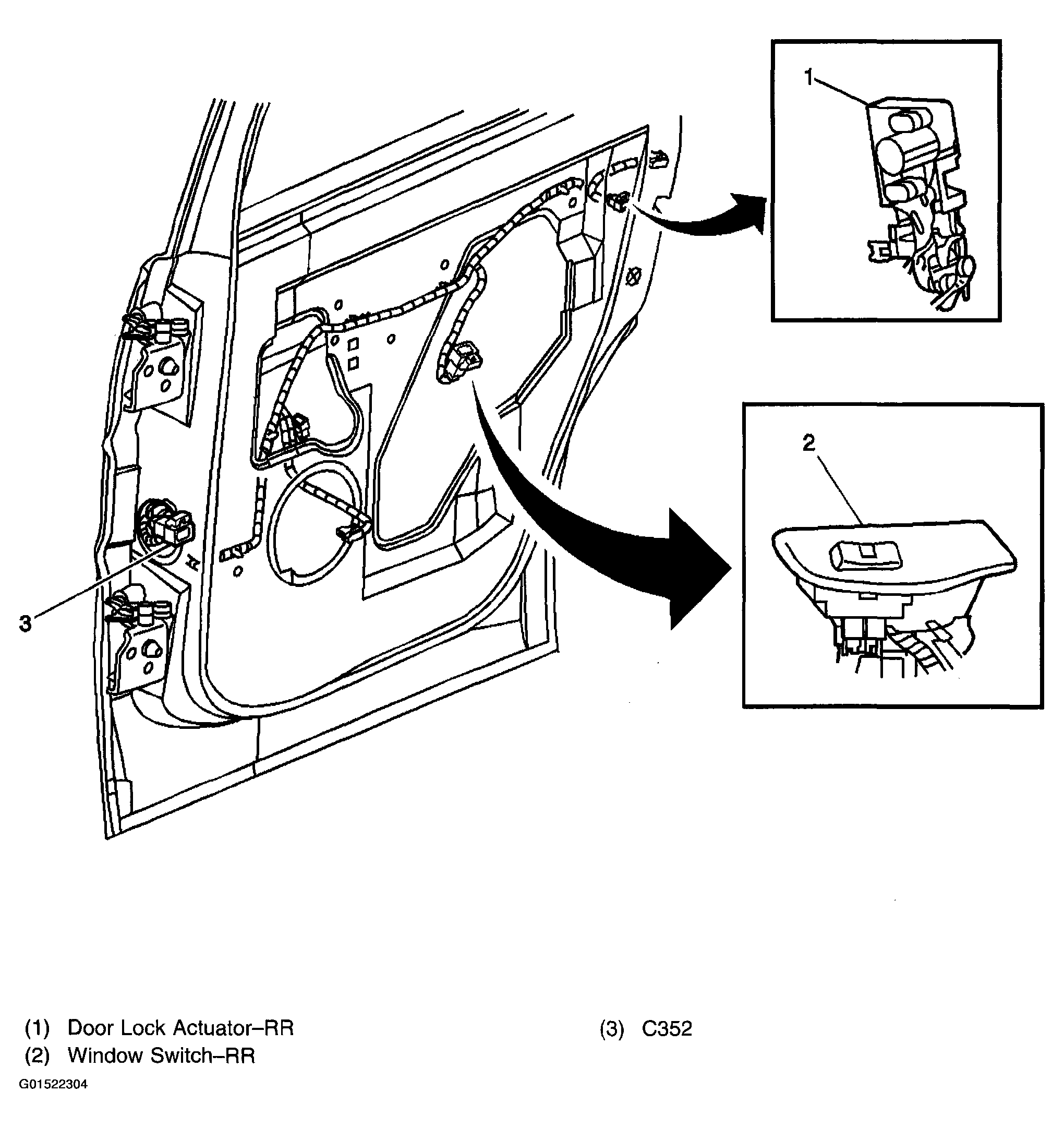

Fig 60: Identifying Harness Routing Views (Door - RR)
Courtesy of GENERAL MOTORS CORP.

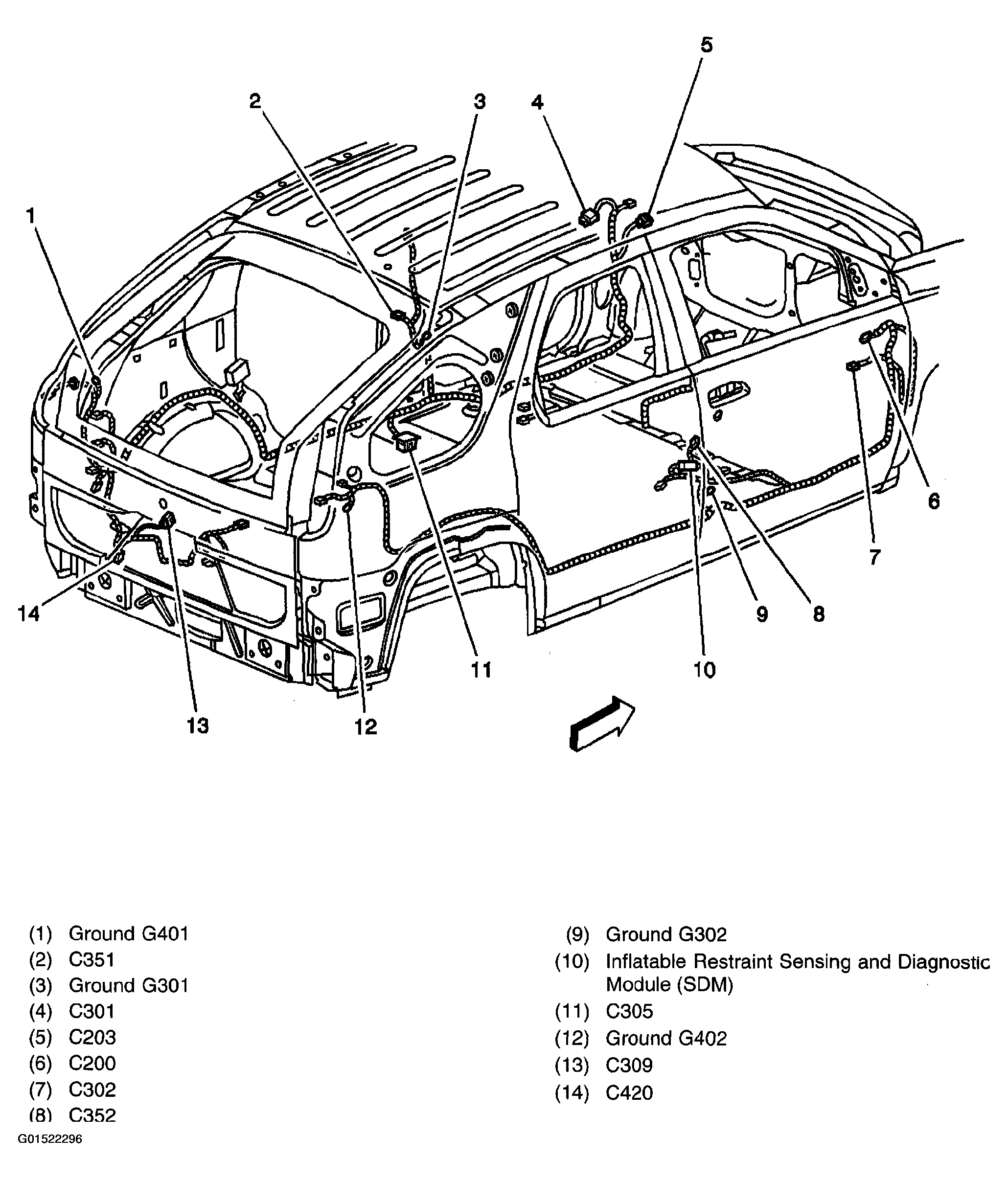

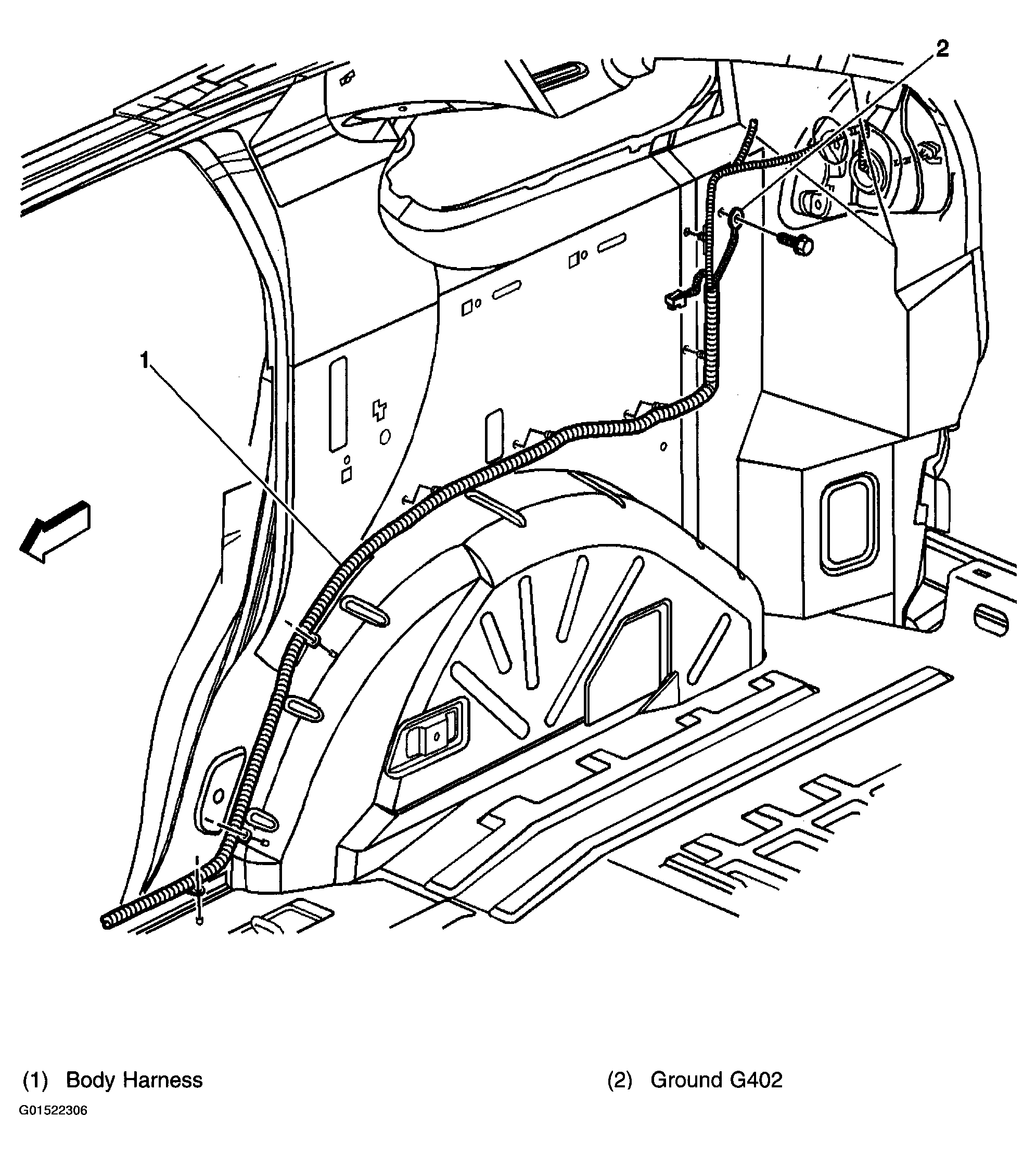

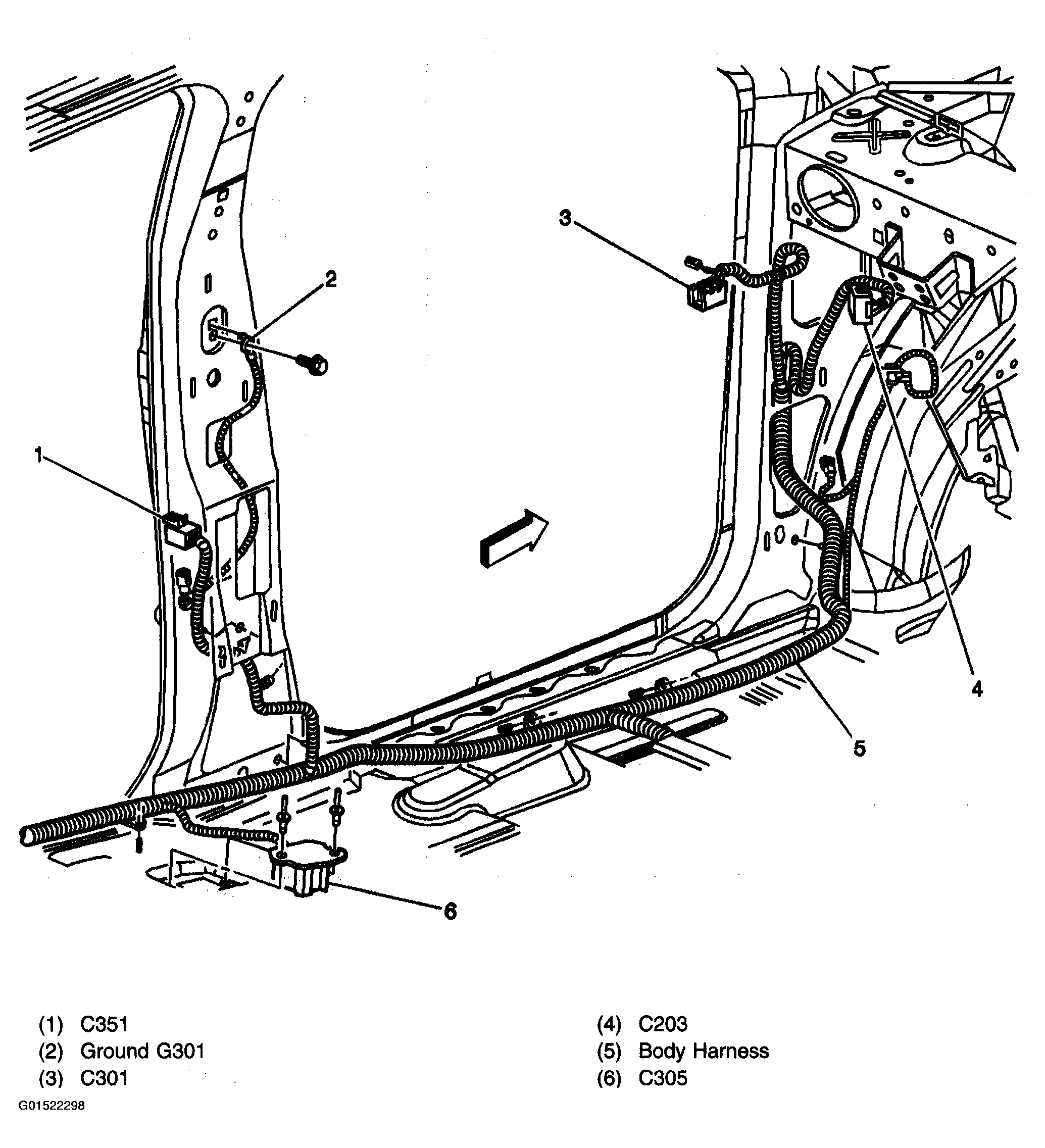

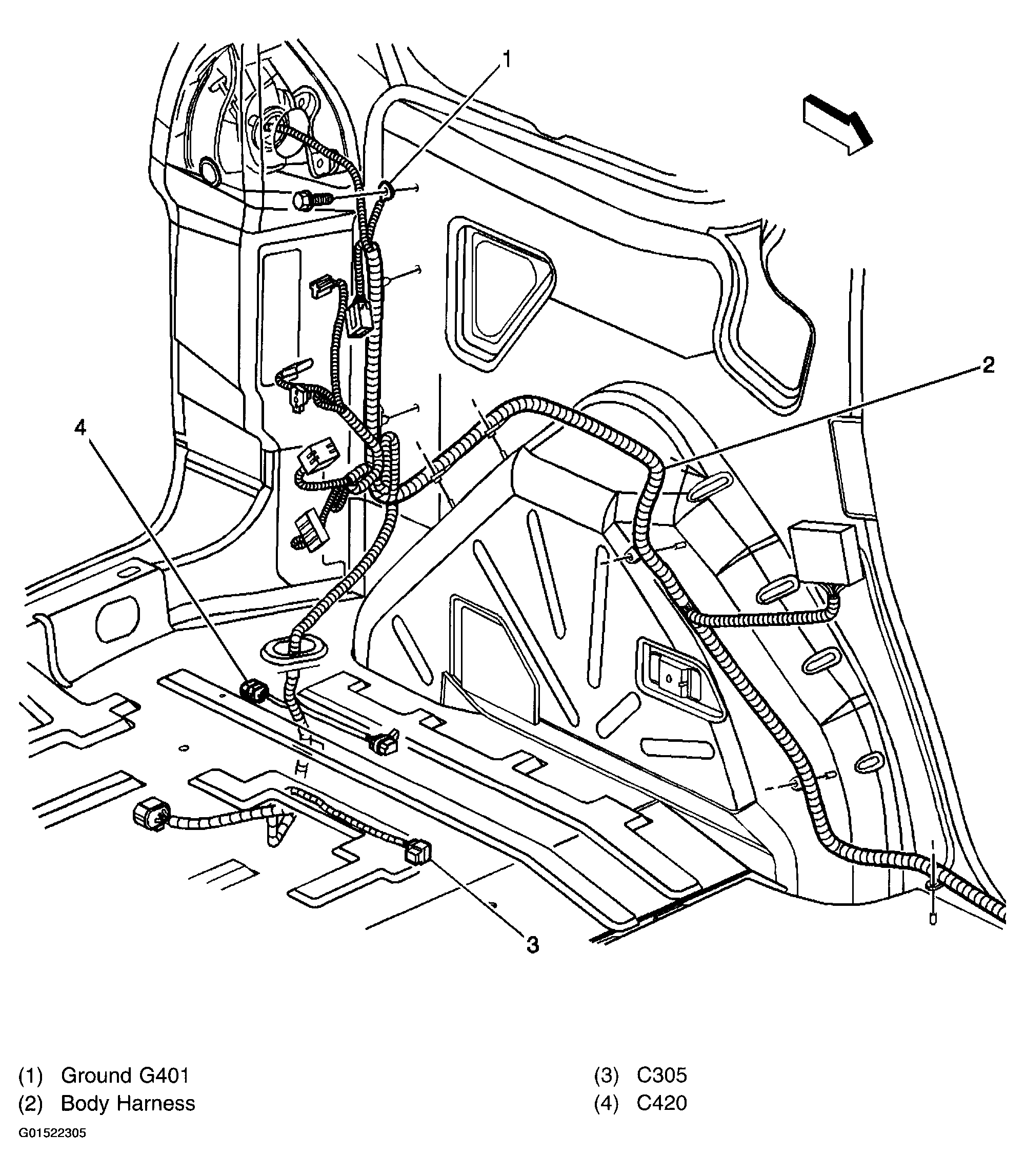

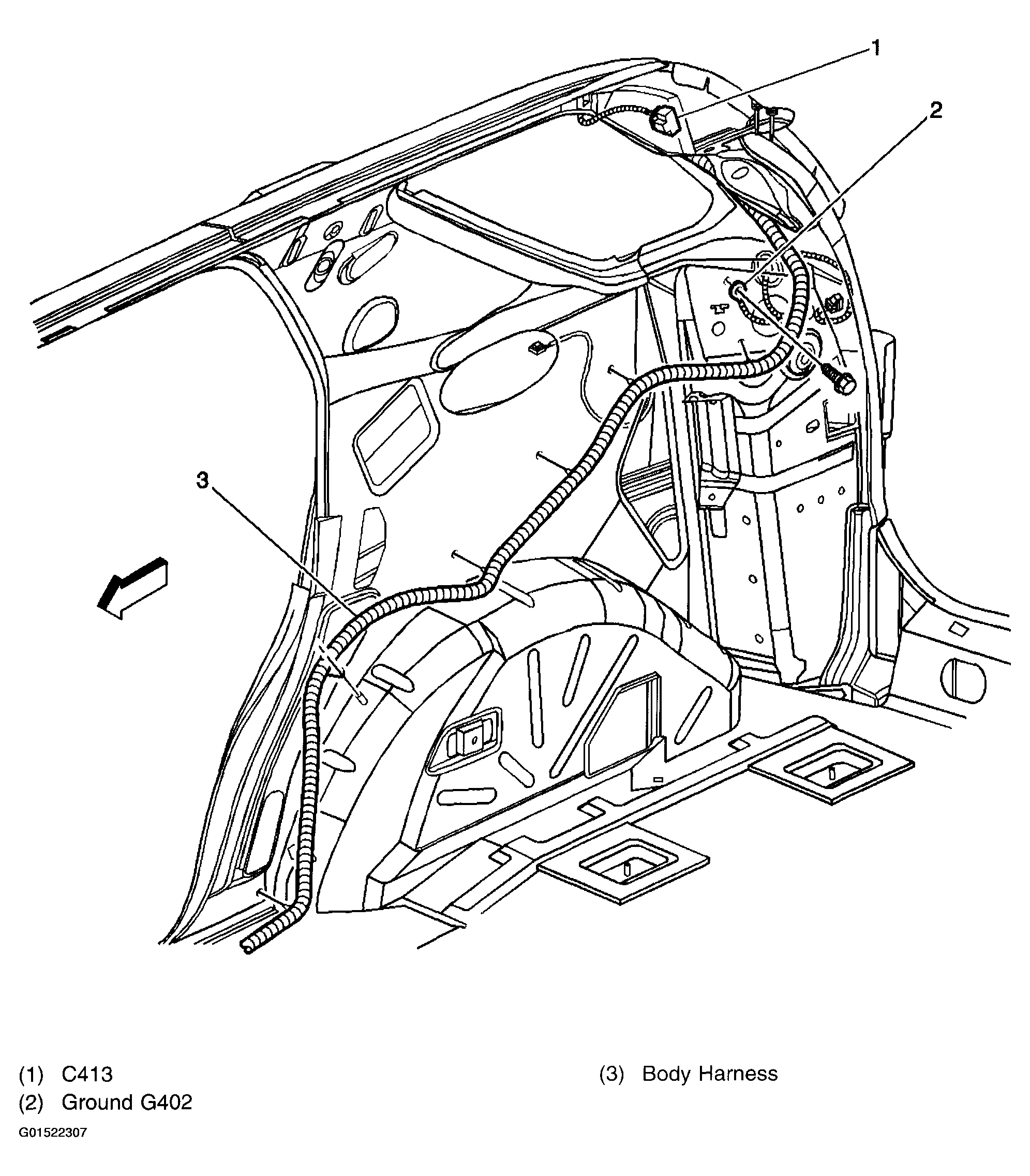

Fig 61: Identifying Harness Routing Views (Passenger Compartment - LR)
Courtesy of GENERAL MOTORS CORP.
Fig 62: Identifying Harness Routing Views (Passenger Compartment - RR - Pontiac)
Courtesy of GENERAL MOTORS CORP.
Fig 63: Identifying Harness Routing Views (Passenger Compartment - RR - Buick)
Courtesy of GENERAL MOTORS CORP.

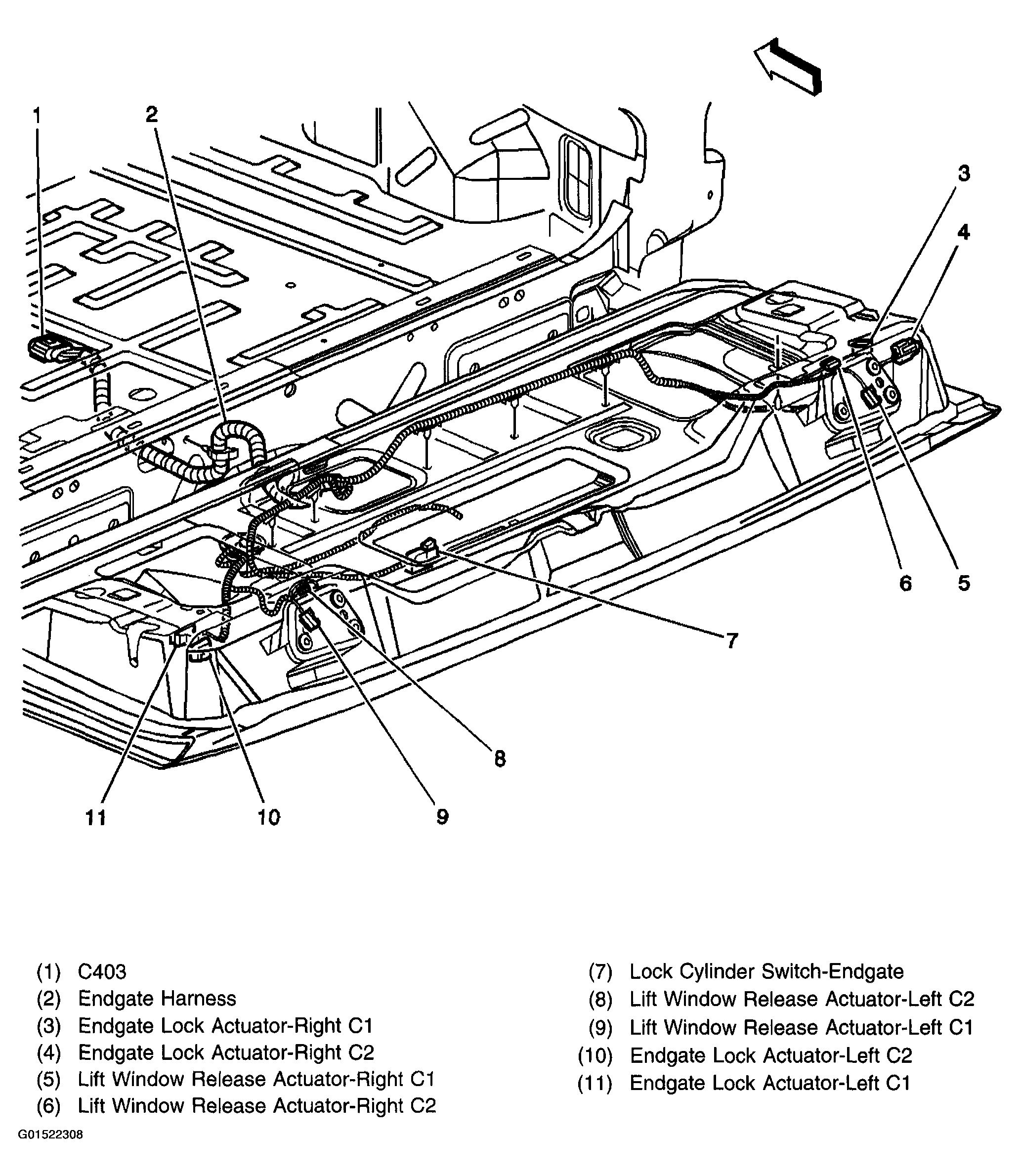

Fig 64: Identifying Harness Routing Views Endgate (Pontiac)
Courtesy of GENERAL MOTORS CORP.

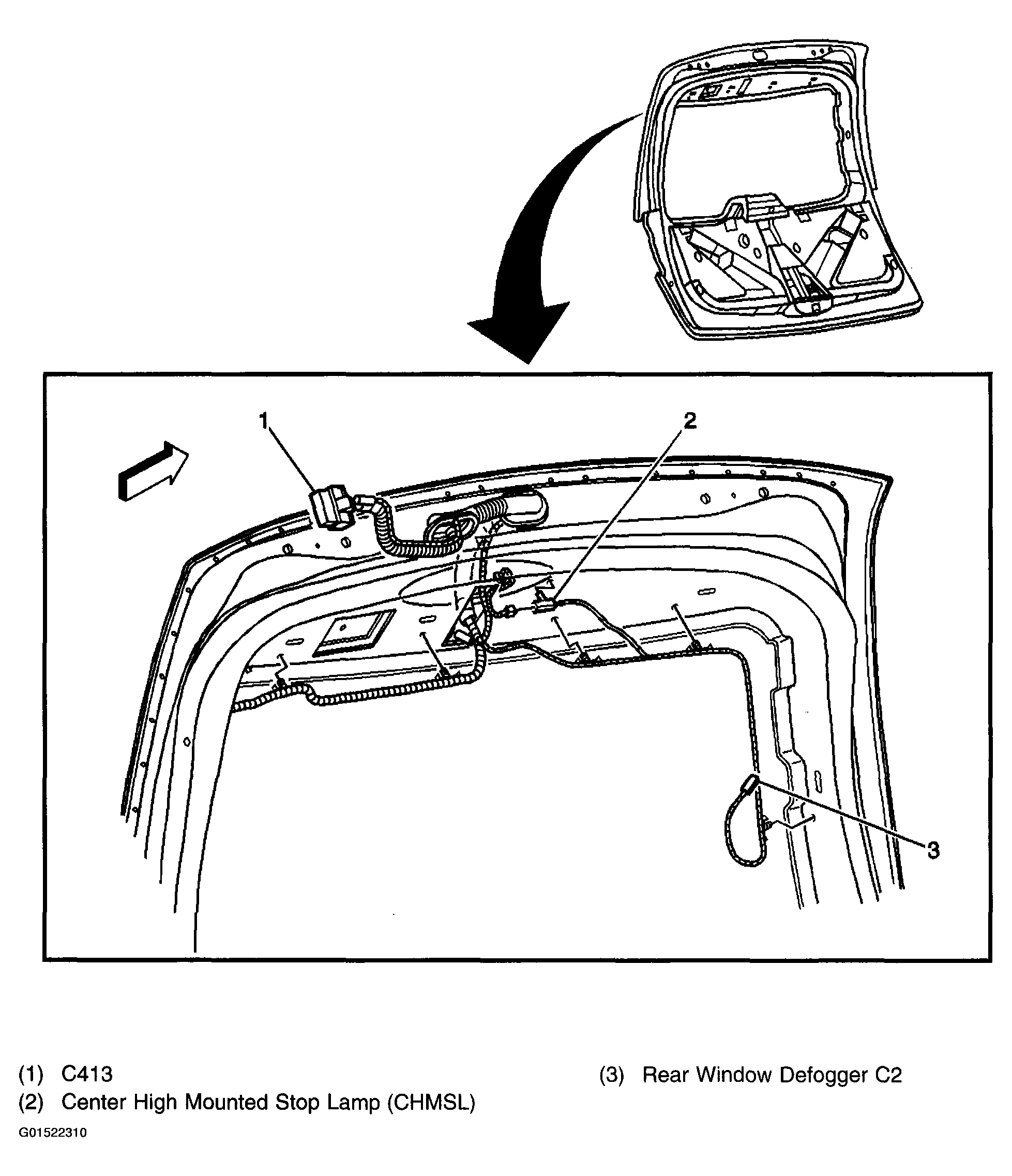

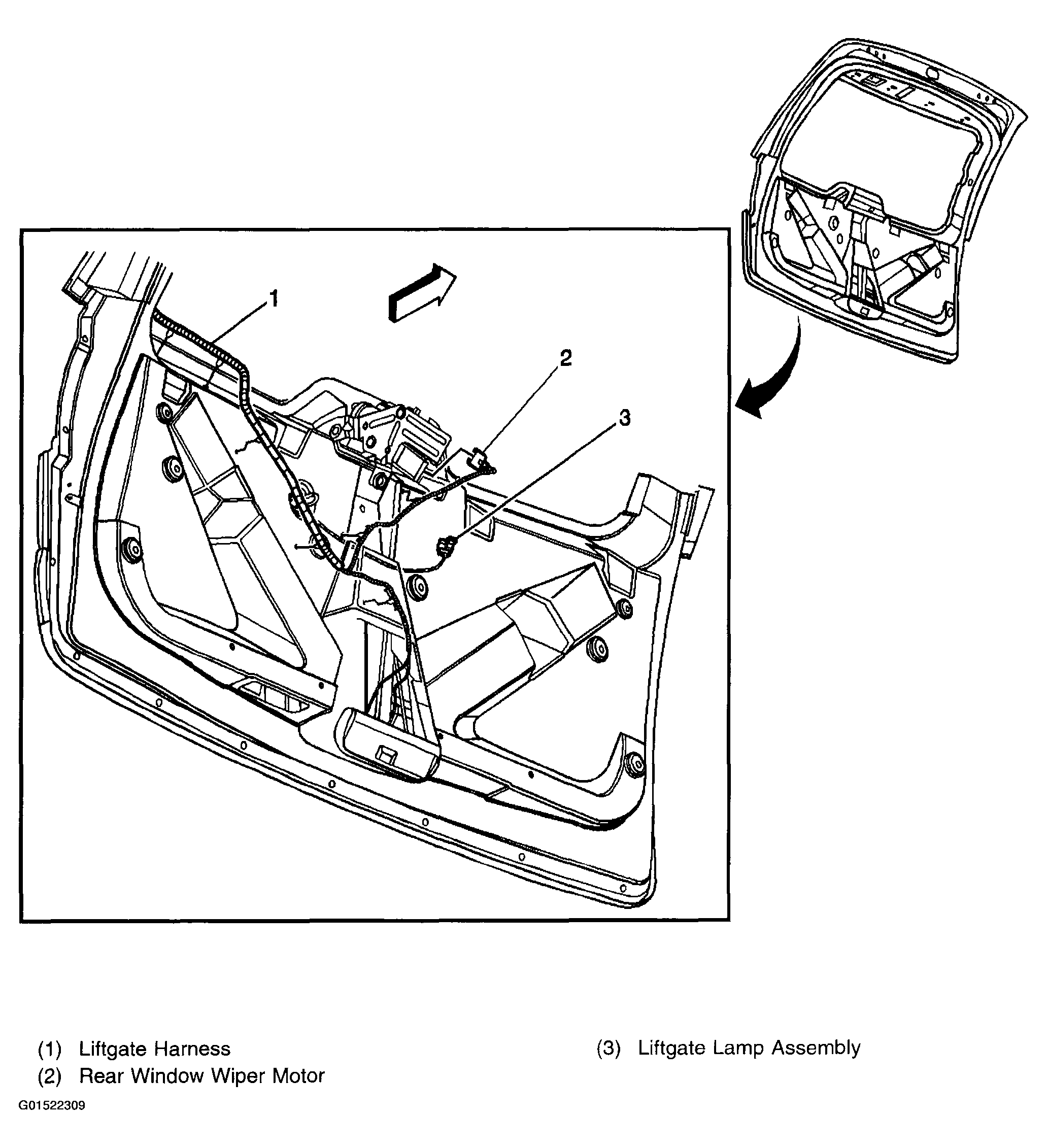

Fig 65: Identifying Harness Routing Views Liftgate - Buick (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 66: Identifying Harness Routing Views Liftgate - Buick (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

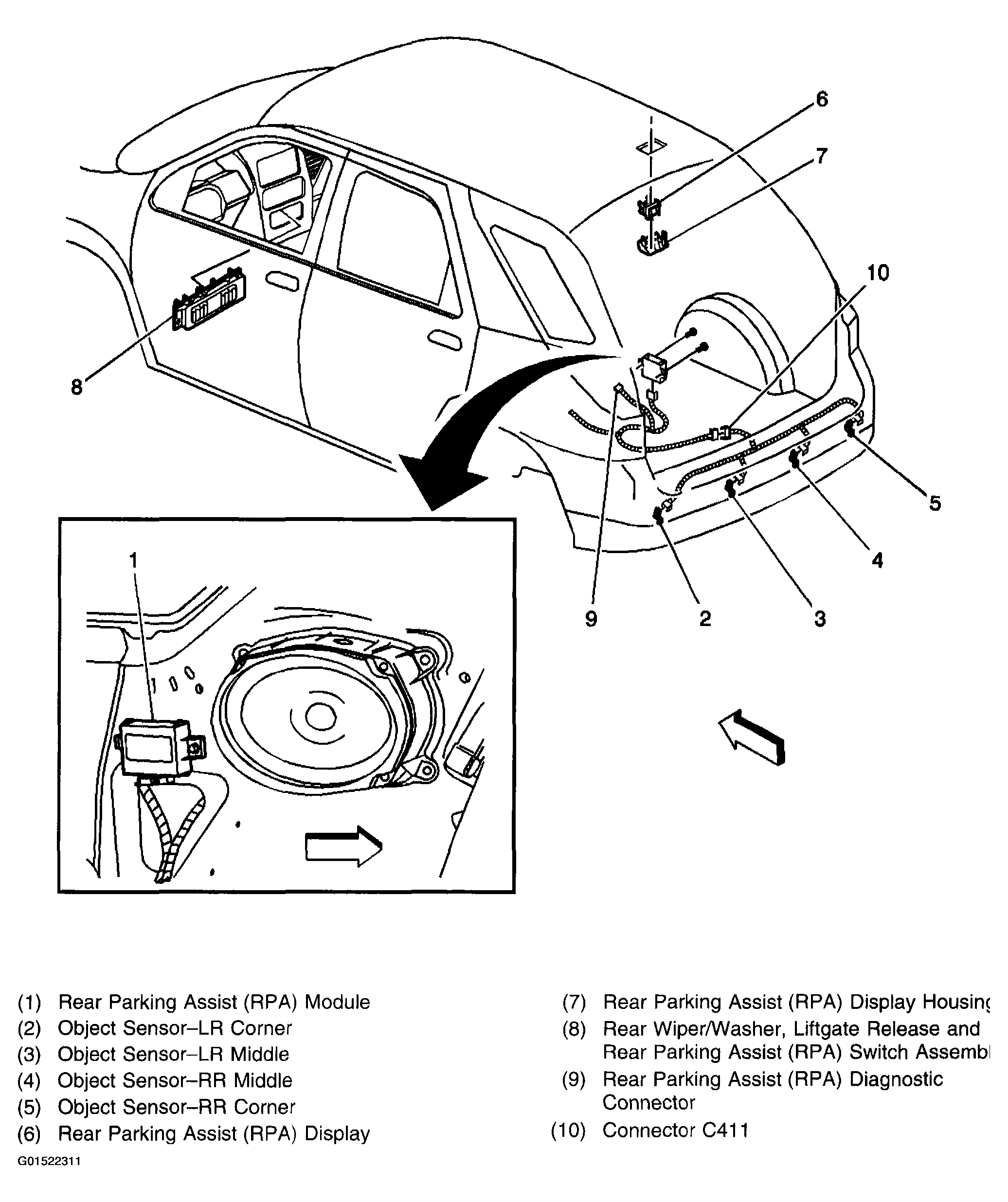

Fig 67: Identifying Harness Routing Views - Rear Parking Assist (RPA)
Courtesy of GENERAL MOTORS CORP.
