A/T Shift Lock Control Solenoid Connector End View - Aztek

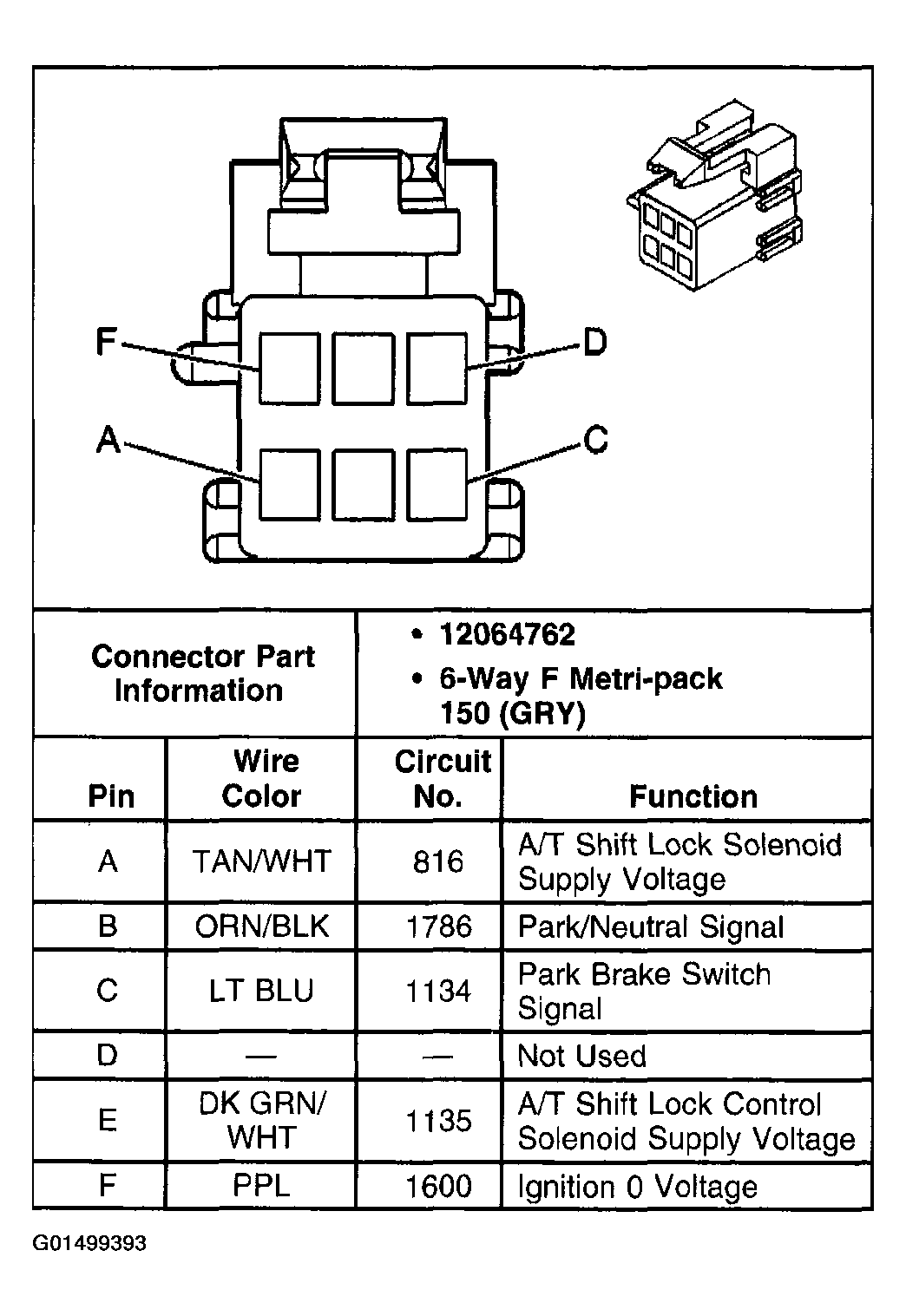

Fig 1: A/T Shift Lock Control Solenoid Connector - Aztek
G01499393Courtesy of GENERAL MOTORS CORP.
