Rear Parking Assist (RPA) Module Connector End View

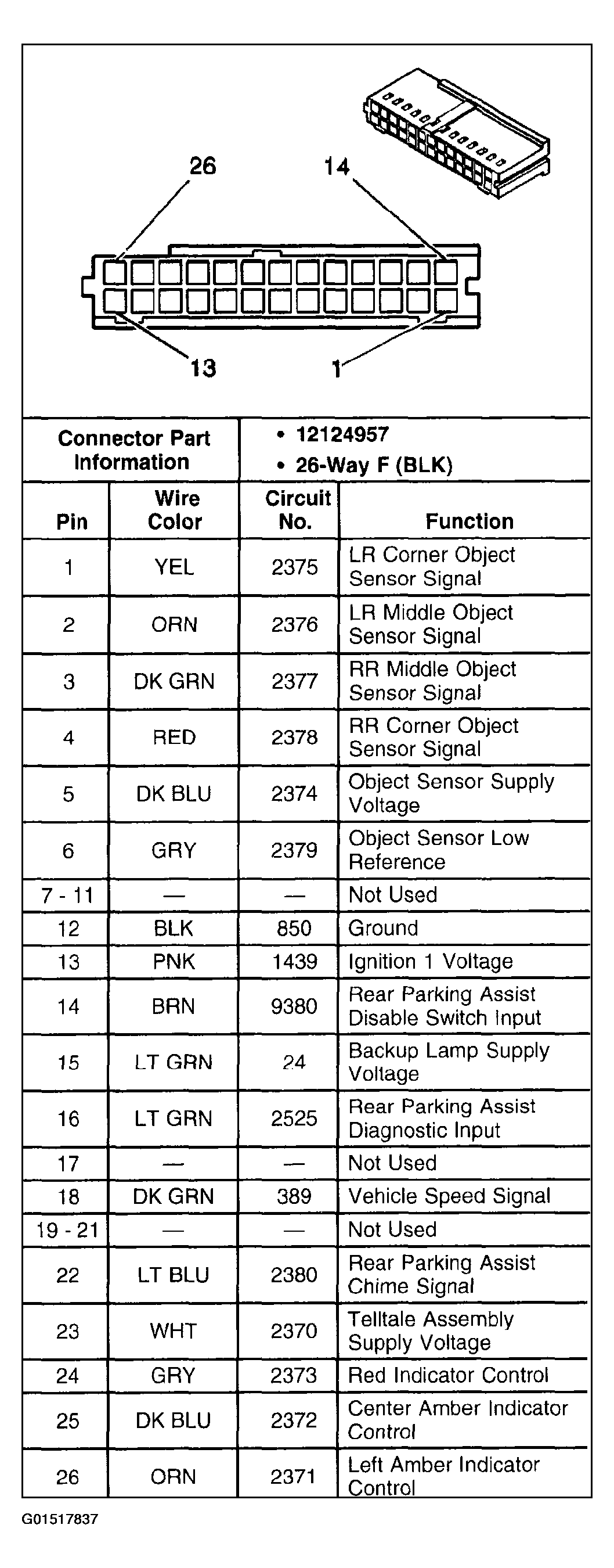

Fig 1: Rear Parking Assist (RPA) Module
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
