SP250 Connector End View

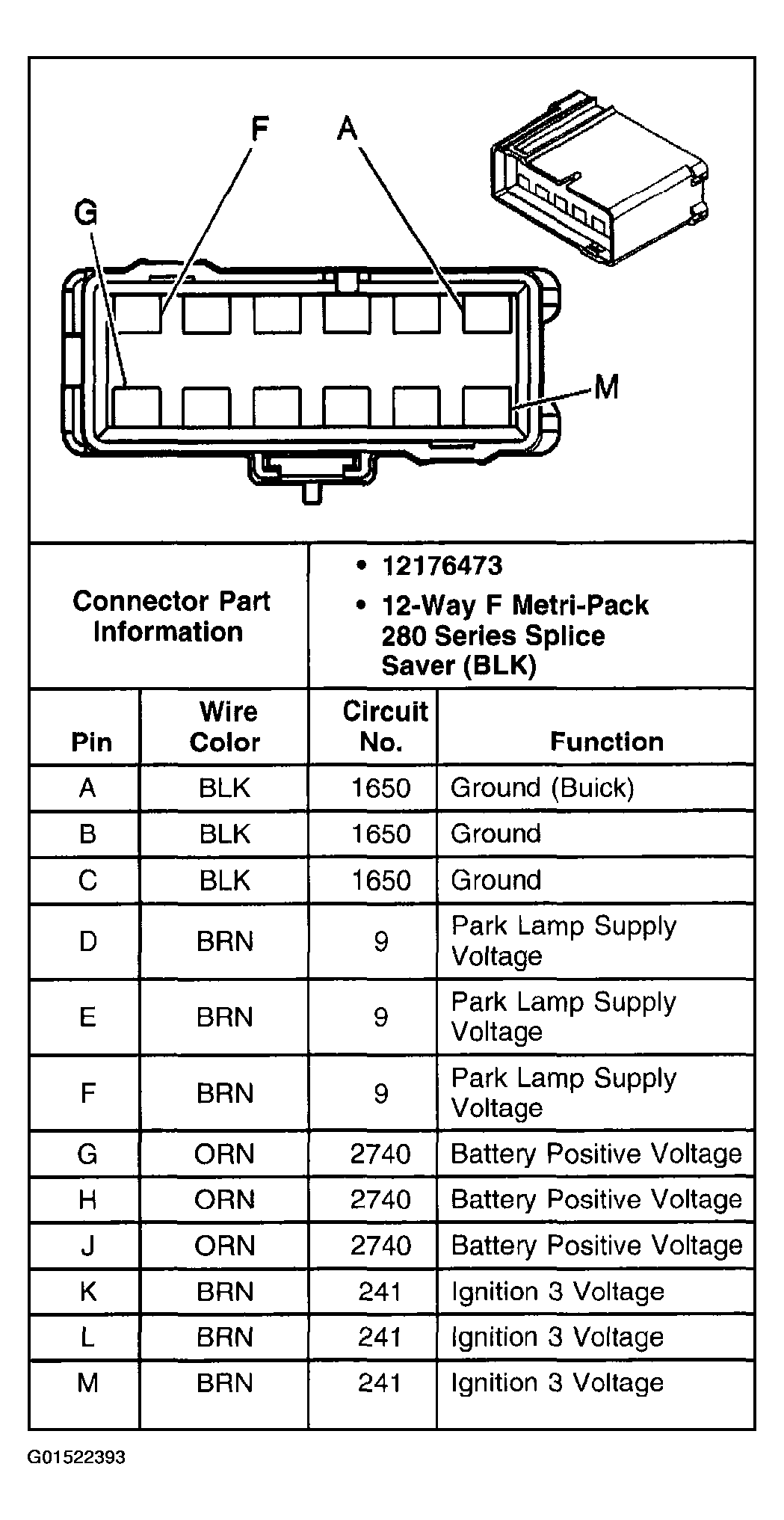

Fig 1: SP250
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
