Sunroof Module Connector End View C2 (2 Of 2)

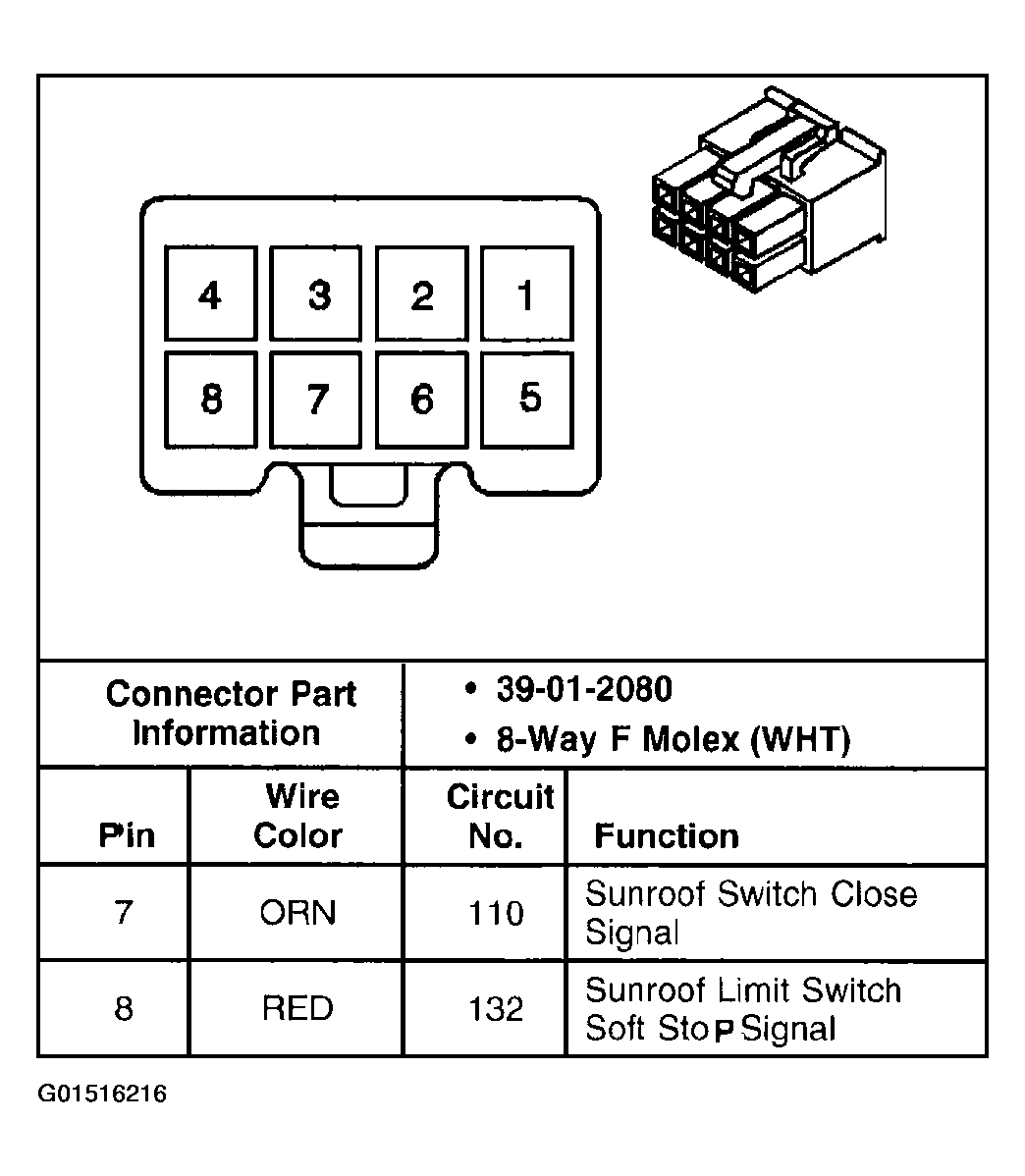

Fig 1: Sunroof Module C2 (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
