Vehicle Communication Interface Module (VCIM) Connector End View - C1

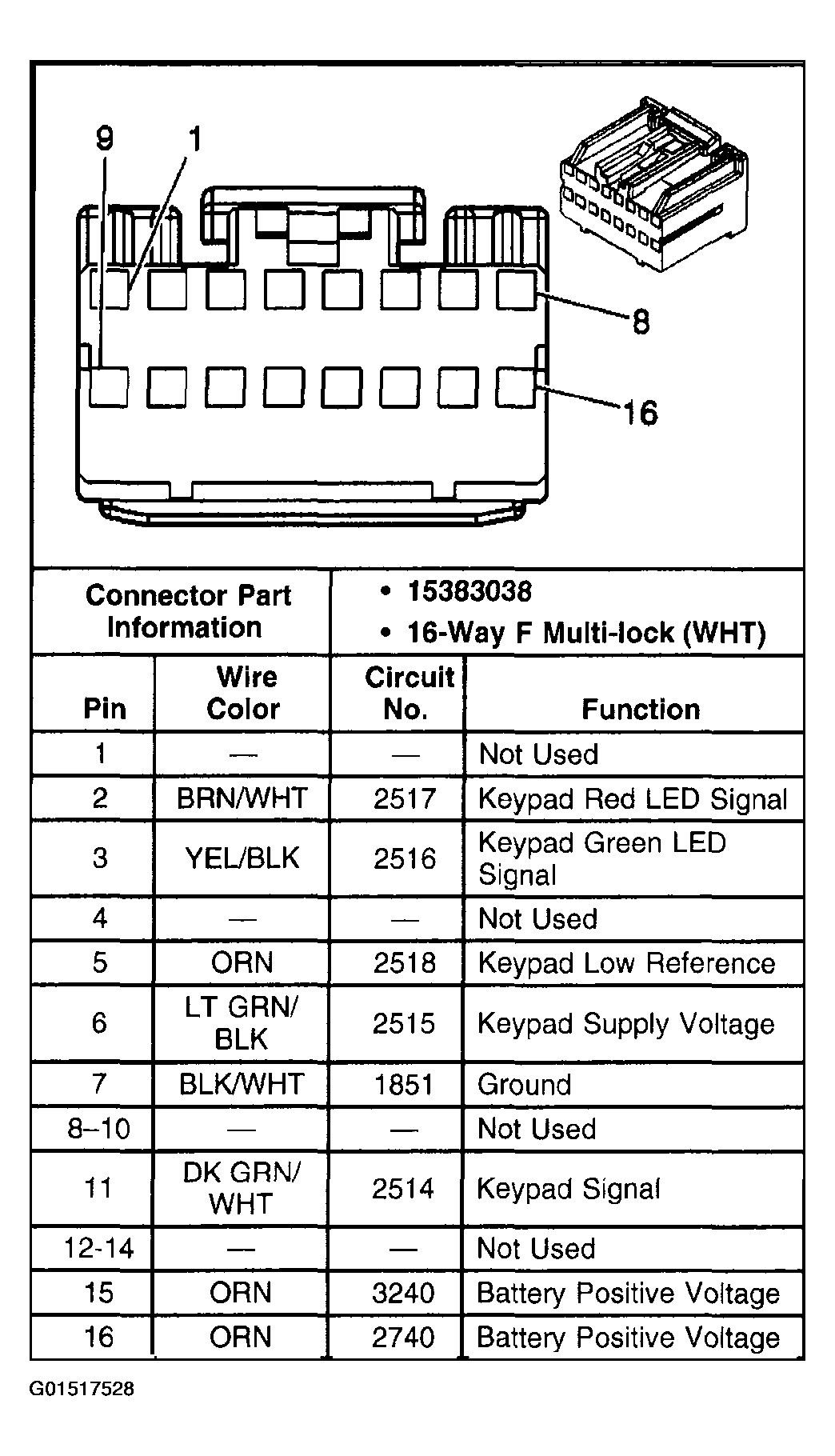

Fig 1: Vehicle Communication Interface Module (VCIM) - C1
G01517528Courtesy of GENERAL MOTORS CORP.
