Removal Procedure

  1. Remove the front bucket seat. Refer to SEAT REPLACEMENT -- BUCKET .
  2. Remove the front seat belt anchor from the rear outboard front seat stud.

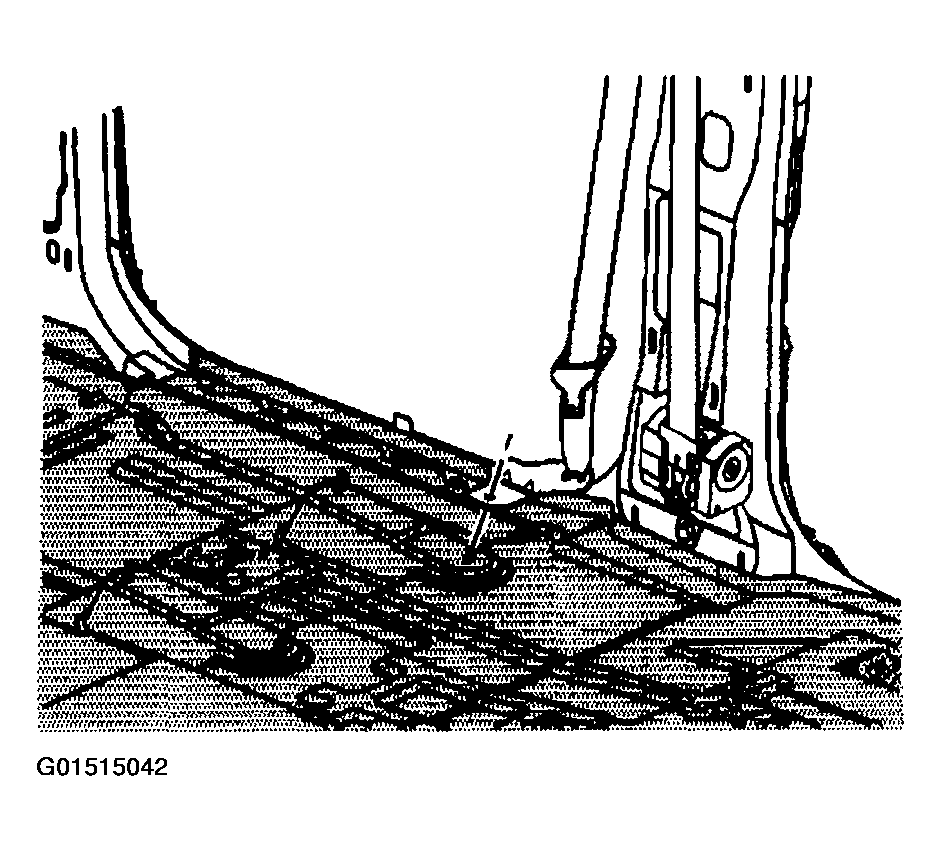

    Fig 1: Removing Procedure Of Seat Belt Retractor - Left Front (1 Of 5)
    G01515042Courtesy of GENERAL MOTORS CORP.
  3. Open the seat belt guide loop cover.
  4. Remove the nut from seat belt guide loop.

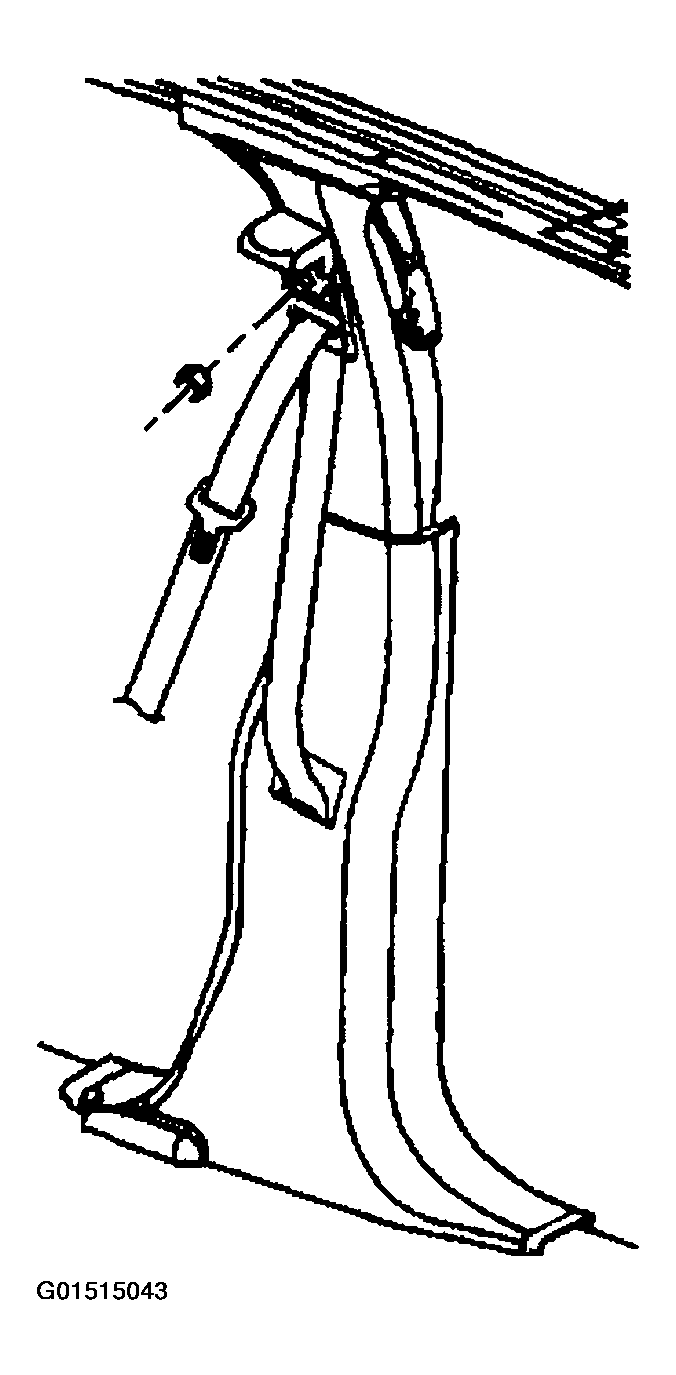

    Fig 2: Removing Procedure Of Seat Belt Retractor - Left Front (2 Of 5)
    G01515043Courtesy of GENERAL MOTORS CORP.
  5. Remove the seat belt guide loop from the guide adjuster bracket.

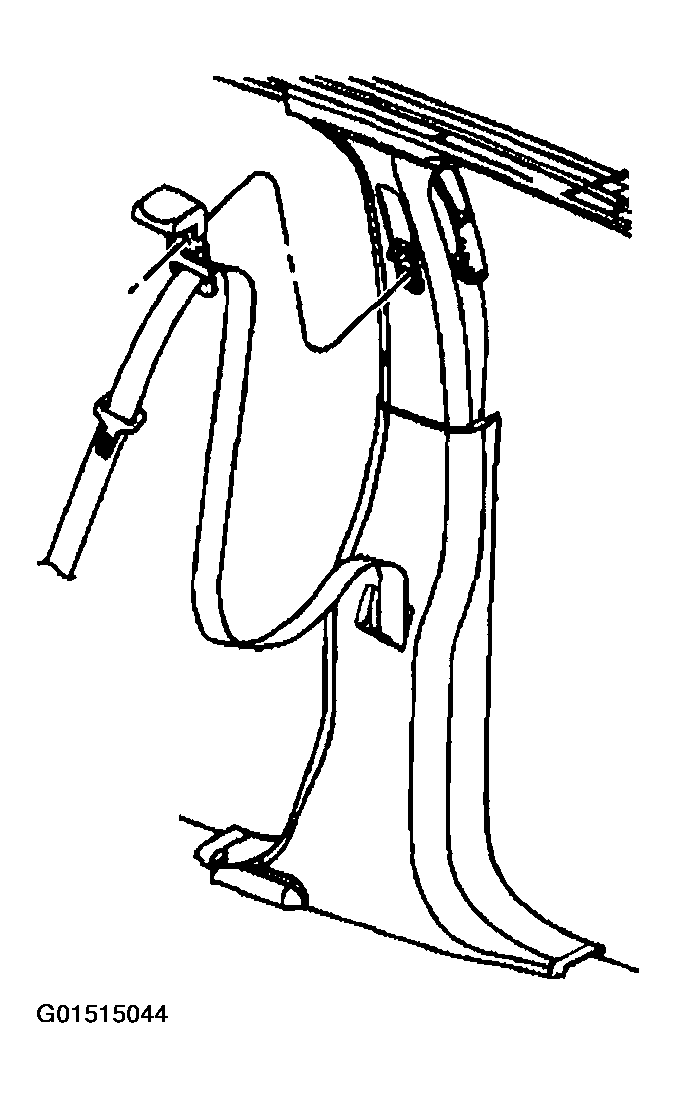

    Fig 3: Removing Procedure Of Seat Belt Retractor - Left Front (3 Of 5)
    G01515044Courtesy of GENERAL MOTORS CORP.
  6. Remove the center pillar lower trim. Refer to TRIM PANEL REPLACEMENT -- LOWER CENTER PILLAR .
  7. Remove the bolt from the seat belt retractor.

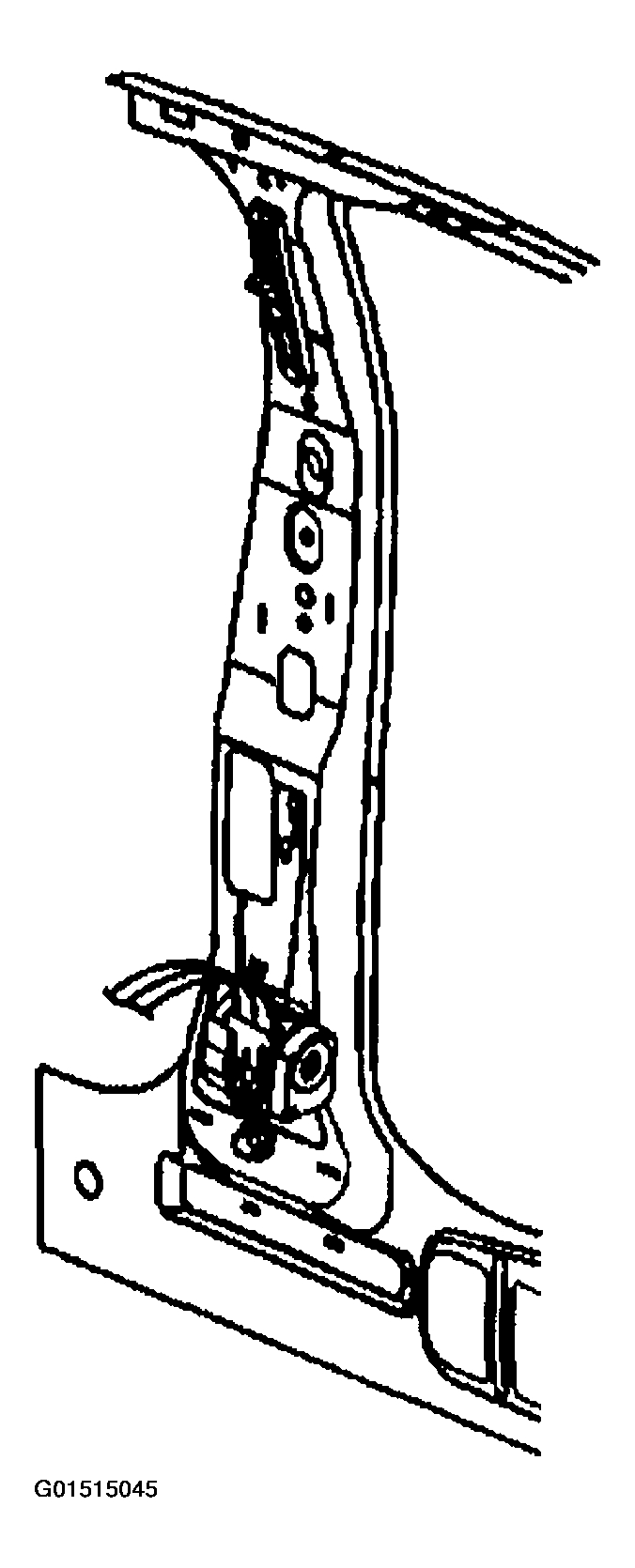

    Fig 4: Removing Procedure Of Seat Belt Retractor - Left Front (4 Of 5)
    G01515045Courtesy of GENERAL MOTORS CORP.
  8. Remove the seat belt retractor from the center pillar.
  9. Remove the front seat belt from the vehicle.

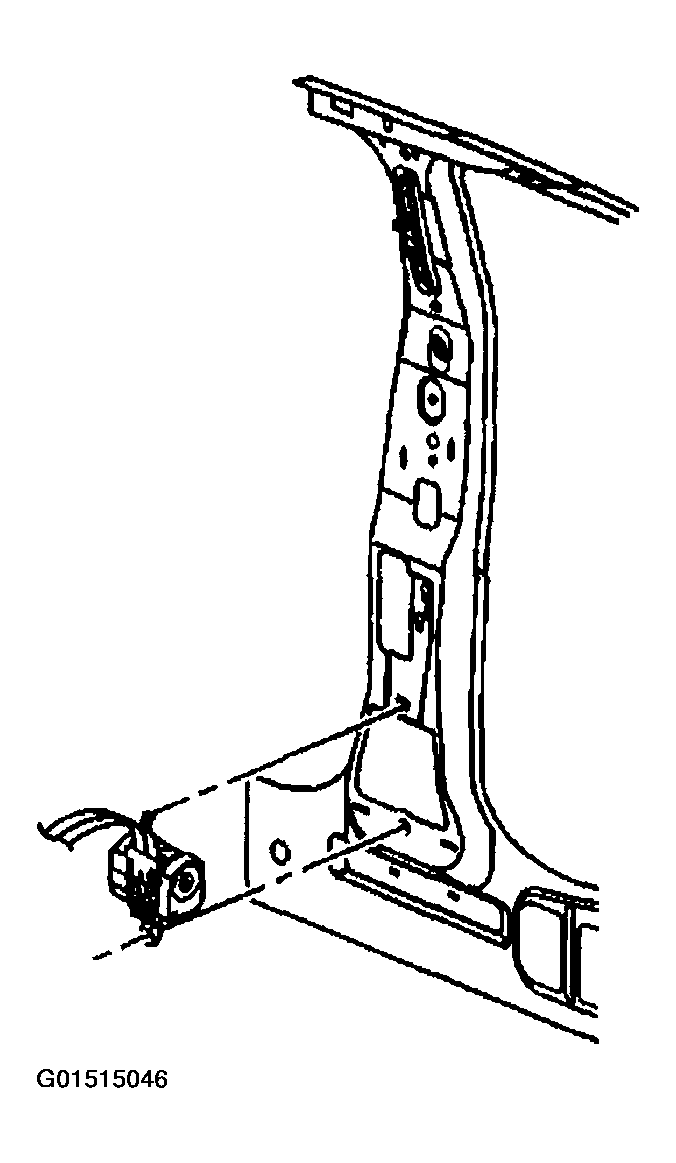

    Fig 5: Removing Procedure Of Seat Belt Retractor - Left Front (5 Of 5)
    G01515046Courtesy of GENERAL MOTORS CORP.
