Removal Procedure

  1. Disable the SIR System. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
  2. Remove the steering wheel. Refer to STEERING WHEEL REPLACEMENT  .
  3. Remove the retaining screws (2,3) from the steering wheel rear bezel.
  4. Remove the steering wheel rear bezel (1).

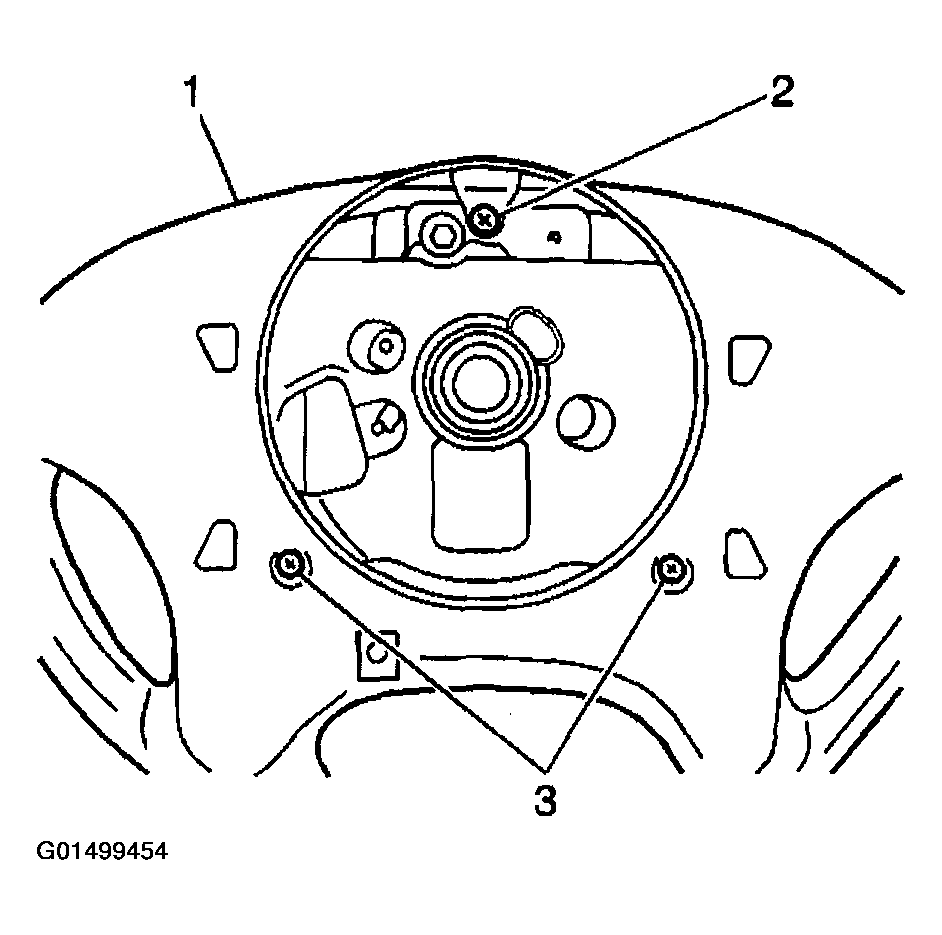

    Fig 1: Removing Steering Wheel Rear Bezel
    G01499454Courtesy of GENERAL MOTORS CORP.
  5. Disconnect the electrical connector.
  6. Insert a small, blunt-ended tool into the access hole in the back of the steering wheel. Push the switch out of the steering wheel.

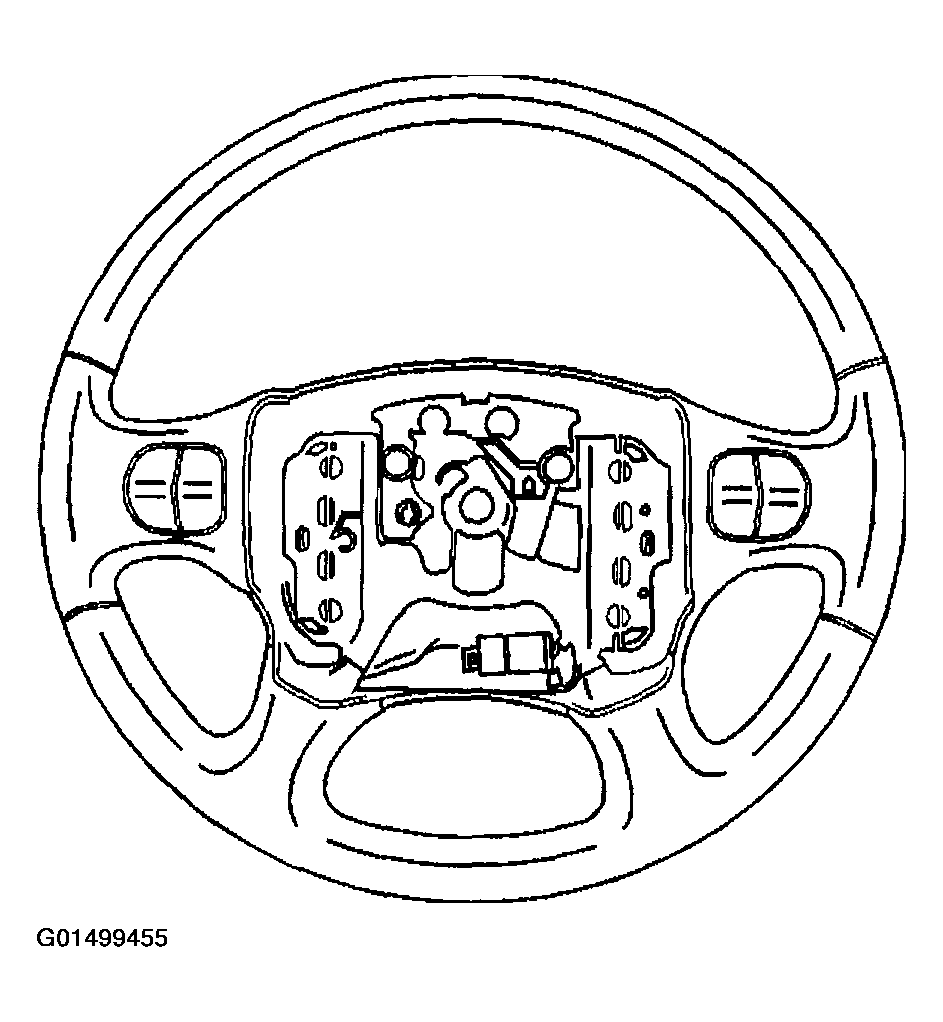

    Fig 2: Pushing Switch Out Of Steering Wheel
    G01499455Courtesy of GENERAL MOTORS CORP.
