Installation Procedure

  1. Install the air dryer (1) to the compressor.

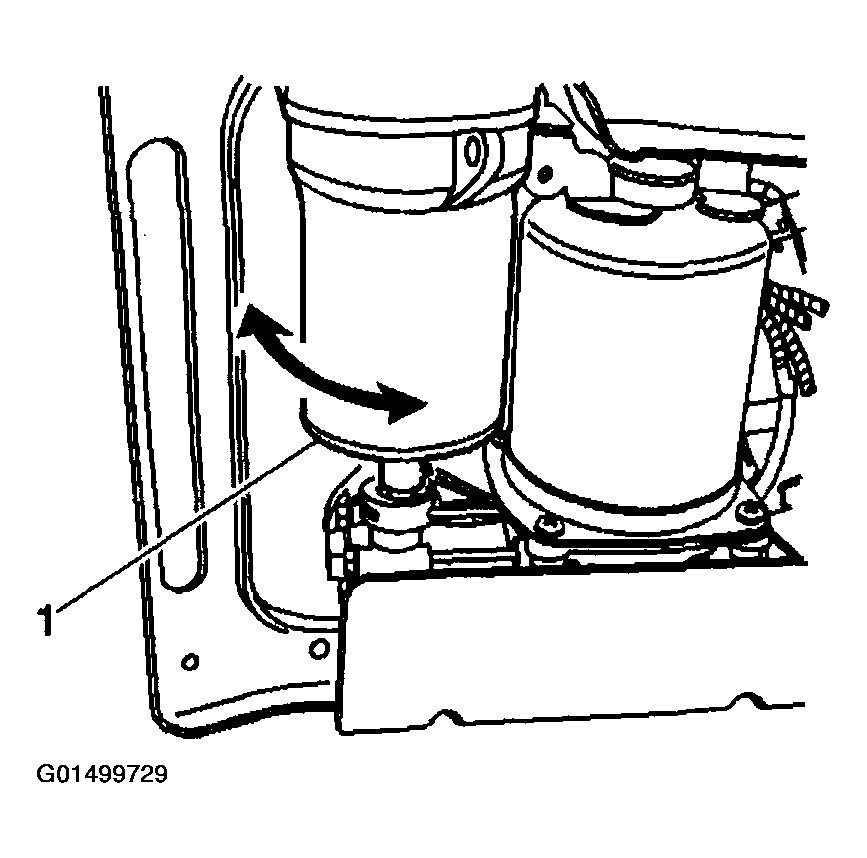

    Fig 1: Installing Air Dryer To Compressor
    G01499729Courtesy of GENERAL MOTORS CORP.
  2. Install the air dryer mounting screw (1).

    Tighten

    Tighten the screw to 6 N.m (53 Ib in).

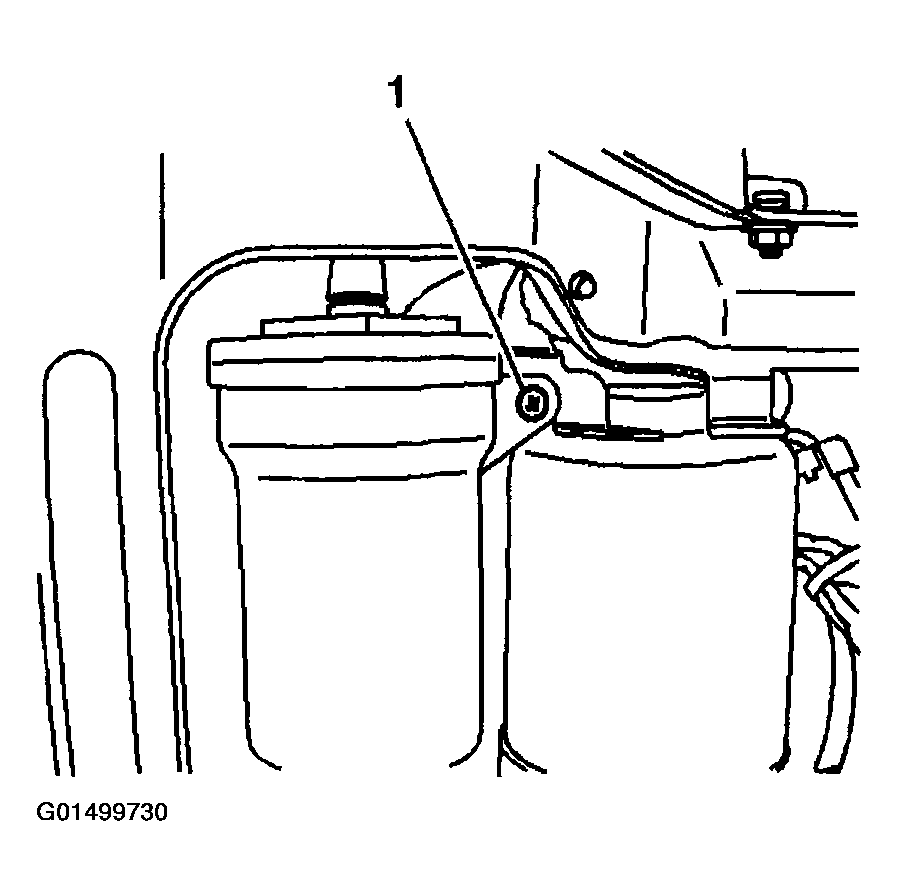

    Fig 2: Installing Air Dryer Mounting Screw
    G01499730Courtesy of GENERAL MOTORS CORP.
  3. Install the hose (1) onto the air dryer (2).
  4. Install the compressor to the vehicle. Refer to AIR COMPRESSOR REPLACEMENT  .
  5. Lower the vehicle.

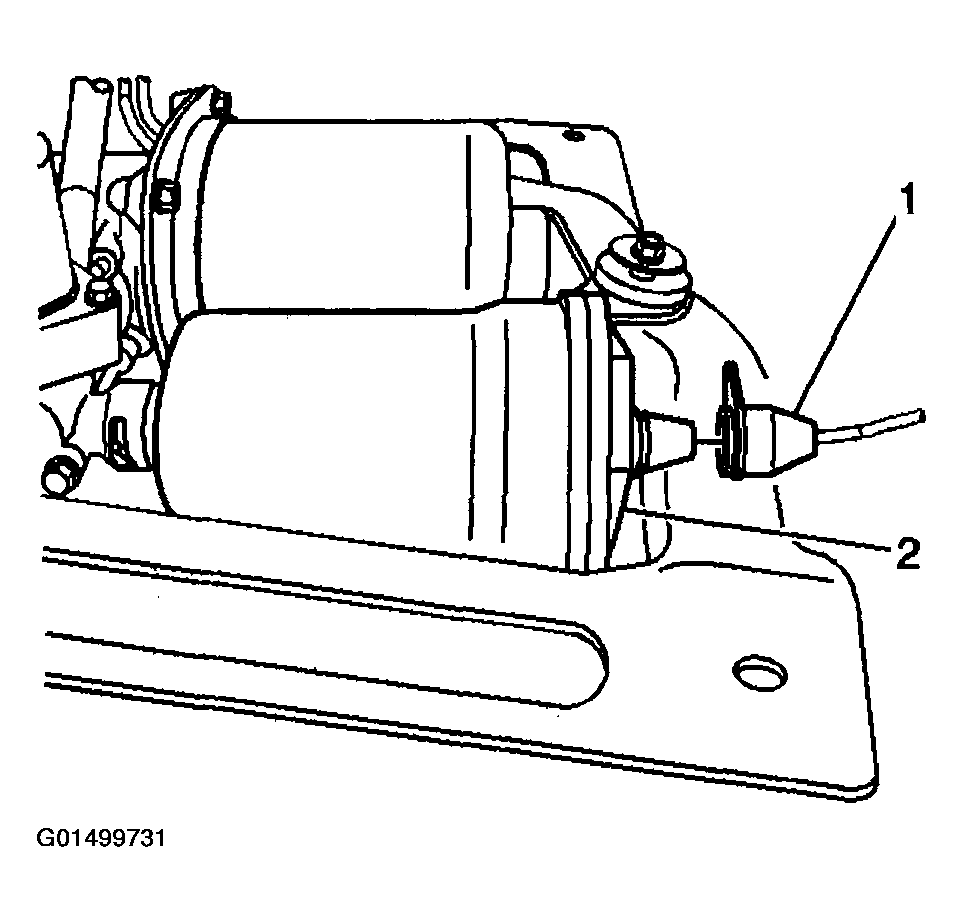

    Fig 3: Installing Hose Onto Air Dryer
    G01499731Courtesy of GENERAL MOTORS CORP.
