Disassembled Views

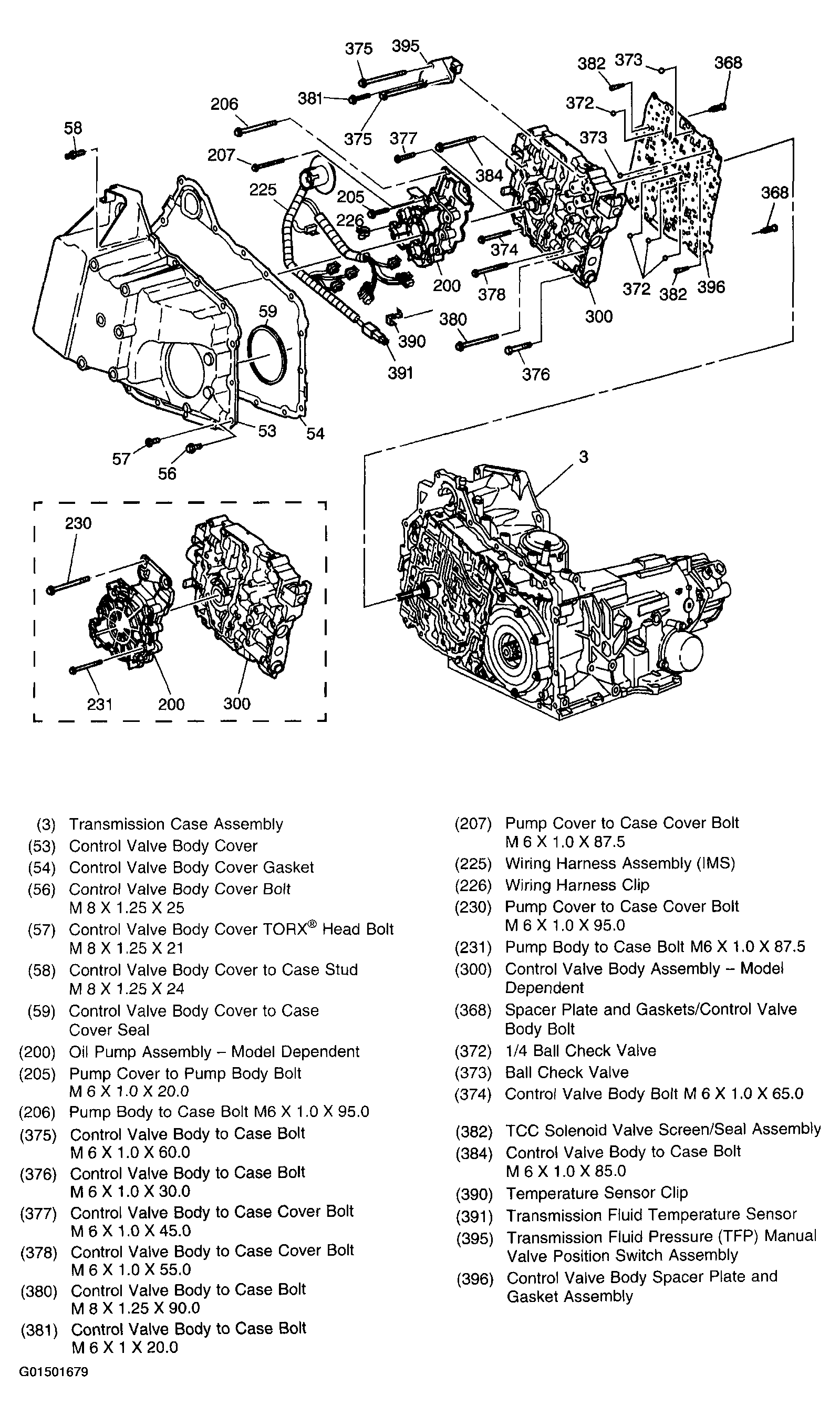

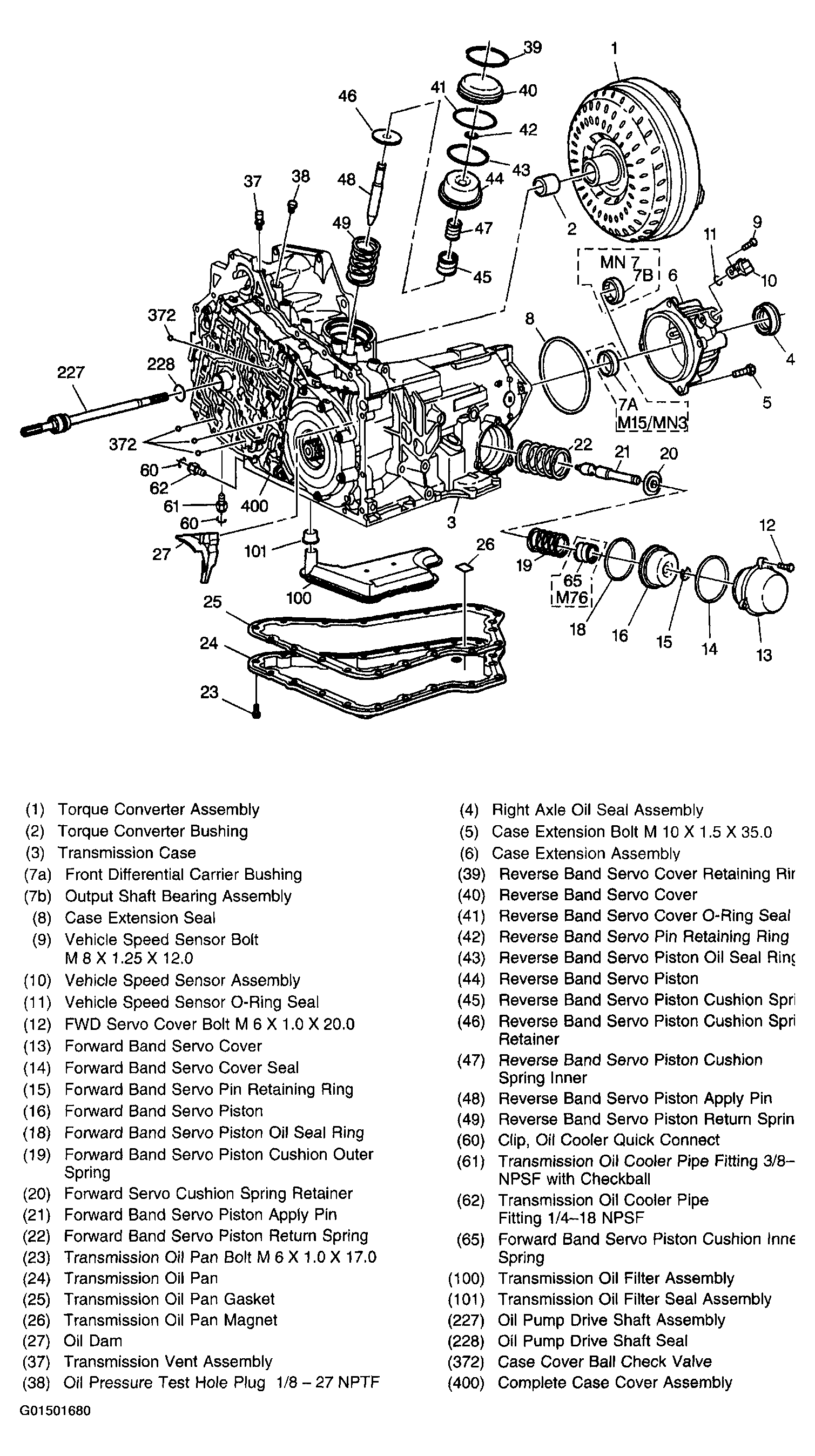

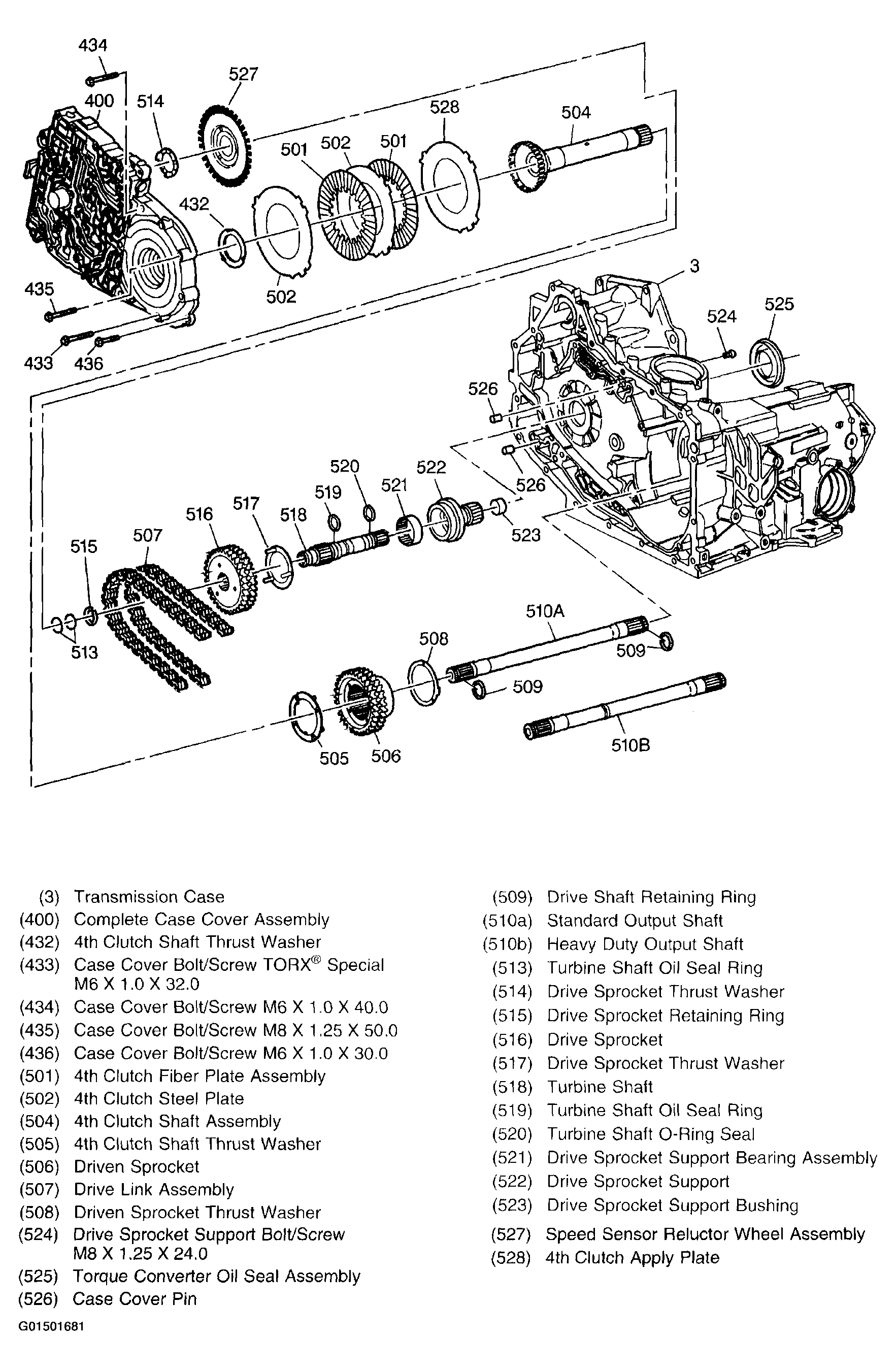

Fig 1: Disassembled View Of Case And Associated Parts (1 Of 4)

Courtesy of GENERAL MOTORS CORP.

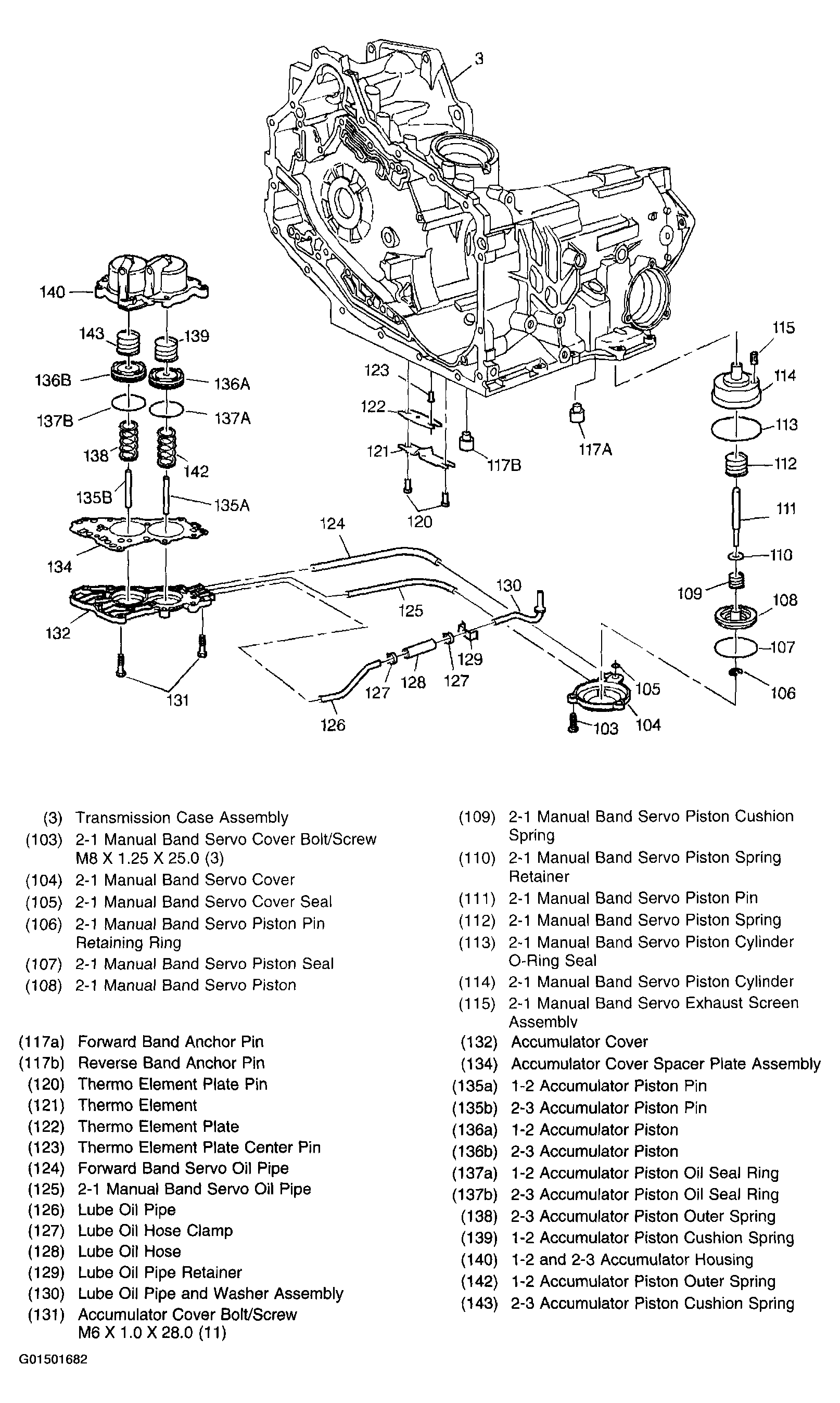

Fig 2: Disassembled View Of Case And Associated Parts (2 Of 4)

Courtesy of GENERAL MOTORS CORP.

Fig 3: Disassembled View Of Case And Associated Parts (3 Of 4)

Courtesy of GENERAL MOTORS CORP.

Fig 4: Disassembled View Of Case And Associated Parts (4 Of 4)

Courtesy of GENERAL MOTORS CORP.

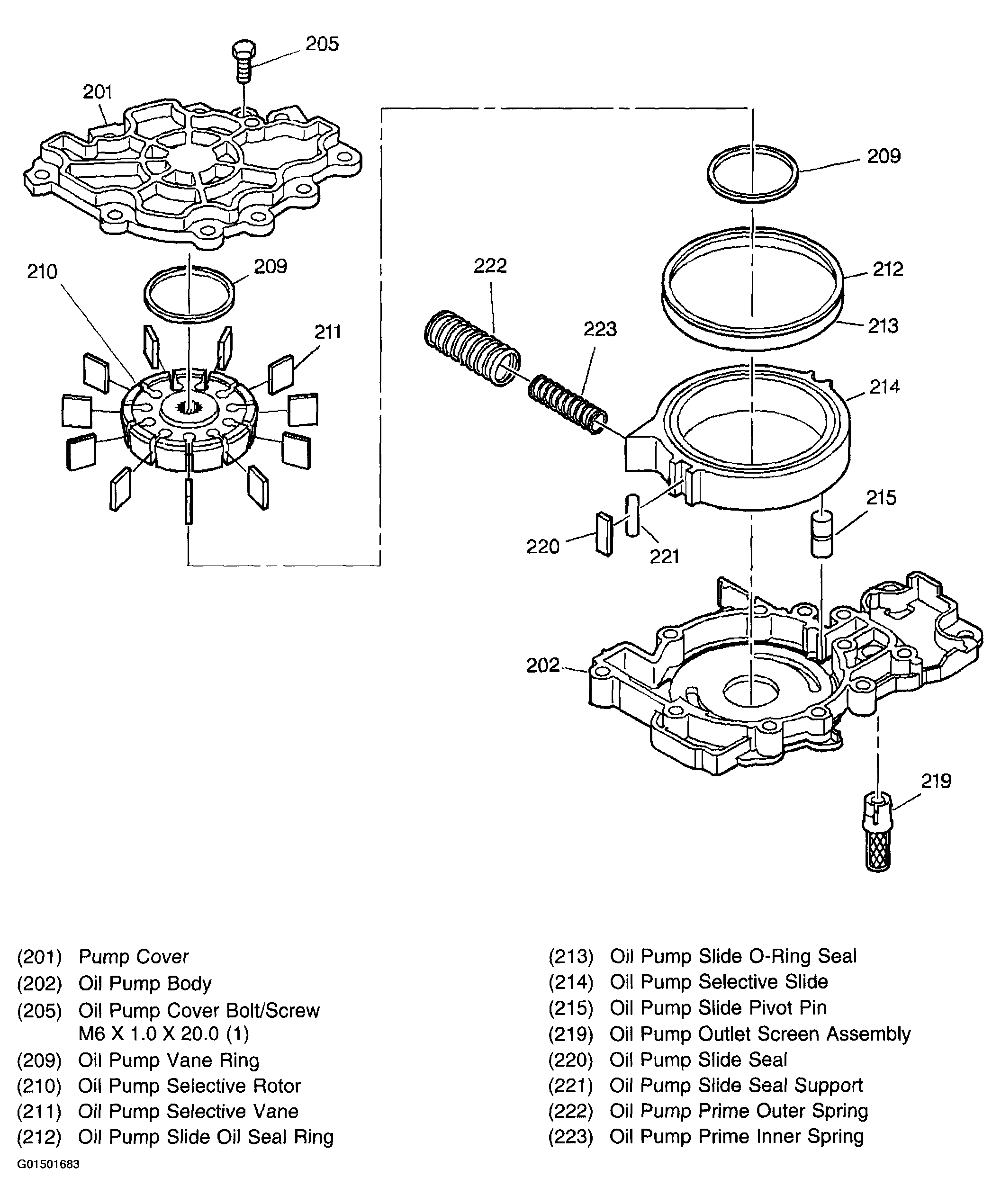

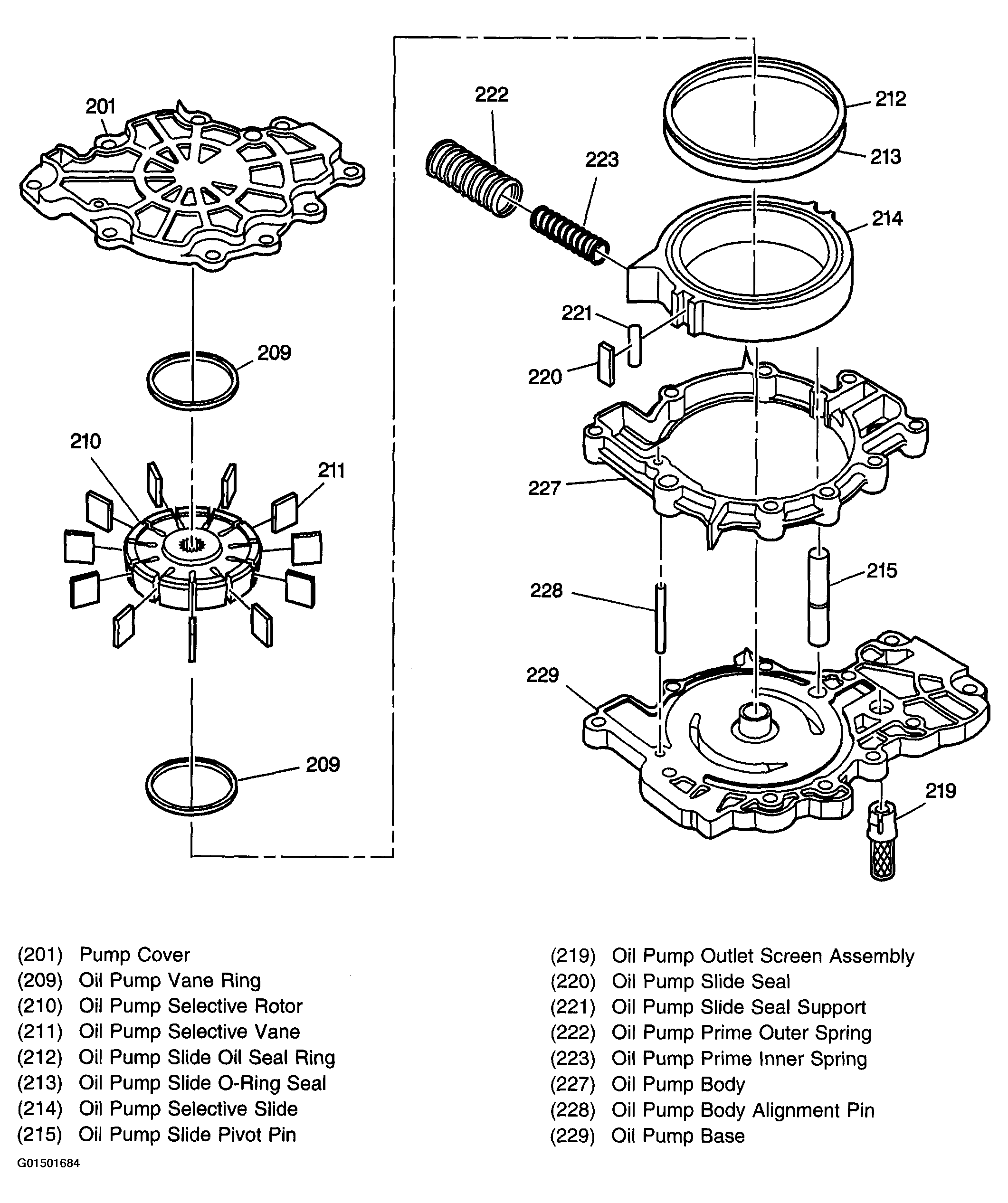

Fig 5: Disassembled View Of Oil Pump Assembly - 2 Piece Pump

Courtesy of GENERAL MOTORS CORP.

Fig 6: Disassembled View Of Oil Pump Assembly - 3 Piece Pump

Courtesy of GENERAL MOTORS CORP.

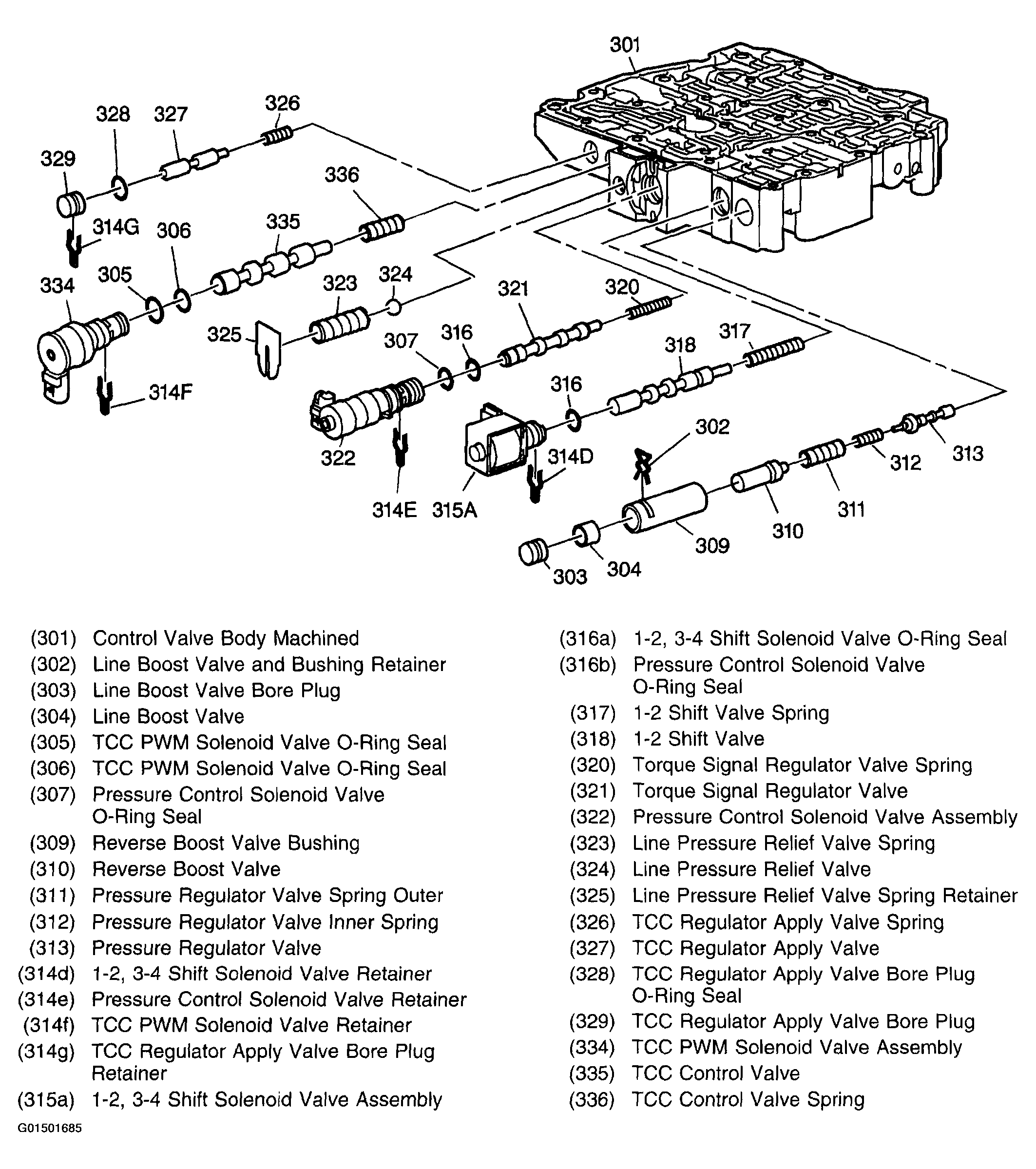

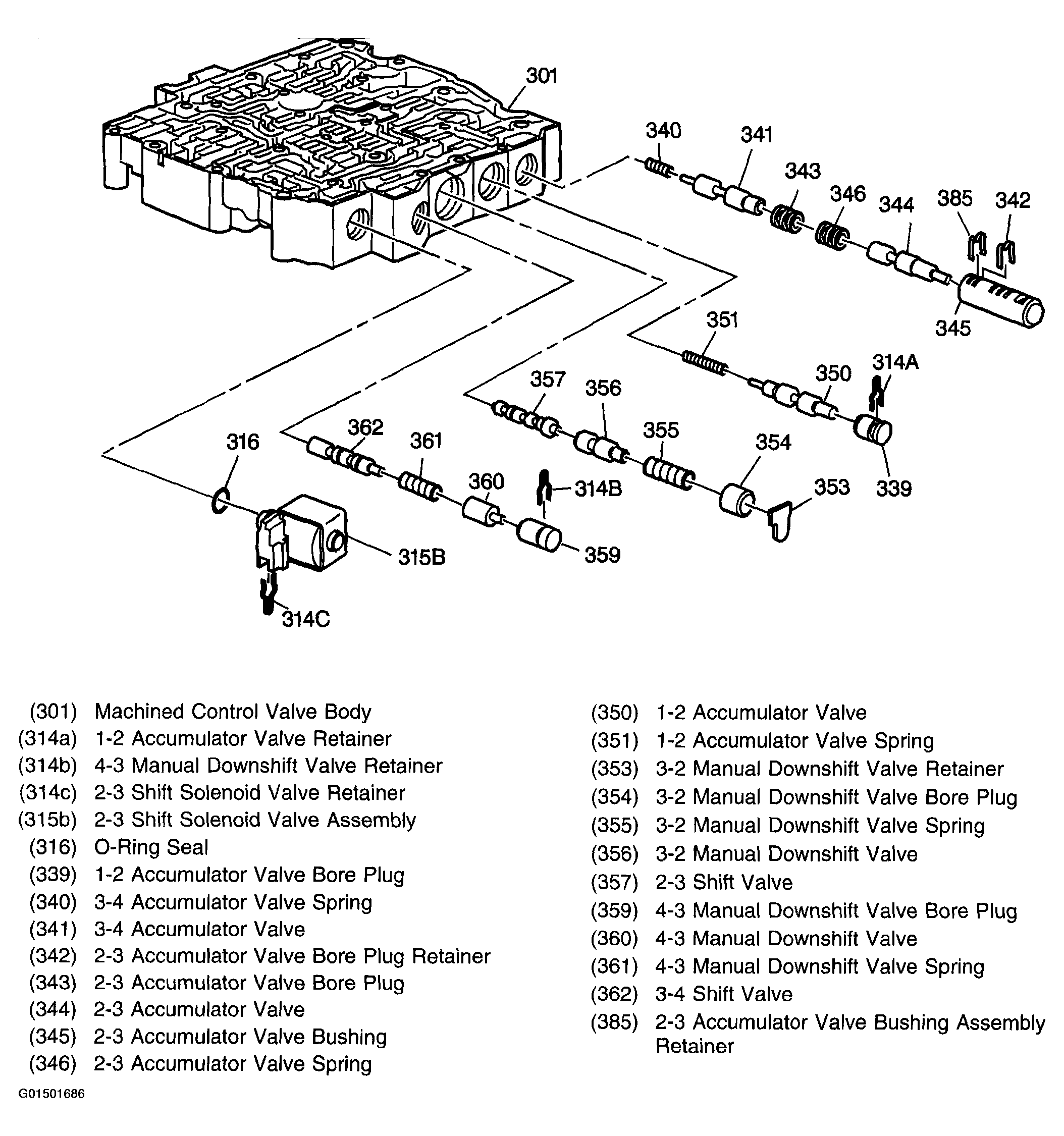

Fig 7: Exploded View Of Control Valve Body Assembly (1 of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 8: Exploded View Of Control Valve Body Assembly (2 of 2)

Courtesy of GENERAL MOTORS CORP.

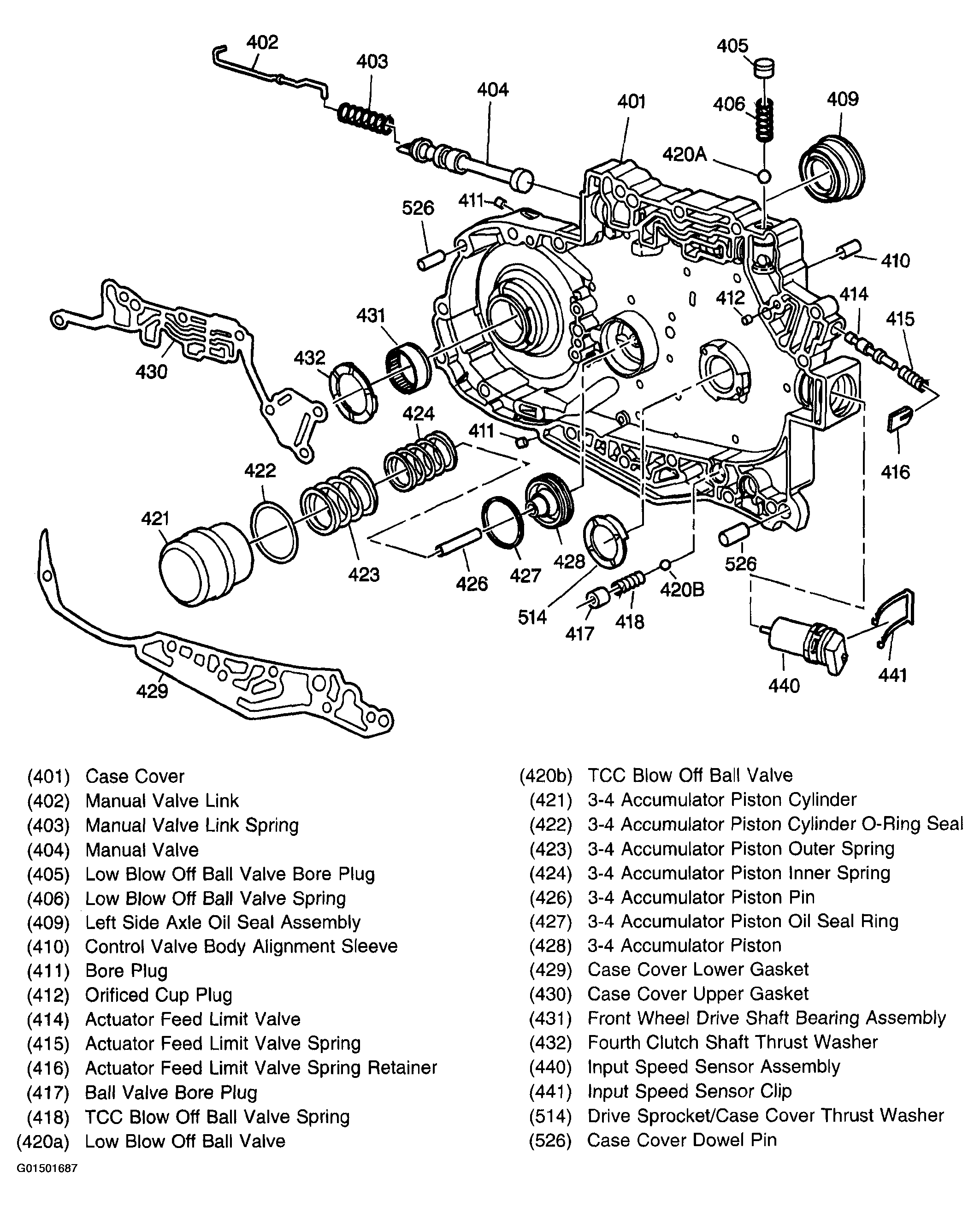

Fig 9: Exploded View Of Case Cover Assembly

Courtesy of GENERAL MOTORS CORP.

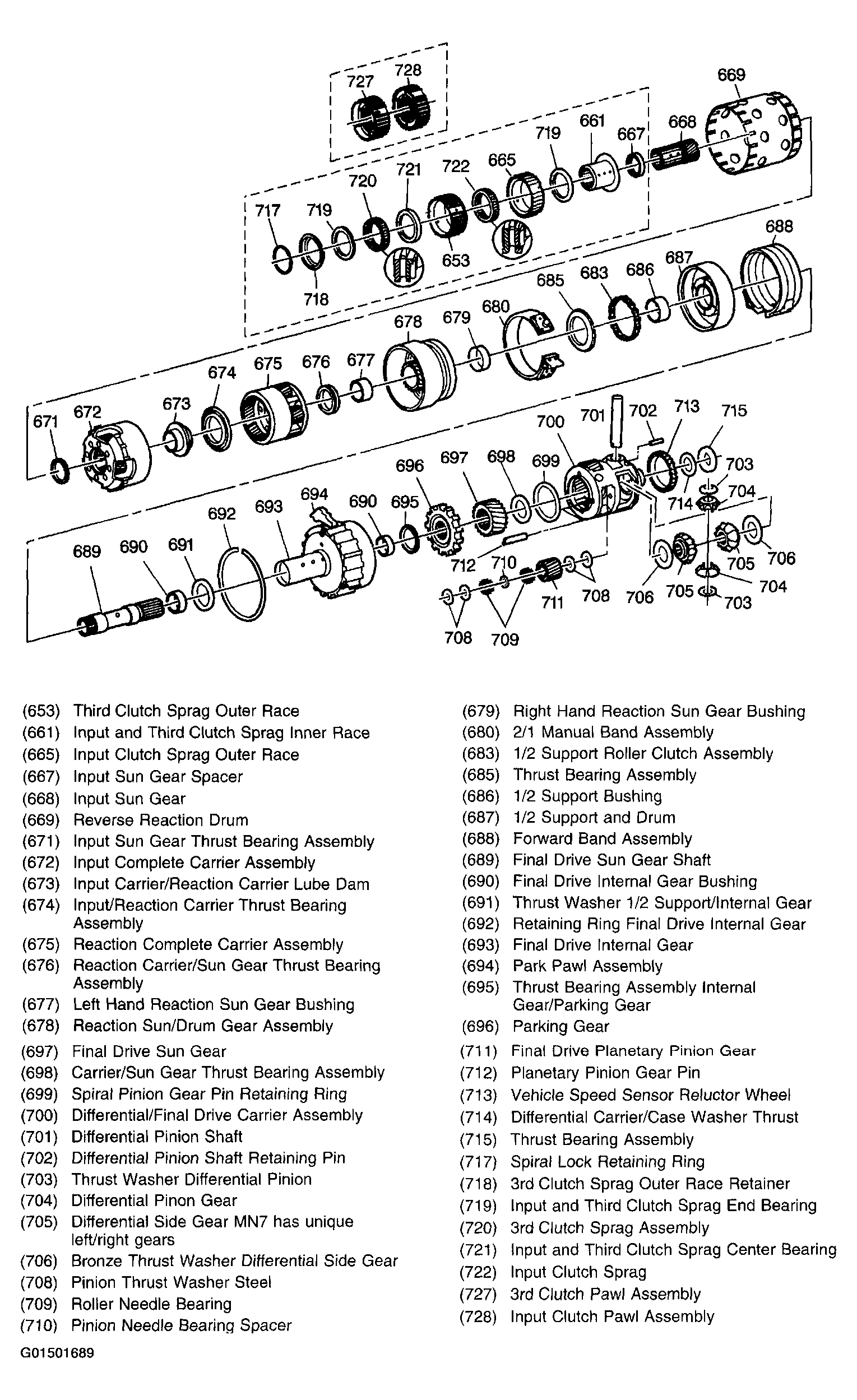

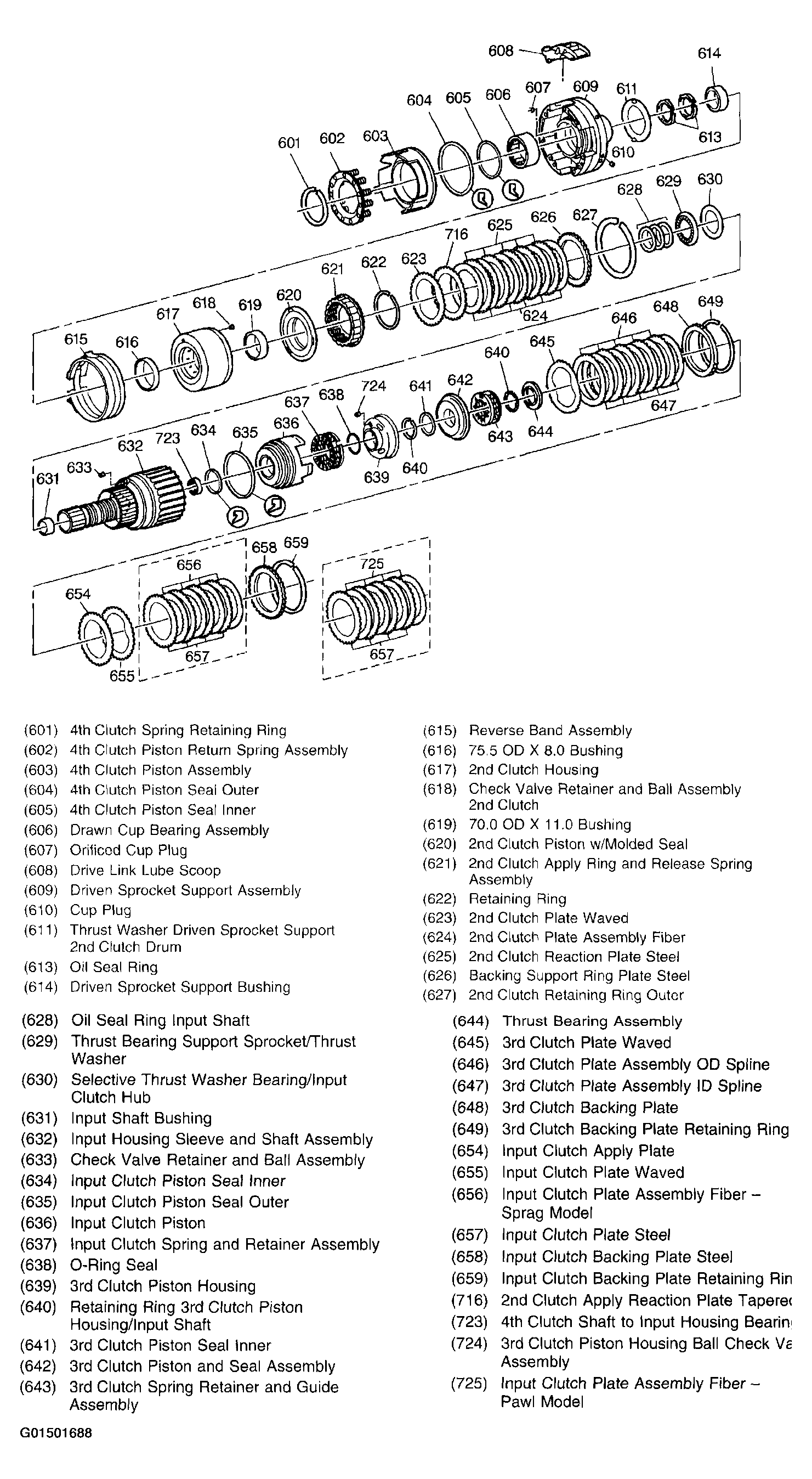

Fig 10: Exploded View Of Internal Components (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 11: Exploded View Of Internal Components (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

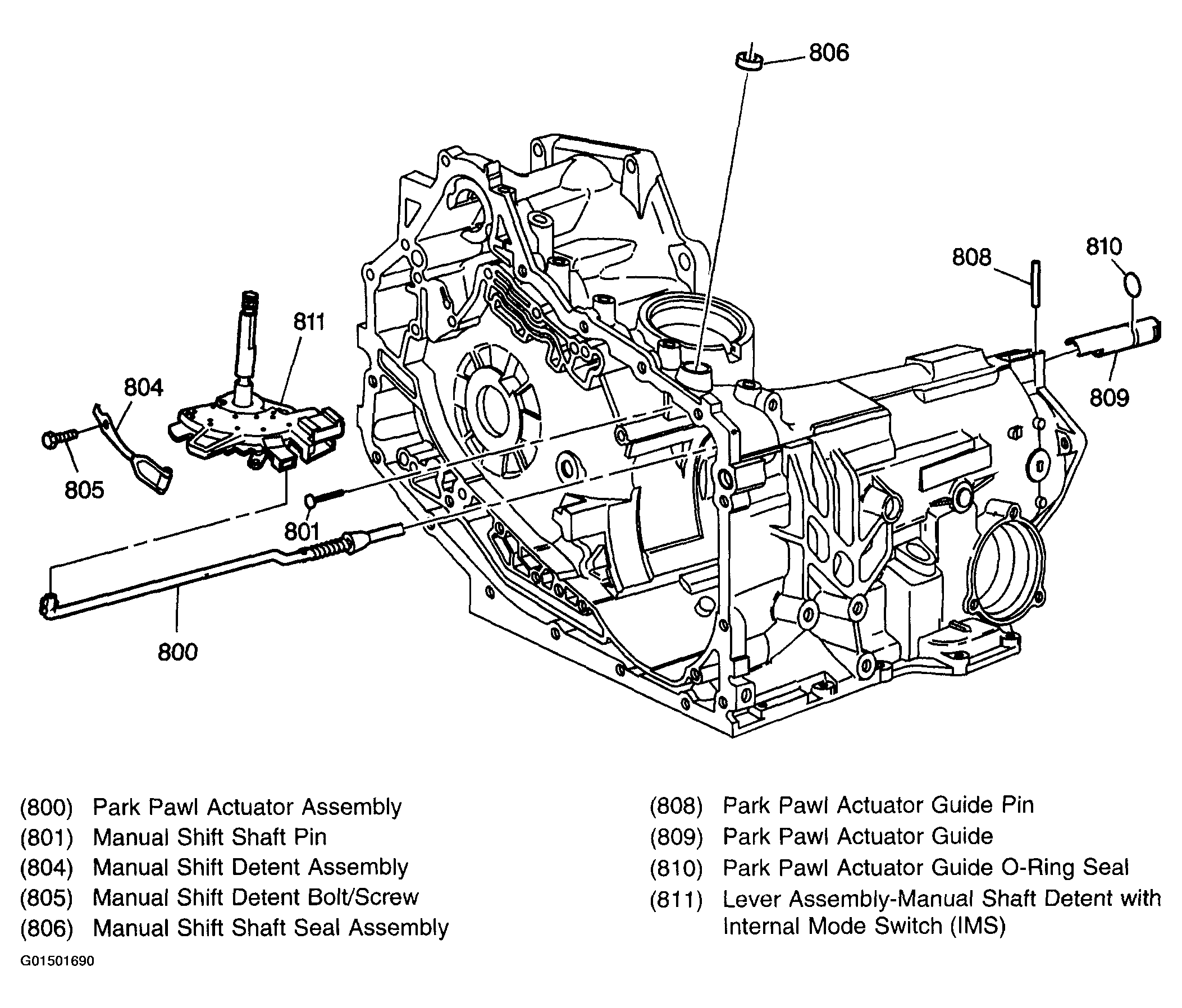

Fig 12: Exploded View Of Manual Shaft And Parking System Assembly

Courtesy of GENERAL MOTORS CORP.

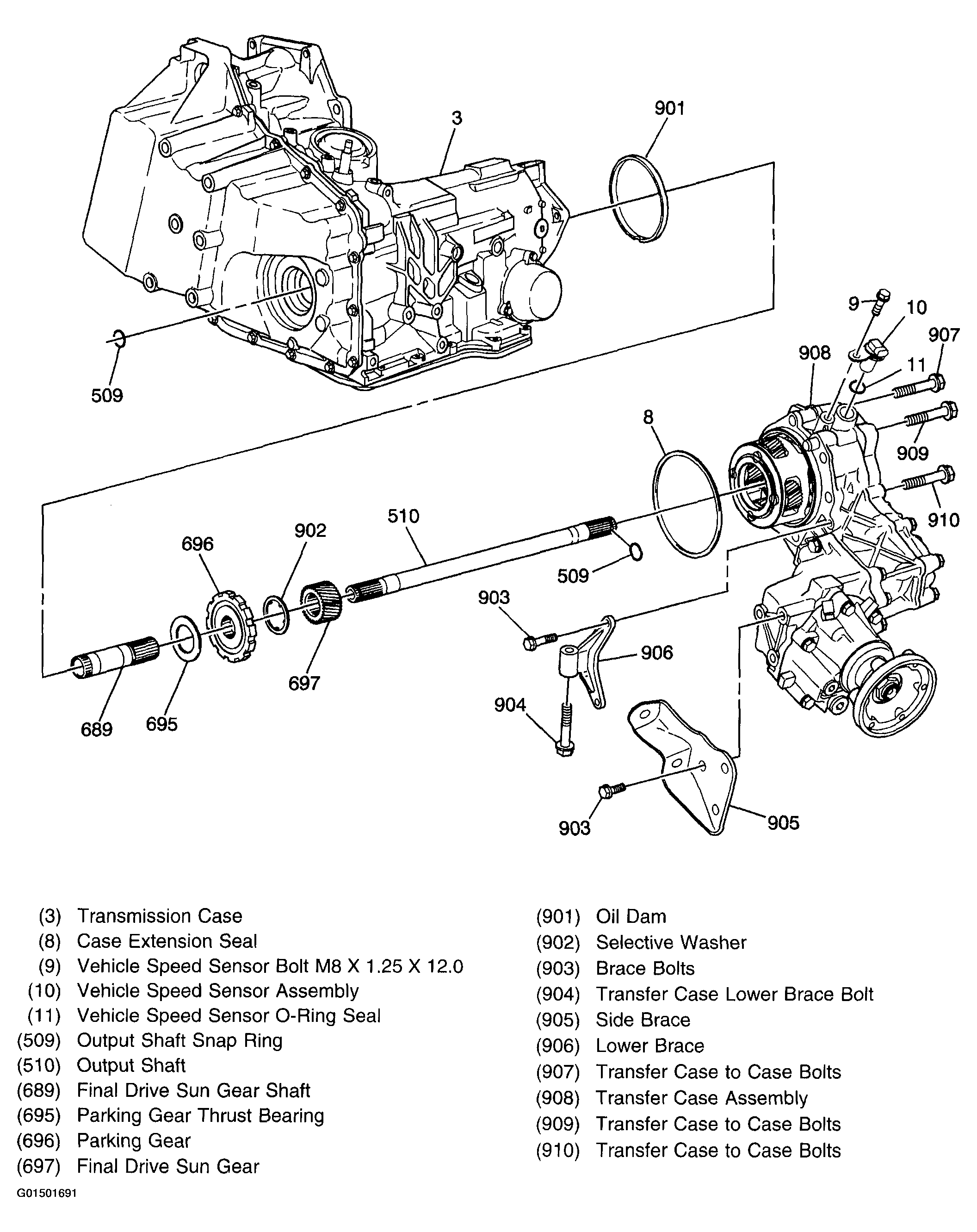

Fig 13: Exploded View Of Transmission To Transfer Case Components

Courtesy of GENERAL MOTORS CORP.
