Automatic Transaxle Diagnosis, Service & Repair - 4T65-E
>>
Specifications
>>
Component Resistance
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Component Resistance

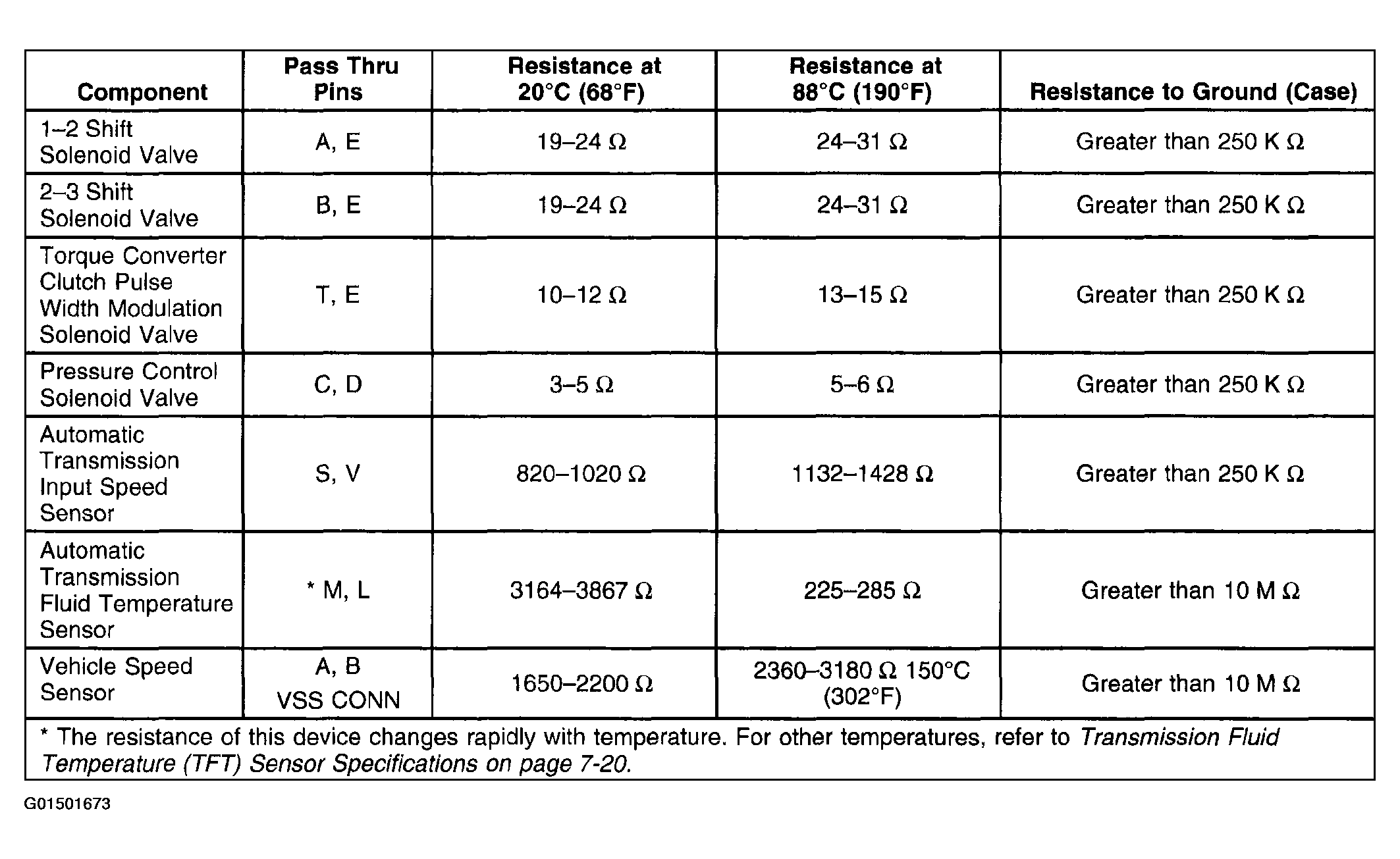

Fig 1: Component Resistance Table
Courtesy of GENERAL MOTORS CORP.
