Transmission Internal Mode Switch Logic

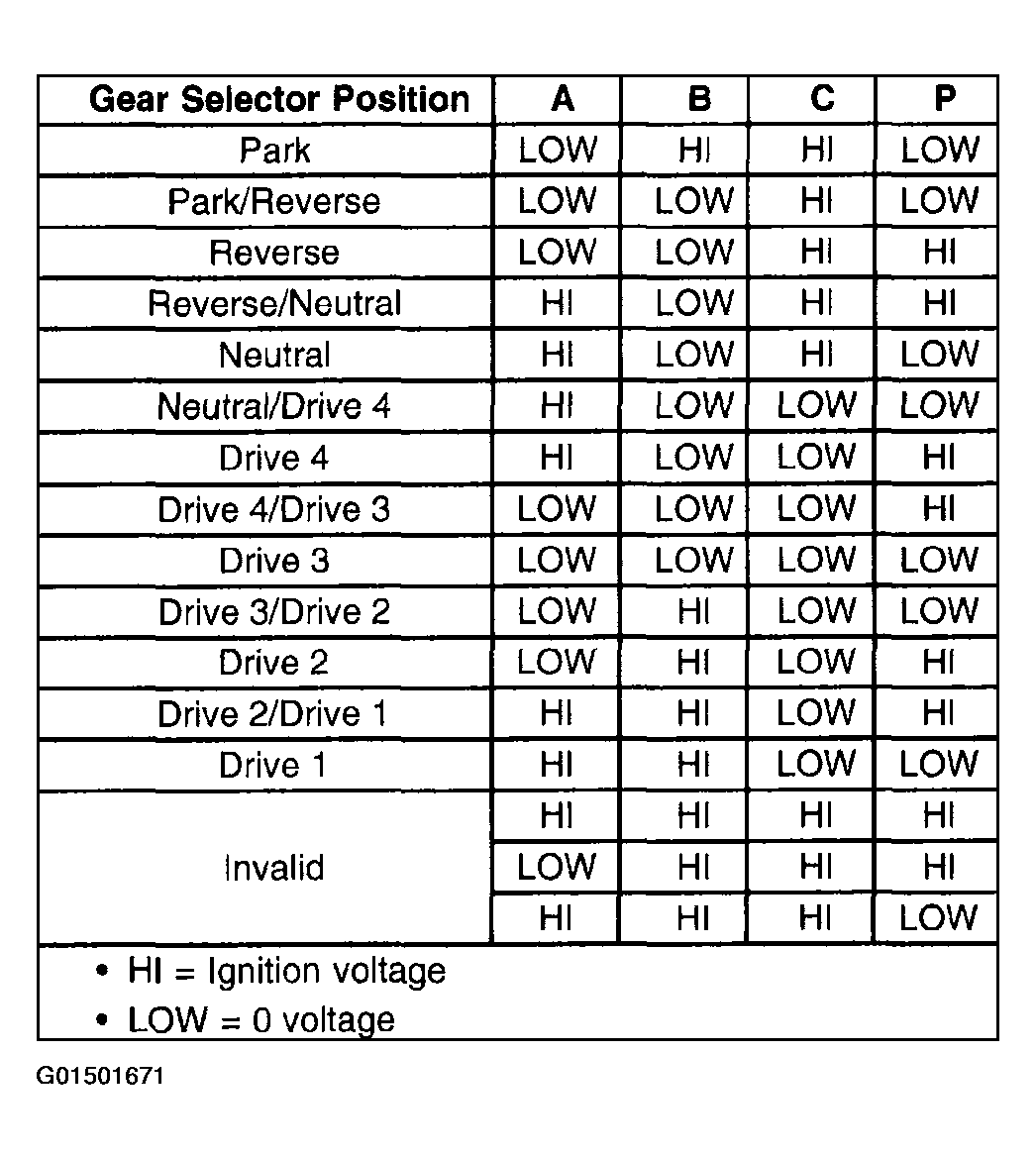

Fig 1: Transmission Internal Mode Switch Logic Table
G01501671Courtesy of GENERAL MOTORS CORP.
