Transfer Case Disassembled View

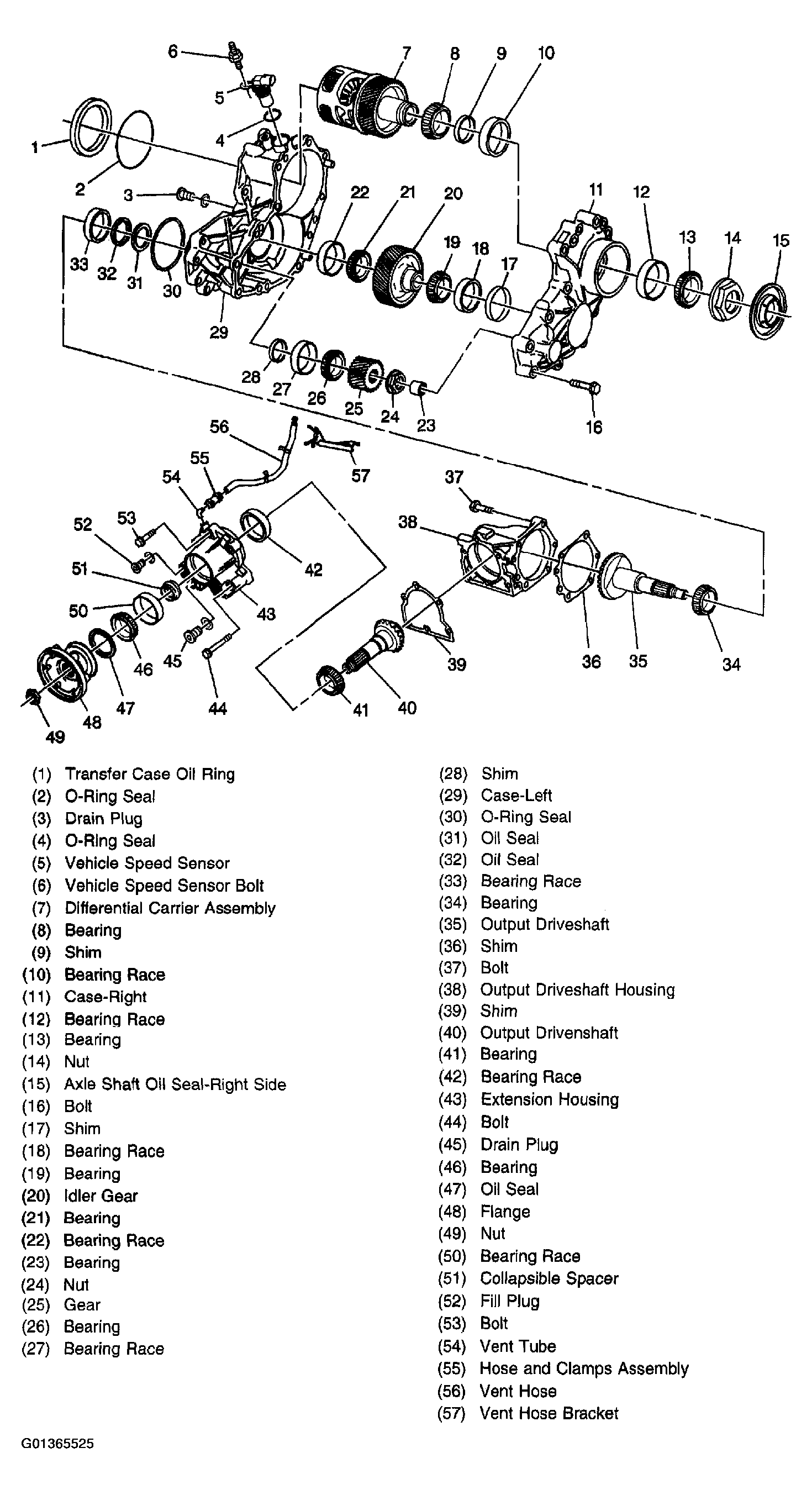

Fig 1: Exploded View Of Transfer Case Assembly
G01365525Courtesy of GENERAL MOTORS CORP.

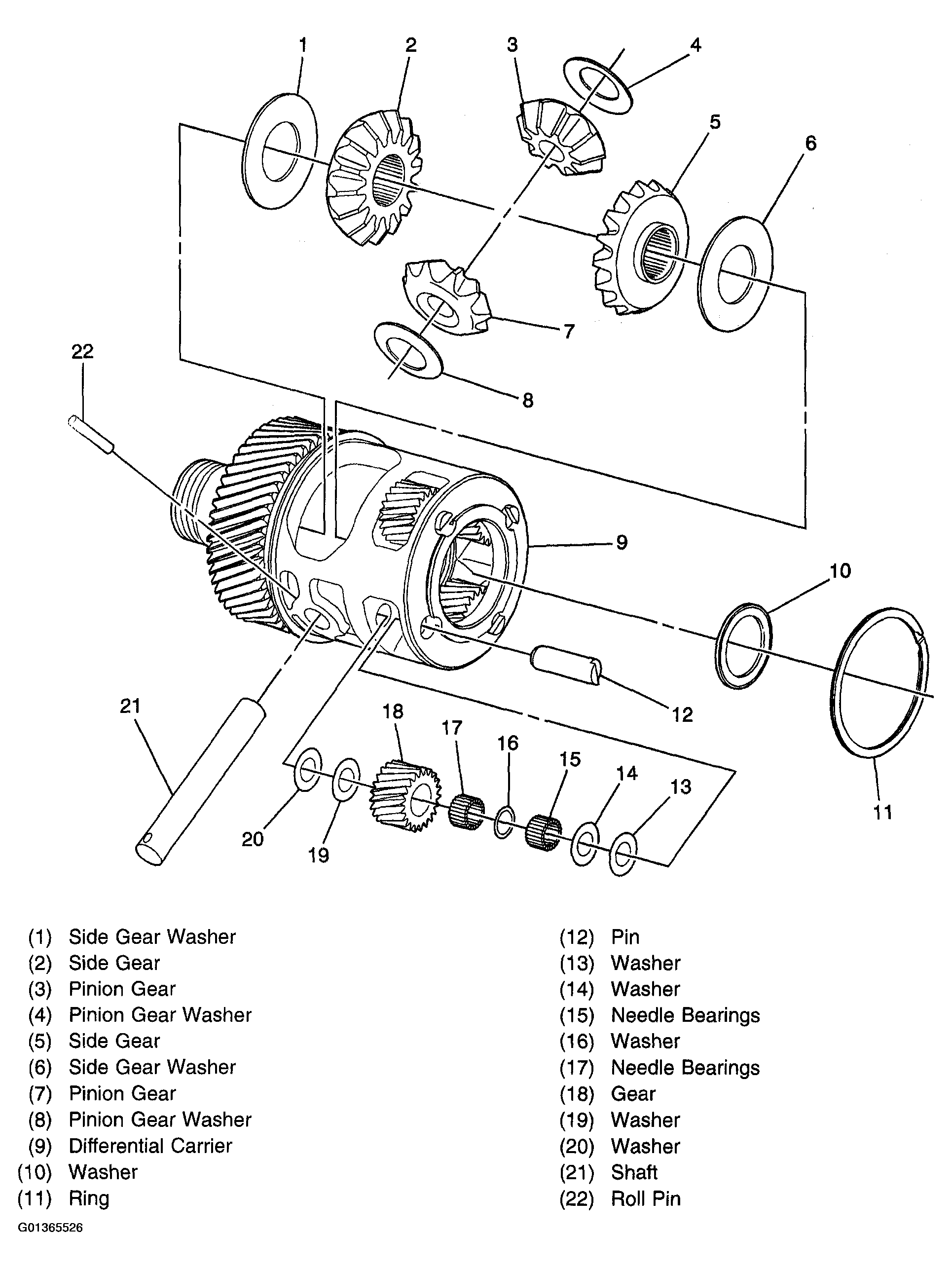

Fig 2: Exploded View Of Carrier Assembly
G01365526Courtesy of GENERAL MOTORS CORP.
