Speed Sensor: Installation

  1. Install O-ring to speed sensor, if removed.
  2. Install speed sensor (1) to transfer case. See Figure .

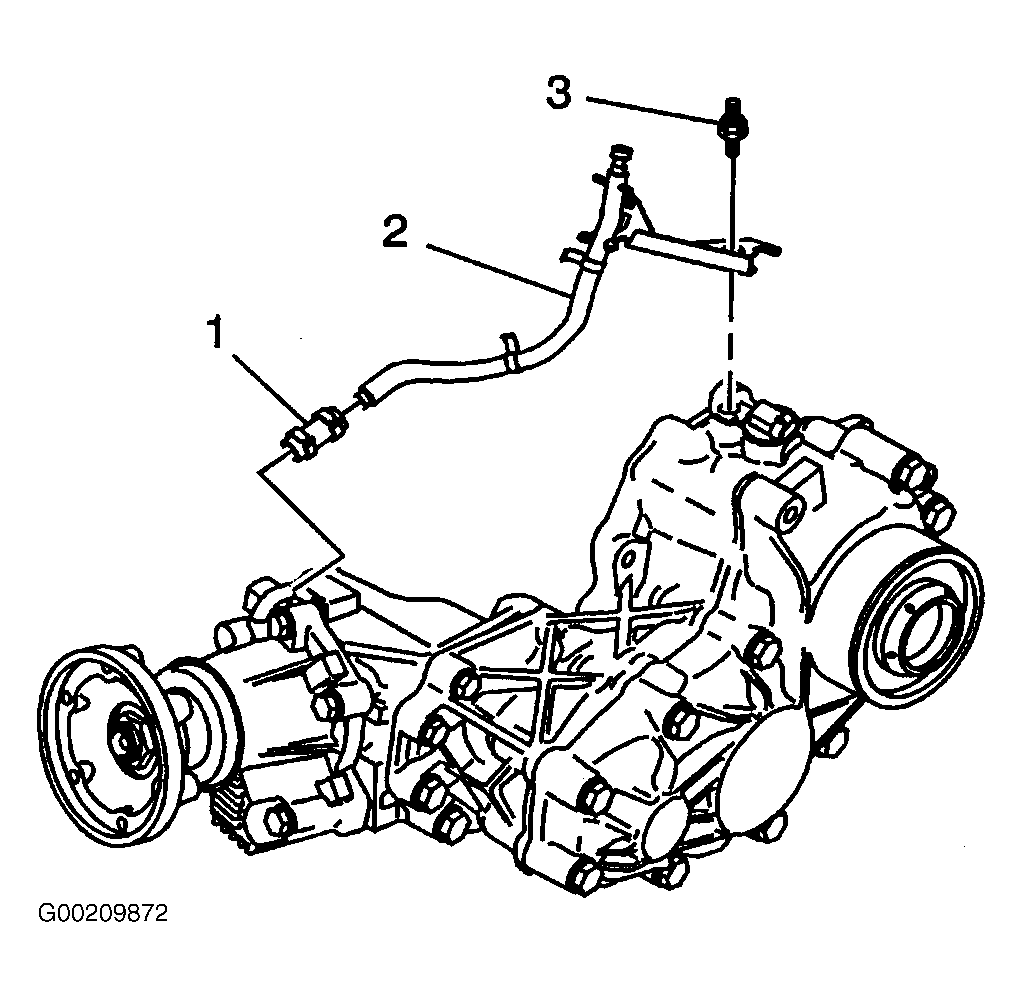

  3. Position pinion housing vent hose (2) and mounting bracket to speed sensor bolt boss. See VENT HOSE  .
  4. Install speed sensor bolt (3) to transfer case. See Figure . Tighten to specification. See TORQUE SPECIFICATIONS  .
  5. Connect electrical connector to speed sensor.
  6. Lower vehicle.
