Installation Procedure

  1. Connect the electrical connectors to the amplifier.
  2. Align the pins on the amplifier to the slots on the bracket.
  3. Slide the amplifier forward until the lock tab is seated.
  4. Install the left IP insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT -- LEFT .

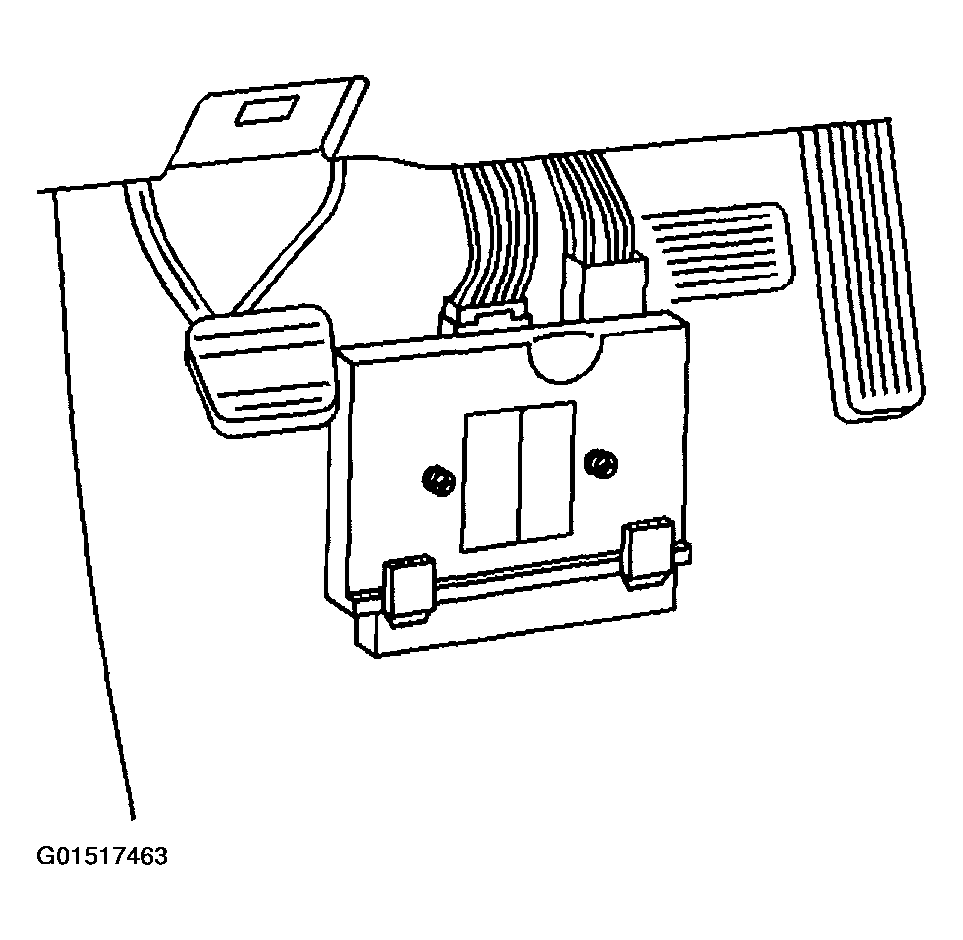

    Fig 1: Connecting Electrical Connectors To Amplifier
    G01517463Courtesy of GENERAL MOTORS CORP.
