Power Seat Systems Connector End Views

Fig 1: I/P Switch Assembly C2 Connector And Pin Identification
G01517985Courtesy of GENERAL MOTORS CORP.
Fig 2: Memory Seat And Mirror Module C1 (A43) Connector And Pin Identification
G01517986Courtesy of GENERAL MOTORS CORP.
Fig 3: Memory Seat And Mirror Module C2 (A43) Connector And Pin Identification
G01517987Courtesy of GENERAL MOTORS CORP.

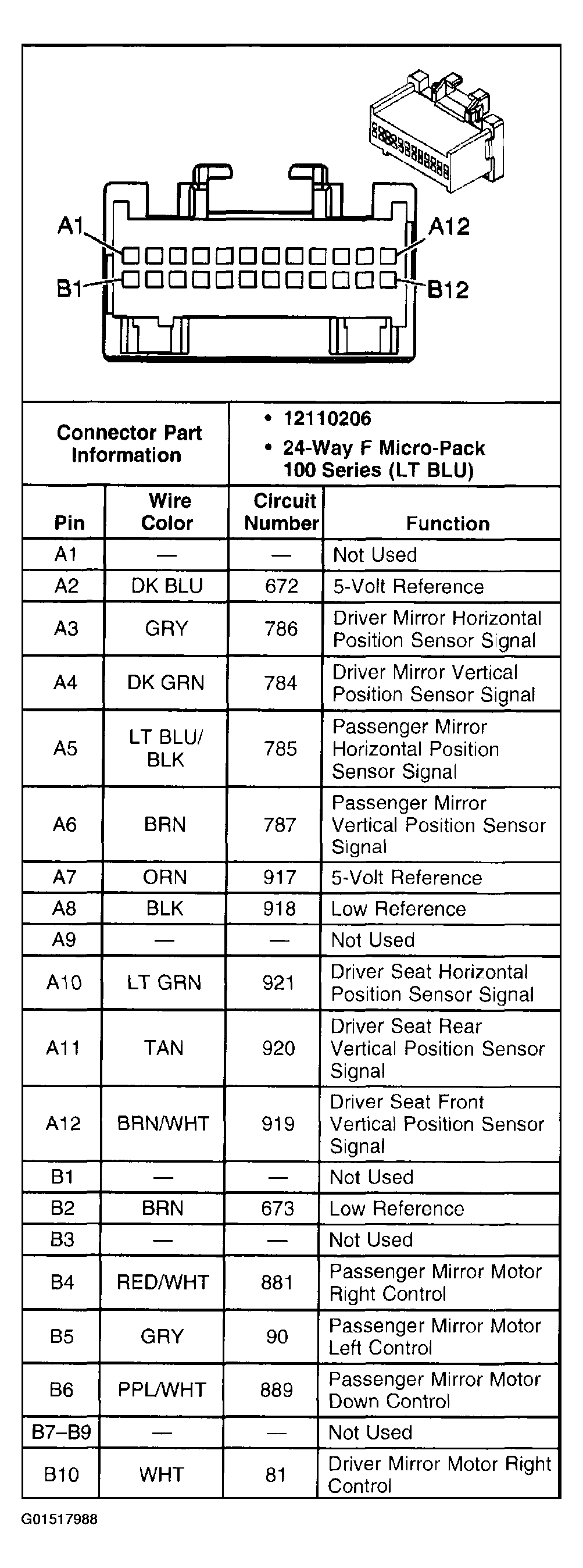

Fig 4: Memory Seat And Mirror Module C3 (A43) Connector And Pin Identification (Pins A1 To B10)
G01517988Courtesy of GENERAL MOTORS CORP.

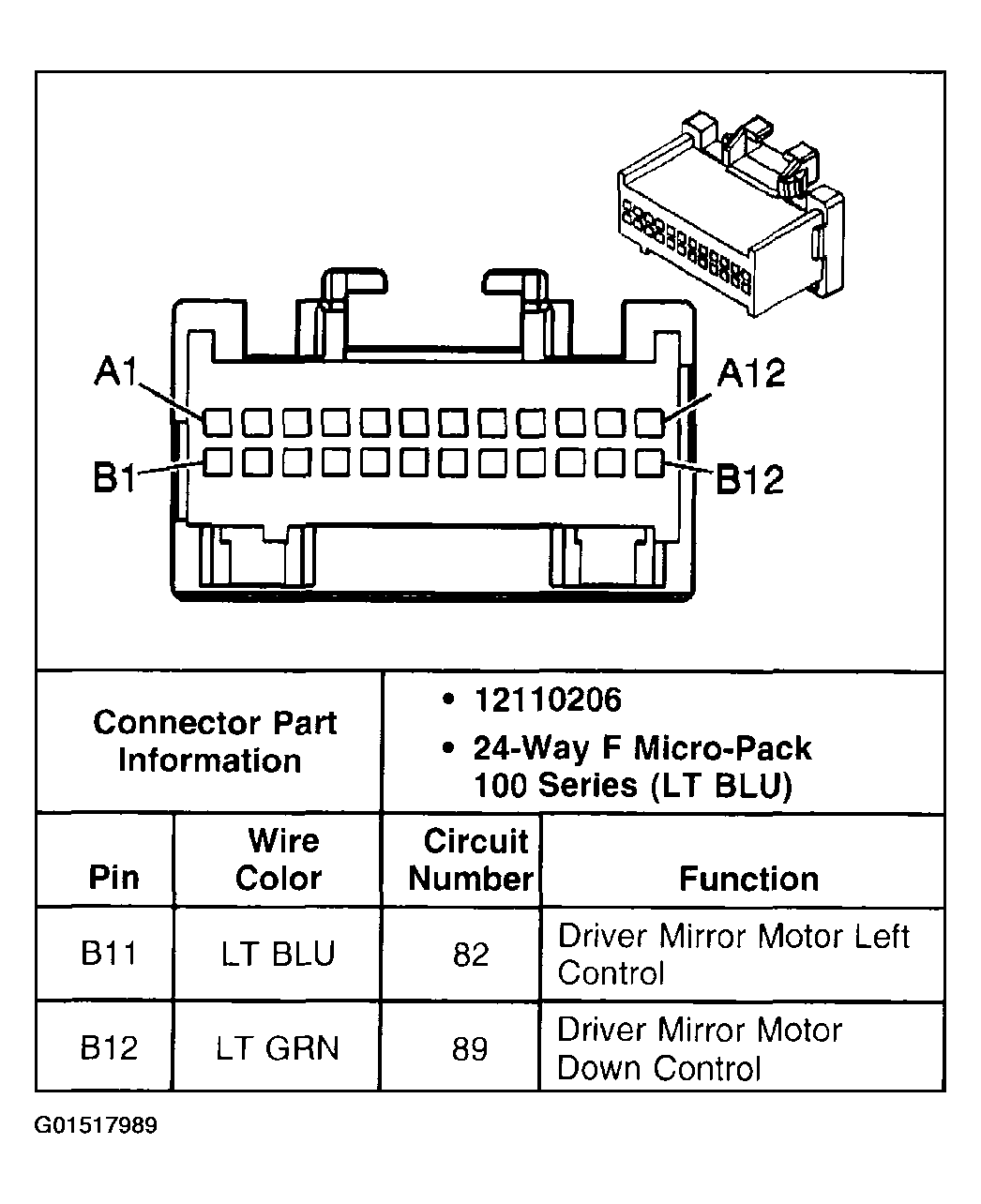

Fig 5: Memory Seat And Mirror Module C3 (A43) Connector And Pin Identification (Pins B11 To B12)
G01517989Courtesy of GENERAL MOTORS CORP.

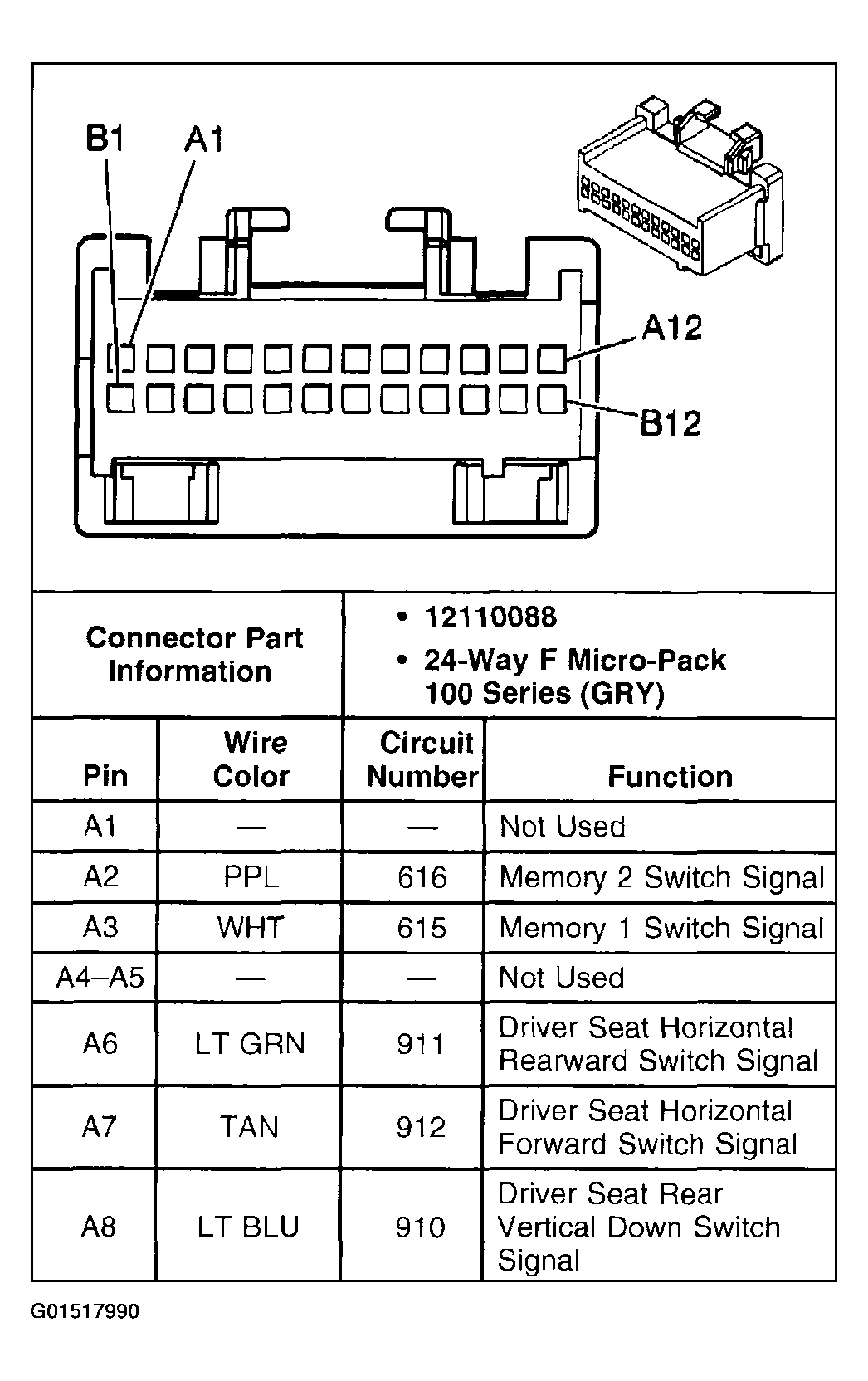

Fig 6: Memory Seat And Mirror Module C4 (A43) Connector And Pin Identification (Pins A1 To A8)
G01517990Courtesy of GENERAL MOTORS CORP.

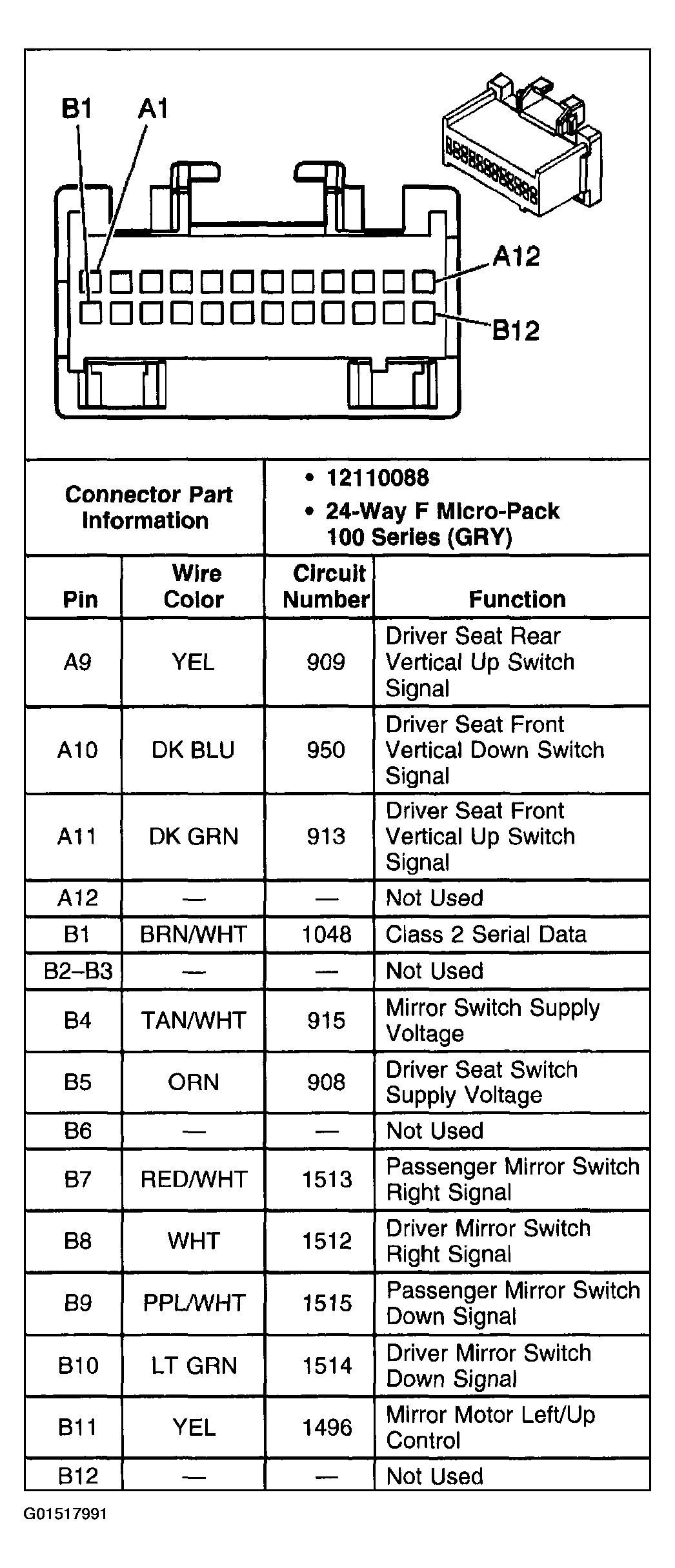

Fig 7: Memory Seat And Mirror Module C4 (A43) Connector And Pin Identification (Pins A9 To B12)
G01517991Courtesy of GENERAL MOTORS CORP.

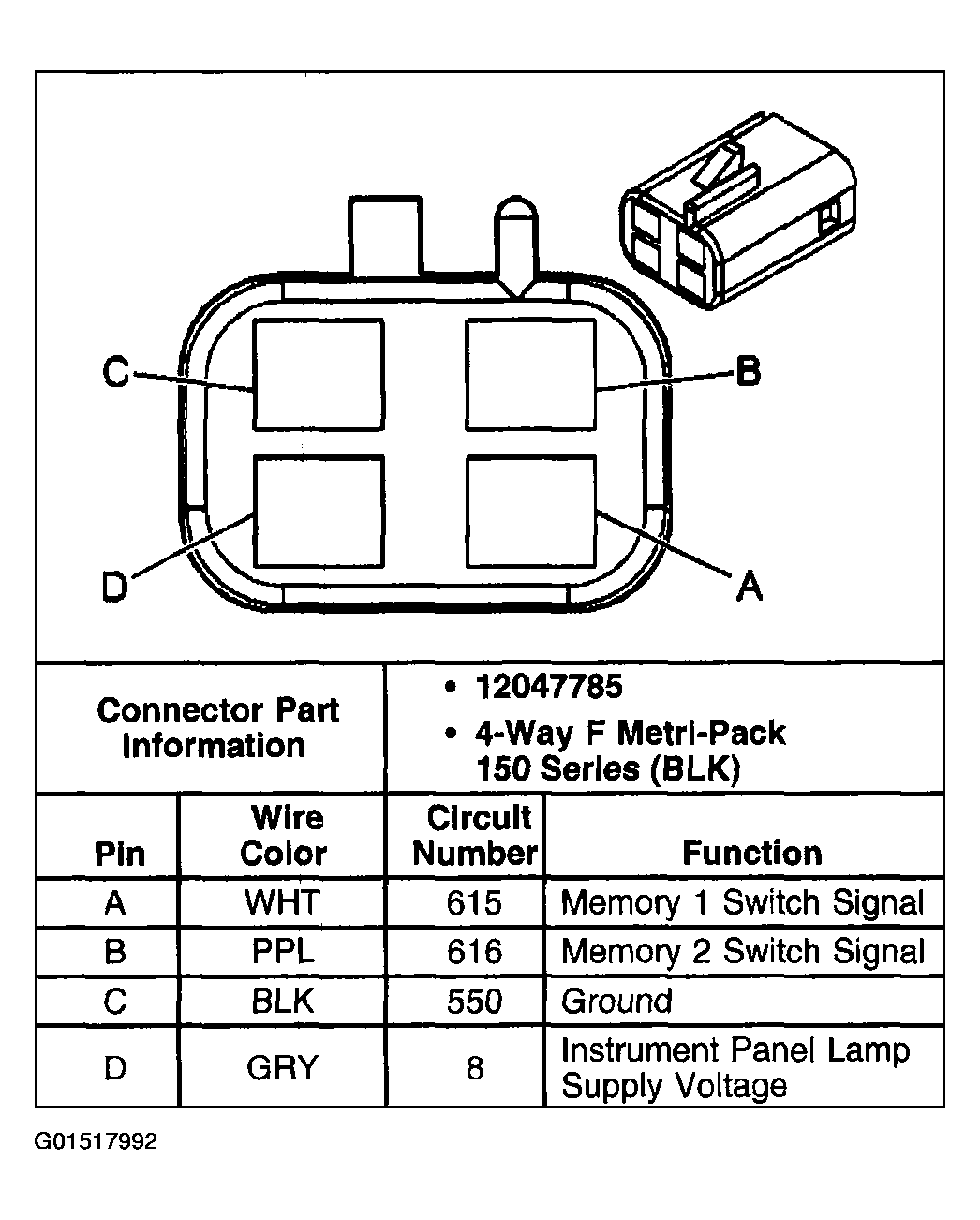

Fig 8: Memory Seat And Mirror Switch (A43) Connector And Pin Identification
G01517992Courtesy of GENERAL MOTORS CORP.

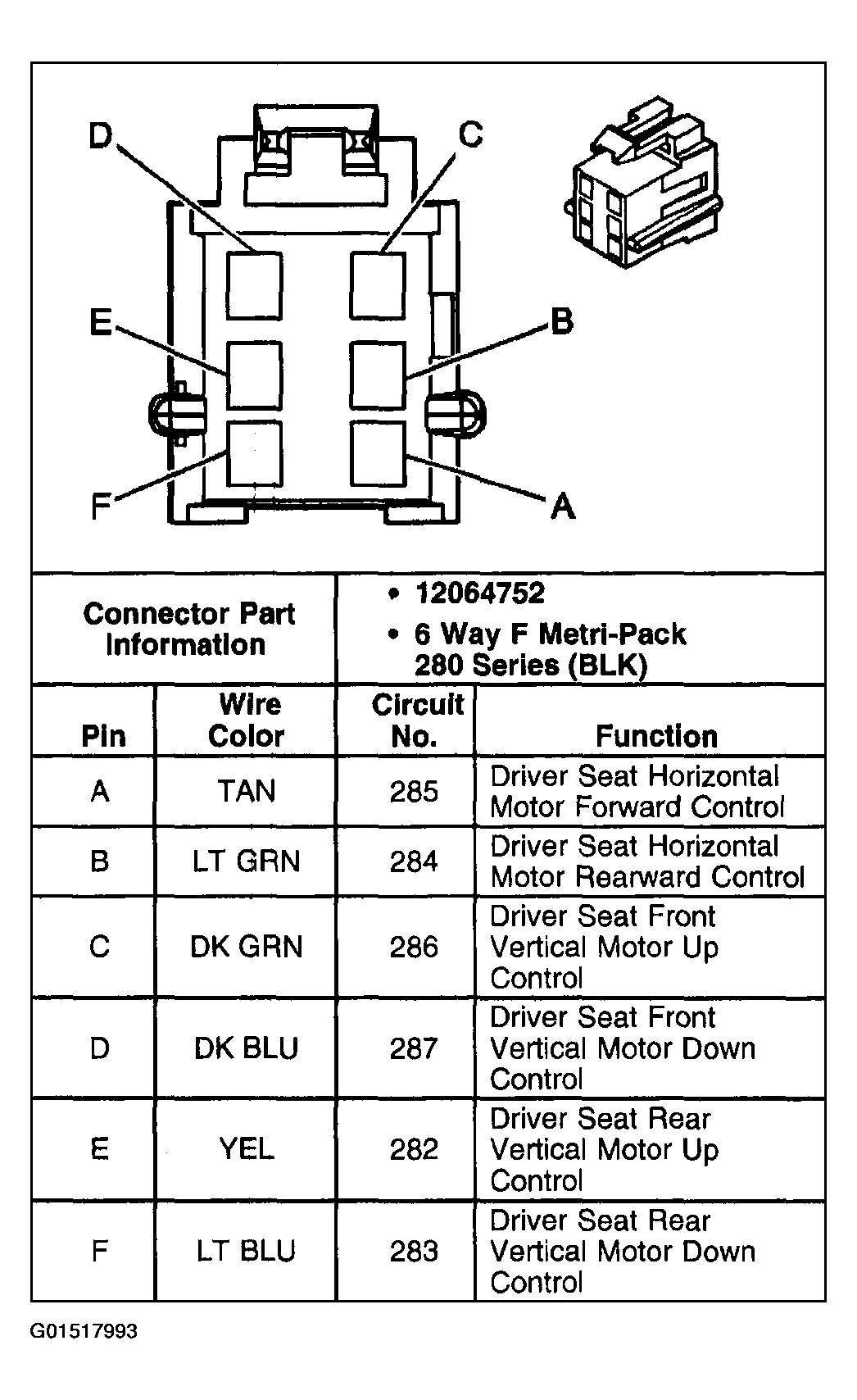

Fig 9: Driver Seat Adjuster Motor Assembly Connector And Pin Identification
G01517993Courtesy of GENERAL MOTORS CORP.

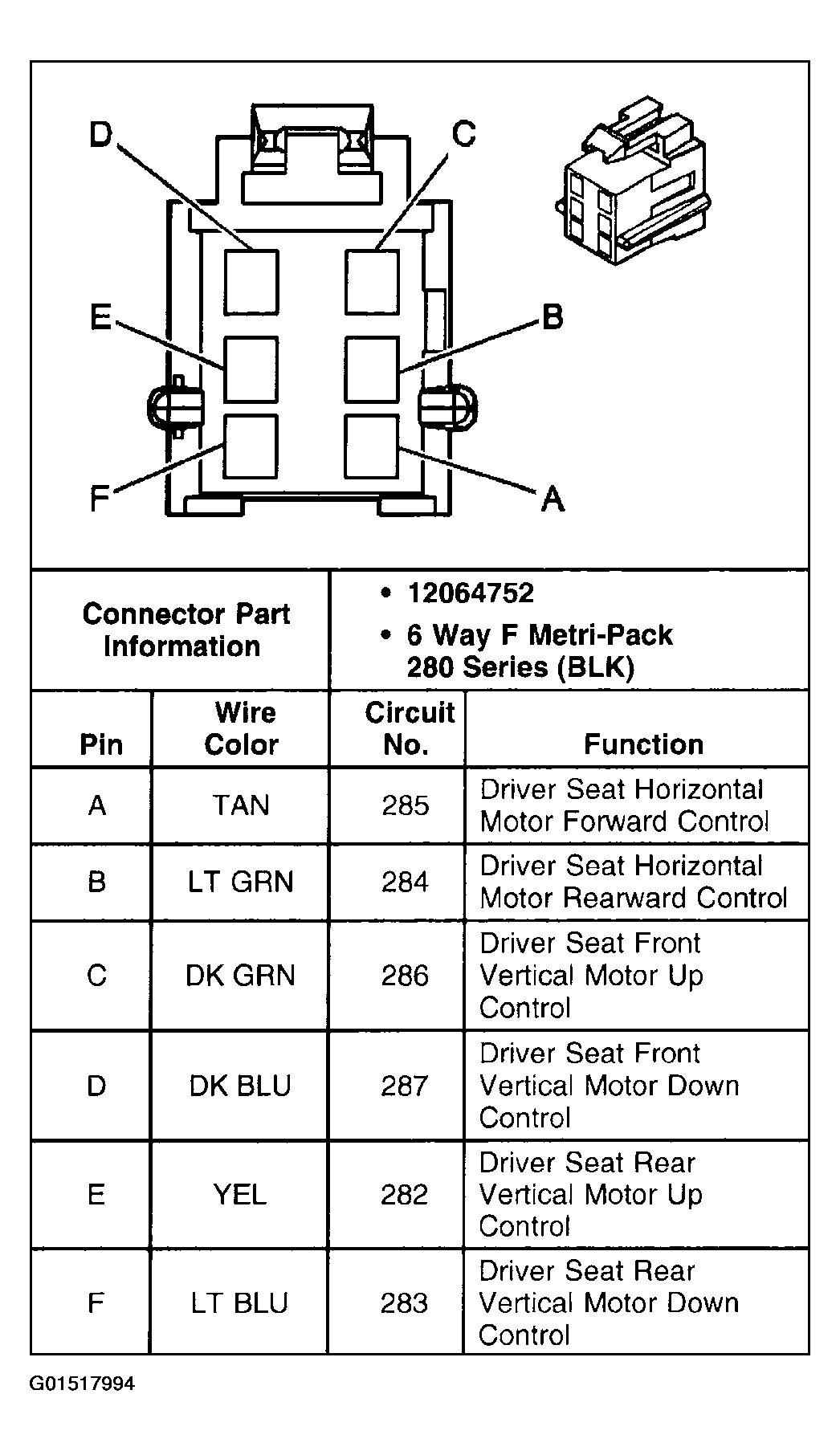

Fig 10: Front Passenger Seat Adjuster Motor Assembly Connector And Pin Identification
G01517994Courtesy of GENERAL MOTORS CORP.

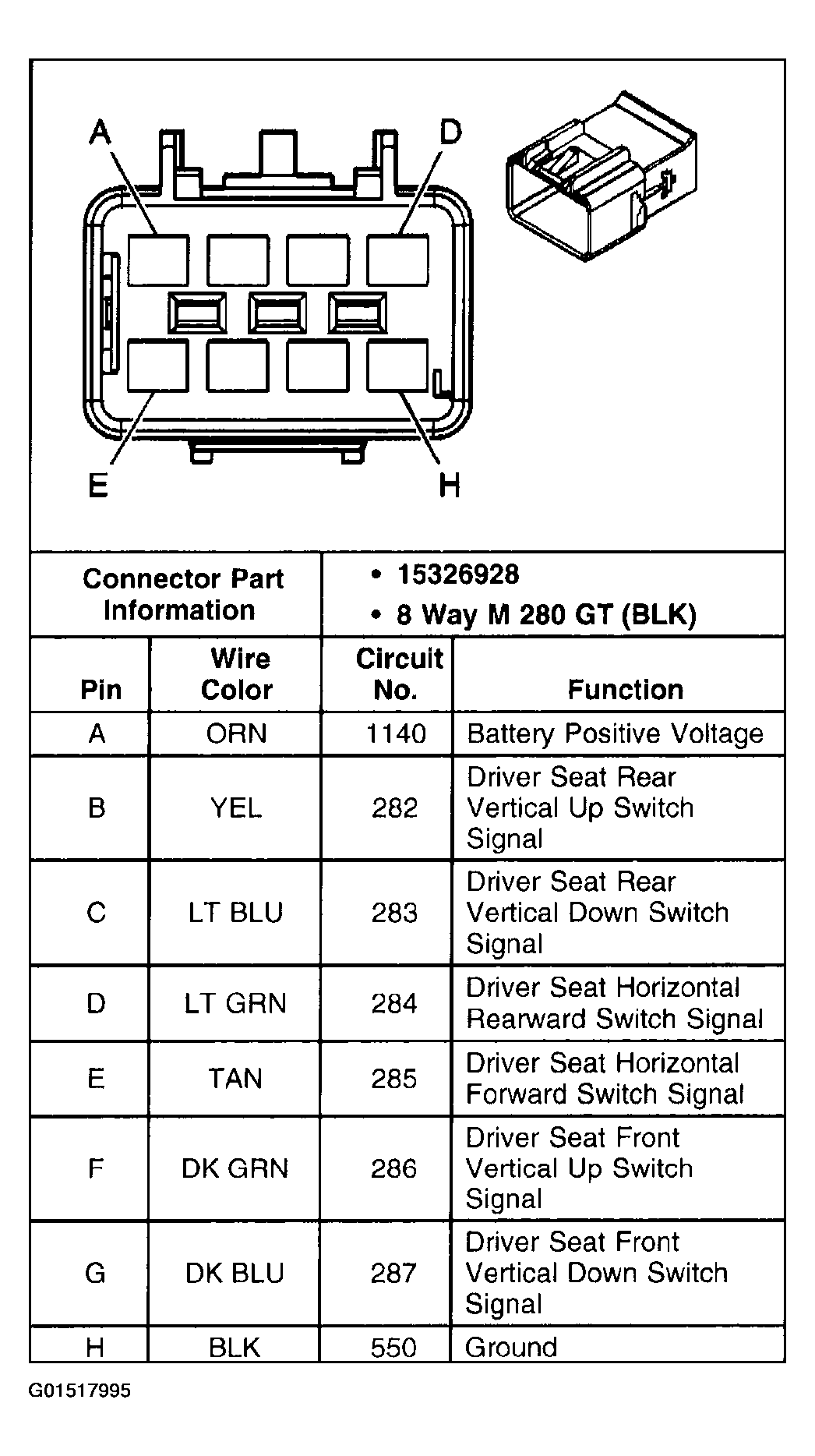

Fig 11: Driver (W/O A43) Seat Adjuster Switch Connector And Pin Identification
G01517995Courtesy of GENERAL MOTORS CORP.

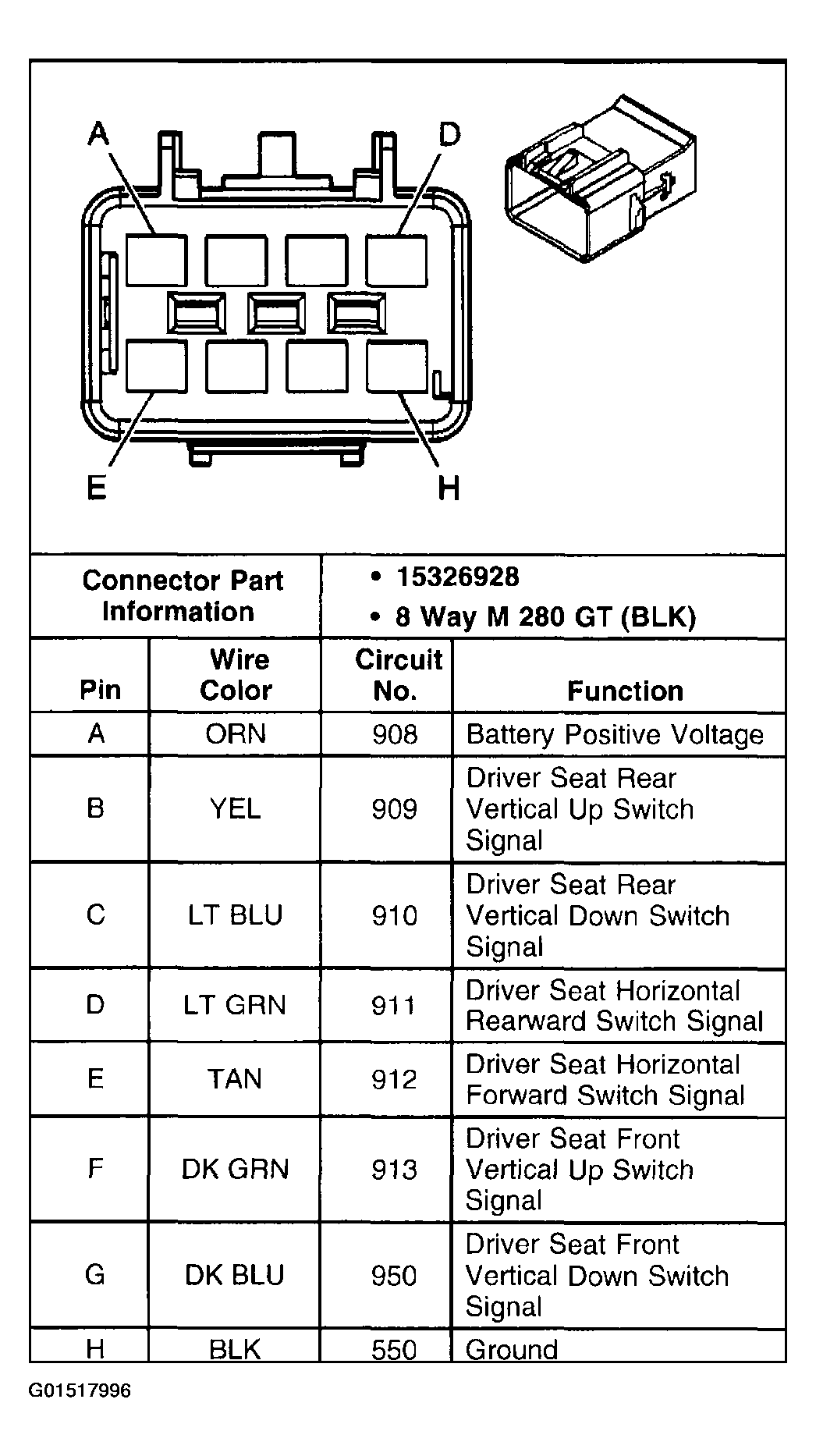

Fig 12: Driver (A43) Seat Adjuster Switch Connector And Pin Identification
G01517996Courtesy of GENERAL MOTORS CORP.

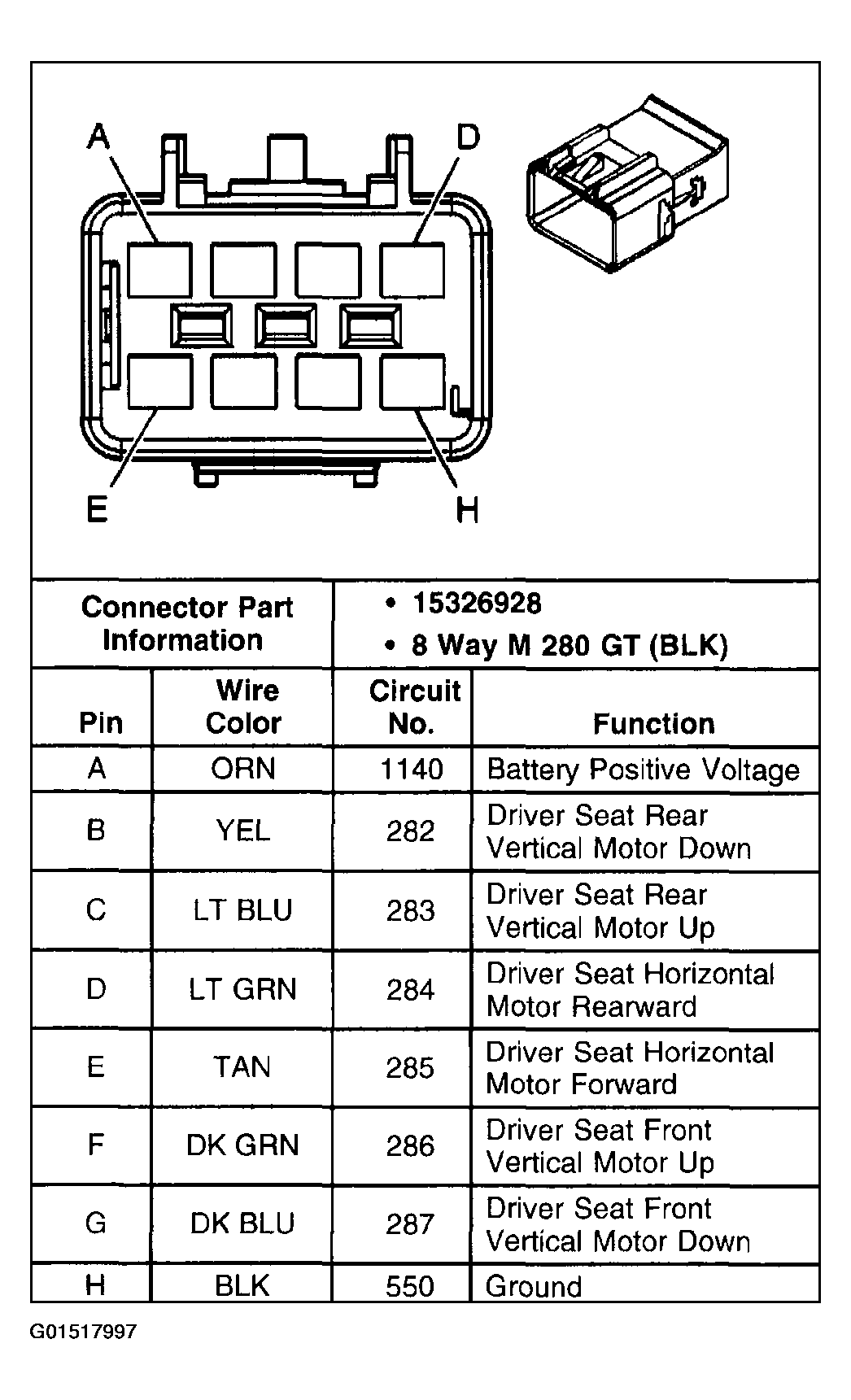

Fig 13: Front Passenger Seat Adjuster Switch Connector And Pin Identification
G01517997Courtesy of GENERAL MOTORS CORP.
